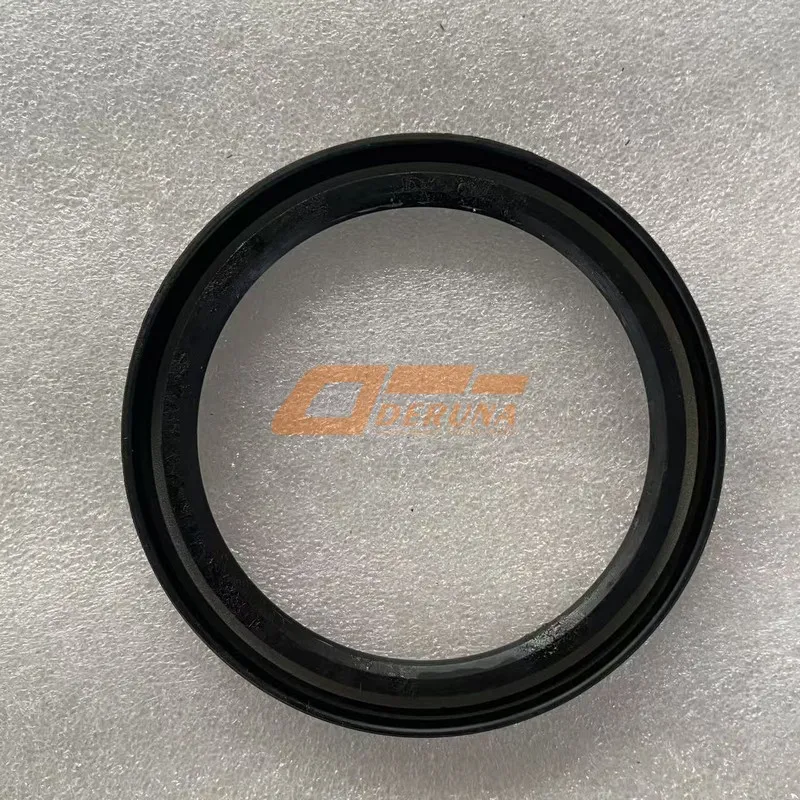

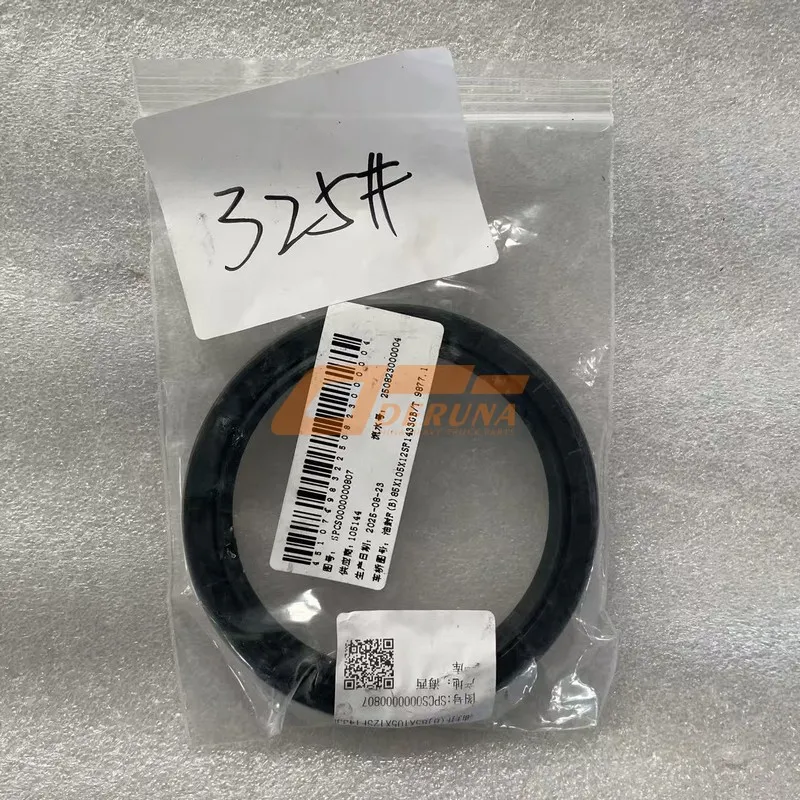

Precision sealing for rotating shafts in heavy‑duty applications – The OEM GB/T 9877.1 Oil Seal F(B)85X105X12 is designed to prevent lubricant leakage and block contaminants in axles, transmissions, and engine front covers. Manufactured under the stringent Chinese national standard, this seal features a rubber‑bonded metal case, a dual sealing lip, and a garter spring for constant radial force. For guaranteed compatibility and performance, always choose genuine Sinotruk Homan parts.
The GB/T 9877.1 oil seal is dimensioned as 85 mm inner diameter, 105 mm outer diameter, and 12 mm width, with a rubber outer cover (type FB – with auxiliary dust lip). It provides outstanding sealing performance in temperatures from -40°C to +120°C and rotating speeds up to 3500 rpm.
The GB/T 9877.1 oil seal is constructed with a nitrile rubber (NBR) compound that offers excellent resistance to mineral oils, diesel, and greases. The sealing lip is precision‑molded and then ground to a mirror finish (Ra ≤ 0.2 μm) to minimize friction and wear on the shaft. A stainless steel garter spring maintains constant radial load, compensating for minor shaft runout and thermal expansion.
What sets this genuine seal apart from aftermarket copies is the integral dust lip (type F(B) design). This secondary lip blocks dirt, water, and road salt from reaching the main sealing edge, dramatically extending seal life in off‑highway and mining applications. The metal case is zinc‑plated and coated with a rubber bonding adhesive to prevent corrosion and ensure a tight interference fit in the housing bore.
Each seal is 100% inspected for lip geometry, spring tension, and outer diameter dimensions. The rubber compound is formulated to resist hardening and cracking even after 5,000 hours of continuous hot oil exposure. This is why SINOTRUK Homan specifies GB/T 9877.1 for critical rotating shafts on their most demanding vehicles.
Primary sealing lip retains oil; secondary dust lip excludes contaminants. Ideal for dusty, muddy or snowy operating conditions.
NBR rubber (70 Shore A) resists swelling, oil degradation, and ozone cracking. Operates from -40°C to +120°C.
Zinc‑plated steel case, rubber‑bonded to prevent internal leakage. Provides a 0.1‑0.2 mm interference fit for secure housing retention.
| OEM Standard | GB/T 9877.1 |
| Product Name | Oil Seal F(B)85X105X12 (Rotary Shaft Seal with dust lip) |
| Brand | SINOTRUK Homan |
| Dimensions (d x D x b) | 85 mm (shaft) x 105 mm (housing) x 12 mm (width) |
| Seal Type | FB – rubber covered outer diameter, dust lip on air side |
| Material (Elastomer) | Nitrile rubber (NBR), 70 Shore A ±5 |
| Case Material | Stamped steel, zinc‑plated, rubber‑bonded |
| Spring Type | Stainless steel garter spring (AISI 302) |
| Operating Temperature | -40°C to +120°C (-40°F to +248°F) |
| Max Shaft Speed | 3500 rpm (continuous) |
| Max Pressure (static) | 0.5 bar (7 psi) at lip |
| Media Compatibility | Engine oil, gear oil, transmission fluid, diesel, grease, water‑glycol |
| Shaft Hardness Requirement | ≥ 45 HRC (surface hardness), Ra 0.2‑0.4 μm finish |
| Housing Bore Finish | Ra ≤ 1.6 μm, chamfered edge (2‑3 mm, 15°) |
| Service Life | 800,000 km / 15,000 hours (typical) |
| Compatible Components | SINOTRUK Homan drive axles, gearboxes, engine front covers, wheel hubs |
The GB/T 9877.1 oil seal is produced in a class‑10,000 clean room using automatic compression molding presses. Each batch of NBR compound is tested for tensile strength (≥ 15 MPa), elongation (≥ 300%), and compression set (≤ 25% at 100°C). The lip profile is optimized using FEA to ensure an even contact pressure band of 0.8‑1.2 mm across the entire circumference, eliminating helical leaks.
The garter spring is wound from 0.5 mm stainless steel wire, then heat‑set to maintain consistent tension. The spring ends are laser‑welded to prevent uncoiling. The metal case is stamped to a tolerance of ±0.1 mm on the outer diameter, providing a secure interference fit (0.1‑0.2 mm) in the housing bore, preventing rotation or extrusion.
After assembly, every seal is 100% leak‑tested with air pressure (0.5 bar) and a high‑frequency vibration rig to verify lip conformity. The dust lip is inspected with a borescope for any flash or voids. The result is a seal that reliably exceeds 15,000 hours of operation in heavy‑duty axles.
The NBR compound used in the GB/T 9877.1 seal is formulated to resist swelling in biodiesel blends (up to B20) and remains flexible down to -40°C without cracking. Accelerated aging tests (air oven, 125°C for 70 hours) show less than 15% change in hardness and tensile strength, far exceeding ISO 6194 requirements.
The zinc plating on the metal case passes 240 hours of salt spray (ASTM B117), protecting the seal bore from rust even in coastal or winter‑salt environments. The rubber‑bonding adhesive is moisture‑cured and chemically resistant to engine oil, ensuring the rubber never separates from the case.
The GB/T 9877.1 oil seal fits standard housing bores of 105 mm (±0.05 mm) and shafts of 85 mm (h9 tolerance). It is a direct replacement for original seals in SINOTRUK Homan drive axles, wheel hubs, and gearboxes.
Installation tips: 1) Lubricate the seal lip with clean oil before assembly. 2) Use a protective sleeve over the shaft splines to avoid lip damage. 3) Press the seal squarely into the housing using a mandrel that contacts only the metal case (never the rubber). 4) Ensure the seal lip faces the oil side (spring visible on oil side). 5) The dust lip should face outward to block contaminants.
1) Clean the housing bore and the shaft thoroughly, removing any burrs, rust, or old seal residue. 2) Inspect the shaft for grooves; if a groove is deeper than 0.2 mm, consider a Speedi‑Sleeve or replace the shaft.
3) Apply a thin film of grease to the seal lip and the outer case (to ease installation). 4) Align the seal square to the housing, then press it in using a flat tool that contacts the metal case only. Never hammer directly on the rubber.
5) Install to the correct depth (flush with housing or as per service manual). 6) Lubricate the shaft and slide it into position, taking care not to damage the lip. 7) After assembly, rotate the shaft by hand to verify smooth rotation and no lip roll‑over.
The GB/T 9877.1 oil seal requires no scheduled maintenance, but early signs of failure include oil leaks on the outside of the housing or grease accumulation around the dust lip. Causes of premature failure: damaged shaft surface (scratches, wear grooves), incorrect installation (twisted lip, off‑square), or excessive pressure build‑up in the housing (clogged vent).
If a leak appears, inspect the shaft for wear; often the seal is replaced but the shaft is not, leading to rapid repeat failure. Always replace the seal and repair the shaft (or install a sleeve) as a set. Do not reuse an old seal after removal – the lip will have taken a permanent set and will not seal properly.
The GB/T 9877.1 oil seal is manufactured under IATF 16949 and ISO 14001 certified systems. Each seal is 100% tested for lip geometry (optical inspection), spring tension (load measurement), and outer diameter (laser gauge). Random samples are subjected to a 1000‑hour oil immersion test (125°C in SAE 15W‑40), a 500‑hour dynamic shaft test (3500 rpm, 0.5 bar pressure), a salt spray test (240h), and a low‑temperature flexibility test (-40°C).
The seal meets or exceeds the requirements of ISO 6194-1 (rotary shaft lip seals). A batch number is ink‑jet printed on the outer case for traceability. Counterfeit seals often have incorrect rubber compound (hard, brittle), missing spring, or poor metal adhesion. Always buy from authorized SINOTRUK Homan distributors and scan the QR code on the packaging.
A fleet of 450 SINOTRUK HOWO dump trucks in a Chilean copper mine (extreme dust and high ambient temperature) had chronic axle seal leaks with generic products. After switching to the GB/T 9877.1 genuine seal, leaks dropped by 92%, and seal life extended from 6 months to over 3 years. The dust lip effectively blocked fine silica dust, and the NBR material withstood oil temperatures up to 115°C.
Another user – a logistics company in Scandinavia (cold climate, road salt) – reported that the genuine seals eliminated wintertime weeping from wheel hubs, reducing maintenance costs by 40% annually. The seals remained flexible at -35°C and did not crack.
Each genuine GB/T 9877.1 oil seal is packed in a sealed plastic bag inside a SINOTRUK Homan branded carton. The box includes a QR code label and a small tube of assembly grease. The seal has the SINOTRUK Homan logo and the GB/T standard etched on the rubber outer cover.
Counterfeit seals often have no logo, use a lightweight spring, or have a rough outer diameter. The genuine seal has a smooth rubber finish and a distinct spring color (silver). Always scan the QR code to verify authenticity on the SINOTRUK Homan portal. Using a fake seal can cause catastrophic oil loss, axle bearing failure, and costly downtime.
Summary: The SINOTRUK Homan Oil Seal (OEM standard GB/T 9877.1 F(B)85X105X12) delivers reliable, long‑lasting sealing for heavy‑duty rotating shafts. Protect your axles and gearboxes from leaks and contamination – choose this genuine component trusted by fleets and mechanics worldwide.
