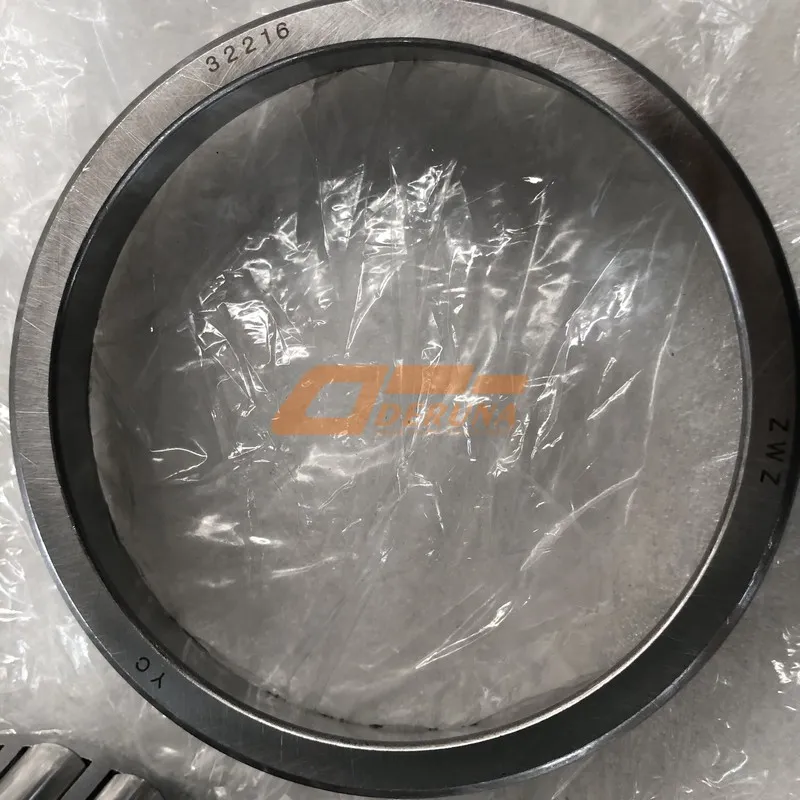

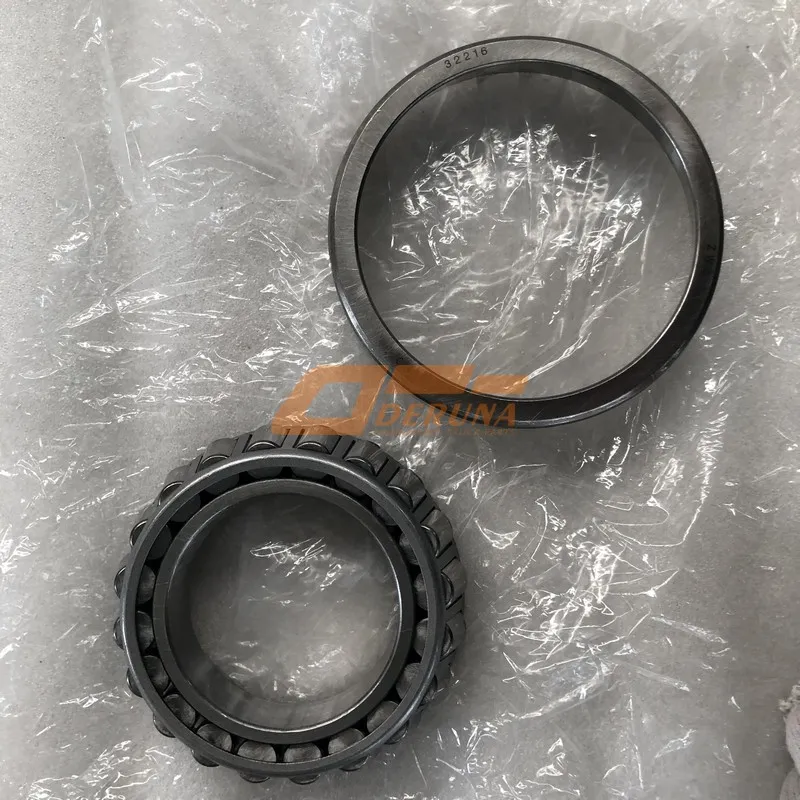

Precision rotation for differential and axle assemblies – The OEM FG7103001657+048/2 32216 Bearing (Differential) is engineered to deliver smooth, low‑friction operation and high load capacity in heavy‑duty truck axles. Designed for SINOTRUK Homan drive axles, this metric tapered roller bearing supports both radial and axial forces. For guaranteed compatibility and performance, always choose genuine Sinotruk Homan parts.
The FG7103001657+048/2 bearing corresponds to the industry standard 32216 tapered roller bearing, with dimensions 80 mm inner bore, 140 mm outer diameter, and 33 mm width. It is made from premium bearing steel, heat‑treated and precision ground to ISO 492 class P5 or better, ensuring long life in differentials, hubs, and pinions.
The FG7103001657+048/2 32216 bearing is a single‑row tapered roller bearing designed to handle combined radial and thrust loads. Its conical rollers and raceways are precision‑ground to a high tolerance, ensuring optimal contact geometry and minimal friction. This bearing is commonly used in differential carrier assemblies, pinion supports, and wheel hubs where high load capacity and stiffness are required.
Compared to standard spherical roller bearings, the tapered design allows preload adjustment to eliminate end‑play and increase rigidity. The bearing’s cage is made from pressed steel or high‑strength polyamide (depending on variant) to guide rollers evenly. The inner and outer rings are manufactured from vacuum‑degassed 100Cr6 steel (AISI 52100), hardened to 60‑64 HRC, and finished with a fine ground surface (Ra ≤ 0.2 μm) for extended fatigue life.
The FG7103001657+048/2 bearing meets or exceeds ISO 492 tolerance class P6 (P5 on request) and noise level V2. It is tested for radial runout, axial runout, and internal clearance before packaging. Genuine SINOTRUK Homan bearings are 100% crack‑detected by eddy current and magnaflux methods.
Dynamic load rating (C) 170 kN, static rating (C0) 230 kN. Suitable for heavy‑duty differentials with high torque input.
ISO 492 class P5 (P6 standard) tolerances ensure quiet operation and extended fatigue life under high shock loads.
Fully interchangeable with standard 32216 bearings. Direct replacement for most heavy‑truck axles without modification.
| OEM Number | FG7103001657+048/2 |
| Product Name | 32216 Bearing (Tapered Roller Bearing for Differential) |
| Brand | SINOTRUK Homan |
| Bore Diameter (d) | 80 mm |
| Outer Diameter (D) | 140 mm |
| Width (T – total) | 33 mm |
| Cone Width (B) | 31 mm |
| Dynamic Load Rating (C) | 170 kN (38,200 lbf) |
| Static Load Rating (C0) | 230 kN (51,700 lbf) |
| Limiting Speed (grease) | 3200 rpm |
| Material | 100Cr6 (AISI 52100) vacuum degassed steel |
| Hardness (Rings & Rollers) | 60‑64 HRC (through‑hardened) |
| Cage Type | Pressed steel (stamped) or PA66 glass‑fiber reinforced |
| Tolerance Class | ISO 492 P6 (standard) / P5 available |
| Radial Runout (max.) | 0.015 mm |
| Internal Clearance | C3 (standard) or user‑specified |
| Lubrication | Oil or grease (provided with corrosion inhibitor) |
| Applications | Differential carrier, pinion shaft support, wheel hubs, drive axles |
| Compatible Models | SINOTRUK HOWO, A7, T7H, C7H differentials; also many other heavy‑truck axles |
The FG7103001657+048/2 bearing is manufactured using advanced computer‑controlled grinding lines that ensure consistent geometry. The rollers are micro‑blasted and honed to reduce surface stress risers. The raceways are superfinished to a surface roughness Ra ≤ 0.1 μm, minimizing friction and operating temperature.
The internal geometry is optimized to distribute load evenly across all rolling elements, reducing edge stress and increasing fatigue life. The cages are designed to provide ample lubrication passage and low rotational drag. Each bearing is 100% tested for radial clearance, vibration (SQF), and noise level.
Unlike many aftermarket bearings, the genuine SINOTRUK Homan component uses a high‑grade steel with no impurities, proven by ultrasonic testing. The heat treatment cycle is carefully controlled to produce a uniform microstructure (fine martensite) with retained austenite below 5%. This guarantees dimensional stability over the bearing’s service life.
The bearing rings and rollers are made from fully hardened 52100 chromium steel, which provides excellent resistance to rolling contact fatigue. The surface finish is optimized to retain an oil film under boundary lubrication conditions, which is common in differentials during cold starts.
The bearing is coated with a light preservative oil for storage; before installation, it should be cleaned and packed with high‑quality EP gear oil or NLGI #2 grease, depending on the application. For differential applications, oil bath lubrication is typical.
The FG7103001657+048/2 bearing is a direct replacement for any OEM 32216 bearing used in differential carriers, pinion heads, or axle hubs. Always replace the bearing in sets (cone and cup) and use genuine seals and adjusting shims. The bearing should be installed using a hydraulic press, applying force only to the interference fit component (inner ring on shaft, outer ring in housing). Never hammer the bearing directly.
After installation, preload must be set according to the axle manufacturer’s specification. For differentials, use a rotating torque meter to measure drag. Over‑preloading will cause overheating; under‑preloading leads to chatter and premature wear.
1) Clean the bearing housing and shaft thoroughly. Remove any burrs or old sealant. 2) Inspect the bearing seats for damage; if any scoring or out‑of‑round is present, machine or replace the housing.
3) Press the bearing inner ring (cone) onto the shaft using a suitable press tool. Never press on the outer ring or rollers. 4) Press the outer ring (cup) into the housing using an even force to avoid tilting.
5) Apply a thin coat of gear oil to the rollers and raceways. 6) Assemble the differential and set bearing preload using shims or an adjusting nut. Measure the preload torque (typically 0.5‑2.0 Nm for new bearings) with a dial‑type torque wrench.
7) Rotate the assembly several times to seat the rollers, then recheck torque. 8) Install the axle housing cover with new sealant and fill with the recommended gear oil.
The FG7103001657+048/2 bearing requires no maintenance if properly installed and lubricated. Check for noise (growling, rumbling) during test drives. Abnormal noise may indicate insufficient preload, excessive wear, or contamination.
If the differential is disassembled for any reason, always replace the bearings – reusing old bearings can lead to unpredictable failure. When replacing, always use a matched cup and cone from the same manufacturer. Never mix components from different bearings.
Monitor magnetic drain plugs for excessive metal particles; large chips indicate bearing spalling. Comply with regular oil change intervals (every 50,000 km) to keep the bearing clean.
The FG7103001657+048/2 bearing is produced in an IATF 16949 and ISO 14001 certified facility. Each bearing undergoes 100% inspection for bore/OD dimensions, width, and radial/axial runout using automated CMM. Random samples are subjected to endurance testing (fatigue life of L10 > 3000 hours at rated load), ingot examination (ultrasonic testing), and salt spray corrosion testing.
The bearing conforms to ISO 355 (metric tapered roller bearings) and meets SINOTRUK Homan’s stringent OEM requirements. A laser‑etched batch number on the outer ring provides full traceability. Counterfeit bearings often have mismatched cup/cone numbers, softer steel, or poor surface finish. Always purchase from authorized SINOTRUK Homan distributors and scan the QR code on the packaging.
A fleet of 500 SINOTRUK T7H tractors in a cross‑country operation replaced original differential bearings with the FG7103001657+048/2 after a recall. Over 2 years, axle failures due to bearing spalling dropped from 8% to less than 0.5%. The fleet also noted lower operating temperatures (5‑8°C cooler) compared to previous bearings, confirming better internal geometry.
Another user – a mining contractor in Australia running 32216 bearings in off‑highway dump trucks – reported that genuine bearings lasted an average of 15,000 hours, while aftermarket bearings failed after 5,000 hours. The ROI for using genuine parts was over 200% due to reduced downtime.
Each genuine FG7103001657+048/2 32216 bearing is wrapped in VCI paper, sealed in a plastic bag, and packed in a double‑wall carton with foam protection. The box includes a holographic sticker and a QR code linking to the SINOTRUK Homan verification portal.
The bearing itself has the OEM number and the SINOTRUK Homan logo laser‑etched on both the cone and cup. Counterfeit bearings often have poor edge break, missing laser marks, or a synthetic resin cage that degrades quickly in hot oil. Always verify the QR code before installation. Using a fake bearing can lead to catastrophic differential failure and vehicle downtime, voiding the warranty.
Summary: The SINOTRUK Homan 32216 Bearing (OEM FG7103001657+048/2) delivers high load capacity, precision tolerances, and long service life for differential and axle applications. Protect your drivetrain – choose this genuine component trusted by fleets and mechanics worldwide.
