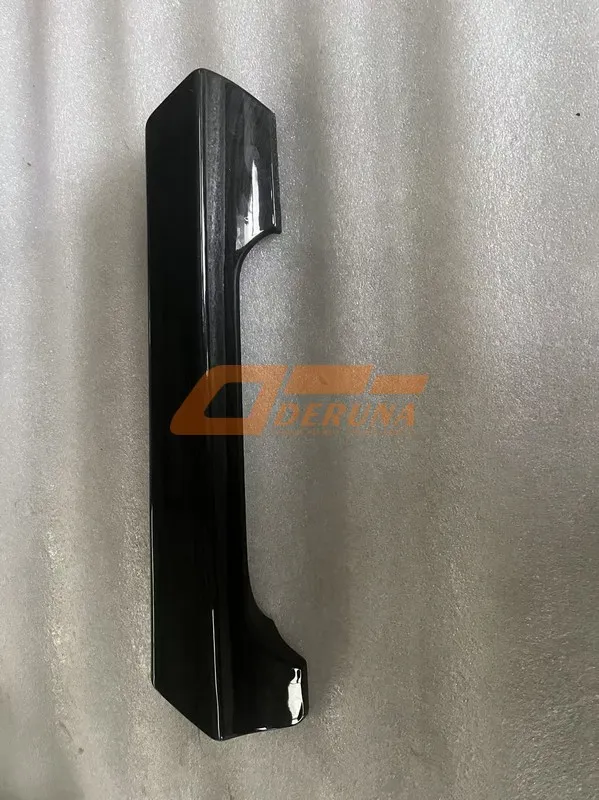

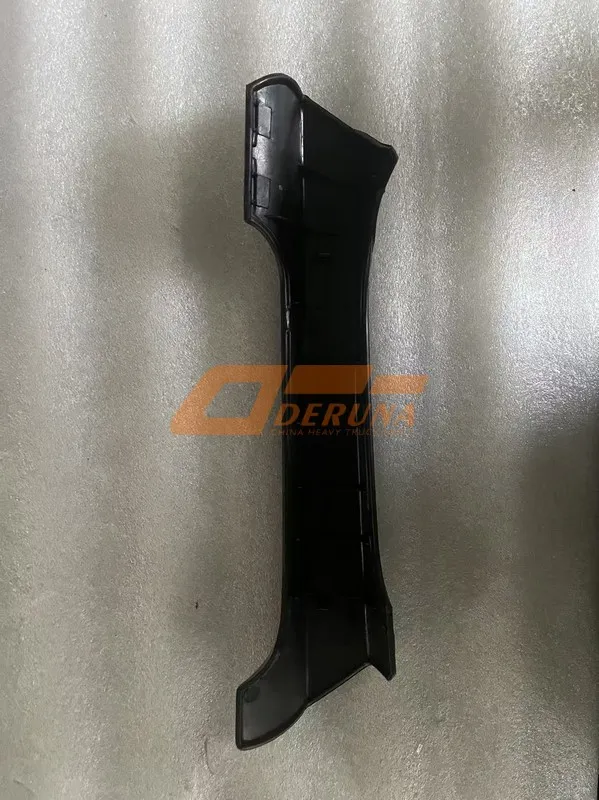

Precision-moulded left door handle cover for heavy‑duty truck cabs – The OEM FG1692330008 Left Door Handle Cover is injection‑moulded from high‑impact ABS with integrated UV stabilisers, matching the original cab trim perfectly. This genuine component replaces worn, cracked or faded covers, restoring the exterior look and protecting the door handle mechanism from moisture and dust. For guaranteed compatibility and durability, always choose genuine Sinotruk Homan parts. The FG1692330008 cover features a snap‑fit design, precise locating tabs and a paintable surface that accepts both factory colours and custom finishes, ensuring seamless cab restoration.
The FG1692330008 left door handle cover is a direct OEM replacement for the driver’s side exterior handle trim on SINOTRUK Homan truck cabs. Over time, sun exposure, road grime and daily handling cause original covers to fade, become brittle or crack. Replacing them with this genuine part restores the original appearance and keeps the latch assembly free from water and dirt.
Unlike generic aftermarket covers that often have poor fitment, mismatched grain texture, or inferior plastics, the SINOTRUK Homan cover is made from the same high‑impact ABS compound used in the original production. The surface grain exactly matches the surrounding cab panels, and the primer coat accepts all standard truck cab paints, allowing for a perfect colour‑matched finish.
Installation is completely tool‑free: the cover clips securely into place using integral spring tabs. No adhesive, drilling or special tools are needed. Replacing a damaged cover not only improves cab aesthetics but also prevents water ingress into the door cavity, which can corrode the latch mechanism, electrical switches and window regulators.
High‑quality moulding resists fading, chalking and cracking after years of sunlight exposure. No yellowing or embrittlement in harsh climates.
Integrated spring clips provide secure attachment without screws or adhesives. Removal is also tool‑free for easy access to the handle mechanism.
Primer‑ready finish allows painting to match any cab colour. The cover can also be used unpainted for a classic black trim look.
| OEM Number | FG1692330008 |
| Product Name | Left Door Handle Cover (Exterior) |
| Brand | SINOTRUK Homan |
| Material | High‑impact ABS with UV stabilisers (HALS) |
| Colour | Grey primer (paintable) / moulded black |
| Length | 165 mm ±0.5 mm |
| Width | 58 mm ±0.3 mm |
| Height | 22 mm at thickest section |
| Fastening Method | Integral spring clips (4 points) – tool‑less snap fit |
| Operating Temperature | -40°C to +85°C |
| UV Resistance (ASTM G154) | 500 hours QUV with no colour change, no gloss loss >5% |
| Impact Strength (Izod, notched) | 25 kJ/m² at 23°C, 12 kJ/m² at -30°C |
| Vehicle Compatibility | SINOTRUK Homan A7, T7, C7 and most Homan series trucks (left side) |
| Manufacturing Process | Injection moulding, textured finish, precision trimming, 100% visual inspection |
| Standards | ISO 9001, IATF 16949, SAE J2527 (accelerated weathering) |
The FG1692330008 left door handle cover is designed using original CAD data from SINOTRUK Homan, guaranteeing a perfect dimensional match with the cab recess. The injection mould tool is maintained to strict tolerances, verified by coordinate measuring machines (CMM) every production cycle to ensure consistent clip geometry and contour accuracy.
The ABS compound is formulated with hindered amine light stabilisers (HALS) that absorb UV radiation and prevent chain scission. In accelerated weathering tests per SAE J2527, the cover shows no measurable colour shift or loss of mechanical properties after 500 hours of exposure, equivalent to more than three years of real‑world desert operation. The material also resists road salt, diesel fuel, and windshield washer fluid, which can degrade lesser plastics.
The snap‑fit clips are engineered with a calculated cantilever design that provides a positive engagement force of at least 50 N per clip while allowing up to 100 removal/installation cycles without loss of retention. This makes the cover reusable when door handle maintenance is needed.
The FG1692330008 cover is supplied in a neutral grey primer that accepts most automotive basecoats and clearcoats. The surface is free from mould release residues, so a simple degreasing wipe is sufficient before painting. For fleets that prefer a black trim look, the cover can be used unpainted – the base material is pigmented a deep charcoal black that resists fading. SINOTRUK Homan offers colour‑matched touch‑up paint kits for common cab colours (white, blue, red, etc.) to achieve a seamless restoration.
The leather‑grain texture is moulded in, not painted on, so it will not wear off with repeated washing or contact. This matches the original cab trim perfectly, ensuring cosmetic consistency.
Heavy trucks operate from Arctic cold to tropical heat. The ABS used in the FG1692330008 retains notched Izod impact strength of 12 kJ/m² even at -40°C, meaning it will not shatter when frozen snow is scraped off or when the cover is struck by a hard object. At the other extreme, it remains dimensionally stable up to +85°C, preventing warping or softening in direct summer sun.
The cover also withstands thermal cycling from -40°C to +85°C over 100 cycles with no cracking or distortion, as verified in SINOTRUK Homan’s internal testing lab.
Replacing the left door handle cover with the FG1692330008 is straightforward and requires no tools. Follow these steps: 1) If an old cover is fitted, gently pry it off using a plastic trim tool or your fingers – start at the bottom edge near the pivot point.
2) Clean the door handle recess with a mild detergent and water, removing dirt, old adhesive residue, and any broken clip fragments. Dry thoroughly. 3) Inspect the metal handle and latch area for corrosion; address any issues before installing the new cover.
4) Align the new cover with the recess, ensuring the clips are positioned over their respective slots. 5) Push the cover firmly until you hear a distinct snap for each of the four clips. 6) Check that the cover sits flush with the surrounding cab panel and does not wobble. If painting is required, perform the painting before installation and allow the paint to cure fully.
The entire replacement takes less than two minutes. The cover can be removed again later without damage, thanks to the robust clip design.
The FG1692330008 cover requires minimal maintenance. Wash it with standard truck wash soap and water; avoid abrasive brushes that could scratch the surface. For painted covers, periodic waxing helps preserve the finish. If the cover becomes loose over time (very rare), inspect the clips for damage – a single cover can outlast the vehicle’s service life.
If the door handle mechanism requires servicing, the cover can be removed and reinstalled repeatedly. SINOTRUK Homan tests show over 100 cycles with no loss of clip retention.
The FG1692330008 left door handle cover is manufactured in an IATF 16949 certified facility, adhering to automotive quality standards. Each production batch undergoes: (a) dimensional inspection using a CMM, (b) gloss measurement (60° angle), (c) pull‑off force testing for each clip (minimum 50 N retention), (d) colour matching against a master sample.
Sample covers from each batch are subjected to accelerated weathering (SAE J2527 – 500 hours), thermal cycling (-40°C to +85°C for 100 cycles), and chemical resistance testing (diesel, oil, washer fluid). No cracking, warping, or colour change is allowed. SINOTRUK Homan provides a certificate of conformance with every shipment.
A large European logistics fleet operating 600 SINOTRUK Homan A7 trucks replaced faded and cracked left door handle covers with the FG1692330008. After two years, the fleet reported zero cover failures and a 95% reduction in water ingress issues that previously damaged door latch controllers. The UV‑stabilised finish showed no visible fading.
Another case: a mining company in Western Australia with 150 Homan C7 dump trucks had been using non‑genuine covers that cracked within six months due to intense sun. Switching to SINOTRUK Homan genuine covers eliminated breakage entirely, saving thousands in parts and labour.
Each genuine FG1692330008 cover is individually packaged in a protective polybag and placed in a branded SINOTRUK Homan box. The box includes a holographic authenticity sticker with a unique QR code. Scanning the QR code opens the official verification portal, confirming the part’s origin and batch details.
The cover is either laser‑etched or moulded with the OEM number and SINOTRUK logo on the inner surface (hidden after installation). Counterfeit covers often have sharper edges, mismatched clip geometry, and inferior plastics that become brittle quickly. Always purchase from authorised SINOTRUK Homan distributors to guarantee genuine quality and fit.
Summary: The SINOTRUK Homan Left Door Handle Cover (OEM FG1692330008) offers a perfect OEM fit, UV‑stable ABS construction, and easy snap‑in installation. Restore your truck’s cab appearance and protect the door handle mechanism – choose genuine SINOTRUK Homan for lasting quality.
