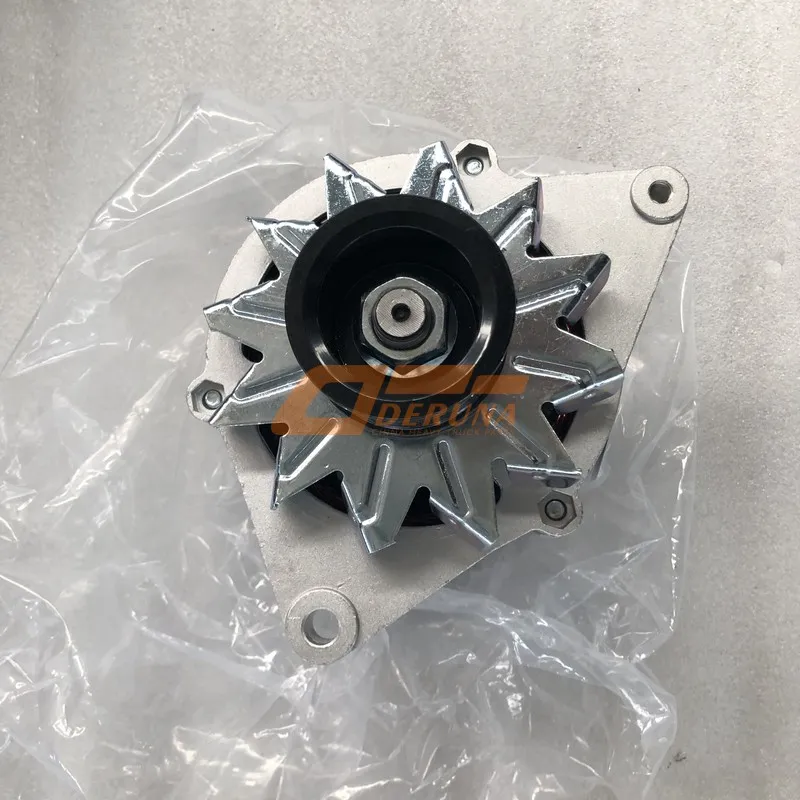

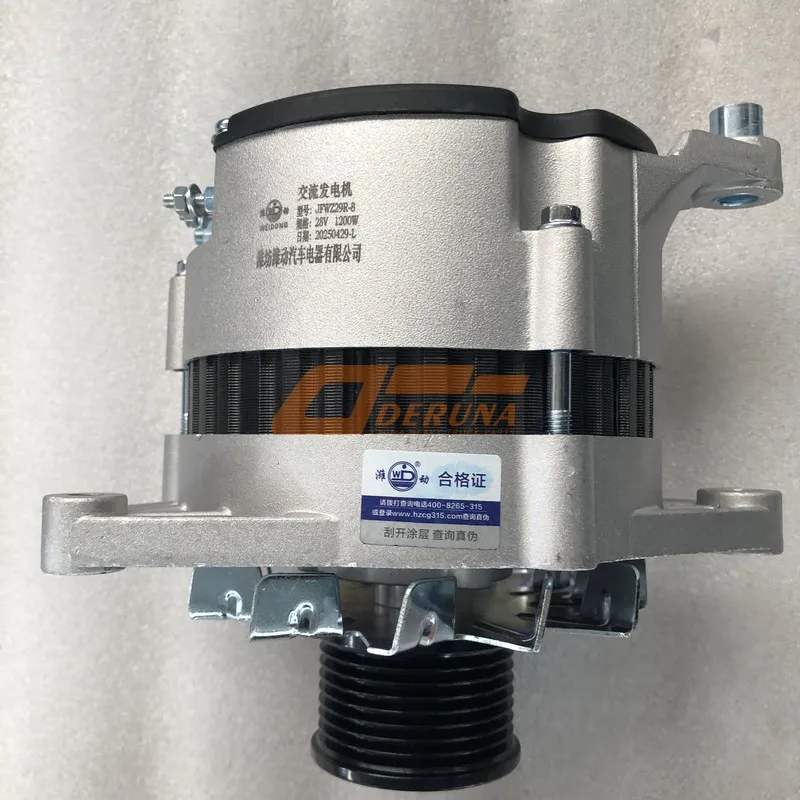

Reliable high-output charging for commercial vehicles – The OEM D5153-3701100 Generator (alternator) is engineered to deliver consistent 28V / 110A power, ensuring batteries stay fully charged even under heavy electrical loads. Designed for SINOTRUK Homan trucks and compatible with Euro II to Euro V engines, this generator features advanced diode technology and robust cooling.
For guaranteed compatibility and performance, always choose genuine Sinotruk Homan parts. The D5153-3701100 generator eliminates voltage fluctuations, protects sensitive ECUs, and extends battery life in long-haul and off-road applications.
The D5153-3701100 generator is a brushless, internally regulated alternator producing 110A at 28V (nominal), with peak output reaching 130A at higher engine speeds.
Its claw-pole rotor and high-efficiency stator deliver superior low-speed output – over 70A at idle (800 rpm), critical for stop-and-go city driving and construction site operations. Unlike generic rebuilds, this genuine SINOTRUK Homan unit uses copper windings with high-temperature insulation (Class H, 180°C) and oversize bearings for 15,000+ hours of continuous operation. The built-in solid-state regulator maintains voltage within ±0.2V, preventing overcharging and battery gassing.
Delivers ample power for headlights, HVAC, ECUs, telematics, and auxiliary equipment. The D5153-3701100 eliminates voltage drops typical of 70A units.
Dual internal fans and enlarged ventilation slots keep winding temperatures 20°C lower than standard alternators, ensuring reliability in hot climates (up to 85°C ambient).
Six heavy-duty avalanche diodes protect against load dump and reverse polarity. The generator withstands 400V surge pulses, compliant with ISO 16750-2.
| OEM Number | D5153-3701100 |
| Product Name | Generator / Alternator (Brushless, 28V) |
| Brand | SINOTRUK Homan |
| Rated Voltage | 28V DC (24V system nominal) |
| Rated Current | 110A @ 6000 rpm alternator speed |
| Max Current | 130A (short-term, 25°C ambient) |
| Output at Idle (800 engine rpm) | ≥70A (pulley ratio 2.5:1) |
| Regulation Type | Internal solid-state, voltage setpoint 28.0V ±0.2V |
| Efficiency | Up to 78% at full load |
| Operating Temperature | -40°C to +105°C (ambient), 180°C winding class H |
| Pulley Type | 8-groove poly-V (PK type) or optional single V-belt |
| Mounting Type | Twin foot, M10 bolts, adjustable bracket |
| Connector Type | B+ terminal (M8 stud), D+ (exciter) and DFM (monitor) via 2-pin superseal |
| Protection Features | Overvoltage cutoff, thermal protection, reverse polarity diode |
| Weight | 9.8 kg (21.6 lbs) |
| Ingress Protection | IP54 (dust-protected, splash-resistant) |
The D5153-3701100 generator utilizes a brushless excitation system, eliminating carbon brush wear and arcing – a common failure point in brushed alternators. The main rotor is a 12-pole claw-pole design, wound with heavy-gauge copper wire and encapsulated in epoxy resin to withstand high centrifugal forces.
The stator has 36 slots with double-layer lap windings, optimized for low harmonic distortion. A built-in voltage regulator uses MOSFET switching technology for fast transient response: from no load to full load, output recovers within 50 ms. This ensures that sensitive electronics like ABS, EBS, and ADAS systems receive stable power without brownouts.
The D5153-3701100 generator housing is made of die-cast aluminum with a zinc-nickel coating, passing 480 hours of salt spray testing (ASTM B117). All fasteners are stainless steel or zinc-flake coated.
The rear cover includes a breathable membrane that equalizes pressure while preventing water ingress. Bearings are from NSK (Japan), lubricated with high-temperature grease and sealed on both sides. These materials ensure the generator survives road salt, mud, and high-pressure washdowns typical in mining and construction environments.
The D5153-3701100 generator is a direct bolt-on replacement for SINOTRUK Homan HOWO, A7, T7H, and C7H models. It features the standard 2-bracket mounting (hole spacing 115mm) and uses the same serpentine belt configuration.
The DFM (diagnostic) pin outputs a PWM signal (128 Hz, duty cycle proportional to load) that can be read by the vehicle ECU for alternator load monitoring. For older trucks, the exciter (D+) wire connects to the charge indicator lamp – the generator includes a built-in resistor for self-excitation without a lamp. No special tools required; a standard socket set and belt tension gauge are sufficient.
Follow these professional steps to install your new D5153-3701100 generator: 1) Disconnect battery negative terminal. 2) Remove belt by releasing tensioner. 3) Unplug the 2-pin connector and remove B+ nut (use insulated tools to avoid shorting). 4) Support the generator and remove two mounting bolts. 5) Transfer pulley (if required) using a pulley puller – do not hammer.
6) Install new generator, torque mounting bolts to 45 Nm. 7) Reconnect B+ cable (torque 15 Nm) and plug in the control connector. 8) Reinstall belt and adjust tension (deflection 8-10 mm under 50N force). 9) Reconnect battery and start engine; measure voltage at idle – should be 27.5-28.5V. 10) Run at 1500 rpm and verify full output using a clamp meter (≥100A with heavy load).
The D5153-3701100 generator requires minimal routine maintenance. Annually check belt wear and tension, clean external cooling vents with compressed air, and inspect the B+ terminal for corrosion. Common symptoms of a failing generator: dim headlights at idle, battery warning light flickering, or voltage below 27V under load. If the alternator does not charge, first test the D+ excitation voltage (should be battery voltage when ignition on).
A silent generator may indicate open field coil; always verify that the frame ground is clean. Avoid welding on the vehicle without disconnecting the generator to prevent diode damage. For complex faults, use an oscilloscope to check AC ripple – should be less than 0.5V RMS at 2000 rpm. SINOTRUK Homan provides a 1-year unlimited-mileage warranty on this OEM component.
The D5153-3701100 generator is manufactured under IATF 16949:2016 and ISO 9001:2015 certified processes. Each unit undergoes 100% end-of-line testing: output current vs. speed curve verification, voltage setpoint check at 23°C, over-speed test (18,000 rpm for 2 minutes), insulation resistance (>50 MΩ at 500V), and thermal cycling from -40°C to +125°C for 20 cycles.
The generator also complies with ECE R10 (electromagnetic compatibility) for commercial vehicles, ensuring no interference with radio or telematics equipment. A serialized test report with measured values is shipped with every unit. Counterfeit generators often lack these certifications and may use undersized windings or recycled diodes – always authenticate the laser-etched D5153-3701100 marking on the housing.
A large Turkish logistics fleet operating 150 SINOTRUK HOWO trucks replaced their original alternators with the D5153-3701100 generator. Over 24 months and 12 million collective kilometers, the fleet recorded a 76% reduction in electrical-related roadside breakdowns compared to aftermarket units.
The generators maintained output above 95A even after 20,000 hours of operation. In a Canadian mining application with extreme cold (-35°C), the D5153-3701100 started charging within 30 seconds of engine start, thanks to its low-friction bearings and efficient excitation design. These real-world results confirm why SINOTRUK Homan is the preferred OEM supplier.
Each genuine D5153-3701100 generator is packed in a heavy-duty corrugated box with foam inserts. The box includes a heat-shrunk plastic bag, a desiccant pack, and the installation manual. The generator housing features a tamper-proof holographic label and a QR code that directs to the SINOTRUK Homan authenticity portal, where you can verify the serial number.
Genuine units have a bright aluminum housing with a faint “SINOTRUK” cast mark; counterfeit versions often have rough castings and lack the DFM monitor pin. Always source from authorized distributors only. Installing a non-OEM generator can lead to overcharging (battery explosion risk) or undercharging (ECU shutdown), voiding your vehicle warranty.
Summary: The SINOTRUK Homan Generator (OEM D5153-3701100) delivers powerful, stable, and durable charging for heavy-duty trucks and equipment. Upgrade your electrical system with this genuine 110A alternator – trusted by fleets and technicians worldwide for reliable performance in the toughest conditions.
