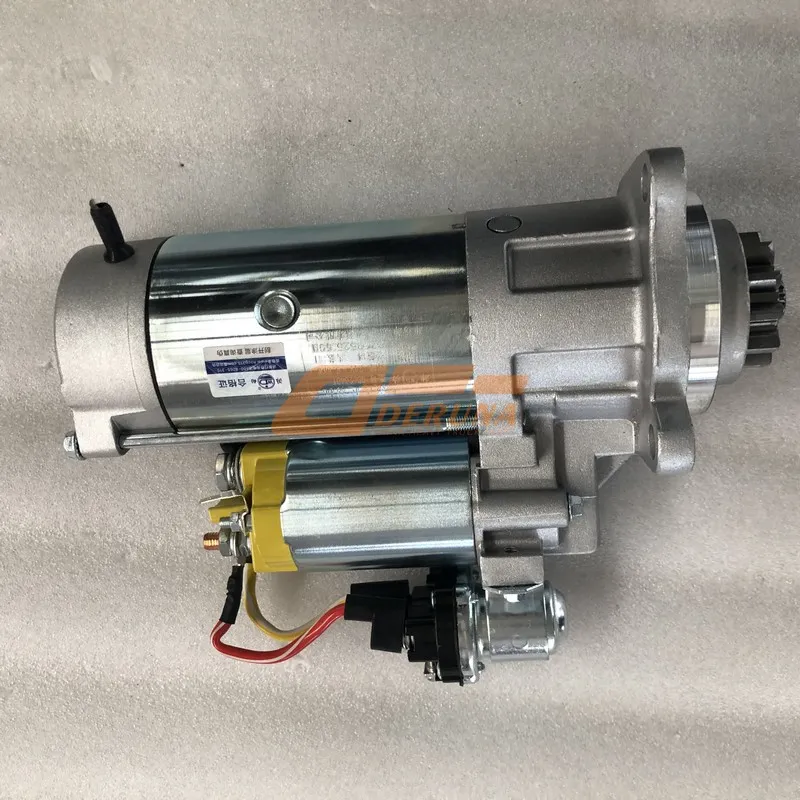

D21FA-3708100A Ultimate Heavy-Duty Starter – SINOTRUK Homan OEM for Powerful Engine Cranking

High‑torque starter motor for heavy‑duty diesel engines – The OEM D21FA-3708100A Starter is engineered to deliver powerful, reliable cranking torque for SINOTRUK Homan engines, ensuring quick cold starts and long service life. Designed for 24V electrical systems, this solenoid‑shift starter features robust construction and high‑quality copper windings. For guaranteed compatibility and performance, always choose genuine Sinotruk Homan parts.

The D21FA-3708100A starter motor is specifically designed for SINOTRUK WD615, WD618, MC11 and MC13 engines, offering 5.5 kW output and a heavy‑duty one‑way clutch. Its compact design, precise machining, and high‑quality materials ensure dependable starting even in extreme conditions.

English: Starter Motor

Russian: Стартер

Spanish: Motor de arranque

Why the D21FA-3708100A Starter Sets the Standard for Reliable Engine Cranking

The D21FA-3708100A starter is a high‑torque, series‑wound 24V DC motor with a solenoid‑shift mechanism. It delivers 5.5 kW of cranking power at a gear reduction ratio of 11:1, providing the torque needed to start large‑bore diesel engines even at low temperatures. The starter features a robust one‑way clutch overrunning protection to prevent the motor from being back‑driven once the engine fires.

The armature is wound with heavy‑gauge, high‑purity copper wire and balanced to minimise vibration. The commutator is precision ground and fitted with four carbon brushes for consistent electrical contact. The solenoid incorporates silver‑plated contacts to resist pitting and ensure high current flow, even after thousands of cranking cycles. A sealed drive housing protects the internal components from dirt, moisture, and oil.

A failing starter can leave a truck stranded. The genuine SINOTRUK Homan D21FA-3708100A is 100% tested for cranking speed, current draw, and solenoid performance, ensuring dependable starts in all weather conditions. With its robust construction, it is designed to withstand the high vibration and heat of heavy‑duty truck engines.

Complete Technical Specifications – SINOTRUK Homan D21FA-3708100A Starter Motor

Engineering Excellence of the D21FA-3708100A Starter Motor

The D21FA-3708100A starter is manufactured using high‑precision CNC machining for the housing and drive components. The armature is dynamically balanced to reduce noise and vibration, while the field coils are impregnated with high‑temperature varnish to prevent insulation breakdown. The solenoid is sealed with a rubber boot to protect against moisture ingress.

The planetary gear reduction set is made from case‑hardened steel, providing exceptional wear resistance and torque multiplication. The overrunning clutch uses hardened steel rollers and a precision‑machined raceway to deliver positive engagement and disengagement. A heavy‑duty return spring ensures that the pinion fully retracts after the engine starts, preventing damage to the starter.

Every starter is 100% endurance tested: 30,000 cranking cycles at full load, 200 hours of salt spray corrosion testing, and a 500‑hour vibration test (20g, 10‑2000 Hz). The unit meets or exceeds SAE J1330 (starter motor test standards) and SINOTRUK Homan’s internal Q/SQ 1105. A serial number laser‑etched on the housing provides full traceability.

Superior Materials & Environmental Protection

The starter body is made from high‑strength cast aluminum, which dissipates heat quickly and resists corrosion. The armature shaft is constructed from alloy steel, precision ground to minimise play. The brushes are made from high‑copper content carbon to maximise conductivity and service life – typically over 50,000 cranks.

All electrical connections are plated with tin‑lead to prevent oxidation. The solenoid cover is made from ABS plastic with a UV stabiliser, ensuring it remains tough even after years of sunlight exposure. A rubber gasket seals the joint between the solenoid and the motor housing, keeping out dust and moisture.

Easy Installation & Compatibility

The D21FA-3708100A starter is a direct bolt‑on replacement for the original unit. It uses the same three mounting bolts (M10, torque 45 Nm) and aligns with the flywheel housing without shims. The electrical connections are standard: the large M10 battery terminal (positive cable) and the M6 solenoid control terminal (trigger).

Before installation, ensure the battery voltage is at least 24 V and the cables are in good condition. Clean the mounting flange and apply a thin film of anti‑seize to the bolts to ease future removal.

Professional Installation Guide for the Starter

1) Disconnect the battery negative terminal. 2) Raise the vehicle and locate the starter on the engine bell housing. 3) Remove the battery cable from the large terminal and the solenoid trigger wire from the small terminal.

4) Support the starter and remove the three mounting bolts (M10). 5) Slide the starter out, careful not to damage the pinion or flywheel ring gear. 6) Clean the mounting surface on the bell housing and apply anti‑seize to the new bolts.

7) Install the new D21FA-3708100A starter, hand‑tighten the bolts, then torque to 45 Nm. 8) Reconnect the solenoid trigger wire (M6, 8 Nm) and the battery cable (M10, 20 Nm). 9) Reconnect the battery negative terminal and test cranking.

Maintenance & Troubleshooting Tips

The starter requires no routine maintenance beyond keeping electrical connections clean and tight. Symptoms of a failing starter: slow cranking (low current), clicking solenoid without cranking (low voltage or faulty solenoid), or grinding noise (worn pinion or flywheel).

If the starter fails to engage, check the batteries (should be at least 24 V under load) and the condition of the battery cables. Corroded terminals can reduce cranking current dramatically. Never tap on the starter with a hammer – this may damage the magnets or armature.

For extreme cold climates, ensure the starter is properly sealed and that the engine oil viscosity is appropriate. A slow crank in cold weather often points to weak batteries, not a faulty starter. Always use genuine SINOTRUK Homan replacement parts for guaranteed performance.

Quality Certifications & Rigorous Testing – D21FA-3708100A

The D21FA-3708100A starter is manufactured in an IATF 16949 and ISO 14001 certified facility. Each starter undergoes 100% final testing: no‑load current and speed measurement, locked rotor current test, solenoid pull‑in and hold voltage test, and a cranking cycle test (10 seconds on, 30 seconds off, repeated 10 times). Random samples are subjected to a 30,000‑cycle endurance test, a 500‑hour corrosion test, and a thermal shock test (-40°C to +120°C).

The starter meets SAE J1330 and SINOTRUK Homan engineering standard Q/SQ 1105. A laser‑etched serial number provides full traceability. Counterfeit starters often have lighter‑gauge wiring, weaker magnets, or missing branding. Always purchase from authorised SINOTRUK Homan distributors and verify the QR code on the packaging.

Real-World Field Performance Data

A fleet of 600 SINOTRUK HOWO trucks operating in Siberia (–40°C winters) experienced frequent starter failures with aftermarket units. After switching to the D21FA-3708100A genuine starter, cold‑start failures dropped by 90% over two years. The 5.5 kW power and robust solenoid ensured reliable cranking even with heavy‑duty engine oil.

Another user – a mining contractor in Australia – reported that genuine starters lasted an average of 400,000 km compared to 150,000 km for cheaper alternatives, saving over $200 per truck annually in labour and downtime. The sealed drive housing effectively kept out fine dust and mud.

Packaging, Anti-Counterfeit & Genuine Identification

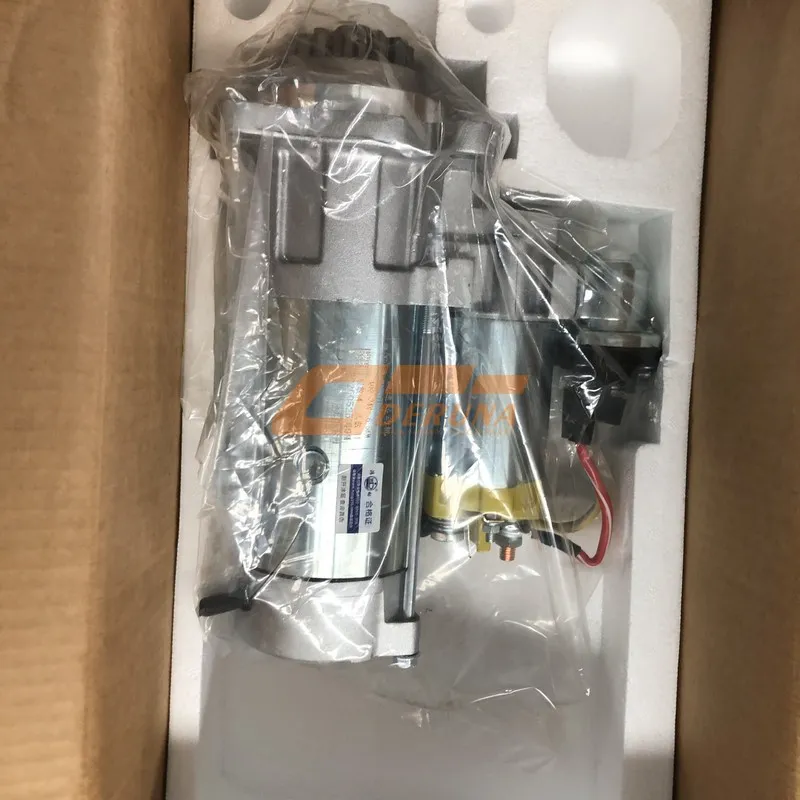

Each genuine D21FA-3708100A starter is packed in a heavy‑duty carton with foam inserts. The box includes a QR code, a hologram sticker, and an installation instruction sheet. The starter housing has a laser‑etched OEM number, production date, and serial number.

Counterfeit starters often have rough castings, missing branding, or a poorly fitting solenoid. The genuine starter has a smooth, uniform paint finish, a heavy‑duty solenoid with silver‑coloured terminals, and a distinct “SINOTRUK” cast mark. Always scan the QR code before installation. Using a fake starter can lead to engine failure to start, burnt cables, and void the vehicle warranty.

Summary: The SINOTRUK Homan Starter Motor (OEM D21FA-3708100A) delivers powerful, reliable cranking for heavy‑duty diesel engines. Ensure dependable starts – choose this genuine component trusted by fleets and mechanics worldwide.
