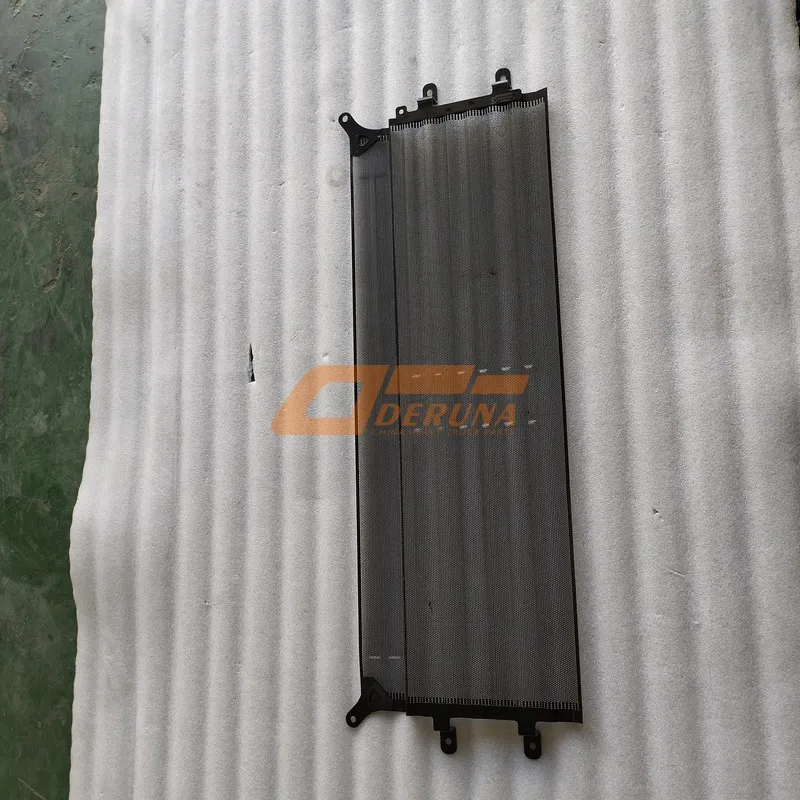

SHACMAN DZ9X259537340 Radiator Mesh | Protective Grille Guard

The SHACMAN DZ9X259537340 Radiator Mesh is a specialized protective grille installed directly in front of the truck’s cooling module assembly. Its primary function is to intercept and filter airborne debris before it reaches the delicate fins of the radiator, charge air cooler, and condenser. These cooling components feature thin aluminum fins that are highly susceptible to damage from stones, road gravel, plastic bags, and insect accumulation. The mesh acts as a sacrificial barrier, taking the impact that would otherwise bend fins, block airflow, and eventually lead to overheating, reduced performance, and costly component replacement.

Engineered as a genuine OEM replacement, the DZ9X259537340 is designed with a specific open area percentage that provides maximum debris protection while minimizing airflow restriction. This balance is critical; a mesh that is too dense will choke the cooling system, while one that is too open offers inadequate protection. The genuine part is precisely calibrated to the cooling requirements of SHACMAN engines. For fleet operators, the DZ9X259537340 is more than an accessory—it’s a proactive maintenance component that extends the life of expensive cooling system parts, reduces downtime for radiator repairs, and helps maintain consistent engine operating temperatures for optimal fuel efficiency and emissions compliance.

The DZ9X259537340 Radiator Mesh is engineered with a focus on structural integrity and aerodynamic efficiency. It is typically constructed from woven or expanded aluminum or steel, chosen for its excellent strength-to-weight ratio and corrosion resistance. The mesh pattern—whether hexagonal, square, or diamond-shaped—is carefully selected to create a rigid structure that can withstand direct impacts from road debris without deforming. The wire diameter and opening size are calculated to stop damaging objects while allowing sufficient air to pass through with minimal static pressure drop.

The mesh is mounted within a robust perimeter frame that provides secure attachment points to the truck’s front-end structure or radiator support panel. This frame ensures the mesh remains taut and properly positioned, preventing vibration or “flutter” at highway speeds that could lead to fatigue failure. The engineering also considers ease of service; the DZ9X259537340 is often designed for quick removal without needing to disassemble the entire grille or bumper, facilitating regular cleaning and inspection of both the mesh and the cooling stack behind it. This thoughtful design makes it a practical and effective protective solution.

The DZ9X259537340 Radiator Mesh is designed for specific SHACMAN truck models, particularly those in the X3000 and M3000 series operating in environments where road debris is a significant concern. Compatibility is determined by the dimensions of the radiator opening in the front grille or bumper and the specific configuration of the cooling package. It is crucial to verify the OEM number DZ9X259537340 matches the vehicle’s application, as meshes are not universal and must align perfectly with the mounting points on the radiator support structure.

Proper fitment ensures the mesh covers the entire frontal area of the cooling stack without obscuring the grille’s branding or design features. It must maintain adequate clearance from the cooling fins to prevent any contact during vehicle operation or chassis flex. The genuine DZ9X259537340 is designed to integrate seamlessly with the vehicle’s existing air intake system, ensuring that airflow intended for the engine intake is not inadvertently restricted. Correct installation guarantees that the protective benefits are realized without introducing new problems such as increased engine bay temperatures or reduced air conditioning performance.

The primary value of the DZ9X259537340 Radiator Mesh lies in its ability to prevent catastrophic cooling system damage. Radiator and charge air cooler fins are extremely delicate; a single stone can bend dozens of fins, creating a blockage that reduces heat exchange efficiency. Over time, multiple impacts lead to a cumulative loss of cooling capacity, forcing the engine to run hotter and increasing the risk of overheating, particularly under heavy load or in high ambient temperatures. The mesh absorbs the kinetic energy of incoming debris, distributing the force across multiple wire intersections to prevent penetration.

Beyond stone damage, the mesh provides crucial protection against “soft” debris like plastic bags, leaves, and insects. A plastic bag sucked onto a radiator can completely block airflow, causing immediate temperature spikes. The DZ9X259537340 catches these materials on its outer surface where they are visible and can be easily removed during routine cleaning. This protection is especially valuable for trucks operating near construction zones, on gravel roads, or in agricultural areas where debris hazards are multiplied. The cost of a radiator mesh is fractional compared to the expense of replacing a damaged radiator, charge air cooler, or condenser, making it one of the most cost-effective preventive investments for a fleet.

The DZ9X259537340 is manufactured from materials chosen for long-term durability in harsh environments. Aluminum alloy meshes offer excellent corrosion resistance and are lightweight, reducing stress on mounting points. Stainless steel variants provide superior strength for extreme operating conditions and highest impact resistance. Both materials are treated with protective finishes; aluminum is often anodized or powder-coated in black, while stainless steel may be passivated to enhance its natural corrosion resistance. These finishes also help reduce glare and maintain a consistent, professional appearance behind the vehicle’s grille.

The materials are engineered to withstand constant exposure to road chemicals, UV radiation, and temperature cycling without becoming brittle or losing tensile strength. The wire junctions in woven meshes are securely locked to prevent unraveling upon impact. For fleet trucks that undergo frequent high-pressure washing, the materials and coatings resist degradation from cleaning chemicals. This durability ensures the DZ9X259537340 performs its protective role for the life of the vehicle, requiring no maintenance beyond periodic cleaning. The investment in quality materials pays dividends by preventing the mesh itself from becoming a maintenance item or failing when needed most.

A common concern with radiator meshes is their potential to restrict airflow to the cooling stack. The DZ9X259537340 is scientifically designed to mitigate this concern. Its open area percentage is carefully calculated to provide maximum debris stopping capability with minimal static pressure increase. Computational Fluid Dynamics (CFD) analysis and physical testing ensure the mesh pattern disrupts laminar airflow as little as possible. The slight airflow restriction introduced by a clean, high-quality mesh is negligible compared to the massive restriction caused by a radiator with bent, clogged fins.

In fact, a properly maintained DZ9X259537340 can improve long-term cooling consistency. By keeping the radiator fins straight and clean, it ensures the cooling system operates at its designed efficiency throughout the vehicle’s life. The mesh also helps distribute airflow more evenly across the face of the radiator, preventing localized hot spots. For operators in dusty or insect-prone regions, the mesh acts as a pre-filter, catching material that would otherwise embed itself deep within the radiator fins where it is impossible to clean. This maintains optimal heat transfer efficiency and prevents the gradual performance decline that often goes unnoticed until an overheating event occurs.

Installing the DZ9X259537340 Radiator Mesh is typically straightforward. It usually mounts to existing holes on the radiator support panel behind the main grille. In some truck configurations, the front grille or bumper center section must be removed for access. The mesh is positioned and secured with the provided bolts, clips, or dzus fasteners. It’s important to follow the torque specifications for any bolts to avoid distorting the frame. The installation should ensure the mesh is perfectly flat and taut, with no part contacting the radiator fins, even when the chassis flexes.

Maintenance of the DZ9X259537340 is simple but vital. The mesh should be visually inspected during routine engine bay checks. Accumulated debris—mud, bugs, leaves—should be removed to maintain airflow. Cleaning can be done with a soft brush, compressed air, or a gentle stream of water from the engine bay side outward (to avoid pushing debris into the radiator). For heavy accumulation, the mesh can be easily unbolted for more thorough cleaning. Regular inspection should also check for any damage to the mesh itself, such as broken wires or a bent frame, which would compromise its protective ability. A well-maintained mesh will last the life of the truck while providing continuous protection.

Choosing the genuine SHACMAN DZ9X259537340 Radiator Mesh guarantees performance that aftermarket screens cannot reliably match. The OEM mesh is engineered as a system component, with its open area, wire gauge, and frame strength precisely matched to the cooling demands and vibration environment of SHACMAN trucks. The fit is exact, requiring no modification or makeshift mounting solutions that could fail. The materials and finishes are certified for durability and corrosion resistance, ensuring long-term reliability.

Aftermarket meshes often use generic patterns and materials that may restrict airflow more than necessary or fail under impact. Their mounting systems may be inadequate, leading to vibration, noise, or even detachment at highway speeds. Perhaps most importantly, non-genuine meshes may not have undergone the same thermal and aerodynamic testing, potentially creating hot spots or reducing cooling efficiency in ways that aren’t immediately apparent but shorten component life. The genuine DZ9X259537340 is a calibrated protective device that safeguards your cooling system investment without compromising its performance.

Regular inspection of the DZ9X259537340 is key to ensuring ongoing protection. During pre-trip inspections or scheduled maintenance, visually examine the mesh for any tears, holes, or significant deformation. Pay special attention to the center area, which receives the most direct impacts. Check that all mounting points are secure and the frame is not bent or pulling away from the radiator support. Look for accumulated debris that could be blocking a significant portion of the mesh surface area; even a partially blocked mesh can cause airflow problems.

It’s also wise to periodically inspect the radiator fins behind the mesh. Shine a light through the mesh to see if the radiator face is clean and undamaged. If you notice bent fins behind an intact mesh, it indicates an impact was so severe it deformed the mesh enough to contact the radiator, suggesting the need for a mesh with heavier gauge material or a review of operating conditions. Documenting mesh condition and radiator fin condition over time can help optimize replacement intervals and provide valuable data for fleet maintenance planning. A proactive inspection regime ensures the cooling system protection is always active and effective.

The SHACMAN DZ9X259537340 Radiator Mesh is a smart, cost-effective engineering solution that provides vital protection for one of the truck’s most vulnerable and expensive systems. Its role in preventing radiator and cooler damage directly translates to reduced maintenance costs, improved uptime, and more predictable operating temperatures. For any fleet operating in environments where road debris is a reality, this component should be considered standard equipment rather than an optional accessory.

Always specify the genuine DZ9X259537340 from authorized SHACMAN parts suppliers to ensure you receive the designed protection, fit, and material quality. Incorporate mesh inspection into routine maintenance schedules and train drivers to report any noticeable impacts to the front grille. By installing and maintaining this simple yet highly effective guard, you make a strategic investment in the longevity and reliability of your truck’s cooling system, ensuring it can handle the demands of the road for years to come.
