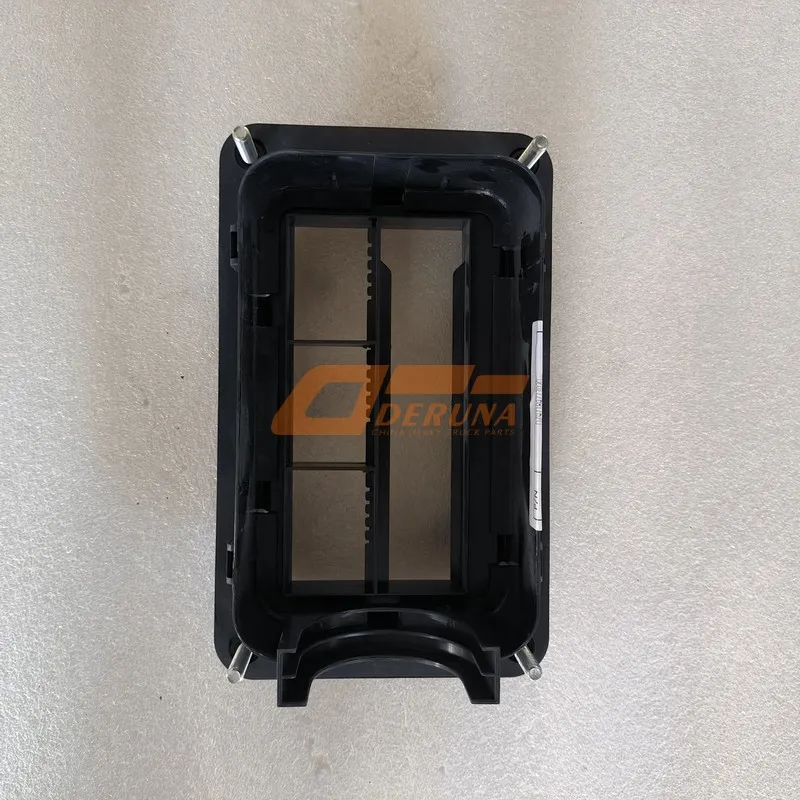

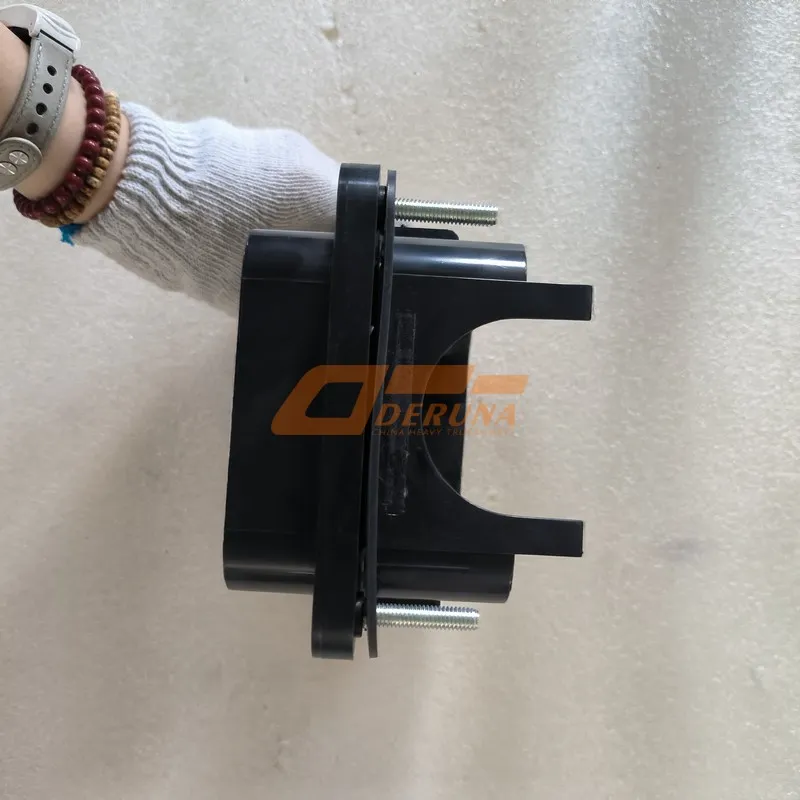

SHACMAN DZ97189777020 Front Panel Junction Box Assembly

The DZ97189777020 is a centralized electrical distribution unit located behind the truck’s dashboard. It consolidates wiring harness connections for front-panel controls, including headlight switches, turn signals, wipers, and instrument cluster power. This assembly protects fuses and relays from dust and moisture while providing a secure, organized point for circuit management. The robust design of the DZ97189777020 ensures stable voltage distribution and minimizes the risk of electrical fires. It is a critical component for vehicle safety and functionality.

Manufactured to SHACMAN’s stringent standards, the junction box features high-temperature resistant housing and corrosion-resistant terminals. Each connector is clearly labeled for ease of installation and service. The assembly simplifies complex wiring, reducing the chance of incorrect connections. For any electrical issue in the front panel, inspecting the DZ97189777020 should be a primary step. Its reliability directly impacts the operational readiness of the truck.

The primary function of the DZ97189777020 assembly is to distribute electrical power from the main battery and alternator to various front-end accessories. It houses multiple fuses that protect individual circuits from overloads. Relays within the box control high-current devices like headlights and horns. The modular design allows for easy access to each circuit for testing or repair. The DZ97189777020 also provides grounding points for several systems.

Key features include a durable polypropylene housing that is resistant to impact and chemicals. The internal busbars are made of tinned copper for excellent conductivity and corrosion resistance. All connectors are keyed to prevent mis-mating. The DZ97189777020 is designed for plug-and-play installation, saving valuable workshop time. Its design incorporates enough space for additional circuits if needed for aftermarket accessories.

The DZ97189777020 acts as the intermediary between the truck’s main wiring harness and the front panel devices. It receives power inputs from the battery and switches, then routes them appropriately. Circuits for lighting, signaling, and cab amenities are all managed from this central point. This integration simplifies the vehicle’s electrical architecture, making it more reliable and easier to diagnose. The DZ97189777020 ensures that each circuit is properly isolated and protected.

In modern SHACMAN trucks, the junction box may also interface with the Body Control Module (BCM) or other electronic units. The design of the DZ97189777020 accounts for electromagnetic compatibility to prevent interference with sensitive electronics. Its layout is logical, grouping related circuits together. This thoughtful design is why the DZ97189777020 is considered a vital component in the electrical system.

The DZ97189777020 assembly is designed for specific SHACMAN truck models, including the X3000, F3000, and M3000 series. Compatibility depends on the year of manufacture and the specific electrical configuration. It is crucial to verify the part number against the vehicle’s VIN or existing junction box. The DZ97189777020 is a direct replacement, designed to fit the original mounting location and connect to the existing wire harness without modification.

Installation should be performed by a qualified technician. The process involves disconnecting the battery, removing the dashboard panels to access the old box, labeling connectors, transferring fuses and relays, and securing the new unit. Care must be taken to ensure all connections are tight and waterproof seals are properly seated. Following the correct procedure guarantees the electrical system’s safety and functionality.

Safety is a paramount design consideration for the DZ97189777020. It centralizes circuit protection through fuses, which are the first line of defense against overcurrent conditions. The housing provides a physical barrier, preventing accidental contact with live terminals. The IP65 rating ensures that dust and water cannot ingress and cause short circuits, which is vital for trucks operating in harsh environments.

The internal layout prevents cross-contact between circuits. High-current paths are designed with adequate spacing to prevent arcing. The use of the genuine part ensures all these safety features are present and functional. Compromising with a non-OEM part could jeopardize the entire electrical system’s safety, leading to potential fire hazards or system failures.

Many front-panel electrical faults can be traced back to the junction box. Common issues include blown fuses, corroded terminals, or loose connections. If multiple unrelated electrical components fail simultaneously, the junction box should be inspected first. A systematic approach involves checking each fuse with a multimeter, inspecting terminals for green corrosion, and ensuring all plugs are fully seated.

A failing DZ97189777020 may cause intermittent operation of lights or switches. In some cases, a burning smell or visible melting around a fuse slot indicates overheating due to a poor connection. Replacing the entire DZ97189777020 assembly is often more reliable than attempting to repair individual components within it, especially if internal damage is suspected.

Choosing the genuine SHACMAN DZ97189777020 junction box guarantees perfect fitment, material quality, and electrical performance. OEM parts are tested to withstand the vibration, temperature extremes, and electrical loads specific to SHACMAN trucks. The terminals are precisely sized to maintain a secure, low-resistance connection over the vehicle’s lifetime. The housing material meets flame-retardancy standards.

Aftermarket alternatives may use inferior plastics or metals, leading to cracking, melting, or corrosion. They might not have the correct IP rating, posing a safety risk. The genuine DZ97189777020 ensures compatibility with the truck’s electrical system architecture and preserves warranty coverage. It is the only sure way to restore the electrical system to its original, reliable state.

Regular maintenance of the DZ97189777020 junction box can prevent many electrical problems. During routine service, visually inspect the box for cracks, moisture, or signs of overheating. Ensure the cover is securely fastened to maintain its IP rating. Check that all fuses are of the correct amperage and replace any that are blown with identical ratings.

Keep the area around the junction box clean and dry. If accessing the DZ97189777020, avoid leaving it open to the environment for extended periods. Do not attempt to bypass fuses or modify the internal wiring. Using the correct OEM part for replacement, like the DZ97189777020, is itself a key maintenance practice that ensures long-term reliability.

The SHACMAN DZ97189777020 Front Panel Junction Box Assembly is the cornerstone of a reliable and safe electrical system. Its role in distributing power, protecting circuits, and organizing wiring cannot be overstated. For fleet managers and technicians, recognizing the importance of this component is key to preventing downtime and costly electrical failures.

Always source the DZ97189777020 from authorized SHACMAN parts distributors to guarantee authenticity and performance. When faced with persistent or multiple electrical gremlins in the dashboard, inspecting or replacing the DZ97189777020 junction box should be a high-priority diagnostic step. Investing in this genuine OEM part is an investment in the truck’s overall electrical health and operational safety.

The DZ97189777020 assembly is engineered for the demanding environment of heavy-duty trucking. Its design process involves rigorous testing for vibration resistance, thermal cycling, and electrical load endurance. Each unit is a result of precise manufacturing, ensuring that every connector and circuit path performs as intended. For owners and operators, understanding the function of the DZ97189777020 helps in making informed maintenance decisions. It is a component that, while often out of sight, should never be out of mind when considering electrical system health.

< p>The global parts supply chain for SHACMAN ensures the DZ97189777020 is available to keep trucks running worldwide. Its value lies in preventing small electrical issues from cascading into major system failures. When specifying replacement parts, the OEM number DZ97189777020 is the only reference that guarantees the correct product for the application.
