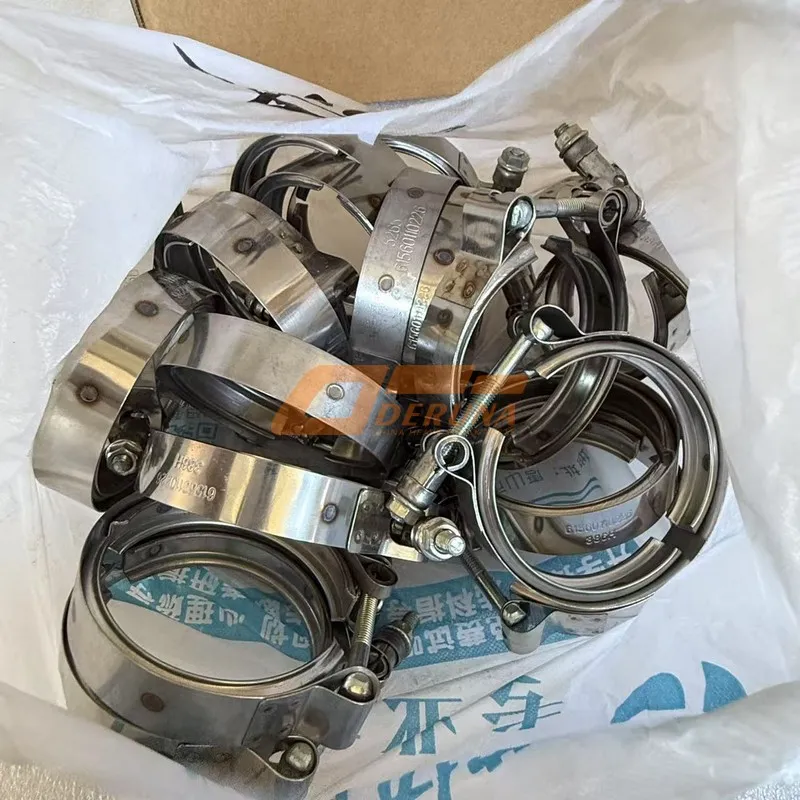

The BY61560110226 Clamp is a precision-engineered fastening component specifically designed for SHACMAN commercial trucks to ensure secure, reliable, and vibration-resistant connections for hoses, pipes, and cables throughout the vehicle. This genuine OEM part, identified by the code BY61560110226, plays a fundamental role in maintaining system integrity, preventing leaks, and ensuring the safe operation of critical fluid and air circuits.
As a trusted supplier of Shacman truck parts, we emphasize the importance of high-quality fasteners in overall vehicle reliability. The BY61560110226 clamp is manufactured to exact SHACMAN specifications, providing perfect fitment, consistent clamping force, and superior resistance to corrosion and mechanical stress. Its robust design is indispensable for routine maintenance, system repairs, and assembly operations, making it a vital component for fleet managers and technicians focused on preventing downtime and ensuring long-term operational safety.
Clamp
Хомут
High-Strength Material Construction: The BY61560110226 clamp is fabricated from premium stainless steel or specially coated carbon steel, providing exceptional tensile strength and durability to withstand constant vibration and mechanical loads without failing.
Precision Engineering for Consistent Clamping Force: Designed with a precise band and housing mechanism that ensures even pressure distribution around the hose or pipe, preventing leaks and minimizing stress on the connected component for a secure, long-lasting seal.
Superior Corrosion and Chemical Resistance: Features protective electroplating or passivation coatings that effectively resist rust, oxidation, and degradation from exposure to moisture, road salts, fuels, coolants, and other automotive fluids, ensuring reliability in harsh environments.
Optimized Design for Easy Installation and Service: Engineered with user-friendly features such as a standardized screw drive and a secure locking mechanism that allows for quick installation, adjustment, and removal using common tools, facilitating efficient maintenance and repairs.
The table below provides detailed technical specifications for the BY61560110226 Clamp. This information is essential for verifying compatibility and ensuring correct application in your SHACMAN truck’s various systems.
| Parameter | Value / Description |
|---|---|
| OEM Part Number | BY61560110226 |
| Product Name | Clamp |
| Brand | SHACMAN |
| Primary Material | Stainless Steel (AISI 304/316) or Zinc-Plated Carbon Steel |
| Clamp Type | Screw/Hose Clamp (Worm Drive) |
| Band Width | 9 mm to 12 mm (Varies by specific application) |
| Diameter Range (Min-Max) | 20 mm to 60 mm (Approximate, depends on adjustment) |
| Torque Specification | 1.5 – 2.5 Nm (Specific to hose type and size) |
| Operating Temperature Range | -40°C to +150°C |
| Drive Type | Slotted Screw (Standard Screwdriver) |
| Primary Application | Securing coolant, fuel, air, and hydraulic hoses/pipes |
| Compatible SHACMAN Models | F2000, F3000, M3000, X3000 series and various engine/ chassis systems |
Always confirm BY61560110226 clamp compatibility with your specific hose size, system pressure, and environmental conditions using official SHACMAN documentation or consultation with a parts specialist.
The BY61560110226 Clamp is a versatile and critical fastening component used across multiple systems in SHACMAN trucks. Its primary function is to create a secure, leak-proof seal between a hose and a fitting, such as a pipe nipple, barb, or flange.
You will find the BY61560110226 clamp in the cooling system, securing radiator and heater hoses; in the fuel system, attaching supply and return lines; in the air intake system, fastening turbocharger and intercooler ducts; and in various hydraulic and pneumatic circuits. Its role is to maintain connection integrity under pressure, temperature cycles, and constant vibration.
A properly torqued BY61560110226 clamp prevents fluid or air leaks, which can lead to system failures, performance loss, environmental contamination, and safety hazards. It ensures that the clamping force is evenly distributed to avoid damaging the hose while maintaining a consistent seal throughout the component’s service life.
For fleet maintenance, standardizing on the genuine BY61560110226 clamp ensures consistent quality and reliability across all vehicles. It simplifies inventory and guarantees that every hose connection meets the factory specification for safety and durability, reducing the risk of roadside failures.
For technicians and owner-operators, using the correct clamp like the BY61560110226 is a fundamental aspect of professional repair work. It contributes to the overall reliability of the vehicle, prevents costly fluid losses, and supports the efficient operation of all dependent systems.
1. Select the correct size BY61560110226 clamp for the hose and fitting. The clamp should fit within its adjustable range without being at its minimum or maximum limit.
2. Slide the clamp onto the hose before connecting the hose to the fitting. Ensure the clamp is positioned over the rib or bead of the fitting if present.
3. Push the hose fully onto the fitting until it seats completely against the stop or ridge. Position the clamp approximately 1-3 mm from the end of the hose.
4. Using a correctly sized screwdriver, tighten the clamp screw evenly. Avoid using power tools, as they can easily over-torque and damage the clamp or hose.
5. Tighten to the recommended torque specification (if available) or until the clamp is snug and the hose is slightly compressed, but not cut or excessively deformed.
6. For critical high-pressure systems, double-check the tightness after the first operational heat cycle, as hoses can settle and compress slightly.
7. Always replace used or over-tightened clamps with new ones during repairs to ensure optimal clamping force and corrosion resistance.
• During routine service, visually inspect all BY61560110226 clamps for signs of heavy corrosion, rust streaks, or a white powdery residue indicating advanced galvanic corrosion.
• Check for clamp tightness by gently attempting to twist the hose. The hose should not rotate easily on the fitting. Look for any signs of weeping or leakage at the connection.
• Inspect the clamp band for distortion, cracks, or a stretched appearance. Examine the screw housing for integrity and the screw for corrosion or stripped threads.
• Replace any clamp that shows significant corrosion, damage, or that has been overtightened (evidenced by a severely pinched or cut hose underneath).
• When replacing hoses, always install a new BY61560110226 clamp. Reusing old clamps is not recommended as they lose tension and may be corroded.
• Keep a selection of genuine SHACMAN clamps like the BY61560110226 in your maintenance inventory to ensure you always have the correct, high-quality part on hand.
Proper installation of the BY61560110226 clamp is crucial for a reliable seal. Overtightening is a common mistake that can cut the hose, leading to failure, while undertightening will result in leaks. Always follow manufacturer guidelines.
Choosing the genuine BY61560110226 Clamp guarantees material quality, precise engineering, and performance reliability that generic aftermarket clamps often fail to deliver. SHACMAN designs this component with specific alloy compositions and protective coatings to withstand the demanding environment of a heavy-duty truck.
Aftermarket clamps may use inferior, thinner metals that can fatigue and crack from vibration. Their coatings may be substandard, leading to rapid rust. The screw mechanisms might strip easily or not provide consistent, even pressure. The genuine BY61560110226 is tested for clamp force retention, corrosion resistance, and durability under thermal cycling.
Investing in the OEM part ensures your hose connections are secured as the vehicle’s engineers intended, maintaining system integrity and upholding warranty conditions. It eliminates the risk of premature failure due to a cheap fastener, which could lead to disproportionate repair costs and downtime.
The BY61560110226 is widely recognized by SHACMAN dealership technicians and independent heavy-duty mechanics for its consistent quality and reliability. Its standardized design makes it a familiar and trusted component in repair shops.
Fleet maintenance records indicate that vehicles consistently using genuine clamps like the BY61560110226 have a lower incidence of leak-related failures in cooling, fuel, and air systems. This directly reduces coolant loss, fuel spills, and boost pressure leaks, contributing to lower operating costs and improved vehicle availability.
Technicians appreciate that the BY61560110226 clamp rarely seizes or strips during removal, making service jobs faster and less frustrating. This reliability translates into labor savings and fewer complications during routine maintenance.
The BY61560110226 Clamp plays a significant role in environmental protection by preventing leaks of fluids such as diesel fuel, engine oil, coolant, and hydraulic fluid. A single secure clamp can prevent gallons of potentially hazardous material from contaminating soil and waterways.
From a safety perspective, a failed clamp in a critical system like power steering or air brakes could have immediate and severe consequences. The reliability of the BY61560110226 clamp contributes directly to vehicle safety by ensuring these systems remain intact and functional.
SHACMAN’s manufacturing of components like the BY61560110226 adheres to environmental standards, and the durability of the clamp means fewer replacements over the vehicle’s life, reducing waste and the resource consumption associated with frequent part changes.
Each BY61560110226 clamp undergoes quality control checks for material integrity, dimensional accuracy, coating thickness, and mechanical strength. Batches are tested for corrosion resistance and clamping force performance.
As a genuine SHACMAN component, the BY61560110226 is covered by the manufacturer’s warranty against defects in materials and workmanship. This warranty provides peace of mind and protects your investment in maintaining your truck to the highest standard.
Purchasing from authorized distributors ensures you receive an authentic part that is eligible for this warranty and is guaranteed to meet the exact specifications required for your SHACMAN vehicle.
While the unit cost of a genuine BY61560110226 clamp is low, its value in preventing system failures is immense. The cost of a single coolant leak on the road can include tow fees, repair time, lost revenue, and potential engine damage far exceeding the price of a clamp.
Using high-quality clamps like the BY61560110226 reduces the frequency of leak-related repairs and associated fluid top-ups. For fleet managers, this means lower overall maintenance costs and higher vehicle utilization rates.
Standardizing on OEM fasteners simplifies procurement, ensures consistent quality across all vehicles, and supports a proactive maintenance strategy that focuses on prevention rather than costly reaction.
The BY61560110226 Clamp is engineered for specific hose sizes and applications within SHACMAN trucks. Compatibility is determined by the hose outer diameter, system pressure, and the chemical compatibility of the clamp material with the fluid.
Using the correct OEM number BY61560110226 ensures you get a clamp with the proper band width, diameter range, and material specification for its intended location. A clamp that is too large or too small will not provide an effective seal.
Always verify the required clamp size by measuring the hose OD or consulting the vehicle’s parts catalog. When in doubt, consult with an authorized SHACMAN parts specialist to confirm the correct clamp for your specific repair need.
The BY61560110226 Clamp is a fundamental component that ensures the integrity of countless hose connections throughout your SHACMAN truck. Its role in preventing leaks and maintaining system pressure is critical for safe, efficient, and reliable operation.
Choosing the genuine BY61560110226 is an investment in quality, safety, and long-term cost savings. Trust SHACMAN’s OEM specifications to deliver the precise fit, strength, and corrosion resistance your heavy-duty applications demand.
Equip your next repair or maintenance task with confidence. Select the authentic BY61560110226 Clamp for guaranteed compatibility, superior performance, and peace of mind throughout your truck’s service life.
