For SANY truck operators working in cold climates, a reliable cabin heating system is essential for driver comfort, safety, and windshield defogging. The Heater Radiator, or heater core, is the central component that transfers engine coolant heat to warm the cabin air. The genuine SANY part with OEM number HQ8101029SQ01 ensures efficient heat exchange and durable construction for demanding applications. Investing in authentic SANY parts like this heater radiator guarantees optimal thermal performance and prevents heating system failures during critical winter operations. This component directly impacts driver comfort, safety visibility, and overall vehicle usability in cold conditions.

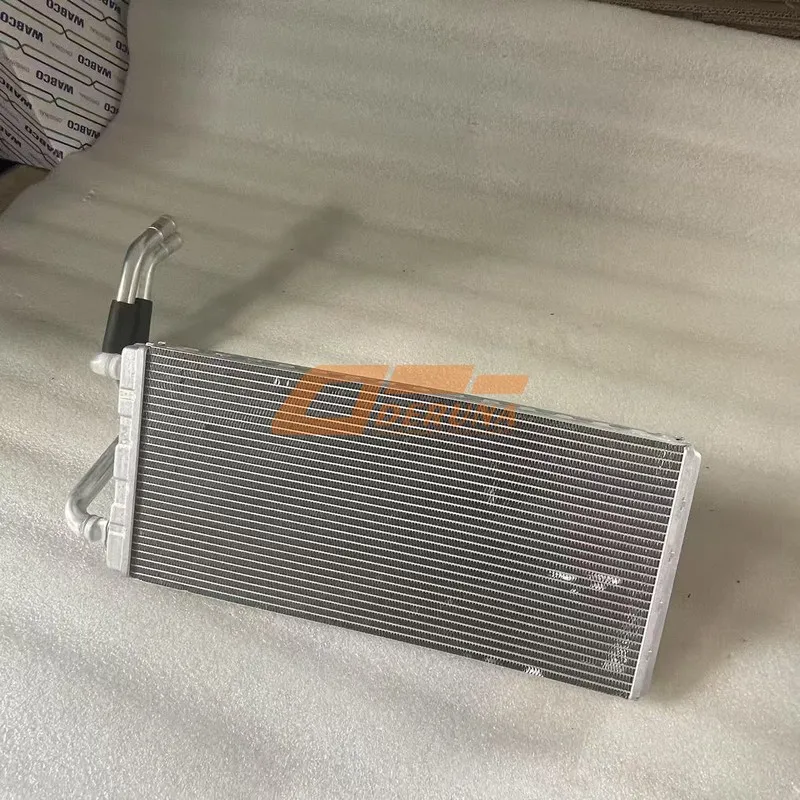

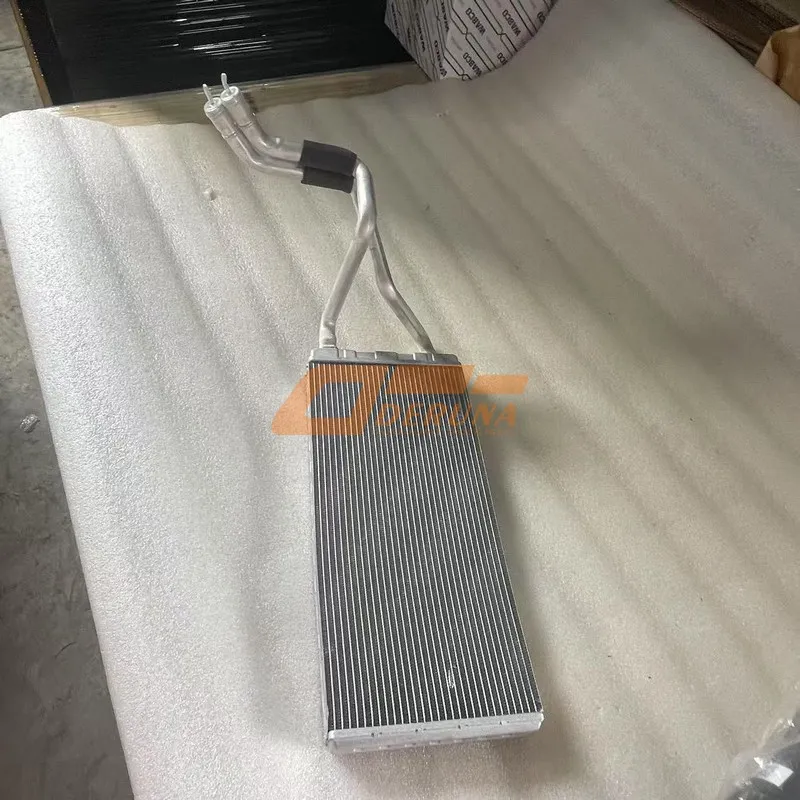

Heater Radiator
Радиатор отопителя
Radiador de Calefacción
The SANY Heater Radiator (OEM HQ8101029SQ01) operates as a compact heat exchanger within the vehicle’s HVAC system. Hot engine coolant, typically around 90°C, circulates through the radiator’s internal tubes. As cabin air is forced through the aluminum fins by the blower fan, heat transfers from the coolant to the air, raising its temperature by 30-50°C. This process efficiently utilizes waste engine heat to warm the cabin without additional fuel consumption. The HQ8101029SQ01 core is specifically engineered with optimal fin density and tube configuration to maximize heat transfer efficiency while minimizing airflow resistance.
This heater core integrates seamlessly with SANY’s complete HVAC system. It works in conjunction with blend doors, control valves, and fan systems to regulate cabin temperature precisely. The HQ8101029SQ01 radiator provides the primary heat source that can be mixed with outside or recirculated air to achieve desired comfort levels. Its consistent heat output is crucial for effective defrosting and defogging of windshields and side windows, directly impacting driver visibility and safety. The component’s thermal capacity is carefully matched to SANY cabin volumes for optimal heating performance.
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| OEM Number | HQ8101029SQ01 | Brand | SANY |
| Product Name | Heater Radiator | Core Material | Aluminum Fins & Copper Tubes |
| Dimensions (Approx.) | 250mm x 180mm x 40mm | Inlet/Outlet Size | 19mm (3/4″) |
| Operating Pressure | Up to 3 Bar (45 PSI) | Heat Output | 4-6 kW (Approx.) |
| Coolant Compatibility | Standard Ethylene Glycol Mix | Compatibility | SANY Truck Models |
Choosing the genuine SANY Heater Radiator, identified by OEM number HQ8101029SQ01, provides significant advantages over generic alternatives. This radiator is precision-engineered to match SANY’s specific coolant flow requirements and thermal characteristics. The materials are selected for optimal corrosion resistance against various coolant chemistries, preventing internal deterioration that can lead to leaks. Genuine parts undergo rigorous pressure testing to ensure they withstand thermal cycling and system pressures throughout their service life. The HQ8101029SQ01 radiator’s exact dimensions guarantee perfect fitment within the HVAC housing, eliminating installation issues and ensuring optimal airflow across the entire core surface.
The HQ8101029SQ01 heater radiator is designed with advanced fin technology that maximizes surface area for heat exchange while maintaining low airflow resistance. The tube-and-fin construction creates turbulent airflow that enhances heat transfer efficiency. This design ensures rapid cabin warming from cold starts and maintains consistent temperatures during operation. The radiator’s thermal output is carefully calibrated to SANY cabin volumes, providing sufficient heating capacity even in extreme sub-zero conditions. This efficiency translates to faster windshield defogging and reduced strain on the engine cooling system.
Operating in a constantly moist environment makes heater cores particularly susceptible to corrosion. The genuine HQ8101029SQ01 radiator features protective coatings and high-quality solder joints that resist galvanic corrosion between dissimilar metals. The copper tubes are manufactured with thicker walls than aftermarket equivalents, providing extended service life. Internal surfaces are treated to prevent scale buildup that can reduce heat transfer efficiency. This robust construction withstands the thermal expansion and contraction cycles experienced during normal operation, preventing stress fractures and leaks that plague inferior aftermarket components.
Replacing the SANY Heater Radiator (HQ8101029SQ01) requires careful procedure due to its location within the dashboard assembly. Begin by properly draining the engine coolant system to prevent spillage. Disconnect the battery and remove necessary dashboard components following SANY service manual guidelines. Carefully disconnect the heater hoses from the core, noting their orientation for reassembly. Remove the old radiator from the HVAC housing, cleaning the housing thoroughly. Install the new HQ8101029SQ01 radiator with fresh seals or gaskets, ensuring proper alignment. Reconnect all components, refill with correct coolant mixture, and bleed air from the system before testing for leaks and proper heating function.
Recognizing heater radiator failure early prevents coolant loss and potential engine damage. The most obvious symptom is insufficient cabin heat despite normal engine temperature. Sweet-smelling mist or film on the windshield interior often indicates coolant vapor escaping from a leaking core. Visible coolant pooling on the passenger side floor is a definitive sign of failure. Frequent coolant loss without visible external leaks suggests internal radiator leakage. Reduced windshield defogging efficiency and unusual gurgling sounds from the dashboard area may also indicate air pockets or partial blockage in the HQ8101029SQ01 radiator.
Extend the service life of your HQ8101029SQ01 heater radiator with proper maintenance. Use only recommended coolant mixtures and change at specified intervals to prevent corrosive buildup. Flush the cooling system periodically to remove sediment that can accumulate in the radiator tubes. Ensure the HVAC drain tube remains clear to prevent water accumulation around the core. Run the heater periodically during summer months to keep the core internally lubricated and prevent seal drying. Address any cooling system leaks promptly to maintain proper pressure and prevent air intrusion that can accelerate corrosion within the heater radiator.
The SANY Heater Radiator with OEM number HQ8101029SQ01 is designed for specific SANY truck models and equipment. This component is engineered to match the cooling system specifications, cabin volume, and HVAC ducting of compatible vehicles. Its application typically includes SANY heavy-duty trucks operating in cold climate regions where reliable cabin heating is essential. The radiator’s heat output capacity, physical dimensions, and connection points are precisely matched to the original equipment specifications. When sourcing replacement parts, verify compatibility using your vehicle’s VIN or model number to ensure the HQ8101029SQ01 radiator is the correct component for your specific SANY application.
Q1: Can I repair a leaking heater radiator instead of replacing it?
A1: Professional repair of heater cores is generally not recommended. The HQ8101029SQ01 radiator operates under pressure with hot coolant, and repairs often fail under thermal cycling. Additionally, most leaks occur in areas inaccessible for proper repair. Replacement with a genuine HQ8101029SQ01 radiator ensures reliable, long-term solution.
Q2: How long should a genuine SANY heater radiator last?
A2: With proper cooling system maintenance, a genuine HQ8101029SQ01 heater radiator typically lasts 8-12 years or 200,000-300,000 kilometers. Lifespan depends on coolant quality, maintenance frequency, operating conditions, and climate factors. Regular coolant changes significantly extend service life.
Q3: What causes premature heater radiator failure?
A3: Common causes include improper coolant mixture causing corrosion, cooling system neglect leading to sediment buildup, excessive pressure from a faulty radiator cap, vibration stress from engine movement, and electrolysis from improper electrical grounding. Using genuine HQ8101029SQ01 parts with proper installation minimizes these risks.
The SANY Heater Radiator, with the precise OEM designation HQ8101029SQ01, is a critical component for ensuring driver comfort, safety, and vehicle operability in cold conditions. Its role in providing reliable cabin heating directly impacts driver performance, windshield visibility, and overall operational efficiency during winter months. Selecting the genuine SANY part guarantees the thermal performance, durability, and precise fitment required for demanding commercial applications. Regular maintenance and timely replacement of this component represent a valuable investment in your SANY equipment’s year-round usability. Trust the specified HQ8101029SQ01 radiator to maintain optimal cabin climate control in your SANY vehicles.
Ensure reliable winter operation and driver comfort with genuine SANY heating system components.
