Ensure reliable recovery and safe towing operations for your SANY heavy equipment with the genuine Towing Strap Assembly, OEM part number HQ1100120SQ209 (also known as Assembly 1383). This critical rigging component is engineered for the demanding task of moving, positioning, or recovering immobilized machinery on construction sites, mines, and challenging terrains. As an essential part of the robust and safety-focused SANY parts catalog, the HQ1100120SQ209 provides a secure, high-strength connection point between machines. It is designed to handle the immense static and dynamic loads encountered during heavy-duty towing and winching operations without failure.
Constructed from high-tensile steel and durable synthetic materials, this assembly replaces worn or damaged straps that pose a significant safety risk. Using the genuine HQ1100120SQ209 ensures you have a certified, load-rated component that matches the strength requirements of your SANY equipment. Proper use of this tow strap assembly is fundamental for safe worksite practices, preventing accidents, and protecting both personnel and valuable assets from the dangers of makeshift or substandard towing solutions.
Towing Strap Assembly 1383

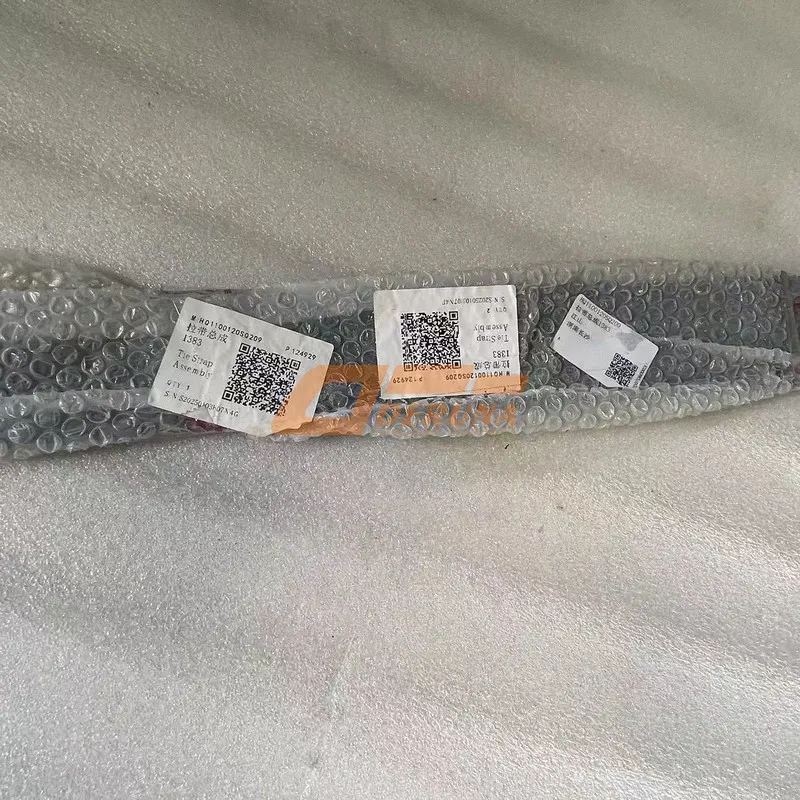

Тяговый ремень в сборе

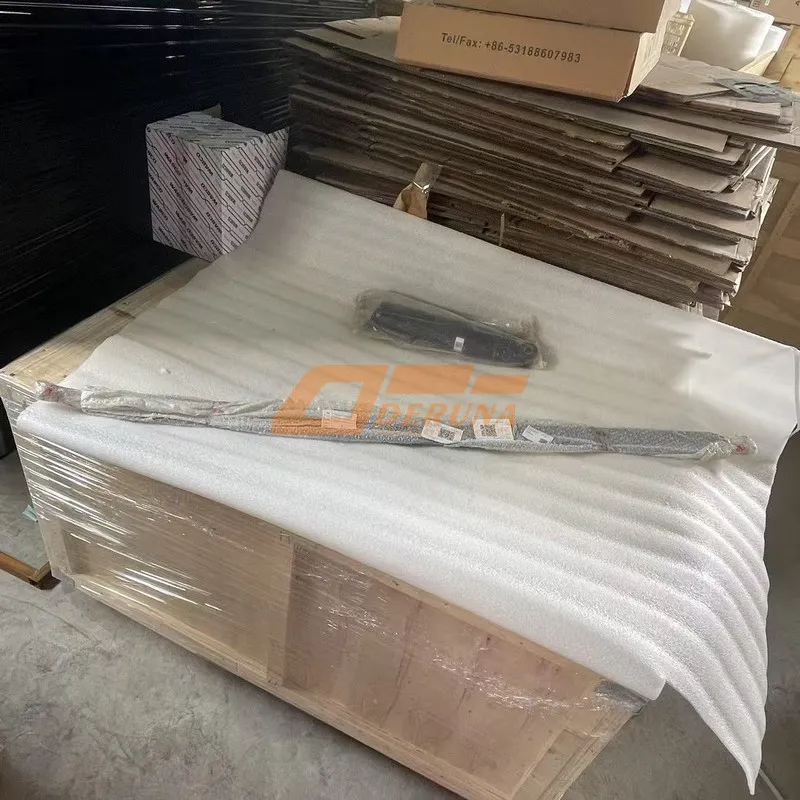

Conjunto de Correa de Remolque
The Towing Strap Assembly HQ1100120SQ209 serves as a dedicated, high-capacity linkage for moving non-operational or stuck heavy equipment. Its primary function is to connect a recovery vehicle (such as a bulldozer, excavator, or dedicated tow tractor) to the disabled machine. The assembly is designed to transmit pulling forces safely and efficiently, allowing for controlled extraction from mud, sand, steep grades, or other immobilizing conditions.
Beyond emergency recovery, this strap is also used for routine positioning of machinery on flatbeds, within confined work areas, or for assisted maneuvering where precise movement is required. The HQ1100120SQ209 is engineered to provide a degree of elasticity or controlled stretch (depending on material) to absorb shock loads during initial tensioning, reducing stress on the towing points of both machines and providing a smoother, safer pull.
The genuine HQ1100120SQ209 assembly is built for extreme service. It typically consists of a core strap made from multiple plies of high-tenacity synthetic fabric like polyester or nylon, known for its strength, flexibility, and resistance to abrasion and UV degradation. Alternatively, it may be a heavy-duty steel cable or chain assembly. The ends are fitted with forged steel hooks, shackles, or clevises that are load-rated and heat-treated for maximum strength.
Critical connection points are reinforced with double or triple stitching, heavy-duty splicing, or swaging. Protective sleeves or wear pads are often integrated in high-friction areas to extend the strap’s life. The entire HQ1100120SQ209 assembly is designed and tested to meet or exceed a specific Working Load Limit (WLL) and Minimum Breaking Strength (MBS), which are clearly marked on the product for safe use.
| Parameter | Specification |
|---|---|
| OEM Part Number | HQ1100120SQ209 (Assembly 1383) |
| Component Type | Heavy-Duty Towing / Recovery Strap Assembly |
| Compatible Brand | SANY Heavy Equipment |
| Core Material | High-Tenacity Polyester/Nylon Webbing or Steel Cable |
| End Fittings | Forged Steel Hooks, Shackles, or Clevises |
| Load Rating | High Working Load Limit (WLL) – Model Specific |
Using the correct, rated HQ1100120SQ209 towing strap is a fundamental safety practice. A failed strap under extreme tension can become a lethal projectile, causing severe injury or death. The genuine assembly is engineered with a known safety factor, providing a reliable margin between its working load and breaking point.
It ensures a secure connection to approved tow points on SANY machinery, preventing hooks from slipping or detaching. By providing a controlled, elastic pull (in the case of synthetic straps), it reduces the shock loading that can damage equipment or cause sudden, dangerous movements during recovery operations.
When heavy equipment is stuck or broken down, every minute of downtime costs money. Having the proper HQ1100120SQ209 recovery strap on hand allows for a swift and effective response. Crews can safely and efficiently extract the machine, getting it back to a service area or back to work much faster than waiting for external recovery services.
A reliable strap assembly also enables planned moves and positioning, improving workflow efficiency on site. The durability of the genuine part means it can be deployed repeatedly without fear of failure, making it a dependable tool in the daily operation of a heavy equipment fleet.
Regular inspection of the HQ1100120SQ209 assembly is mandatory. Cuts, tears, or significant abrasion on the webbing or cable are immediate disqualifiers. Broken or worn stitches, especially near the end fittings, compromise strength. Rust or corrosion on steel cables, hooks, or shackles can hide cracks and lead to sudden failure.
Distortion, stretching, or kinking in the assembly indicates it has been overloaded. Faded color in synthetic straps may signal UV degradation. If the load rating tag is missing or illegible, the strap should not be used. Any doubt about the integrity of the HQ1100120SQ209 warrants immediate replacement with a new, certified unit.
Always connect the HQ1100120SQ209 strap to designated, structurally sound tow points on both machines. Never attach it to hydraulic cylinders, buckets, or other non-rated components. Use shackles or clevises where possible to provide a positive, pin-secured connection. Ensure hooks are fully seated and cannot spring free under changing tension.
During the pull, all personnel must stand clear of the “line of fire”—the potential path of the strap or fittings if they break. Use a damper (like a heavy blanket) draped over the strap to reduce whip if it fails. Apply tension slowly and steadily; avoid jerky movements. Never exceed the Working Load Limit of the HQ1100120SQ209 assembly.
The HQ1100120SQ209 assembly will be marked with a Working Load Limit (WLL). This is the maximum force it is designed to handle in general service. It is not the breaking strength. The Minimum Breaking Strength (MBS) is typically 4 to 5 times the WLL, providing a critical safety factor.
Choosing the correct strap means matching its WLL to the gross weight of the equipment being moved and the force required for extraction. Using an underrated strap is extremely dangerous. The genuine SANY part HQ1100120SQ209 is specified to be appropriate for the weight class of the compatible machinery, taking the guesswork out of selection.
The genuine HQ1100120SQ209 is not a generic strap; it is an engineered assembly tested and validated for use with specific SANY equipment. Its length, strength, and end fittings are designed to work optimally with the machine’s tow points and operational weight. Using the OEM part guarantees you have a component that meets SANY’s safety and performance standards.
Aftermarket or uncertified straps may have unknown or falsified load ratings, inferior materials, or poor-quality fittings that can fail catastrophically. The cost of a genuine strap is minimal compared to the potential cost of an accident involving injury, fatality, or additional equipment damage. It is the only responsible choice for professional operations.
Store the HQ1100120SQ209 strap in a cool, dry place away from direct sunlight, chemicals, and sharp objects. For synthetic straps, coiling it loosely prevents kinks. For steel cables, apply a light coat of oil to prevent rust if storing for extended periods. Always clean the strap of mud, grit, and debris after use, as these particles can abrade the fibers or work into cable strands.
Inspect the assembly thoroughly before each use. Keep a log of its service history and retire it according to the manufacturer’s guidelines or at the first sign of significant wear. Never repair a damaged strap with knots, bolts, or tape; these create concentrated stress points and drastically reduce strength.
Having the correct recovery equipment, like the HQ1100120SQ209, is part of operational readiness for any site working with heavy machinery. It allows crews to handle common immobilizations promptly. Many workplace safety regulations (OSHA, MSHA, etc.) require appropriate and inspected rigging equipment for material handling and recovery tasks.
Using a certified, traceable OEM assembly like the HQ1100120SQ209 helps demonstrate compliance during safety audits. It shows a commitment to providing workers with the proper tools for the job, which is a cornerstone of a strong safety culture and reduces corporate liability.
The HQ1100120SQ209 may be available in synthetic or steel configurations, each with advantages. Synthetic straps are lighter, easier to handle, and provide beneficial stretch to absorb shock loads. They are also non-conductive and won’t spark. Steel cables or chains offer superior abrasion resistance against sharp edges and are less affected by UV exposure.
The choice depends on the typical recovery environment and hazards. The genuine SANY part number ensures you get the type originally specified for your equipment’s use case, balancing safety, durability, and performance for the intended applications.
The investment in a genuine HQ1100120SQ209 Towing Strap Assembly is negligible compared to the risks it mitigates. The cost of an accident caused by strap failure can include medical expenses, regulatory fines, increased insurance premiums, legal fees, equipment damage, and project delays—easily totaling hundreds of thousands of dollars.
Furthermore, the ability to quickly recover a machine keeps projects on schedule and avoids costly rental replacements. The genuine strap is a durable asset that, when properly maintained, will provide years of reliable service, making it one of the highest-return safety investments a fleet manager can make.
The SANY Towing Strap Assembly, part number HQ1100120SQ209, is far more than an accessory; it is a critical piece of safety and recovery equipment. Its robust, load-rated design provides the secure connection needed for the challenging task of moving heavy machinery, protecting personnel and assets from the dangers of improper towing.
Choosing the genuine OEM part ensures compatibility, certified strength, and reliability that generic straps cannot match. Regular inspection, proper use, and timely replacement of the HQ1100120SQ209 are non-negotiable practices for any professional operation using SANY equipment in demanding environments.
Equip your team with the right tool for the job. Invest in the genuine SANY HQ1100120SQ209 Towing Strap Assembly to uphold the highest standards of worksite safety, operational readiness, and equipment care.
