SANY Servo Clutch 1604K0613001: Advanced Power Transfer for Effortless Heavy-Duty Shifting

In the demanding world of heavy-duty trucking, a reliable and responsive clutch system is the cornerstone of efficient power transfer and driver control. The genuine 1604K0613001 Servo Clutch represents SANY’s engineering excellence, designed to provide smooth, reliable engagement and disengagement of the drivetrain in their most robust vehicles. As a premium component within the extensive catalog of authentic SANY parts, the 1604K0613001 integrates advanced hydraulic or pneumatic assist mechanisms to significantly reduce pedal effort for the operator.

This servo clutch system ensures precise modulation, enhances driving comfort during frequent stop-and-go operations, and delivers the durability required to handle high torque loads. Choosing the OEM part 1604K0613001 is a direct investment in operational efficiency, reduced driver fatigue, and the long-term reliability of your truck’s transmission system.

Servo Clutch

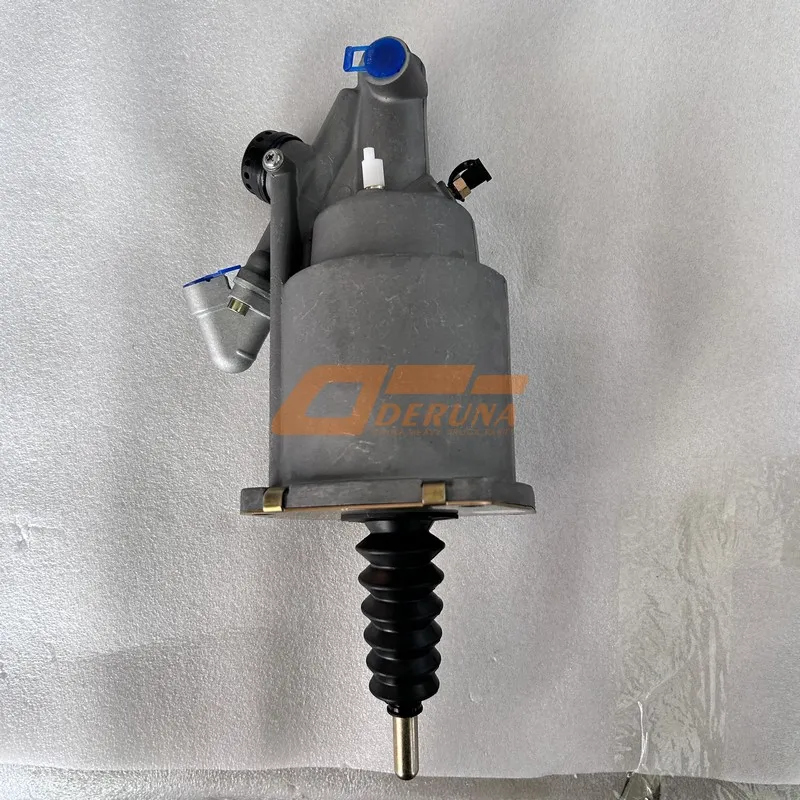

Сервосцепление

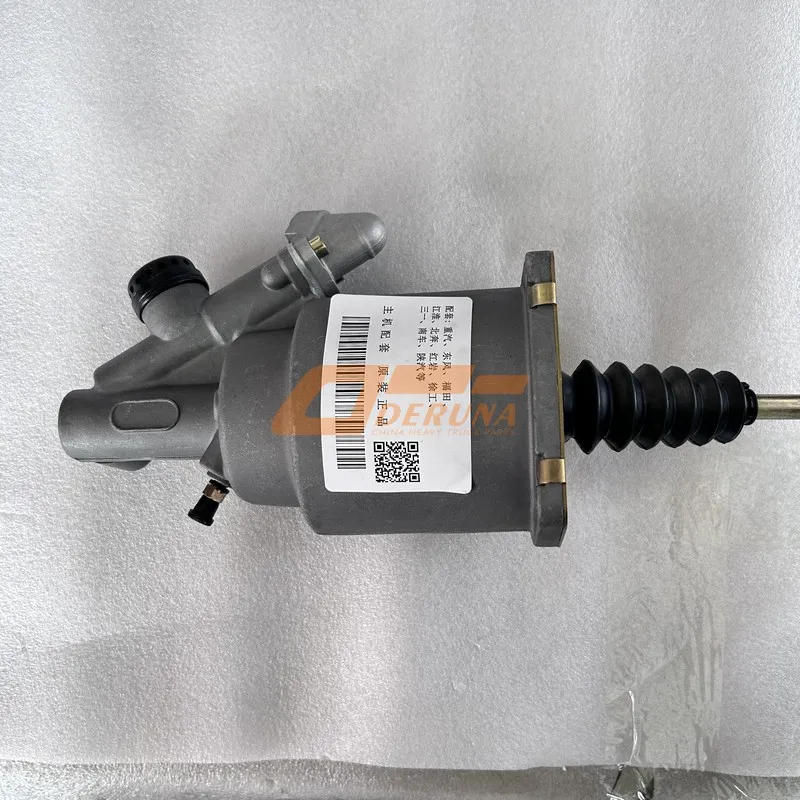

Embrague Servo

Core Function and Operational Principle of Servo Clutch 1604K0613001

The SANY Servo Clutch, part number 1604K0613001, is an advanced clutch system that incorporates a power-assisted mechanism to reduce the physical force required by the driver to operate the clutch pedal. Unlike a standard mechanical clutch, the 1604K0613001 utilizes either a hydraulic slave cylinder with an internal booster or a pneumatic (air-assisted) system. When the driver presses the clutch pedal, it activates this servo mechanism, which multiplies the applied force. This amplified force is then used to disengage the clutch disc from the flywheel smoothly and completely.

This design is crucial for heavy-duty applications where clutch springs are exceptionally strong to handle high engine torque. The servo assistance in the 1604K0613001 makes gear shifting less strenuous, faster, and more precise, reducing the risk of incomplete disengagement that leads to gear grinding. It also allows for more consistent clutch engagement, minimizing driveline shock and protecting other transmission components. Essentially, the servo clutch transforms a potentially heavy and fatiguing mechanical action into a light, controllable pedal feel without compromising the clutch’s torque capacity.

Key Design Features and Engineering Advantages

The genuine 1604K0613001 Servo Clutch is a system of integrated components engineered for performance and longevity. It typically includes a reinforced clutch cover (pressure plate) with a high clamp load, a wear-resistant organic or ceramic clutch disc, a heavy-duty release bearing, and the integral servo-assist mechanism. The entire assembly is balanced to minimize vibration at high rotational speeds. The servo mechanism itself is designed for reliability, with sealed bearings and durable diaphragms or pistons that resist the high temperatures and pressures of continuous operation.

Technical Specifications: Servo Clutch 1604K0613001

The table below details the primary technical parameters for the SANY Servo Clutch assembly. These specifications are critical for ensuring the correct application and performance matching for your specific vehicle model and engine configuration.

Installation, Adjustment, and System Bleeding

Replacing the Servo Clutch 1604K0613001 is a complex task that requires specialized tools and expertise, typically involving the removal of the transmission. Key steps include safely supporting the vehicle, disconnecting the driveline and transmission, and carefully lowering the gearbox to access the clutch assembly. The flywheel surface must be meticulously cleaned and inspected for wear or hot spots. The new clutch disc and pressure plate (often supplied as a kit with the 1604K0613001) must be aligned using a clutch alignment tool before torquing the pressure plate bolts in a star pattern to the specified value.

For hydraulic servo systems, bleeding the clutch hydraulic circuit is critical to remove air and restore proper pedal feel and assist function. This must be done according to the manufacturer’s procedure, often requiring a pressure bleeder. Any associated components, such as the master cylinder or hydraulic lines, should be inspected and replaced if worn. For pneumatic systems, air line integrity and valve operation must be verified. Finally, the clutch free play and total pedal travel must be adjusted to the specifications outlined in the SANY service manual to ensure optimal performance of the 1604K0613001 unit.

Common Symptoms of Wear and Servo System Failure

Diagnosing issues with the Servo Clutch 1604K0613001 involves recognizing specific symptoms. A common sign of clutch disc wear is slippage, where engine RPM increases without a corresponding increase in vehicle speed, especially under load. This may be accompanied by a burning smell. Difficulty shifting gears, particularly grinding during engagement, can indicate incomplete disengagement due to a worn release bearing, hydraulic air in the system, or a failing servo booster. A sudden loss of pedal assistance, resulting in an extremely heavy clutch pedal, points directly to a failure of the servo mechanism within the 1604K0613001 assembly.

Other symptoms include a spongy or sinking clutch pedal (indicative of a hydraulic fluid leak or master cylinder failure), chattering or vibration during engagement (often from a contaminated or warped clutch disc), and unusual whirring or grinding noises from the bellhousing when the clutch pedal is depressed (pointing to a failing release bearing). Regular maintenance, such as checking hydraulic fluid levels and inspecting for leaks, can help prevent sudden failures of the 1604K0613001 system.

Advantages of the Genuine SANY Servo Clutch 1604K0613001

Conclusion: A Critical Investment in Drivetrain Performance and Efficiency

The SANY Servo Clutch, OEM number 1604K0613001, is far more than a simple wear item; it is a sophisticated drivetrain control system that directly impacts vehicle performance, operator comfort, and maintenance costs. Its advanced design bridges the gap between the immense power of a diesel engine and the need for precise, manageable driver input. Choosing a non-genuine or inferior clutch can lead to increased downtime, poor shift quality, and potentially damage the transmission or flywheel.

Therefore, specifying the genuine 1604K0613001 for clutch service is a strategic decision that upholds the vehicle’s designed performance standards and protects your operational productivity. It is the essential choice for fleet managers and owner-operators who demand reliability, driver satisfaction, and cost-effective operation from their SANY heavy-duty trucks. Trust in the OEM engineering to deliver the seamless power transfer and control your vehicle was built for.
