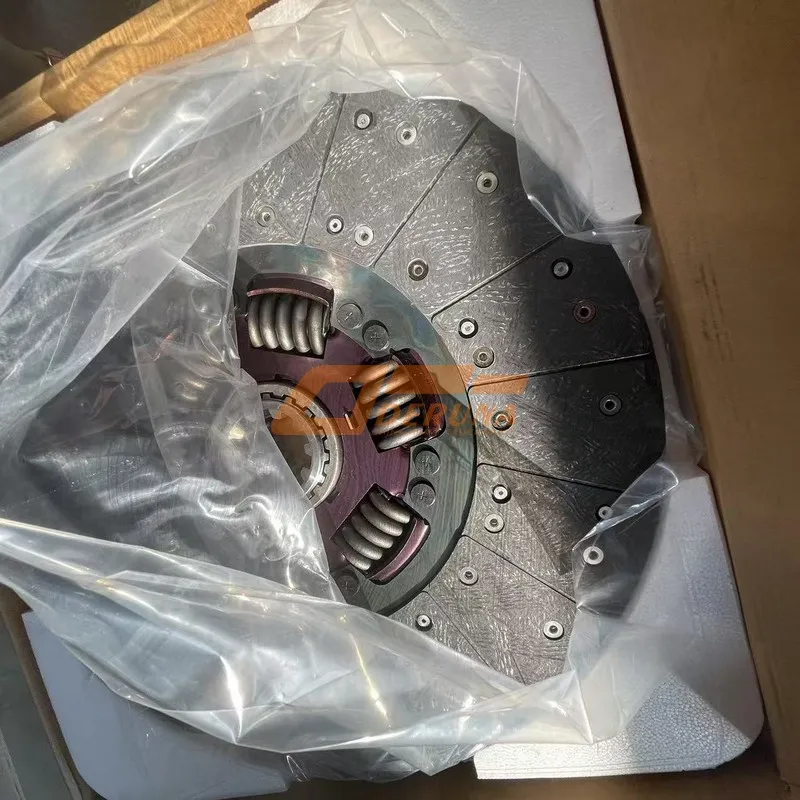

SANY Genuine Clutch Pressure Disc 130699000043A for Heavy-Duty Transmission

Ensure smooth and reliable power transfer in your SANY heavy equipment with the genuine Clutch Pressure Disc, OEM part number 130699000043A. This essential component, also commonly known as the clutch driven plate or friction disc, is the central element that connects and disconnects engine power to the transmission. As a fundamental part of high-performance and durable SANY parts, the 130699000043A disc provides the critical friction surface that enables controlled engagement and smooth operation. It is sandwiched between the engine flywheel and the pressure plate, transmitting torque through friction when the clutch is engaged.

Designed to withstand extreme heat and pressure, the genuine 130699000043A disc features advanced friction materials and a robust dampening system. Replacing a worn or damaged clutch disc with this OEM part restores precise shifting, eliminates slippage and shuddering, and protects the transmission from shock loads. This direct-fit component is engineered for the demanding torque requirements and harsh operating environments of SANY construction and mining machinery, ensuring long service life and consistent performance.

Core Function of Clutch Disc 130699000043A

The Clutch Pressure Disc 130699000043A is the primary friction component in a dry clutch system. Its function is to create a mechanical link between the engine and transmission when clamped by the pressure plate. The disc’s friction material contacts the engine flywheel on one side and the pressure plate on the other, transmitting engine torque through friction to the transmission input shaft.

When the clutch pedal is depressed, the pressure plate retracts, releasing the clamping force on the 130699000043A disc. This breaks the friction connection, allowing the engine to spin independently of the transmission for smooth gear changes. The disc must provide consistent friction, effective heat dissipation, and smooth engagement characteristics throughout its service life.

Advanced Construction and Material Technology

The genuine 130699000043A disc features a sophisticated multi-layer design. The core is a splined hub that connects to the transmission input shaft, surrounded by a stamped steel center plate. High-performance organic or ceramic friction material is riveted or bonded to both sides of this center plate.

A critical feature is the torsional dampening system, consisting of springs set between the hub and the friction plate assembly. These springs absorb engine vibration and torque spikes, providing smooth engagement and protecting the drivetrain from shock loads. The entire assembly is balanced to prevent vibration at high rotational speeds.

Technical Specifications: Clutch Pressure Disc 130699000043A

Symptoms of a Worn or Failing Clutch Disc

Clutch slippage is the most common symptom: the engine RPM increases without a corresponding increase in machine speed, especially when climbing or under load. A burning smell indicates overheating friction material. Difficulty shifting gears or grinding during shifts suggests the disc is not fully releasing due to warping or a damaged spline.

Vibration or shuddering during clutch engagement points to a warped disc, contaminated friction material, or failed dampening springs. A chattering sensation or noise when the clutch is partially engaged are clear signs that the 130699000043A disc requires immediate replacement to prevent damage to the flywheel and pressure plate.

Professional Installation and System Alignment

Installing the 130699000043A clutch disc requires precise alignment. The transmission must be separated from the engine to access the clutch assembly. The old disc and pressure plate are removed, and the flywheel surface is inspected and resurfaced if necessary. The new disc is carefully positioned using a clutch alignment tool.

This tool ensures the disc is centered so the transmission input shaft can slide smoothly through the splines during reassembly. The pressure plate is then installed and torqued in a star pattern to specification. Proper installation is critical to prevent premature wear, vibration, and release problems.

Heat Resistance and Friction Performance

The friction material on the 130699000043A disc is formulated to maintain a stable coefficient of friction across a wide temperature range. During heavy use, clutch temperatures can soar. High-quality materials resist glazing (a glassy, slippery surface formed by overheating) which can cause sudden clutch failure.

The disc’s design also promotes heat dissipation. Grooves or slots in the friction material help vent heat and expel wear debris. This thermal stability ensures consistent clutch feel and performance whether the machine is cold or has been working hard all day, a crucial requirement for SANY equipment.

The Importance of Genuine SANY Part 130699000043A

The genuine 130699000043A disc is engineered to match the exact torque capacity, dampening requirements, and physical dimensions of your SANY equipment’s clutch system. Its spline count and diameter are precisely machined to fit the transmission input shaft perfectly, eliminating play that can cause wear and noise.

Aftermarket discs may use inferior friction materials that wear quickly or lose effectiveness when hot. Their dampening springs may not be correctly calibrated, leading to harsh engagement. The OEM disc guarantees compatibility, performance, and durability, protecting your investment in both the clutch system and the transmission.

Complete Clutch System Overhaul Best Practice

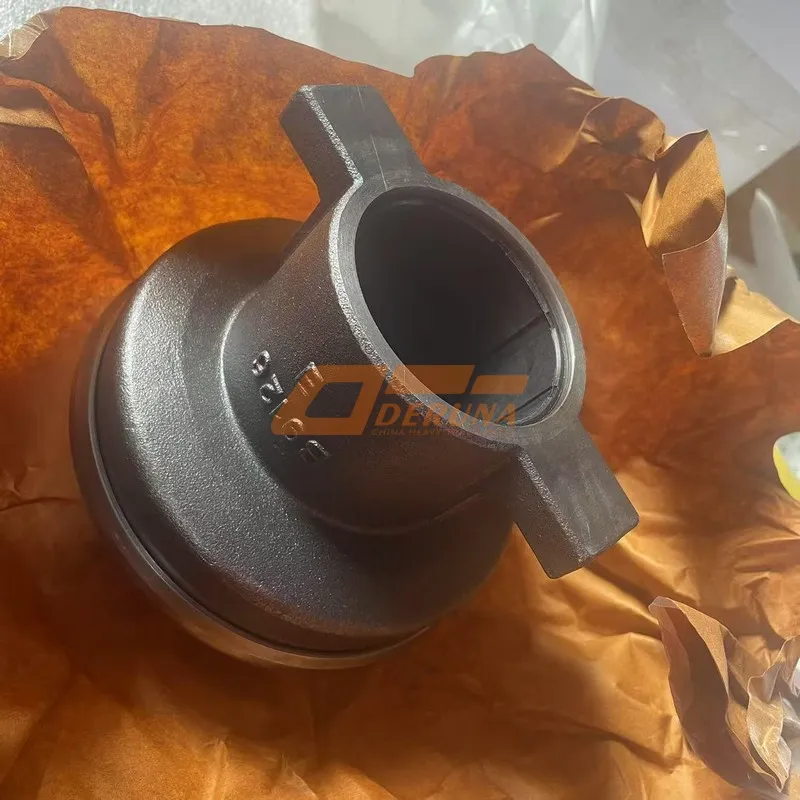

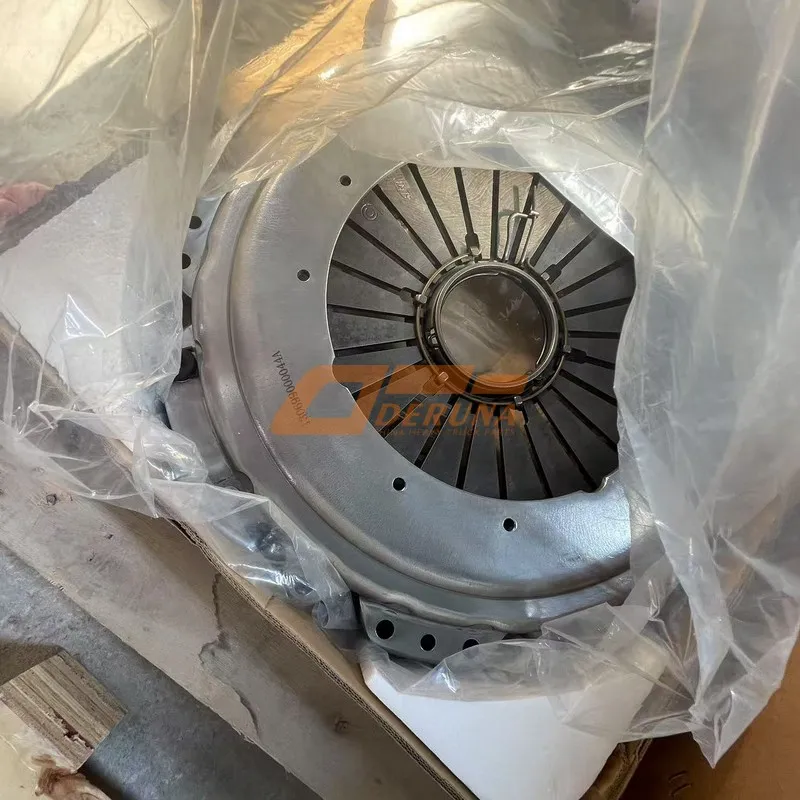

For optimal results and longevity, the 130699000043A clutch disc should be installed as part of a complete clutch system overhaul. This typically includes replacing the pressure plate (part 130699000044A) and the release bearing. The flywheel should be resurfaced to provide a clean, flat mating surface for the new disc.

Replacing all wear components simultaneously ensures they work together as a balanced, like-new system. Installing a new disc against a worn pressure plate can lead to rapid re-failure and uneven wear. A complete kit approach is the most reliable and cost-effective repair strategy in the long run.

Operator Control and Machine Efficiency

A properly functioning clutch disc is vital for precise machine control. Smooth, predictable engagement allows operators to perform delicate maneuvers like inching forward to attach a load or positioning equipment with accuracy. This control enhances safety and productivity on the job site.

Efficient power transfer also impacts fuel economy. A slipping clutch wastes fuel by converting engine power into heat instead of motion. The 130699000043A disc, by ensuring solid engagement, helps maintain optimal fuel efficiency, reducing operating costs over the machine’s lifetime.

Preventative Maintenance and Operating Habits

Clutch life is greatly extended by proper operation. Avoid “riding” the clutch pedal, which keeps the disc partially engaged and causes rapid wear. Minimize slipping the clutch during starts; use the appropriate gear and engine RPM. Don’t use the clutch to hold the machine on an incline; use the brake instead.

Regular inspection of the clutch hydraulic system for leaks and proper fluid level is also important, as hydraulic failure can lead to clutch slippage and burning. Training operators on proper clutch use is an investment that pays off in reduced maintenance costs and longer component life.

Cost-Benefit of Proactive Clutch Service

While clutch replacement represents a significant maintenance event, its cost is minor compared to the consequences of complete failure. A severely worn disc can score or crack the flywheel, requiring costly replacement. Continued operation with a slipping clutch can also overheat and warp the pressure plate.

More critically, unexpected clutch failure leads to unplanned downtime, halting projects and incurring substantial lost revenue. Proactive replacement of the 130699000043A disc at the first signs of wear, especially during scheduled maintenance, ensures machine availability and prevents more extensive repairs.

Conclusion: The Heart of Smooth Power Transmission

The SANY Clutch Pressure Disc, OEM part number 130699000043A, is far more than a simple wear item. It is a precision-engineered component crucial for efficient power transfer, smooth operation, and drivetrain protection. Its advanced friction materials and integral dampening system are designed specifically for the rigorous demands of heavy equipment.

Choosing the genuine SANY part guarantees perfect fitment, optimal performance, and the durability needed for maximum uptime. When installed as part of a complete clutch system service, the 130699000043A disc restores like-new shifting performance, operator confidence, and protects your valuable investment in SANY machinery.

Ensure your equipment delivers the power and control required for the toughest jobs. Trust the engineered quality of the genuine SANY 130699000043A Clutch Pressure Disc for your next clutch overhaul.
