The oil seal is a critical component in any heavy‑duty truck, tasked with retaining lubricants and excluding contaminants where rotating shafts pass through housings. The genuine SINOTRUK HOWO YC209-065090FR Oil Seal 65X90 is an OEM‑grade seal precision‑engineered for a perfect fit and long‑lasting performance. As an essential part of the trusted Sinotruk howo parts family, this seal guarantees exact dimensions, superior material resilience, and reliable sealing under continuous rotation and pressure.
Oil Seal 65X90
Масляный сальник 65×90
Sello de aceite 65×90

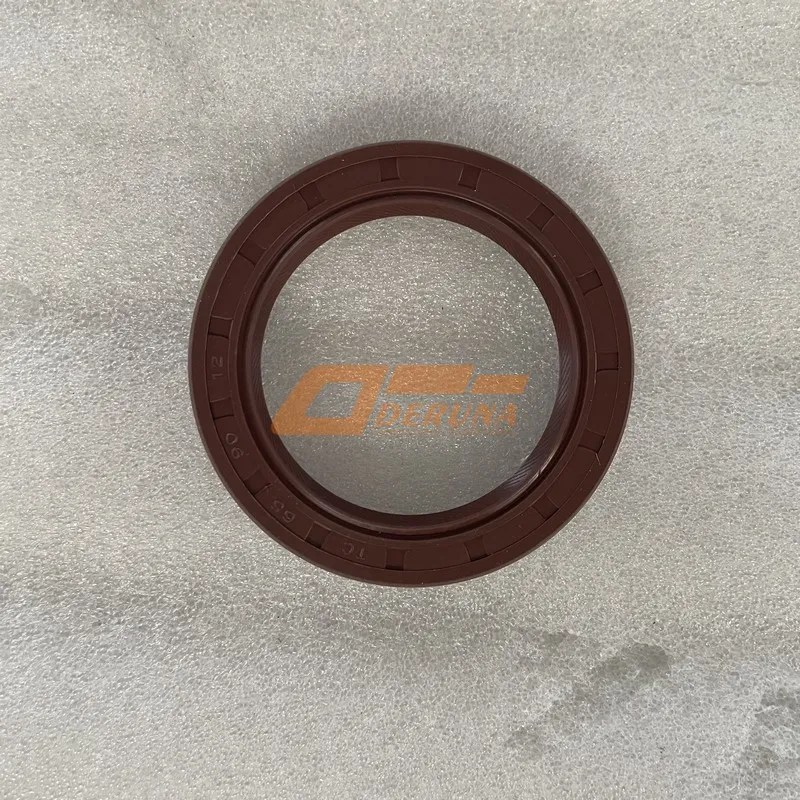

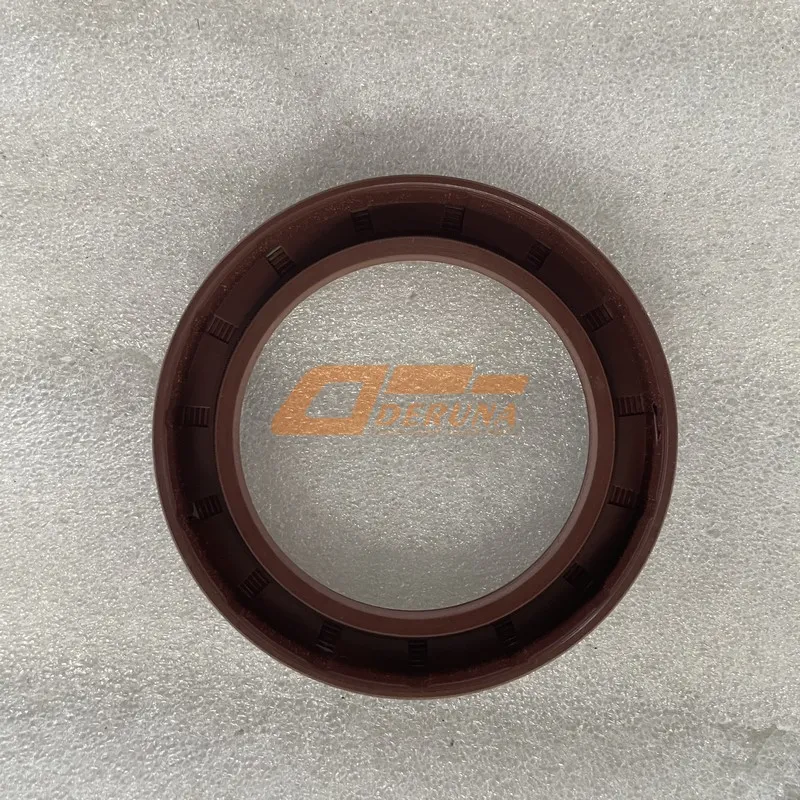

The YC209-065090FR oil seal is a precision‑engineered component designed for rotating shafts. It features a flexible sealing lip made from high‑grade nitrile rubber (NBR), which is formulated to resist degradation from engine oil, gear oil, and grease, while maintaining its flexibility across a wide temperature range. The lip is designed with a specific interference fit to ensure constant contact pressure against the shaft, creating a dynamic seal that prevents oil from escaping and contaminants from entering. A precisely wound garter spring maintains consistent lip pressure, compensating for minor shaft wear and thermal expansion.
The outer diameter of the seal is encased in a robust steel shell that provides a rigid, interference fit within the housing bore, preventing leakage around the seal’s perimeter. The shell is often coated to resist corrosion. This specific seal, with dimensions of 65mm inner diameter and 90mm outer diameter, is precisely matched to applications in SINOTRUK HOWO axles, transmissions, and engine components. The YC209-065090FR seal is manufactured to tight tolerances, ensuring it maintains its shape and sealing integrity under the vibration, high speeds, and pressure variations common in heavy‑duty operation.
The table below provides detailed technical specifications for the genuine SINOTRUK HOWO YC209-065090FR Oil Seal. This data is essential for verifying compatibility and understanding the component’s capabilities.
| Parameter | Specification | Details |
|---|---|---|
| OEM Part Number | YC209-065090FR | SINOTRUK HOWO Original Code |
| Product Name | Oil Seal 65X90 | Rotary shaft lip seal |
| Inner Diameter (d) | 65 mm | Fits shaft size |
| Outer Diameter (D) | 90 mm | Fits housing bore |
| Width (W) / Thickness | 10 mm (typical) | Overall height |
| Lip Material | Nitrile Rubber (NBR) | Oil and heat resistant |
| Case Material | Carbon Steel | Rigid, corrosion resistant coating |
| Spring Type | Garter Spring | Maintains lip pressure |
| Operating Temperature | -40°C to +100°C | Suitable for all climates |
| Max Shaft Speed | Up to 3000 RPM | Depends on application |
| Weight (approx.) | 0.05 kg | Lightweight |
| Compatible Applications | SINOTRUK HOWO axles, transmissions | Check specific shaft/housing |
Correct installation is critical for oil seal performance. The shaft surface must be smooth and free of burrs, rust, or grooves. Lightly lubricate the sealing lip and shaft with clean oil before installation. Using an appropriate installation tool or a socket slightly smaller than the seal’s outer diameter, press the new YC209-065090FR seal squarely into the housing bore until it seats fully. Avoid hammering directly on the seal, which can damage the lip. Ensure the seal is not cocked or twisted. The seal should be installed with the lip facing the fluid to be retained.
The YC209-065090FR oil seal is a direct OEM replacement for specific SINOTRUK HOWO applications requiring a 65x90mm seal. Compatibility must be verified by matching the part number with your vehicle’s component (e.g., axle hub, transmission output) and the shaft/housing dimensions. Using the correct seal ensures proper lip pressure and fit. Always replace the seal whenever the related component is serviced (e.g., during axle or transmission overhaul). Genuine SINOTRUK HOWO parts guarantee a perfect fit and long‑term sealing performance.
Before installing the new seal, inspect the shaft for wear. If a groove is present, consider using a speedy sleeve or replace the shaft. A worn shaft will quickly damage the new seal lip and cause leaks.
The precision‑molded lip of the YC209-065090FR seal forms a positive barrier against oil leaks, ensuring lubricants stay where they belong and preventing costly contamination or component damage.
By sealing the shaft interface, it keeps dirt, water, and debris out of bearings and gears, extending their service life and maintaining drivetrain integrity in harsh environments.
A genuine seal is a low‑cost component that protects expensive bearings and gears. Using an authentic part prevents premature failures, reducing downtime and long‑term maintenance costs.
A worn oil seal often reveals itself through visible fluid leaks around the shaft, grease or oil accumulating on the outside of the housing, and in severe cases, low lubricant levels leading to bearing noise or overheating. During routine maintenance, inspect the area around the seal for signs of seepage. If the seal lip is hard, cracked, or the garter spring is missing or broken, replacement is necessary.
Ignoring a leaking seal can result in lubricant starvation, causing expensive damage to differentials, wheel bearings, or transmissions. Replacing it promptly with a genuine YC209-065090FR seal restores sealing integrity and protects your investment.
Oil seals are not serviceable items, but their life can be maximized by proper maintenance. Keep the area around seals clean to prevent abrasive buildup. Ensure axle and transmission breathers are not clogged, as excess pressure can force fluid past the seal. Check lubricant levels regularly and top up with the correct grade. When replacing bearings or servicing the axle, always install a new genuine seal.
If a shaft shows signs of wear, consider using a wear sleeve before installing a new seal. Always use genuine SINOTRUK HOWO parts for replacements to guarantee the correct fit and material quality.
Generic aftermarket oil seals often use inferior rubber compounds that harden, crack, or lose lip pressure quickly, leading to premature leaks. They may also have incorrect dimensions, causing improper fit and rapid failure. The genuine SINOTRUK HOWO YC209-065090FR oil seal is engineered to the exact specifications of your truck’s components, ensuring correct material, lip design, and durability. It is manufactured under strict quality controls to withstand the extreme demands of heavy‑duty operation.
By choosing the authentic part, you protect your investment and ensure reliable sealing for thousands of kilometers. For fleet managers and owner‑operators who prioritize uptime and safety, the genuine YC209‑065090FR is the only responsible choice.
