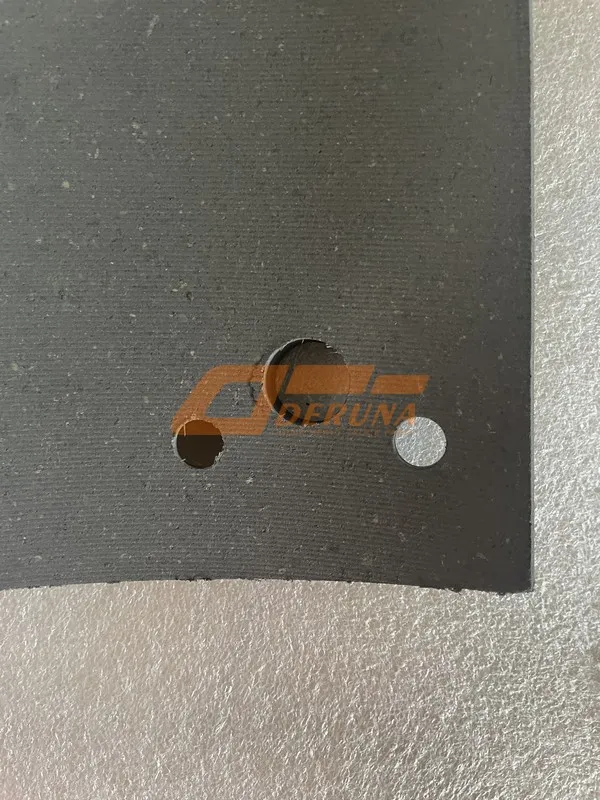

WG9200340069: Complete Brake Shoe Set with Lining & Rivets for SINOTRUK Howo

Core Function of Drum Brake Shoes

In a traditional drum brake system, the WG9200340069 brake shoe is the active friction component. It is mounted inside a rotating brake drum attached to the wheel. When the brake pedal is pressed, hydraulic pressure or air actuates the wheel cylinder.

This pushes the curved shoes outward against the inner surface of the drum. The friction material (lining) on the WG9200340069 shoe creates immense resistance. This converts the kinetic energy of the moving truck into heat energy.

The process slows and eventually stops the rotation of the wheel. The sturdy steel shoe provides a rigid platform for the lining. The rivets in the WG9200340069 kit permanently secure the lining to the shoe for reliable operation.

Key Advantages of Genuine WG9200340069 Brake Shoes

Technical Specifications: Brake Shoe Set WG9200340069

Integration within the Drum Brake Assembly

The WG9200340069 brake shoe is part of a complex mechanical system. It is mounted on a fixed backing plate inside the wheel hub. Each wheel typically has two shoes: a primary and a secondary shoe.

The shoes are held in place by strong return springs and retaining pins. They pivot on anchor pins at one end. The wheel cylinder or s-cam actuator contacts the opposite end of the shoe.

When actuated, the shoes expand outward uniformly. The WG9200340069 lining makes full contact with the drum’s interior. Upon release, the springs retract the shoes, eliminating drag.

Correct installation and adjustment are critical. The shoe must be centered and have correct clearance. The genuine WG9200340069 ensures perfect dimensional compatibility with Howo brake drums.

Warning Signs of Worn Brake Shoes

Reduced braking efficiency is the primary symptom. The truck may require a longer distance to stop. The brake pedal might feel softer or travel closer to the floor. A pronounced pulling to one side during braking indicates uneven wear.

Loud grinding or scraping noises from the wheels are a severe warning. This often means the WG9200340069 lining is completely worn through. The metal shoe is now grinding against the brake drum.

Visible fine black dust around the wheels is normal brake dust. However, excessive amounts can indicate accelerated lining wear. Regular inspection through the drum’s inspection hole is essential.

Never ignore these signs. Driving with critically worn shoes risks damaging the expensive brake drum. More importantly, it compromises the safety of the driver, cargo, and other road users.

Replacement Procedure and Critical Steps

Replacing brake shoes requires technical skill and proper tools. Safely lift and support the truck, then remove the wheel and the brake drum. Carefully note the arrangement of springs, pins, and adjusters before disassembly.

Use brake spring tools to safely remove the hold-down springs and retracting springs. Clean the backing plate and inspect all components for wear. Lubricate contact points on the backing plate with high-temperature brake grease.

Install the new WG9200340069 brake shoes in the correct position (primary/secondary). Reinstall all springs, pins, and the adjuster mechanism correctly. Manually adjust the brake clearance before installing the drum.

After reassembly, perform a final adjustment and test the brakes at low speed. Always replace brake shoes in complete axle sets (both sides) to ensure balanced braking. This prevents dangerous pulling during stops.

Importance of Lining Material and Friction Ratings

The lining on the WG9200340069 is engineered for heavy-duty truck use. Friction materials are rated on a scale (e.g., FF, GG). This rating indicates performance at cold and hot temperatures.

A high friction coefficient provides stronger braking but may wear the drum faster. The genuine lining is balanced for effective stopping, reasonable wear, and minimal drum scoring. It is also formulated to be quiet and generate low dust.

Using incorrect aftermarket linings can be dangerous. They may have poor high-temperature performance (fade), wear rapidly, or damage the drum. The WG9200340069 guarantees the correct, tested material for your Howo.

The riveted construction ensures the lining remains firmly attached under stress. This is crucial for safety, as a delaminated lining would cause immediate and total brake failure on that wheel.

Performance Under Load and Mountainous Terrain

Brake shoes face their greatest challenge during sustained downhill braking. The friction generates immense heat. The WG9200340069 lining is designed to resist fade under these conditions.

Fade occurs when overheating reduces the lining’s friction coefficient. The brakes feel weak despite heavy pedal pressure. The genuine lining maintains a more stable friction level as temperatures rise.

The steel shoe of the WG9200340069 also plays a role. It must not warp or distort from heat, which would cause uneven contact and grabbing. Proper use of engine braking is still essential to spare the friction components.

For fleet operations in hilly regions, the quality of brake shoes is paramount. The WG9200340069 provides the reliability needed for safe descent with a full load, protecting both the cargo and the braking system.

Maintenance Schedule and Inspection Intervals

Brake shoe inspection should be part of every major service interval. For high-mileage or severe-service trucks, checks every 25,000-50,000 km are advisable. Always follow the manufacturer’s recommended maintenance schedule.

Inspection involves removing the drum to measure lining thickness. The WG9200340069 lining should be replaced before it wears down to the rivet heads. Most regulations require replacement with at least 3mm of lining remaining.

Also inspect the shoe platform for cracks and the rivets for tightness. Check the drum surface for scoring, cracking, or excessive wear. Drums should be machined or replaced if they are out of specification.

Keeping a maintenance log for each wheel is a best practice. It helps predict replacement needs and ensures no axle is overlooked. Proactive replacement of the WG9200340069 set prevents roadside breakdowns.

Conclusion: Trust Your Stop to WG9200340069

The Brake Shoe set, part number WG9200340069, is a fundamental safety component in the SINOTRUK Howo’s drum brake system. Its performance directly dictates stopping distance, vehicle control, and overall operational safety under all load conditions.

Choosing the genuine WG9200340069 kit guarantees the correct friction material, structural integrity, and perfect fit required for reliable heavy-duty braking. Do not compromise on the parts that bring your truck to a halt—insist on authentic OEM brake components like WG9200340069 for every maintenance cycle.
