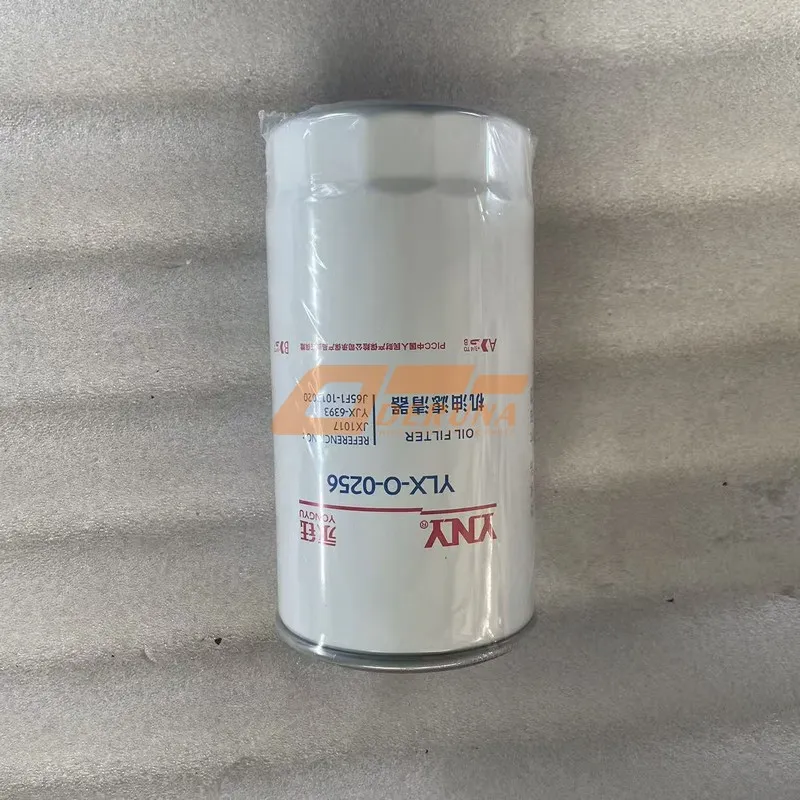

The J65F1-1012020A oil filter is a genuine SINOTRUK HOWO component engineered to remove harmful contaminants from engine lubricating oil, ensuring long‑term protection for critical engine components. As a vital element of the trusted Sinotruk howo parts family, this filter maintains oil cleanliness, reducing friction and wear on bearings, crankshaft, and turbocharger. Manufactured with a high‑efficiency synthetic media and a robust steel housing, the J65F1-1012020A unit delivers excellent dirt‑holding capacity and consistent flow, even under extreme operating conditions. Its integrated anti‑drainback valve ensures instant oil pressure at start‑up, preventing dry starts. Investing in this authentic component guarantees reliable engine protection, reduced maintenance, and long‑term durability in mining, construction, and long‑haul applications.
Oil Filter
Масляный фильтр
Filtro de aceite
The J65F1-1012020A oil filter features a premium synthetic blend media that provides excellent filtration efficiency (98% at 25 microns) while maintaining high flow rates. The media is pleated to maximize surface area, ensuring long service intervals even in severe operating conditions. An integrated anti‑drainback silicone valve prevents oil from draining back into the pan when the engine is off, ensuring immediate lubrication at start‑up and reducing wear during cold starts. The filter housing is constructed from heavy‑gauge steel with a corrosion‑resistant epoxy coating, ensuring durability under the vehicle.
Each J65F1-1012020A filter is 100% tested for burst pressure (minimum 18 bar) and is equipped with a high‑flow bypass valve that opens at 1.5 bar to ensure oil flow even if the filter becomes clogged. The sealing gasket is made from high‑quality nitrile rubber, resistant to heat and oil degradation. This meticulous engineering ensures that the filter delivers reliable protection against abrasive particles, extending the life of your Howo engine and reducing maintenance costs.
The table below provides detailed technical data for the genuine SINOTRUK HOWO J65F1-1012020A oil filter. These specifications are essential for verifying compatibility.
| Parameter | Specification | Details |
|---|---|---|
| OEM Part Number | J65F1-1012020A | SINOTRUK HOWO Original Code |
| Product Name | Oil Filter (Spin‑on) | Complete assembly |
| Filtration Efficiency | 98% @ 25 microns | ISO 4548‑12 |
| Media Type | Synthetic blend, pleated | High dirt‑holding capacity |
| Burst Pressure | ≥ 18 bar | Safety factor |
| Bypass Valve Setting | 1.5 bar | Ensures continuous flow |
| Anti‑Drainback Valve | Silicone, integral | Prevents dry starts |
| Thread Size | M22 x 1.5 | Standard for Howo engines |
| Gasket Outside Diameter | 62 mm | Nitrile rubber |
| Operating Temperature | -40°C to +120°C | Oil temperature |
| Applicable Engines | WD615, MC11, MC13, D10 | Check filter head |
The J65F1-1012020A oil filter is a direct OEM replacement for the lubrication systems used on Howo heavy‑duty trucks, including the widely used WD615 series (Euro‑2 to Euro‑5), the MC11 and MC13 engines in T7H and C7H models, as well as the D10 engines. It is typically mounted on the engine block or remote filter head, and is responsible for filtering the engine oil before it reaches critical bearings, the turbocharger, and the valve train.
In chassis applications, the oil filter is exposed to extreme temperatures, vibration, and contamination. A clogged or inefficient filter can lead to reduced oil flow, increased wear, and eventual engine failure. The genuine J65F1-1012020A filter ensures that the oil remains clean, maintaining proper lubrication and cooling of engine components. Regular replacement of this filter is essential for extending engine life and preventing costly repairs. It is also used in remanufactured engines and as a standard replacement part during routine maintenance.
Always replace the oil filter at the recommended interval (every 30,000 km or annually). Use a genuine filter to ensure correct fit and bypass valve calibration. Prime the new filter with clean oil before installation to prevent dry starts.
Correct installation of the J65F1-1012020A oil filter is essential to ensure proper sealing and filtration. Follow these steps:
Drain the engine oil. Clean the filter mounting surface on the engine block. Apply a thin film of clean oil to the new filter’s gasket.
Screw the filter onto the mounting stud until the gasket contacts the sealing surface, then tighten an additional 3/4 turn by hand. Do not overtighten. Refill with new engine oil.
Start the engine and check for leaks. Allow the engine to run for a few minutes, then check the oil level and top up if necessary.
A clogged or damaged oil filter can cause low oil pressure and accelerated engine wear. Common signs that replacement is needed include:
If any of these symptoms are observed, immediate replacement with a genuine J65F1-1012020A filter is recommended. Continuing to operate with a restricted filter can lead to bearing failure and catastrophic engine damage.
The high‑efficiency synthetic media traps harmful particles, protecting bearings and turbochargers from abrasive wear.
By maintaining clean oil, the genuine filter reduces friction and wear, extending overhaul intervals and lowering operating costs.
The anti‑drainback valve keeps oil in the filter, ensuring immediate lubrication at start‑up and reducing wear during cold starts.
To maximize the service life of your J65F1-1012020A oil filter, follow these best practices:
By adhering to these guidelines, you ensure that the J65F1-1012020A filter performs optimally throughout its intended service interval.
Aftermarket oil filters often use substandard media with lower efficiency and poorly calibrated bypass valves, allowing contaminants to recirculate and potentially starving the engine of oil during cold starts. The genuine J65F1-1012020A is manufactured to the exact specifications of the original equipment, using certified media and rigorous testing. Each filter is tested for burst pressure, filtration efficiency, and valve operation, guaranteeing that it will perform exactly as the original part.
By choosing authentic SINOTRUK HOWO parts, you protect your investment and ensure your truck maintains its reliability and resale value. The Sinotruk howo parts catalog includes a full range of engine and chassis components engineered for maximum durability. For fleet managers and owner‑operators who demand the best, the genuine J65F1-1012020A is the only responsible choice.
The J65F1-1012020A oil filter is used across a wide range of Howo models: T7H, A7, and classic Howo‑7 series equipped with WD615, MC11, MC13, and D10 engines. It fits both spin‑on and cartridge‑type filter heads. Always verify the thread size and gasket dimensions using the service manual.

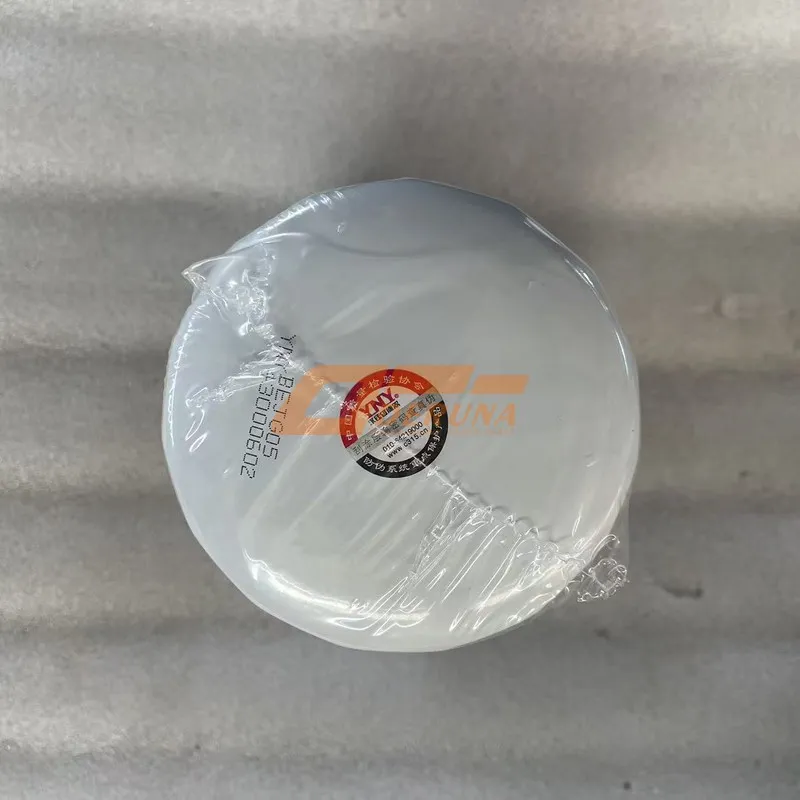

Each J65F1-1012020A is individually packaged in a sealed box with a protective plastic bag. The package includes the filter only; the filter head and mounting hardware must be ordered separately if needed.
Production of the J65F1-1012020A takes place in IATF 16949 certified facilities, using automated pleating and assembly lines. Statistical process control ensures that every filter meets the stringent requirements for efficiency, flow, and burst pressure. Every batch is accompanied by a material certificate and test report, guaranteeing that the filters delivered are identical to those fitted on new Howo trucks at the factory.
