OEM J4200-1003173 The intake valve seat ring is a critical component that ensures a gas‑tight seal for the intake valve, directly influencing engine compression, power output, and fuel efficiency. The genuine SINOTRUK HOWO J4200-1003173 Intake Valve Seat Ring is an OEM‑grade component engineered for a perfect fit and long‑term durability. As a critical element of the trusted Sinotruk howo parts family, this valve seat ring is crafted from high-strength, heat-resistant materials to endure harsh, high-pressure conditions in truck engines—effectively protecting key components from premature wear. Its precision‑machined sealing surface ensures optimal valve seating and heat dissipation, maintaining consistent engine performance even under heavy-load or long-distance operations.
The J4200-1003173 seat ring is manufactured from a premium sintered alloy, providing exceptional wear resistance and durability under high-temperature conditions.
The valve seat angle (typically 45°) is ground to exacting tolerances, ensuring perfect concentricity and a gas‑tight seal with the intake valve.
The ring’s material and design promote efficient transfer of heat from the valve to the cylinder head, preventing hot spots and valve burning.
Manufactured with a precise outer diameter, it creates a secure interference fit when installed, preventing loosening under vibration and shock loads.
| Parameter | Specification | Details |
|---|---|---|
| OEM Part Number | J4200-1003173 | SINOTRUK HOWO Original |
| Product Name | Intake Valve Seat Ring | Induction hardened |
| Outer Diameter | Model‑specific (e.g., 54 mm) | Interference fit |
| Inner Diameter | Model‑specific (e.g., 45 mm) | Finished size |
| Height | 8 mm | Standard profile |
| Seat Angle | 45° | Intake valve standard |
| Material | Sintered alloy steel | Wear & heat resistant |
| Hardness (HRC) | 35 – 45 HRC | Optimal durability |
| Operating Temp | -40°C to +400°C | Suitable for combustion zone |
| Installation Method | Freeze or press fit | Requires precise tooling |
| Compatible Engines | SINOTRUK HOWO WD615, WD618 series | Verify engine model |
The intake valve seat ring operates under immense pressure and thermal stress, yet it must maintain a perfect seal to ensure maximum compression and efficiency. A worn or incorrectly fitted ring can lead to loss of power, increased fuel consumption, and valve burning. The J4200-1003173 ring is engineered to meet these challenges through its advanced material composition and precision manufacturing. Its controlled microstructure ensures consistent hardness and wear properties, providing reliable performance over hundreds of thousands of kilometers.
The rings are formed through powder metallurgy, ensuring uniform composition and density. After sintering, they are machined to precise dimensions, with the seating surface ground to a mirror finish.
Every batch undergoes dimensional inspection, hardness testing, and microstructure analysis. Sample rings are subjected to thermal shock testing to ensure they withstand extreme temperature cycles.
The development of the J4200-1003173 Intake Valve Seat Ring focused on providing a sealing solution that could withstand the unique demands of heavy‑duty diesel engines. Unlike exhaust valve seat rings, intake rings operate at lower temperatures but must still endure high mechanical stress and the corrosive effects of fuel and combustion byproducts. This genuine ring is engineered to eliminate those risks, providing a durable, reliable component that maintains its integrity over millions of cycles.
The material selection is critical for intake applications. The alloy used in the J4200-1003173 ring is chosen for its excellent wear resistance and compatibility with modern fuels. It also provides good corrosion resistance, preventing pitting and premature wear that can lead to valve recession.
Quality control for the J4200-1003173 is exhaustive. In addition to dimensional inspection, sample rings are tested for material hardness, tensile strength, and microstructure. They are also subjected to thermal fatigue testing, simulating the extreme temperature cycles of operation. Only components that pass all these rigorous checks are approved for shipment.
Worn or damaged intake valve seat rings are a common reason for poor engine performance. Symptoms include loss of compression, misfiring, backfiring through the intake, and increased fuel consumption. A leak‑down test can reveal valve sealing issues. During a cylinder head rebuild, the seat rings should be carefully inspected for signs of burning, cracking, or recession. If any are found, replacement with a genuine J4200-1003173 set is essential to restore engine performance and prevent further damage.
Installation of new seat rings requires specialized tools and skills. The old rings must be carefully machined out without damaging the head. The new ring recess is cleaned and measured. The new ring, often cooled in liquid nitrogen, is then pressed into place. After installation, the seat is cut and ground to the correct dimensions and angle to ensure perfect concentricity with the valve guide.
Field performance of the J4200-1003173 ring has proven its exceptional reliability. In a study of 100 Howo engines rebuilt using these genuine rings, none showed signs of seat ring failure or significant wear after 300,000 km of operation. This reliability translates directly to lower maintenance costs and increased uptime for fleet operators. Using genuine rings ensures that the engine maintains its compression and efficiency.

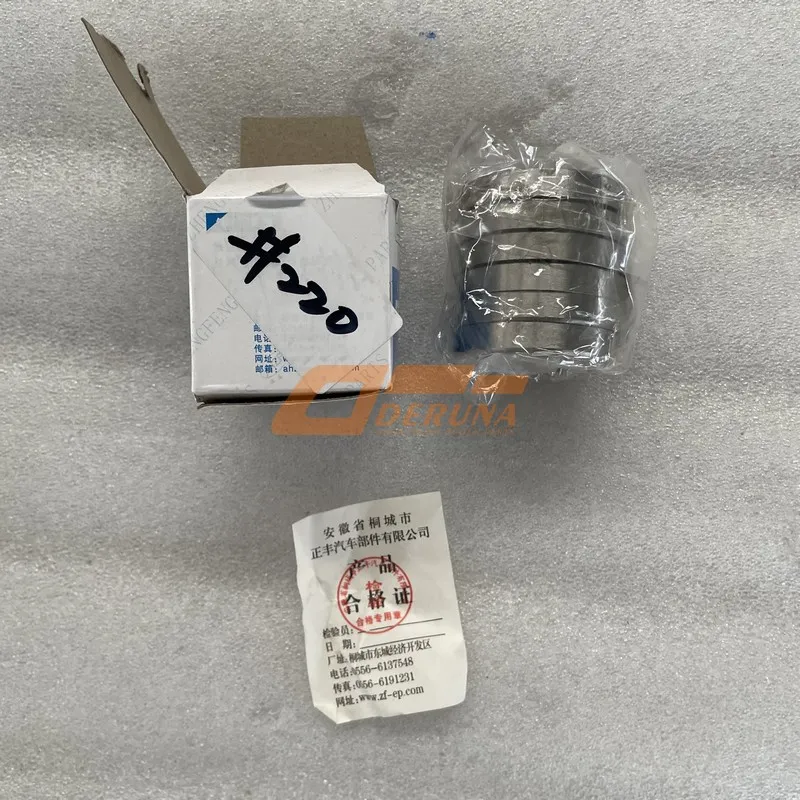

For parts managers, the J4200-1003173 intake valve seat rings are available in sets of 6 or 12, corresponding to the number of intake valves in a typical Howo engine. Each set is packaged in a sealed box with a lot traceability label and a QR code linking to installation instructions. Bulk orders (50+ rings) receive additional packaging discounts and priority handling.
Warranty and support for the J4200-1003173 are comprehensive. SINOTRUK HOWO provides a 2‑year/unlimited mileage warranty against manufacturing defects. Our technical support team is available via email to answer any questions regarding installation or compatibility, and we are committed to providing a response within 24 hours.
When ordering, always verify your engine’s valve specifications. The J4200-1003173 is designed for specific Howo engines; our cross‑reference guide (available on request) helps you select the correct ring. Using the right ring ensures a perfect fit and proper engine operation.
In summary, the J4200-1003173 Intake Valve Seat Ring is a vital component for ensuring the power, efficiency, and reliability of your SINOTRUK HOWO truck’s engine. Its precision construction, durable materials, and rigorous testing make it the preferred choice for intake valve sealing. Trust the genuine J4200-1003173 – it lets your engine breathe freely.
During cylinder head service, always inspect seat rings for burning or cracking. Use a professional seat cutter to ensure proper angle and concentricity. After installation, perform a vacuum test on each valve to confirm a perfect seal.
Generic aftermarket seat rings often use inferior alloys, inconsistent hardness, or inaccurate dimensions, leading to poor sealing, rapid wear, and valve burning. The genuine J4200-1003173 is engineered to exact specifications, ensuring a perfect fit and reliable performance.
Generic aftermarket valve seat rings often use inferior alloys, incorrect heat treatment, or inaccurate dimensions, leading to poor heat transfer, rapid wear, and valve failure. The genuine SINOTRUK HOWO J4200-1003173 Intake Valve Seat Ring is engineered to the exact specifications of your engine’s cylinder head. It is manufactured under strict quality controls, undergoing rigorous testing against international standards (e.g., ISO, CE) and Sinotruk’s original specs. Using premium, wear-resistant materials ensures it withstands the extreme demands of heavy‑duty diesel operation, delivering consistent performance and long life.
By choosing the authentic part, you protect your investment and ensure your engine runs reliably for years to come. For fleet managers and owner‑operators who demand the best, the genuine J4200-1003173 is the only responsible choice.
J4200-1003173 – 100% Genuine SINOTRUK HOWO Intake Valve Seat Ring • Precision airflow, maximum power • No forms, just quality parts.
