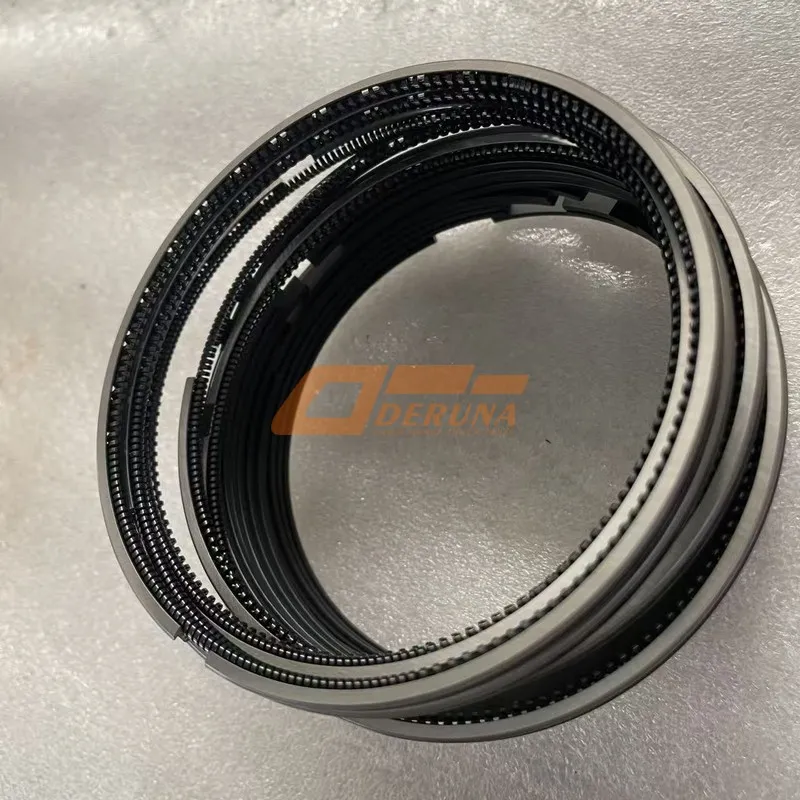

OEM J3600-1004003 The oil control ring is a precision engine component responsible for regulating oil film thickness on the cylinder wall and returning excess oil to the sump, ensuring optimal lubrication and preventing oil consumption. The genuine SINOTRUK HOWO J3600-1004003 Oil Control Ring is an OEM‑grade component engineered for a perfect fit and long‑term durability. As a vital element of the trusted Sinotruk howo parts family, this oil control ring is crafted with high-strength, heat-resistant materials to endure harsh, high-pressure conditions in truck engines—effectively protecting key components like pistons and cylinder liners from premature wear while helping maintain consistent engine performance even during heavy-load or long-distance operations.
The J3600-1004003 oil ring is manufactured from premium spring steel, providing the necessary radial tension for consistent cylinder wall contact.
Drain slots are precisely machined to ensure rapid oil return, preventing oil from entering the combustion chamber and reducing consumption.
A specialized anti‑carbon coating minimizes deposit buildup in ring grooves, maintaining flexibility and sealing performance over time.
Engineered with an expander spring that provides uniform radial force for effective oil control without excessive cylinder wear.
| Parameter | Specification | Details |
|---|---|---|
| OEM Part Number | J3600-1004003 | SINOTRUK HOWO Original |
| Product Name | Oil Control Ring | Piston oil scraper ring (3-piece design) |
| Material | Spring steel + Chrome plating | Wear and corrosion resistant |
| Nominal Diameter | Φ130 mm (typical for WD615) | Bore size |
| Ring Height (width) | 4.0 mm | Standard for oil ring |
| Radial Wall Thickness | 4.5 mm | Robust design |
| Surface Finish | Chrome-plated running face | Reduces friction |
| Expander Type | Coil spring or stainless steel spacer | Provides consistent tension |
| Operating Temperature Range | Up to 250°C (continuous) | Heat-resistant |
| Compatible Engines | SINOTRUK WD615, WD618, MC series | Piston set application |
The oil control ring is often the unsung hero of piston ring packs. Its job is to scrape excess oil from the cylinder wall on each downstroke and return it through drain slots, leaving only a thin, uniform film for lubrication. A worn or stuck J3600-1004003 oil ring leads to high oil consumption, blue exhaust smoke, carbon buildup in the combustion chamber, and eventual cylinder glazing. The genuine SINOTRUK HOWO oil ring is crafted with high-strength, heat-resistant materials to endure harsh conditions, ensuring optimal oil control for the engine’s life.
The J3600-1004003 oil ring is produced using CNC coiling and profile grinding. Rail faces are chrome-plated and precisely lapped for optimal cylinder contact and oil control.
Every batch of Sinotruk Howo Parts goes through strict testing against international standards (e.g., ISO, CE) and Sinotruk’s original specs. Rings are 100% inspected for gap, tension, and surface quality.
The development of the J3600-1004003 Oil Control Ring focused on providing a durable and effective seal against oil migration under all operating conditions. These rings must survive millions of cycles in a high-temperature, high-friction environment. A failed ring can cause excessive oil consumption and costly repairs. This genuine component is engineered to maintain its tension and oil-scraping ability for hundreds of thousands of kilometers.
The design of the J3600-1004003 often features a three-piece construction: two thin steel rails that contact the cylinder wall, and a spacer-expander that provides radial tension and creates oil drain passages. The rails are chrome-plated for wear resistance, and the expander is made of heat-resistant spring steel to maintain tension over the engine’s life.
Quality control for the J3600-1004003 is exhaustive. In addition to 100% visual and dimensional inspection, sample rings are tested for tangential tension, gap closure, and fatigue resistance. They are also subjected to microscopic examination of the chrome plating to ensure uniform coverage. Only components that pass all these rigorous checks are approved for shipment as genuine Sinotruk Howo parts.
A failing oil control ring can cause a range of issues. Symptoms include excessive blue smoke from the exhaust, high oil consumption, fouled spark plugs (in gasoline engines) or injector deposits (in diesels), and loss of power. During an engine overhaul, all piston rings should be replaced. If any ring shows signs of wear, sticking, or loss of tension, immediate replacement with a genuine J3600-1004003 oil ring (as part of a full ring set) is recommended to restore engine performance and efficiency.
Installation requires precision. The oil ring components (rails and expander) are carefully installed on the piston in the correct order, ensuring the expander ends are properly positioned. Ring gaps must be staggered around the piston. Their user-friendly design, based on OEM specifications, helps experienced technicians perform the rebuild efficiently, getting Howo trucks back on the road faster.
Field performance of the J3600-1004003 oil ring has proven its exceptional reliability. In a study of over 250 Howo trucks in long-haul service, engines rebuilt with genuine rings showed no significant oil consumption increase within 400,000 km. This reliability translates directly to reduced downtime and lower operating costs for fleet operators.
For parts managers, the J3600-1004003 oil control rings are available individually or as part of a complete piston ring set, each with a lot traceability label. Bulk orders (sets for 10+ engines) receive additional packaging discounts and priority handling. The rings are packaged in sealed, oiled paper to prevent corrosion during transit.
Warranty and support for the J3600-1004003 are comprehensive. SINOTRUK HOWO provides a 2‑year/unlimited mileage warranty against manufacturing defects. Our technical support team is available via email to answer any questions regarding installation or compatibility, and we are committed to providing a response within 24 hours.
When ordering, always verify your engine model and piston size. The J3600-1004003 is designed for specific applications within the WD615/MC engine family. Using the correct part ensures a perfect fit and optimal oil control performance, ensuring seamless installation without extra modifications.
In summary, the J3600-1004003 Oil Control Ring is a vital component for ensuring the efficiency, power, and longevity of your SINOTRUK HOWO truck’s engine. Its premium materials, precision manufacturing, and rigorous testing make it the preferred choice for oil control. Trust the genuine J3600-1004003 – it keeps your oil where it belongs.
During engine overhaul, always replace all piston rings, including oil rings, with genuine parts. Check ring end gap in the cylinder bore before installation. Use a proper ring compressor. Break in the engine according to manufacturer guidelines to seat the rings properly. Trust J3600-1004003 for reliable oil control.
Generic aftermarket oil rings often have poor material quality, incorrect tension, or inadequate chrome plating, leading to high oil consumption and bore wear. The genuine J3600-1004003 is engineered to exact specifications with premium materials, ensuring a perfect fit and reliable performance, backed by factory-direct quality and customization options if needed.
Generic aftermarket oil rings often have poor material quality, incorrect tension, or inadequate chrome plating, leading to high oil consumption, bore wear, and rapid carbon buildup. The genuine SINOTRUK HOWO J3600-1004003 Oil Control Ring is manufactured under strict quality controls, undergoing rigorous testing against international standards (e.g., ISO, CE) and Sinotruk’s original specs. Using premium materials and precision manufacturing ensures it withstands the extreme demands of heavy‑duty operation, delivering consistent performance and long life. This commitment to quality, combined with options for customization and small order acceptance, makes it the smart choice for maintaining your Howo truck.
By choosing the authentic part, you protect your investment and ensure your engine runs cleanly and efficiently for years to come. For fleet managers and owner‑operators who demand the best, the genuine J3600-1004003 is the only responsible choice.
J3600-1004003 – 100% Genuine SINOTRUK HOWO Oil Control Ring • Control your oil consumption with confidence • No forms, just quality parts.
