SINOTRUK HOWO J1A15-3800200 Oil Pressure Sensor – Accurate Engine Monitoring

Oil Pressure Sensor

Датчик давления масла

Sensor de presión de aceite

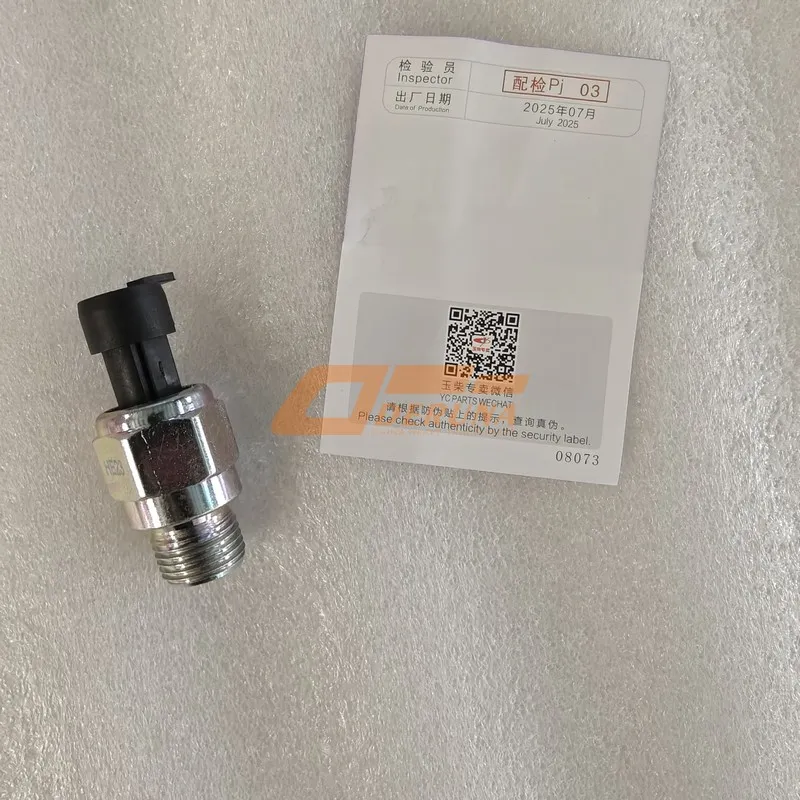

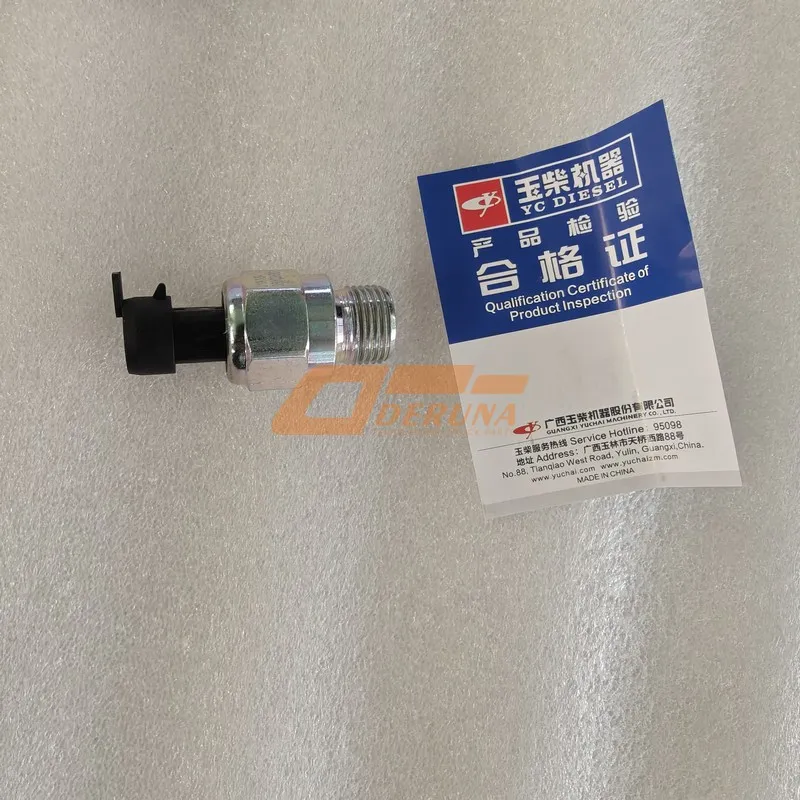

The J1A15-3800200 sensor utilizes a piezo‑resistive ceramic measuring cell that provides exceptional linearity and hysteresis‑free performance over the entire pressure range. The sensing element is isolated from the measured media by a stainless steel diaphragm, ensuring compatibility with engine oil and preventing corrosion. The integrated signal conditioning circuit amplifies the sensor output to a standard 0.5‑4.5V analog signal, directly compatible with Howo ECUs and dashboard gauges.

Housed in a robust brass body with a hexagon drive, the J1A15-3800200 is designed for easy installation and removal. The connector is a waterproof Deutsch DT series, ensuring reliable electrical connection even in wet and dusty environments. Each sensor undergoes a 100% functional test, including pressure cycling and temperature testing, to guarantee accuracy and long‑term stability. The operating temperature range of -40°C to +125°C makes it suitable for all climatic conditions.

The J1A15-3800200 oil pressure sensor is a direct OEM replacement used on Howo engines to monitor main gallery oil pressure. It is typically mounted near the oil filter housing or on the engine block, providing a critical input to the ECU for fuel delivery timing, turbocharger protection, and warning light activation. Accurate pressure readings allow the ECU to initiate protective measures if pressure drops below safe thresholds, preventing bearing damage and engine seizure.

In chassis applications, this sensor is also used in some automated manual transmission (AMT) systems to monitor clutch actuator oil pressure, and in hydraulic systems for auxiliary equipment. A faulty sensor can cause false low‑pressure warnings or, worse, fail to alert the driver of a real problem. By using the genuine J1A15-3800200, you ensure reliable communication with the vehicle’s electronic systems, maintaining safety and performance in mining, construction, and long‑haul operations.

Application Note

When replacing the oil pressure sensor, always check the thread condition and use a small amount of thread sealant on the NPT threads (avoid PTFE tape, which can block the sensing port). Ensure the electrical connector is clean and fully seated.

1. Preparation

Relieve engine oil pressure by turning off the engine and waiting. Clean the area around the sensor port. Remove the old sensor using a suitable socket. Inspect the threads for damage.

2. Assembly

Apply a drop of thread sealant (e.g., Loctite 567) to the sensor threads, avoiding the first two threads. Screw the sensor in by hand until snug, then tighten with a wrench to the specified torque (typically 15‑20 Nm). Do not overtighten.

3. Final Checks

Reconnect the electrical connector until it clicks. Start the engine and check for leaks. Verify that the oil pressure gauge reads correctly and that no warning lights are illuminated.

Accurate Monitoring

The ceramic sensing element provides ±1.5% accuracy across the entire temperature range, ensuring the ECU receives reliable data for engine protection.

Prevents Costly Damage

Early detection of pressure drops allows the driver or ECU to take corrective action, avoiding bearing seizure and expensive engine repairs.

Long‑Term Reliability

Built to withstand harsh environments, the sensor maintains performance for hundreds of thousands of kilometers, reducing unscheduled downtime.

Aftermarket oil pressure sensors often use low‑cost components with poor accuracy, inadequate temperature compensation, and inferior sealing. They may produce incorrect voltage signals, causing false warnings or, worse, failing to alert the driver of actual low pressure. The genuine J1A15-3800200 is manufactured to the exact specifications of the original equipment, using a high‑quality ceramic sensor element and a robust brass housing. Each sensor is calibrated and tested over its full pressure and temperature range, guaranteeing that it will perform exactly as the original part.

By choosing authentic SINOTRUK HOWO parts, you protect your investment and ensure your truck maintains its reliability and resale value. The Sinotruk howo parts catalog includes a full range of engine and chassis components engineered for maximum durability. For fleet managers and owner‑operators who demand the best, the genuine J1A15-3800200 is the only responsible choice.

Genuine Advantage

• 100% OEM specification
• High‑accuracy ceramic cell
• Rugged brass construction
• Factory calibrated
• Plug‑and‑play fit

The J1A15-3800200 oil pressure sensor is used across a wide range of Howo models: T7H, A7, and classic Howo‑7 series equipped with WD615, MC11, MC13, and D10 engines. It also fits some ZF transmissions that use the same pressure sensing interface. Always verify the thread type (1/8-27 NPT) and connector style before ordering.

Each J1A15-3800200 is individually packaged in an anti‑static bag with a desiccant. The package includes the sensor only (connector pigtail not included). For bulk orders, sensors are supplied in sealed cartons with batch traceability and calibration certificates.
