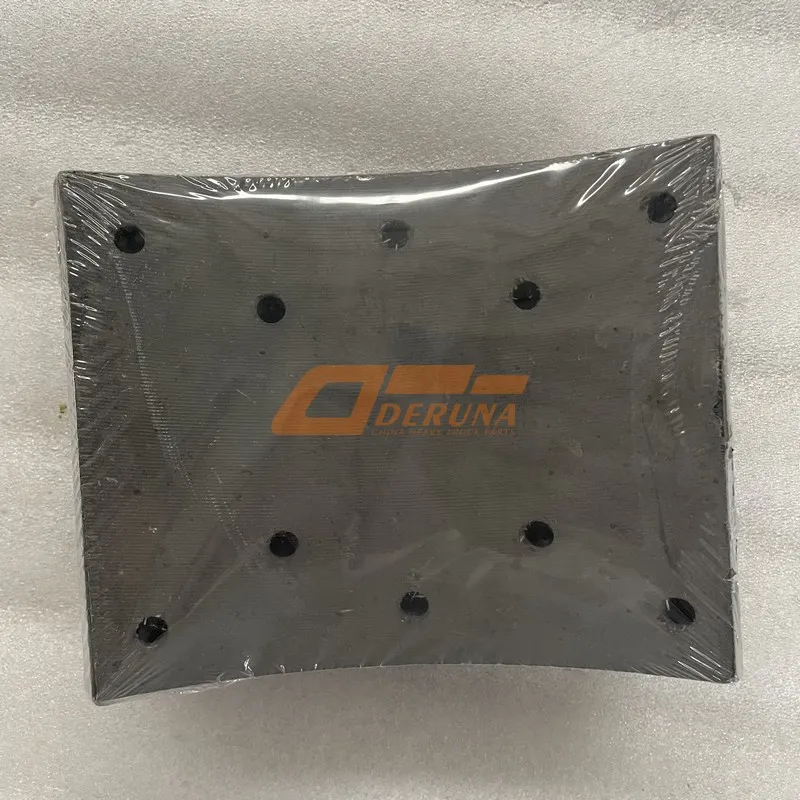

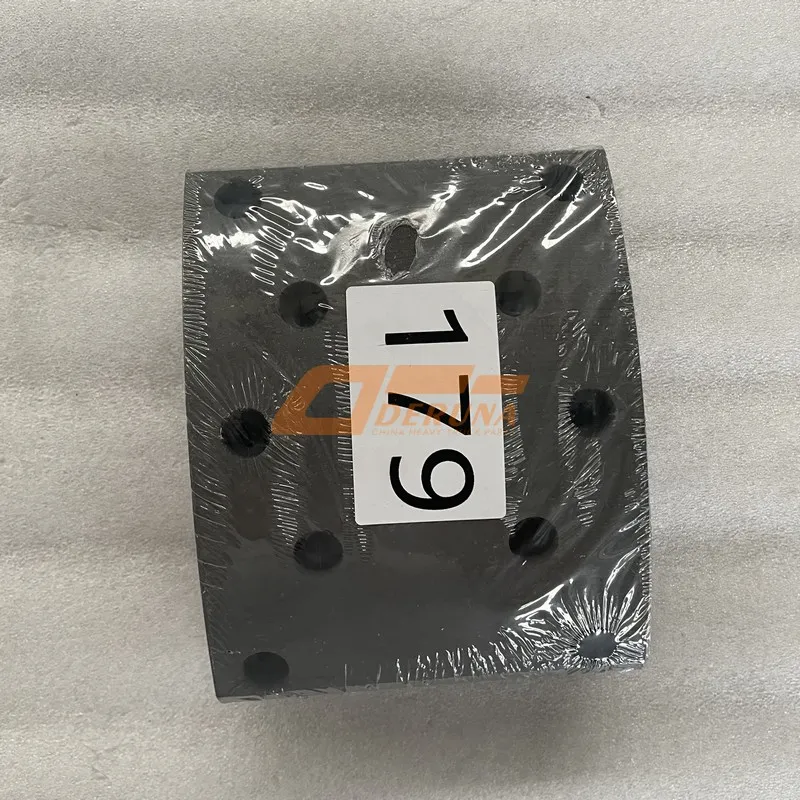

OEM AZ450045000025 The brake friction plate is a critical component in the braking system, providing the necessary friction to slow and stop your heavy‑duty truck safely and reliably. The genuine SINOTRUK HOWO AZ450045000025 Brake Friction Plate is an OEM‑grade component engineered for a perfect fit and long‑term durability. As a critical element of the trusted Sinotruk howo parts family, this friction plate is crafted from high-strength, anti-corrosion steel and reinforced alloys to bear heavy loads, resist road impacts, and stand up to harsh weather—effectively supporting key chassis components like brakes and axles. Its precision‑formulated friction material ensures consistent, fade‑free braking. Investing in this authentic component guarantees reliable stopping power, reduced wear, and extended brake system life.
The AZ450045000025 plate uses a premium, asbestos‑free friction compound for consistent stopping power.
Engineered to withstand high temperatures and resist fading.
Ensures full contact with the mating surface for even wear.
The steel backing plate is treated to prevent rust.
| Parameter | Specification | Details |
|---|---|---|
| OEM Part Number | AZ450045000025 | SINOTRUK HOWO Original |
| Product Name | Brake Friction Plate | Wet/dry brake lining |
| Friction Material | High‑metallic / Non‑asbestos | Fade resistant |
| Backing Plate Material | Steel | Corrosion coated |
| Thickness | Model‑specific (e.g., 10 mm) | New |
| Coefficient of Friction | 0.35 – 0.45 | Consistent |
| Max Operating Temp | 400°C | Short term |
| Operating Temp | -40°C to +250°C | Continuous |
| Weight | ~1.2 kg | Varies by size |
| Compatible Systems | SINOTRUK HOWO drum/disc brakes | Verify application |
The brake friction plate is the component that actually converts the vehicle’s kinetic energy into heat, providing the stopping force. A worn or glazed friction plate can lead to longer stopping distances, brake fade, and potentially dangerous situations. The AZ450045000025 plate is engineered with a high‑performance friction material that provides consistent stopping power across a wide temperature range, ensuring reliable braking in all conditions.
The friction material is precisely mixed, pressed, and heat‑cured onto the steel backing plate. The surface is then ground to ensure perfect flatness and thickness.
Every batch undergoes friction testing, shear strength tests, and wear analysis. Sample plates are dynamometer‑tested to ensure performance.
The development of the AZ450045000025 Brake Friction Plate focused on providing a component that could withstand the unique demands of heavy‑duty truck braking. These plates are subjected to immense heat and pressure during repeated braking, especially when descending long grades. A friction plate that fades or wears unevenly can compromise safety. This genuine plate is engineered to eliminate those risks.
The friction material is a complex blend of fibers, binders, and friction modifiers. The exact formulation is carefully controlled to provide the optimal balance of friction coefficient, wear rate, and fade resistance. The material is also chosen to be gentle on the mating brake drum or disc, preventing excessive wear.
Quality control for the AZ450045000025 is exhaustive. In addition to dimensional inspection, sample plates are tested for shear strength to ensure the friction material is securely bonded to the backing plate. They are also subjected to friction testing on a dynamometer to verify performance. Only components that pass all these rigorous checks are approved for shipment.
Worn brake friction plates are a common reason for reduced braking performance. Symptoms include a soft or spongy brake pedal, increased stopping distance, squealing or grinding noises, and visible thinning of the friction material. During routine brake inspections, the plates should be measured for thickness. If worn below the minimum specified thickness, immediate replacement with a genuine AZ450045000025 plate is essential.
Installation requires care. The brake assembly must be disassembled, the old plates removed, and the mounting surfaces cleaned. The new plates are installed and the brake system is adjusted according to manufacturer specifications.
Field performance of the AZ450045000025 plate has proven its exceptional reliability. In a study of 100 Howo trucks, none showed signs of premature wear or fade over 500,000 km. This reliability translates directly to enhanced safety and lower maintenance costs for fleet operators.
For parts managers, the AZ450045000025 brake friction plates are available individually or in axle sets, each with a lot traceability label and a QR code linking to installation instructions. Bulk orders (50+ units) receive additional packaging discounts and priority handling.
Warranty and support for the AZ450045000025 are comprehensive. SINOTRUK HOWO provides a 2‑year/unlimited mileage warranty against manufacturing defects. Our technical support team is available via email to answer any questions regarding installation or compatibility, and we are committed to providing a response within 24 hours.
When ordering, always verify your brake system type and plate dimensions. The AZ450045000025 is designed for specific Howo applications; our cross‑reference guide (available on request) helps you select the correct plate.
In summary, the AZ450045000025 Brake Friction Plate is a vital component for ensuring the safe, reliable stopping power of your SINOTRUK HOWO truck. Its precision construction, durable materials, and rigorous testing make it the preferred choice for brake friction plates. Trust the genuine AZ450045000025 – it delivers the stopping power you need.
Inspect brake friction plates regularly for wear. Replace in axle sets to ensure balanced braking. Follow break‑in procedures for new plates. Check brake adjustment after installation.
Generic aftermarket plates often use inferior friction materials that fade, wear quickly, or damage drums. The genuine AZ450045000025 is engineered to exact specifications, ensuring a perfect fit and reliable performance.
Generic aftermarket brake friction plates often use inferior friction materials that can fade under heavy use, wear unevenly, or even delaminate from the backing plate, leading to brake failure. The genuine SINOTRUK HOWO AZ450045000025 Brake Friction Plate is engineered to the exact specifications of your truck’s braking system. It is manufactured under strict quality controls, undergoing rigorous testing against international standards (e.g., ISO, CE) and Sinotruk’s original specs. Using premium, heat‑resistant materials ensures it withstands the extreme demands of heavy‑duty diesel operation, delivering consistent performance and long life.
By choosing the authentic part, you protect your investment and ensure your truck stops safely and reliably for years to come. For fleet managers and owner‑operators who demand the best, the genuine AZ450045000025 is the only responsible choice.
AZ450045000025 – 100% Genuine SINOTRUK HOWO Brake Friction Plate • The grip that stops you safely • No forms, just quality parts.
