The 752W47301-6062+001 hydraulic reservoir filter is a genuine SINOTRUK HOWO component engineered to remove contaminants from the hydraulic fluid in T5G trucks, ensuring reliable operation of power steering, dump bodies, and other hydraulic systems. As a vital element of the trusted Sinotruk howo parts family, this filter maintains fluid cleanliness, preventing valve sticking, pump wear, and system failures. Manufactured with a high‑efficiency synthetic media and a robust metal housing, the 752W47301-6062+001 unit delivers excellent dirt‑holding capacity and consistent flow, even under extreme operating conditions. Investing in this authentic component guarantees reliable hydraulic performance, reduced maintenance, and long‑term durability in mining, construction, and long‑haul applications.

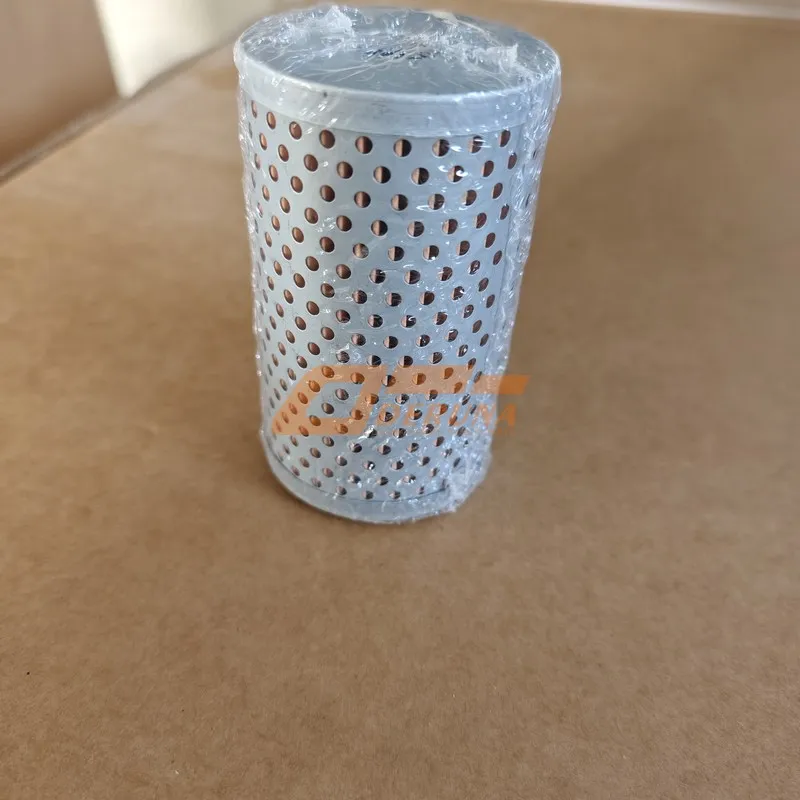

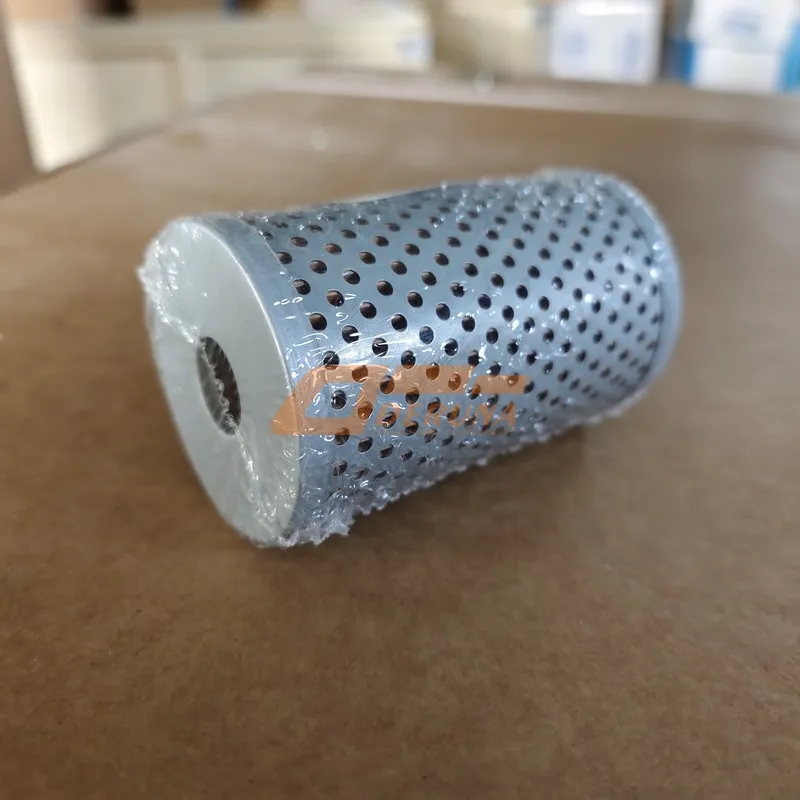

Hydraulic Reservoir Filter T5G
Фильтр гидробака T5G
Filtro de depósito hidráulico T5G
The 752W47301-6062+001 hydraulic filter features a high‑efficiency synthetic media that provides 98% filtration efficiency at 10 microns, capturing abrasive particles that can damage pumps, valves, and cylinders. The media is pleated to maximize surface area, ensuring long service intervals even in contaminated environments. The filter includes a built‑in bypass valve that opens at a specified pressure to protect the system in case of element clogging. The housing is constructed from heavy‑gauge steel with a corrosion‑resistant epoxy coating, ensuring durability under the vehicle.
Each 752W47301-6062+001 filter is 100% tested for burst pressure (minimum 21 bar) and is equipped with a nitrile rubber O‑ring that provides a positive seal in the reservoir mounting flange. The filter’s design allows for easy replacement without draining the entire hydraulic system. All sealing surfaces are precision‑machined to ensure leak‑free operation. This meticulous engineering guarantees that the filter delivers reliable protection, extending the life of hydraulic components and reducing maintenance costs.
The table below provides detailed technical data for the genuine SINOTRUK HOWO 752W47301-6062+001 hydraulic reservoir filter. These specifications are essential for verifying compatibility.
| Parameter | Specification | Details |
|---|---|---|
| OEM Part Number | 752W47301-6062+001 | SINOTRUK HOWO Original Code |
| Product Name | Hydraulic Reservoir Filter T5G | Return / suction filter |
| Filtration Rating | 10 µm absolute (β10 ≥ 200) | ISO 16889 |
| Media Type | Synthetic fiber, pleated | High dirt‑holding capacity |
| Maximum Flow Rate | 150 L/min | At hydraulic oil viscosity |
| Bypass Valve Setting | 2.5 bar ± 0.5 bar | Ensures continuous flow |
| Burst Pressure | ≥ 21 bar | Safety factor |
| Thread Size (mounting) | M26 x 1.5 | With O‑ring boss |
| Overall Height | 185 mm | ±2 mm |
| Outer Diameter | 95 mm | ±1 mm |
| Operating Temperature | -30°C to +100°C | Continuous |
| Applicable Models | Howo T5G series | Check reservoir type |
The 752W47301-6062+001 hydraulic reservoir filter is specifically designed for the T5G series of Howo trucks, which are widely used in construction, municipal services, and medium‑duty transport. It is installed inside the hydraulic fluid reservoir and filters the oil returning from the system or the oil being drawn into the pump, depending on the circuit design. By removing contaminants, it protects sensitive components such as control valves, steering gear, and hydraulic cylinders from abrasive wear and premature failure.
In chassis applications, the hydraulic system powers essential functions like power steering, dump body lifts, and auxiliary equipment. A clean hydraulic fluid is paramount for reliable operation. The genuine 752W47301-6062+001 filter ensures that the fluid remains within the required cleanliness levels, reducing downtime and extending the life of the entire hydraulic system. It is also used in some T5G trucks with wet‑kit installations for tipping trailers.
When replacing the hydraulic filter, always inspect the reservoir for sludge or debris. Replace the O‑ring and ensure the filter is fully seated. Prime the system if necessary after installation.
Correct installation of the 752W47301-6062+001 filter is essential to ensure proper system protection and long service life. Follow these steps:
Relieve hydraulic system pressure. Remove the reservoir cap and extract the old filter. Clean the mounting boss and the inside of the reservoir around the filter area.
Lubricate the new O‑ring with clean hydraulic oil. Insert the filter into the reservoir, ensuring it engages the mounting threads or bayonet correctly. Tighten to the specified torque (usually hand‑tight plus 1/4 turn).
Refill hydraulic fluid if necessary. Start the engine and cycle the hydraulic functions to purge air. Check for leaks around the filter seal.
A clogged or damaged hydraulic filter can cause system performance issues. Common signs that replacement is needed include:
If any of these symptoms are observed, immediate replacement with a genuine 752W47301-6062+001 filter is recommended. Continuing to operate with a restricted filter can lead to pump failure and costly hydraulic component repairs.
The high‑efficiency synthetic media traps particles as small as 10 microns, protecting pumps, valves, and cylinders from abrasive wear.
By maintaining clean fluid, the genuine filter reduces component wear, extending overhaul intervals and lowering operating costs.
The bypass valve ensures oil flow even if the filter becomes clogged, preventing system starvation and protecting critical components.
To maximize the service life of your 752W47301-6062+001 hydraulic filter, follow these best practices:
By adhering to these guidelines, you ensure that the 752W47301-6062+001 filter performs optimally throughout its intended service interval.
Aftermarket hydraulic filters often use substandard media with lower efficiency and incorrect bypass valve settings, allowing contaminants to circulate and potentially starving the system. The genuine 752W47301-6062+001 is manufactured to the exact specifications of the original equipment, using certified media and rigorous testing. Each filter is tested for burst pressure, filtration efficiency, and bypass valve calibration, guaranteeing that it will perform exactly as the original part.
By choosing authentic SINOTRUK HOWO parts, you protect your investment and ensure your truck maintains its hydraulic performance and resale value. The Sinotruk howo parts catalog includes a full range of hydraulic and chassis components engineered for maximum durability. For fleet managers and owner‑operators who demand the best, the genuine 752W47301-6062+001 is the only responsible choice.
The 752W47301-6062+001 hydraulic reservoir filter is designed specifically for Howo T5G models. It may also fit certain T7H and other medium‑duty trucks with similar hydraulic reservoir configurations. Always verify the thread size and O‑ring dimensions using the service manual.
Each 752W47301-6062+001 is individually packaged in a sealed box with a protective plastic bag. The package includes the filter and a new O‑ring. For bulk orders, filters are shipped in sealed cartons with batch traceability.
Production of the 752W47301-6062+001 takes place in IATF 16949 certified facilities, using automated pleating and assembly lines. Statistical process control ensures that every filter meets the stringent requirements for efficiency, flow, and burst pressure. Every batch is accompanied by a material certificate and test report, guaranteeing that the filters delivered are identical to those fitted on new Howo trucks at the factory.
