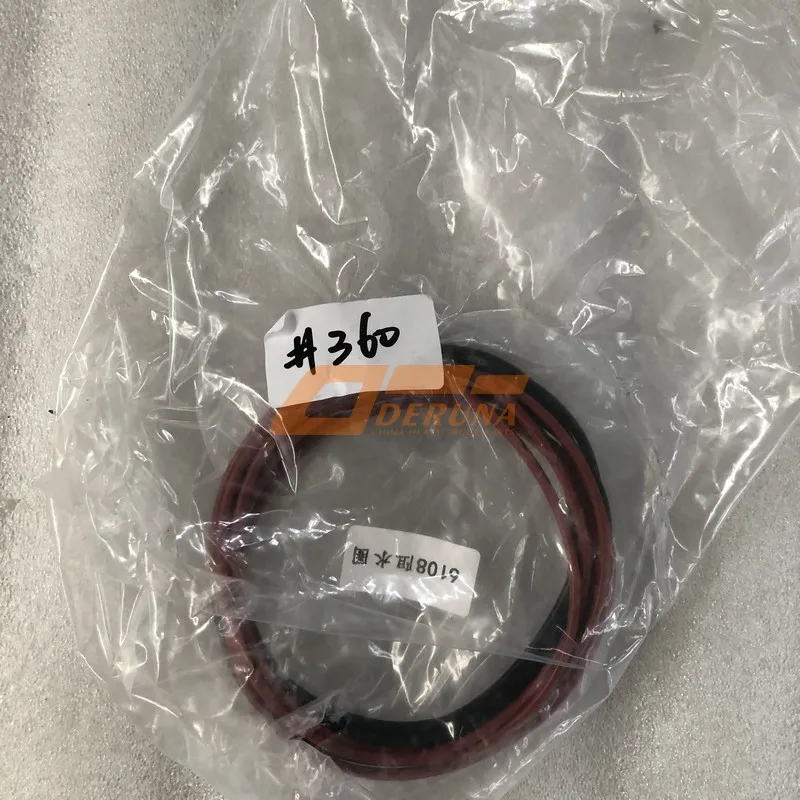

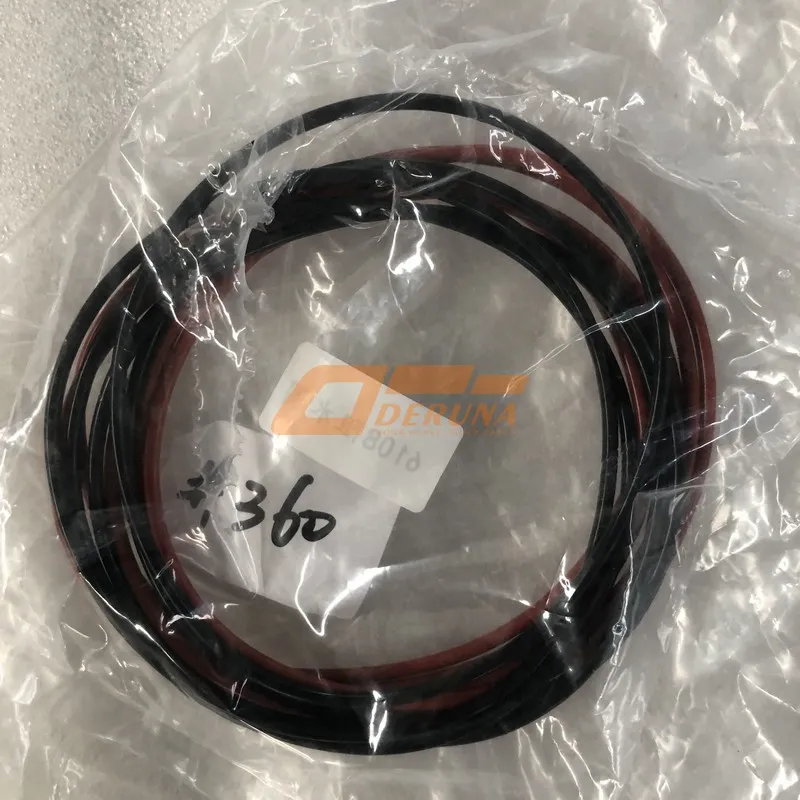

The cylinder liner sealing ring is a critical component that prevents coolant from leaking into the combustion chamber or oil system in wet‑liner diesel engines. The genuine SINOTRUK HOWO 43000-1002063 Cylinder Liner Sealing Ring is an OEM‑grade elastomeric seal engineered for perfect compression and long‑term leak‑free performance. As an essential part of the trusted Sinotruk howo parts family, this sealing ring guarantees exact fitment, superior material resilience, and reliable sealing under extreme pressures and temperatures. Manufactured from high‑quality fluorocarbon (FKM) or silicone compounds, the 43000‑1002063 unit withstands aggressive coolant chemicals and thermal cycling in mining, construction, and long‑haul applications. Investing in this authentic component prevents coolant contamination, protects against liner cavitation, and ensures your engine maintains proper operating temperature.
Cylinder Liner Sealing Ring
Уплотнительное кольцо гильзы цилиндра
Anillo de sellado de camisa de cilindro
The 43000-1002063 sealing ring is precision‑molded from high‑quality fluorocarbon (FKM) or silicone rubber, chosen for its exceptional resistance to heat, coolant chemicals, and compression set. Its circular cross‑section is designed to create a positive seal when compressed between the cylinder liner flange and the engine block. The ring’s dimensions are held to tight tolerances to ensure proper fit in the groove and correct compression. This prevents coolant from leaking into the combustion chamber or crankcase, which can cause catastrophic engine damage.
The material is formulated to maintain its elasticity over a wide temperature range, from cold starts to full operating temperature. It also resists degradation from glycol‑based coolants and additives. The smooth surface finish minimizes friction during installation and ensures consistent sealing pressure. Each ring is inspected for surface defects and dimensional accuracy. The 43000‑1002063 ring plays a vital role in maintaining the integrity of the cooling system, preventing overheating and ensuring long engine life.
The table below provides detailed technical specifications for the genuine SINOTRUK HOWO 43000-1002063 Cylinder Liner Sealing Ring. This data is essential for verifying compatibility and understanding the component’s capabilities.
| Parameter | Specification | Details |
|---|---|---|
| OEM Part Number | 43000-1002063 | SINOTRUK HOWO Original Code |
| Product Name | Cylinder Liner Sealing Ring | O‑ring for wet cylinder liner |
| Material | FKM (Viton) / Silicone | Heat and chemical resistant |
| Inner Diameter (mm) | Model‑specific (e.g., 130 mm) | Matches liner groove |
| Cross‑Section Diameter (mm) | Model‑specific (e.g., 3 mm) | Determines compression |
| Hardness (Shore A) | 70‑80 | Optimal sealing force |
| Operating Temperature | -30°C to +200°C | Withstands engine heat |
| Tensile Strength (MPa) | ≥ 10 | Durable material |
| Elongation (%) | ≥ 200 | Flexible |
| Compression Set (%) | < 25 (after 70h @ 150°C) | Maintains seal |
| Weight (approx.) | 0.01 kg (each) | Lightweight |
| Compatible Engines | SINOTRUK HOWO diesel engines | Verify liner size |
Installing the cylinder liner sealing ring requires care to prevent damage and ensure a leak‑free seal. The liner groove and block counterbore must be perfectly clean and dry. The new 43000-1002063 ring is gently rolled into the groove, ensuring it is not twisted or stretched. A light application of assembly lubricant (compatible with the elastomer) can help the ring seat without rolling. The liner is then carefully inserted into the block, taking care not to pinch or cut the ring. The liner must be seated to the correct protrusion height.
The 43000-1002063 sealing ring is a direct OEM replacement for specific SINOTRUK HOWO engines with wet cylinder liners. Compatibility must be verified by matching the part number with your engine’s model and liner size. Using the correct ring ensures proper compression and sealing. Always replace all sealing rings when overhauling an engine. After installation, a coolant pressure test can verify the seal integrity. Genuine SINOTRUK HOWO parts guarantee a perfect fit and reliable performance.
Never reuse old sealing rings. When installing new rings, lubricate them with a thin film of coolant or compatible assembly lube to help them seat without rolling or pinching.
The 43000-1002063 ring provides a positive, long‑lasting seal between the cylinder liner and block, preventing costly coolant leaks into the oil or combustion chambers.
Manufactured from high‑grade FKM, the genuine ring resists attack from glycol‑based coolants, additives, and high temperatures, ensuring long service life.
By preventing coolant loss and contamination, the sealing ring helps maintain proper engine temperature and prevents internal corrosion, extending engine life.
A failed liner seal can cause coolant in the oil (milky appearance), coolant loss without visible external leaks, white exhaust smoke (from burning coolant), and engine overheating. Pressurization of the cooling system may also occur. During an engine overhaul, all liner seals should be replaced as a preventative measure.
Ignoring a leaking liner seal can lead to severe engine damage, including bearing failure from contaminated oil, and cylinder liner damage. Replacing them with genuine 43000-1002063 rings during a rebuild ensures a leak‑free engine and reliable operation.
Liner seals are not serviceable items but their life depends on proper coolant maintenance. Use the correct coolant mixture and change it at recommended intervals to prevent chemical degradation. Maintain the cooling system pressure cap to prevent over‑pressurization. Avoid overheating the engine.
During major overhauls, always use genuine SINOTRUK HOWO parts like the 43000‑1002063 sealing ring. Ensure the liner protrusion is within specification to provide the correct compression on the seals. Proper installation is key to long seal life.
Generic aftermarket sealing rings may use inferior elastomers that harden, crack, or lose compression, leading to catastrophic coolant leaks. The genuine SINOTRUK HOWO 43000-1002063 cylinder liner sealing ring is engineered to the exact specifications of your engine, ensuring correct material properties, dimensions, and durability. It is manufactured under strict quality controls to withstand the extreme demands of heavy‑duty diesel operation.
By choosing the authentic part, you protect your investment and ensure your engine remains cool and reliable. For engine rebuilders and owner‑operators who demand the best, the genuine 43000‑1002063 is the only responsible choice.
