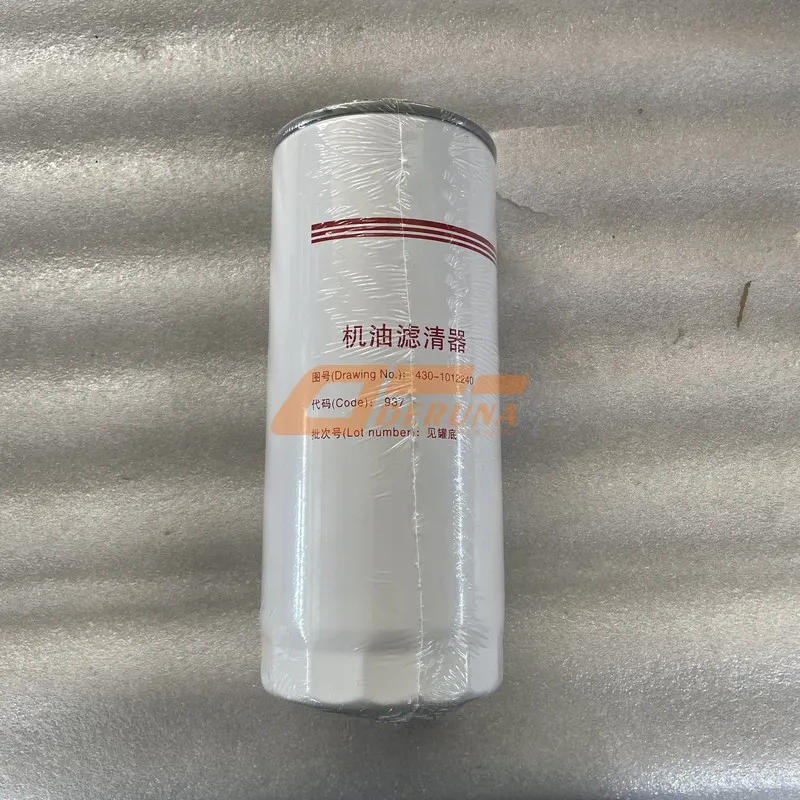

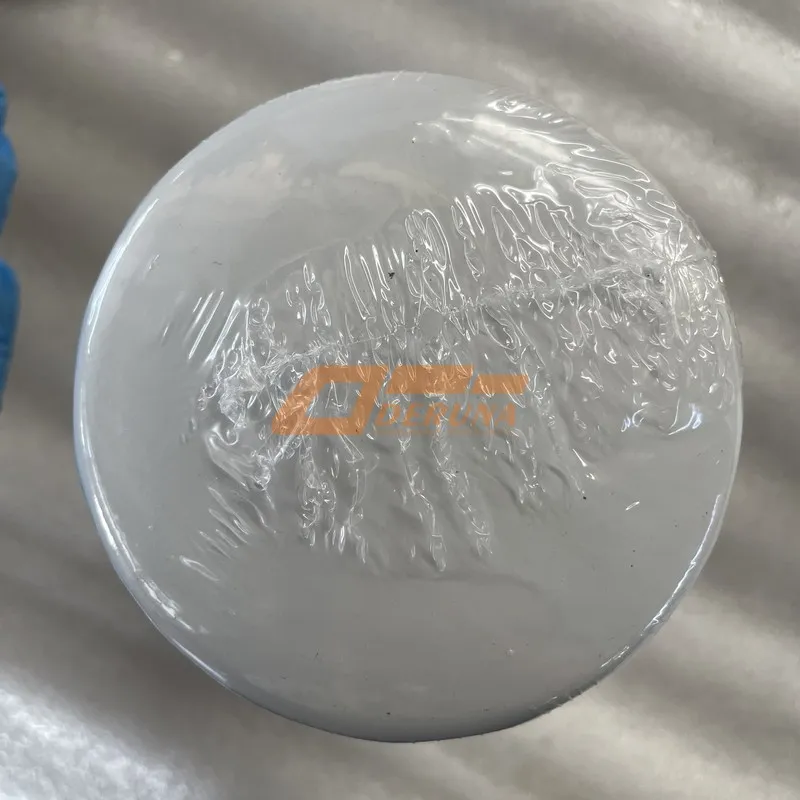

Clean engine oil is the lifeblood of your SINOTRUK HOWO truck, and the oil filter is its guardian. The genuine SINOTRUK HOWO 430-1012240 Oil Filter is an OEM‑grade spin‑on filter engineered to remove harmful contaminants, ensuring optimal lubrication and engine protection. As a critical component among Sinotruk howo parts, this filter guarantees perfect fit, high‑efficiency media, and reliable performance under extreme conditions. Manufactured with heavy‑duty construction and precision valves, the 430‑1012240 unit withstands high pressures, temperature extremes, and extended service intervals in mining, construction, and long‑haul applications. Investing in this authentic filter protects your engine from wear, reduces maintenance costs, and ensures consistent power delivery.
Oil Filter
Масляный фильтр
Filtro de aceite
The 430-1012240 oil filter utilizes a high‑density, resin‑impregnated cellulose/synthetic blend filter media. This media is pleated to maximize surface area, providing exceptional dirt‑holding capacity while maintaining low flow restriction. It captures abrasive particles as small as 20‑30 microns, preventing them from circulating through bearings, cylinders, and turbochargers. The media is supported by a robust steel center tube that prevents collapse under high pressure and surge conditions. A silicone anti‑drain back valve keeps oil in the filter when the engine is off, ensuring instant lubrication at startup.
The filter housing is constructed from heavy‑gauge steel with a durable powder‑coated finish that resists corrosion from road salts and under‑hood chemicals. A precision‑engineered bypass valve is calibrated to open at a specific pressure differential, ensuring oil flow even if the filter becomes clogged, protecting the engine from oil starvation. The base plate features a nitrile rubber gasket that provides a leak‑proof seal against the engine block. Every 430‑1012240 filter is manufactured to strict SINOTRUK HOWO specifications, guaranteeing consistent quality and performance.
The table below provides detailed technical specifications for the genuine SINOTRUK HOWO 430-1012240 Oil Filter. This data is essential for verifying compatibility and understanding the component’s capabilities.
| Parameter | Specification | Details |
|---|---|---|
| OEM Part Number | 430-1012240 | SINOTRUK HOWO Original Code |
| Product Name | Oil Filter | Spin‑on full‑flow oil filter |
| Filter Type | Full‑flow, spin‑on | Filters all engine oil |
| Media Type | Resin‑impregnated cellulose / synthetic blend | High dust‑holding capacity |
| Filtration Efficiency | > 95% @ 25 microns | ISO 4548‑12 tested |
| Bypass Valve Setting | 15‑18 psi (1.0‑1.2 bar) | Prevents oil starvation |
| Anti‑Drain Back Valve | Silicone, integrated | Prevents dry starts |
| Gasket Material | Nitrile rubber | Heat and oil resistant |
| Thread Size | M20 x 1.5 (typical) | Check compatibility |
| Overall Diameter | 93 mm | Standard size |
| Overall Height | 120 mm | Fits SINOTRUK HOWO engines |
| Operating Temperature | -40°C to +120°C | Suitable for all climates |
| Weight | 0.6 kg | Robust construction |
| Compatible Engines | SINOTRUK HOWO diesel engines | Verify with engine model |
Replacing the 430-1012240 oil filter should be performed during every oil change. Ensure the engine is warm (not hot) and parked on level ground. Place a drain pan under the filter. Using a filter wrench, loosen the old filter counterclockwise. Remove it carefully, ensuring the old gasket comes off with it. Clean the filter mounting surface on the engine block with a clean rag. Apply a thin film of fresh engine oil to the new filter’s gasket. Screw the new genuine filter on by hand until the gasket contacts the mounting surface, then tighten an additional ¾ to 1 turn. Do not overtighten.
The 430-1012240 oil filter is a direct OEM replacement for specific SINOTRUK HOWO engines. Compatibility must be verified by matching the part number with your vehicle’s engine model and serial number. Using the correct filter ensures proper thread fit, bypass valve calibration, and filtration efficiency. Always use a new filter with each oil change. After installation, start the engine and check for leaks around the filter gasket. Check the oil level and top up as needed.
Before installing the new filter, fill it with fresh engine oil if possible. This primes the filter and reduces the time the engine runs without oil pressure at startup, extending engine life.
The high‑efficiency media of the 430-1012240 filter captures wear‑causing particles, reducing abrasion on bearings, rings, and cylinder walls. This extends engine life and maintains compression, ensuring maximum power and fuel economy.
With a robust steel center tube and precision bypass valve, the filter maintains oil flow even in cold starts or high‑load conditions, preventing engine starvation. The anti‑drain back valve ensures instant oil pressure at startup.
Using genuine filters prevents premature engine wear, reducing the need for costly overhauls. The long service life and consistent performance lower overall operating costs for your SINOTRUK HOWO truck.
A clogged oil filter can cause low oil pressure, engine noise (especially from valve train), and warning lights. If the filter is severely restricted, the bypass valve may open, allowing unfiltered oil to circulate, accelerating engine wear. Visible signs include a deformed filter can, leaks from the gasket, or a filter that is difficult to remove due to excessive debris. If you notice any of these symptoms, replace the filter immediately with a genuine 430-1012240 unit.
Regular oil and filter changes at recommended intervals are the best prevention. Ignoring filter maintenance can lead to catastrophic engine damage. Always use a new genuine filter with every oil change to ensure your SINOTRUK HOWO engine stays protected.
To maximize the life of your engine and filter, follow these practices: Change oil and filter at the intervals specified in your SINOTRUK HOWO owner’s manual (typically every 10,000‑20,000 km depending on conditions). Use only the recommended oil grade and quality. In severe duty (off‑road, heavy loads, extreme temperatures), shorten intervals. Always use a genuine 430-1012240 filter to guarantee proper filtration. Keep spare filters on hand for quick changes.
During each oil change, inspect the old filter for metal particles or sludge, which can indicate internal engine problems. Dispose of used filters and oil according to local environmental regulations. Proper maintenance is the key to long engine life.
Generic aftermarket oil filters may use inferior media that doesn’t capture fine particles, or they may lack proper anti‑drain back and bypass valves. This can lead to engine wear, dry starts, and oil starvation. The genuine SINOTRUK HOWO 430-1012240 oil filter is engineered to meet the exact specifications of your engine’s lubrication system, ensuring correct flow, filtration efficiency, and pressure control. It is manufactured under strict quality standards and tested for durability under extreme conditions.
By choosing the authentic part, you protect your investment and ensure your SINOTRUK HOWO engine delivers reliable performance for years to come. For fleet managers and owner‑operators who prioritize uptime and cost control, the genuine 430‑1012240 is the only responsible choice.
