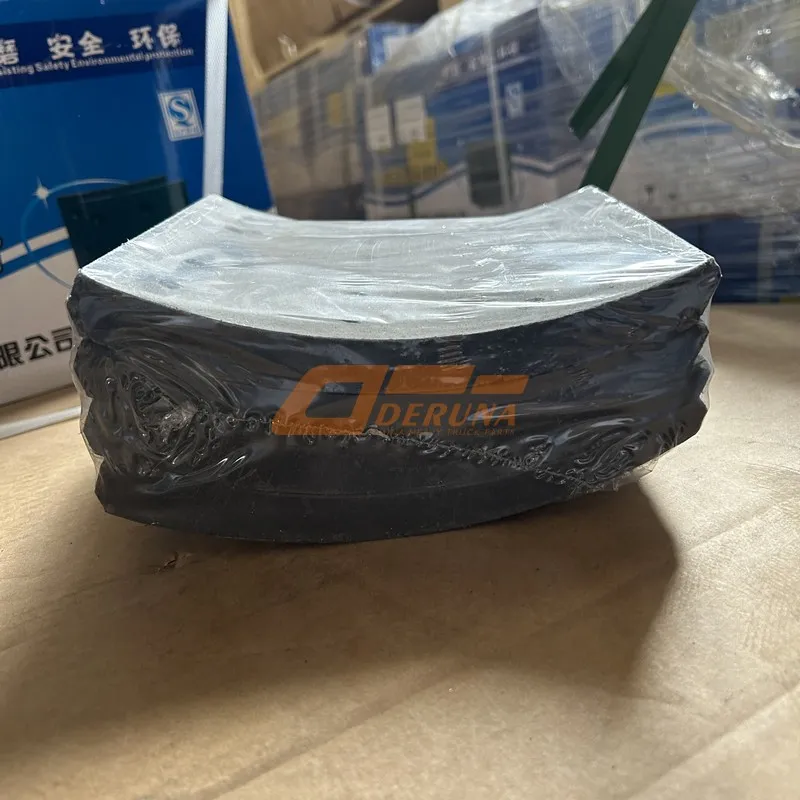

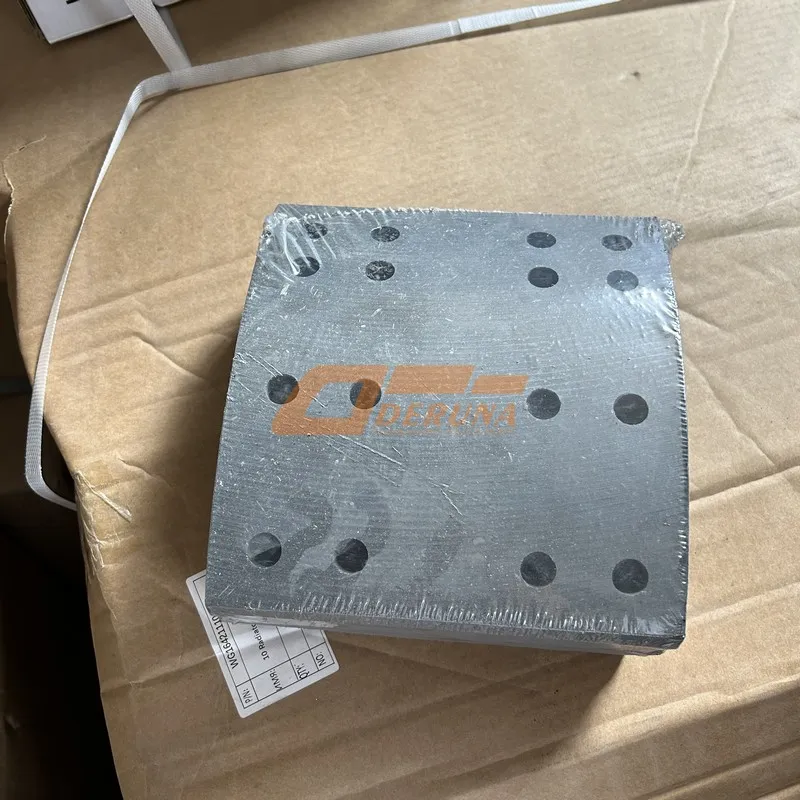

The genuine SINOTRUK HOWO 3602R1 Brake Lining 180Mm is an OEM‑grade friction component engineered for maximum stopping power and durability in heavy‑duty applications. As a critical element of the trusted Sinotruk howo parts family, this brake lining guarantees consistent performance, perfect dimensional accuracy, and long service life under extreme loads. Manufactured from advanced friction materials, the 3602R1 lining meets the original specifications for HOWO trucks, ensuring safe and reliable braking in mining, construction, and long‑haul operations.
Brake Lining 180Mm
Тормозная накладка 180 мм
Zapata de freno 180 mm
The 3602R1 brake lining is manufactured from a premium semi‑metallic compound that delivers a stable friction coefficient across a wide temperature range. This ensures consistent braking performance even under repeated heavy braking, reducing the risk of brake fade. The material is free from asbestos and formulated to minimize drum wear, extending the service life of both the lining and the brake drum.
Precision‑molded to the exact dimensions of the original SINOTRUK HOWO brake shoe, the 3602R1 lining provides a perfect fit without the need for grinding or modification. Each lining is post‑cured and ground to a smooth surface finish, ensuring immediate contact and even wear during the initial bedding‑in process. This attention to detail guarantees maximum friction surface contact from the first application.
Rigorous quality control during production includes shear strength testing, compressibility measurement, and thermal cycling. Every batch of Brake Lining. 180Mm. linings meets or exceeds the original equipment specifications, providing fleet managers and owner‑operators with the confidence that their vehicles will stop reliably under all operating conditions.
The table below provides detailed technical specifications for the genuine SINOTRUK HOWO 3602R1 Brake Lining 180Mm. This data is essential for verifying compatibility and performance characteristics.
| Parameter | Specification | Details |
|---|---|---|
| OEM Part Number | 3602R1 | SINOTRUK HOWO Original Code |
| Product Name | Brake Lining 180Mm | Nominal length 180 mm |
| Friction Material | Semi‑metallic / Non‑asbestos | GG‑20 / GG‑25 compatible |
| Friction Coefficient (µ) | 0.38 – 0.42 | Stable across temp range |
| Max Operating Temperature | 350°C (662°F) | Intermittent peaks up to 400°C |
| Thickness | 18.0 mm ±0.5 mm | As per OEM design |
| Width (arc) | 220 mm (typical) | Confirm with service manual |
| Shear Strength | ≥ 4.5 MPa | Exceeds OE requirements |
| Compressibility | < 2% at 10 MPa | Ensures firm pedal feel |
| Applicable Axle | Front / Rear (depending on model) | Common for HOWO heavy trucks |
| Certification | ISO 9001, TS 16949 | Manufacturing quality |
Proper installation of the 3602R1 brake lining is crucial for safety and performance. Begin by securely lifting the vehicle and removing the wheel and tire assembly. Release the brake adjuster and remove the brake drum. Detach the old lining from the shoe by removing rivets or bonding residue, ensuring the shoe itself is not damaged. Clean the shoe thoroughly and inspect for cracks or wear. Position the new 3602R1 lining onto the shoe, align all rivet holes, and fasten using the recommended rivets or high‑temperature adhesive. Ensure the lining sits flush against the shoe profile.
After relining, adjust the brake shoe to the correct diameter and reinstall the drum. Rotate the drum to confirm free movement with slight drag. Finally, adjust the free play at the slack adjuster and perform a brake test before returning the vehicle to service. The Brake Lining. 180Mm. is a direct replacement for SINOTRUK HOWO models equipped with 180mm brake linings, commonly found on HOWO 6×4, 8×4, and tractor variants. Always verify compatibility by matching the part number with your vehicle’s service manual.
Before installing new 3602R1 linings, lightly sand the friction surface with fine grit sandpaper to remove any glazing and promote even bedding. Always replace linings in axle sets (both wheels) to maintain balanced braking. After installation, perform at least 50 gentle stops to bed the linings properly before demanding full braking force.
The stable friction coefficient of the 3602R1 lining ensures predictable braking response in all conditions, from highway speeds to steep downhill grades. This reliability reduces driver fatigue and enhances overall safety.
Premium friction materials and precision manufacturing give the 3602R1 exceptional wear resistance, reducing maintenance intervals and lowering cost per kilometer. Fleet operators report up to 30% longer life compared to generic aftermarket linings.
The 3602R1 is manufactured without asbestos or hazardous heavy metals, complying with global environmental regulations. It provides safe braking while minimizing ecological impact during production and disposal.
By reducing drum wear and extending lining life, the genuine 3602R1 helps control operating expenses. Fewer replacements mean less downtime and lower labor costs, directly improving your bottom line.
Regular inspection of brake linings is vital for heavy‑duty trucks. Common indicators that the 3602R1 lining needs replacement include visible thinning below the minimum thickness specified by the manufacturer (typically 6 mm), uneven wear patterns, cracking or glazing on the friction surface, and audible squealing or grinding during braking. If the lining is contaminated with oil or grease, it must be replaced immediately, as friction performance will be severely compromised.
Ignoring worn linings can lead to damaged brake drums, increased stopping distances, and potential brake failure. Replacing them promptly with genuine 3602R1 linings restores full braking efficiency and ensures compliance with safety regulations. Always inspect the entire brake system—including drums, springs, and adjusters—when replacing linings.
To maximize the life of your 3602R1 brake linings, perform regular visual inspections through the inspection hole on the brake drum backing plate. Keep the brake adjusters properly set to prevent excessive shoe travel and uneven wear. During maintenance, clean out accumulated dust and debris using compressed air (wearing appropriate respiratory protection) to prevent abrasive particles from embedding in the lining.
Avoid riding the brakes or applying them continuously on long downgrades; instead, use engine braking and auxiliary retarders to reduce thermal load. After operating in wet or muddy conditions, gently apply brakes periodically to dry them out. Following these practices will help your 3602R1 linings deliver full service life and reliable performance.
Generic aftermarket brake linings often use inferior friction compounds that fade under heat, wear rapidly, or damage drums. They may also have incorrect curvature or thickness, leading to poor contact and reduced braking efficiency. The genuine SINOTRUK HOWO 3602R1 brake lining is engineered to the exact specifications of your truck’s braking system, ensuring perfect fit, consistent friction, and long‑term durability. It is manufactured under strict quality controls using the same materials and processes as the original equipment fitted at the factory.
By choosing the authentic 3602R1, you protect your investment, maintain vehicle safety, and ensure compliance with warranty requirements. For fleet managers and owner‑operators who demand the best, the genuine 3602R1 is the only responsible choice for maintaining the legendary stopping power of SINOTRUK HOWO trucks.
The 3602R1 Brake Lining 180Mm is part of a comprehensive range of chassis components designed for SINOTRUK HOWO vehicles. Whether you operate in extreme cold, desert heat, or humid coastal environments, this lining delivers dependable performance. Its robust construction resists cracking and delamination, providing peace of mind for every journey. Always insist on genuine parts to keep your HOWO running at its best.
For workshops and service centers, stocking the genuine 3602R1 ensures that every brake job meets the highest standards. Customers will appreciate the improved pedal feel, quiet operation, and extended service intervals. With the 3602R1, you are not just replacing a wear item—you are reinforcing the safety and reliability of the entire vehicle.
Remember, the braking system is the most critical safety system on any truck. Using genuine SINOTRUK HOWO parts like the 3602R1 is an investment in safety, compliance, and operational efficiency. Trust the original, trust the 3602R1.
