FG610Y001323+163/1 Oil Dipstick Casing Component – Reliable Oil Level Monitoring for SINOTRUK Homan Engines

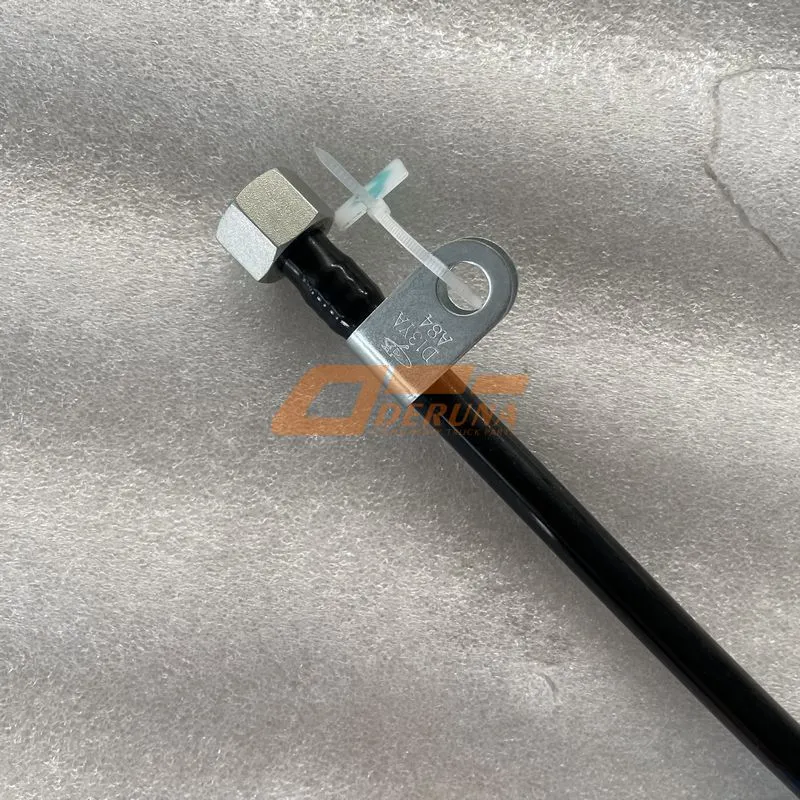

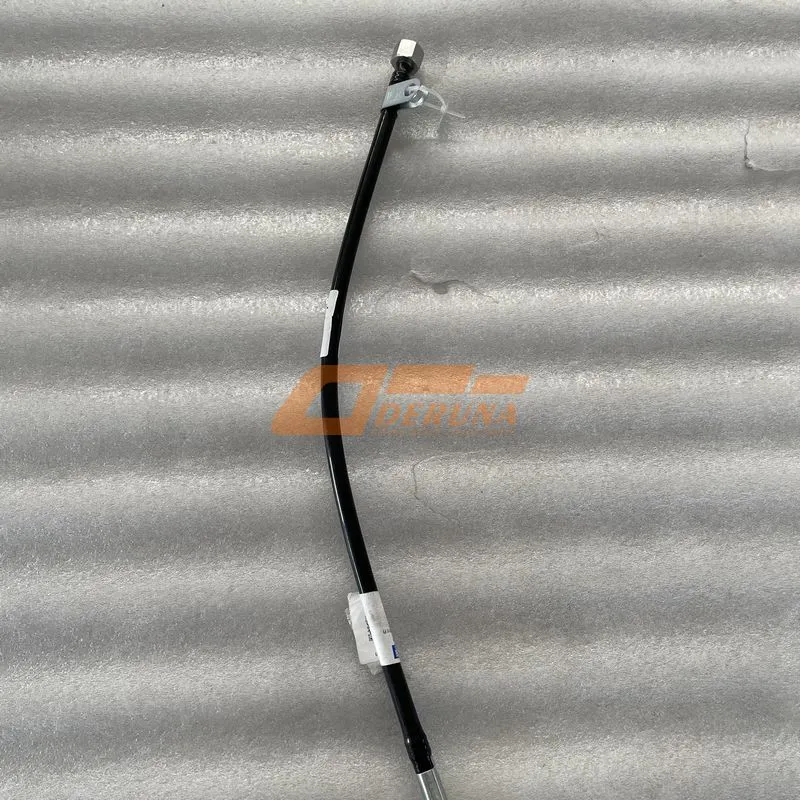

The FG610Y001323+163/1 Oil Dipstick Casing Component is a precision‑engineered guide tube designed for SINOTRUK Homan heavy‑duty diesel engines. As a genuine Sinotruk Homan parts offering, this casing ensures accurate, repeatable oil level readings by providing a straight, unobstructed path for the dipstick. The FG610Y001323+163/1 casing is manufactured from corrosion‑resistant steel with a precision‑formed upper flange, a smooth internal bore, and a durable mounting bracket that withstands engine vibration and thermal cycling.

The FG610Y001323+163/1 oil dipstick casing component serves as the critical guide tube that ensures the dipstick consistently reaches the correct oil level in the sump. Its straight, distortion‑free bore prevents the dipstick from bending or sticking, allowing for swift and accurate oil checks – essential for routine maintenance and avoiding over‑ or under‑filling, which can cause bearing damage or oil starvation.

This genuine SINOTRUK Homan part is manufactured from high‑quality seamless steel tubing, which is then precision‑straightened and internally honed to a smooth finish (Ra ≤ 0.8 µm) to minimise friction. The exterior is zinc‑plated to resist corrosion from road salt, moisture, and engine heat, ensuring the casing remains structurally sound for the life of the engine. The upper flange incorporates a recessed O‑ring groove that seals the casing against the engine block, preventing oil leaks and dirt ingress.

FG610Y001323+163/1 casings are exposed to thermal expansion and vibration – using genuine SINOTRUK Homan parts ensures the correct material thickness, straightness, and sealing integrity, preventing dipstick binding or oil leakage that can lead to inaccurate readings and potential engine damage.

Installing the FG610Y001323+163/1 oil dipstick casing is a straightforward process, but attention to detail is critical. Begin by cleaning the engine block bore and the casing’s O‑ring groove to remove any old sealant or debris. Lubricate the new O‑ring with a thin film of clean engine oil, then carefully insert the casing into the bore, ensuring it is fully seated against the shoulder. Secure the casing by tightening the M6 mounting bolt to 10 N·m – over‑tightening can deform the flange, causing the casing to misalign.

After installation, insert the dipstick fully and withdraw it several times to verify smooth travel. The dipstick should move freely without binding or scraping. If resistance is felt, inspect the casing bore for any burrs or debris, and check the dipstick for straightness. It is also advisable to check the casing’s vertical alignment; a casing that is tilted will give false readings, as the oil level will differ from the sump’s true level.

Routine inspection of the dipstick casing should be performed during oil changes (every 30,000 km). Look for signs of corrosion, especially around the flange and mounting bracket, which can indicate a failing zinc coating. Also check the O‑ring for flat spots or cracks, as a compromised seal can allow oil to weep past the casing, creating an external leak that may be mistaken for a more serious issue. If the casing shows any deformation, such as a bend or dent, it must be replaced immediately, as this will prevent the dipstick from reaching the correct depth.

For engines operating in extreme conditions (e.g., heavy dust, salt spray, or high temperatures), consider shortening the inspection interval to 15,000 km. A simple way to test casing integrity is to remove the dipstick and visually inspect the internal bore with a flashlight – the bore should appear smooth and free of scoring. If the bore is scratched, it may have been damaged by a bent dipstick or foreign debris, and the casing should be replaced.

The FG610Y001323+163/1 casing is a component that is often overlooked, yet it plays a pivotal role in engine health monitoring. Genuine SINOTRUK Homan casings are manufactured with a specific wall thickness and metallurgy that ensures they expand and contract at the same rate as the engine block, maintaining a consistent seal over thousands of thermal cycles. Aftermarket casings, which are often made from thinner or lower‑grade steel, can deform over time, causing the dipstick to bind or, worse, allowing the casing to crack and leak oil directly onto the ground.

Additionally, the internal bore of a genuine casing is honed to a precise surface finish that reduces friction on the dipstick, making oil checks quicker and more accurate. This also prevents fine metallic wear particles from adhering to the dipstick, which could be misinterpreted as excessive engine wear. The O‑ring supplied with the genuine casing is made from a fluorocarbon (FKM) material that resists oil degradation and high temperatures, whereas cheaper elastomers can harden and lose their sealing ability within a year of service.

Fleet operators have reported that using genuine SINOTRUK Homan dipstick casings reduces the frequency of dipstick replacements and minimises false oil level warnings, which can cause unnecessary stops and diagnostic checks. The modest cost of the FG610Y001323+163/1 casing is far outweighed by the cost of a single engine overhaul caused by oil starvation from misreading – making this seemingly simple tube a vital investment in your vehicle’s longevity.

The design of the FG610Y001323+163/1 casing also includes a small ventilation hole near the top flange to equalise pressure between the crankcase and the dipstick tube, preventing oil from being forced up the tube due to blow‑by gases. This feature, often omitted in aftermarket copies, is critical for obtaining a stable oil level reading, especially during engine operation at high RPM. The genuine part is engineered to comply with SINOTRUK Homan’s original equipment specifications, ensuring that the ventilation hole is correctly sized and positioned.

For operators who perform their own maintenance, it is worth noting that the FG610Y001323+163/1 casing is designed to be easily removed for cleaning. Over time, sludge and varnish can build up inside the bore, especially in engines that run on conventional mineral oils. Removing the casing and cleaning it with a suitable solvent (and drying it thoroughly) can restore the dipstick’s smooth operation and improve reading accuracy. However, always ensure that the O‑ring is replaced with a new genuine one after removal, as re‑using an old O‑ring will almost certainly lead to leaks.

When ordering the FG610Y001323+163/1 oil dipstick casing, confirm that the part number matches your engine’s specific application – some SINOTRUK Homan engines use a longer or shorter casing depending on the oil pan capacity. The genuine part is clearly marked with the OEM number and includes a new O‑ring and mounting bolt in the package, simplifying the replacement process. This attention to detail ensures that you receive everything needed for a professional, hassle‑free installation, and guarantees that the oil level monitoring system will perform exactly as designed by the manufacturer.
