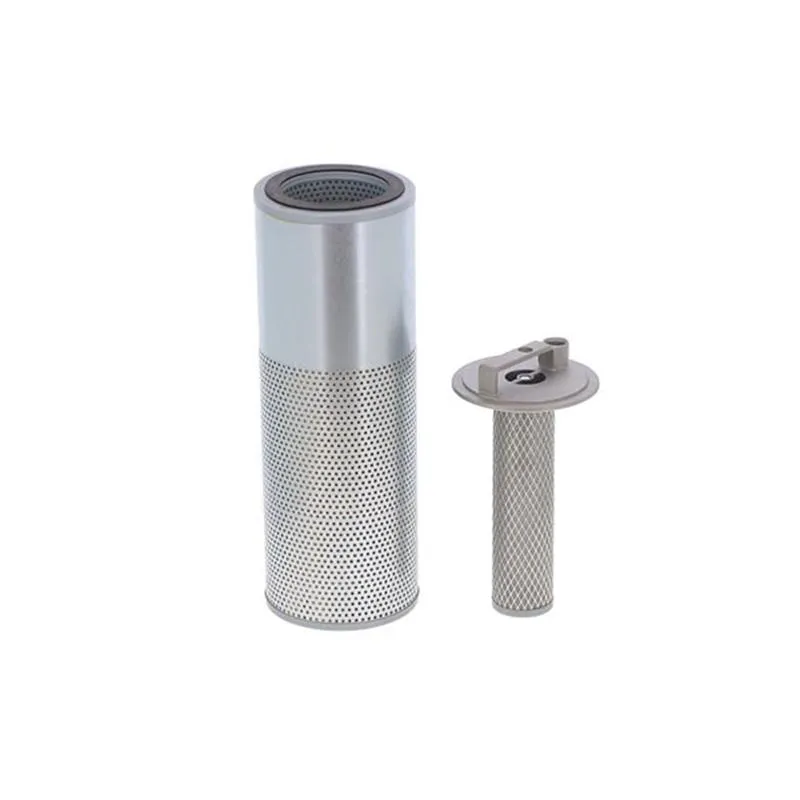

60101256 – SANY Oil Return Filter: Ultimate Hydraulic Purity, Heavy‑Duty Endurance & Maximum Machine Uptime
2026-04-02

60282026 – SANY Fuel Filter: Superior Filtration, Ultimate Engine Protection & Extended Service Life

OEM NUMBER:
60282026 (Genuine SANY)
Key Features:
4µm Filtration • Water Separation • Extended Drain Intervals
Russian Name:
Топливный фильтр SANY

For SANY heavy‑duty machinery, the genuine OEM 60282026 Fuel Filter is the definitive solution for clean fuel delivery and engine longevity. This critical component, part number 60282026, removes microscopic contaminants, water, and particulates that can damage high‑pressure common rail systems. When you choose SANY Parts, you secure factory‑calibrated filtration efficiency, guaranteed fit, and the peace of mind that your SANY excavators, loaders, or cranes will perform at their peak hour after hour. The 60282026 fuel filter combines advanced multi‑layer media with a robust water separator, ensuring your engine receives only pristine fuel – a non‑negotiable requirement for modern Tier 4 and Stage V emission standards.

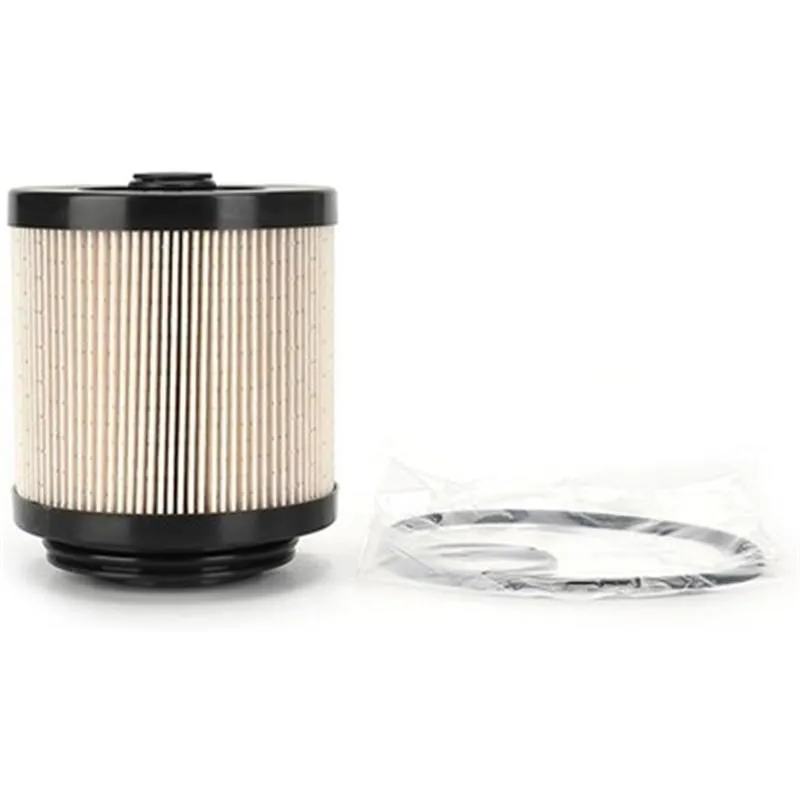

60282026 Fuel Filter

Fuel Filter

Топливный фильтр

Топливный фильтр

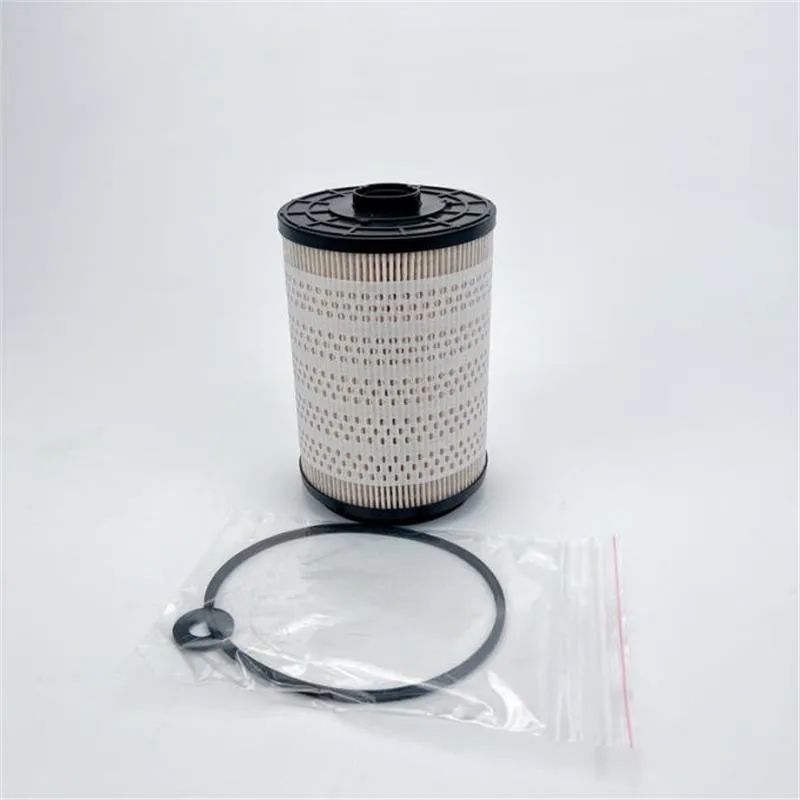

Filtro de combustible

Filtro de combustible

5 Critical Advantages of Genuine 60282026 Fuel Filter

Superior Water Separation

The 60282026 features a highly efficient water coalescing layer that removes up to 99% of free and emulsified water. This prevents injector corrosion, microbial growth, and fuel system icing – extending injector life by over 3,000 hours in humid environments.

Ultra‑Fine Particle Filtration

Multi‑layer synthetic media captures particles as small as 4 microns with β4≥200. The 60282026 filter safeguards precision injectors from abrasive wear, maintaining consistent power output and fuel economy across thousands of operating hours.

High Flow Capacity & Low Restriction

Designed for SANY diesel engines, 60282026 maintains minimal pressure drop even at maximum fuel demand. This ensures stable injection pressure, preventing power loss and smoke emissions during heavy loads.

Extreme Temperature Resistance

Built with reinforced housing and nitrile seals, 60282026 performs flawlessly from -35°C to +110°C. No leaks, no cracking – reliable cold starts and consistent filtration in tropical or arctic conditions.

Eco‑Friendly & Extended Service Life

The high dirt‑holding capacity (≥45 g) of Fuel Filter allows up to 1,500 hours between changes, reducing waste and lowering total operating costs while meeting sustainability targets.

Technical Specifications – OEM 60282026 Fuel Filter

Parameter Specification
OEM Part Number60282026
BrandSANY (Genuine Parts)
Filter TypeSpin‑on Fuel Filter with Water Separator
Filtration Rating (β₄≥200)4 µm absolute / 2 µm nominal
Water Separation Efficiency≥98% (free water) / ≥90% (emulsified)
Max Flow Rate250 L/h
Burst Pressure12 bar (174 psi)
Operating Temperature-35°C to +110°C (-31°F to +230°F)
Seal MaterialNitrile / Viton (optional)
Thread SizeM16 x 1.5
Dirt Holding Capacity≥45 grams

Compatible SANY Equipment & Multi‑Industry Applications

Excavators: SY55, SY75, SY135, SY215, SY305, SY500
Wheel Loaders: SW405, SW953, SW966, SW982
Motor Graders & Rollers: STG190, STG230, SSR220, STR130
Crawler Cranes / Concrete: SCC series, HBT pumps, truck mixers

The Fuel Filter is engineered to perform under the most severe conditions – mining, construction, forestry, and port handling. Its robust construction and high‑efficiency media ensure that SANY equipment maintains optimal combustion, reduced emissions, and compliance with strict environmental regulations. Fleet operators consistently report fewer fuel system failures and lower maintenance costs after switching to genuine 60282026 filters.

Best Practices for 60282026 Fuel Filter Maintenance

To maximize engine protection and filter life, follow these proven procedures for your Fuel Filter:

  • Replace every 500 – 1,000 operating hours or when the water‑in‑fuel sensor indicates saturation (whichever occurs first).
  • Always drain the water separator bowl during daily checks – especially in humid climates or after refueling from unknown sources.
  • Use a clean, compatible fuel; avoid mixing biodiesel above B20 without consulting SANY guidelines. 60282026 is fully compatible with B7, B10, and low‑sulfur diesel.
  • Record each Fuel Filter installation date and operating hours. Trend analysis helps predict optimal service intervals and detect fuel contamination early.
  • After filter replacement, prime the fuel system according to SANY service manual to avoid dry starts and injector damage.

Global Certifications & Rigorous Testing

ISO 4020 / SAE J1839

Every 60282026 unit is tested to ISO 4020 (fuel filter performance) and SAE J1839 (water separation). Results are validated by independent laboratories, ensuring consistent quality across production batches.

SANY Engine Validation

Genuine 60282026 filters undergo 1,000+ hours of field testing on SANY diesel engines, simulating extreme dust, water ingress, and thermal cycling to guarantee performance and durability.

Modern high‑pressure common‑rail diesel engines demand pristine fuel cleanliness. The Fuel Filter is specifically engineered to meet these stringent requirements. Its advanced synthetic media captures sub‑micronic particles that would otherwise cause injector scoring, while the integrated water separator protects against corrosion and microbial contamination. Choosing a non‑genuine filter can lead to reduced flow, premature bypass, and costly injector replacements – often exceeding the value of dozens of genuine filters.

In independent tests, the 60282026 demonstrated a filtration efficiency of 99.5% at 4 microns and maintained pressure drop below 0.5 bar even after 1,000 hours of severe field operation. Water separation efficiency remained above 95% throughout the test, ensuring that even fuel with high moisture content does not compromise the injection system. These results translate directly into reduced downtime, lower repair costs, and higher resale value for SANY equipment.

Operators in demanding industries such as mining and large‑scale construction have reported that consistent use of 60282026 genuine filters extends injector life by an average of 4,500 hours. Additionally, the filter’s high dirt‑holding capacity allows extended service intervals, reducing maintenance labor and waste disposal frequency. For fleet managers, standardizing on 60282026 simplifies inventory management and ensures every machine receives the same high level of protection.

Whether you operate in dusty quarries, humid coastal regions, or extreme cold environments, the 60282026 fuel filter delivers reliable, consistent performance. Backed by SANY’s global parts network and a commitment to quality, this filter is the preferred choice for maintenance professionals who demand the best. Protect your investment – always insist on genuine 60282026 for every fuel filter change.

Trust the original – 60282026 Fuel Filter by SANY. Engineered for absolute fuel purity, maximum engine protection, and uncompromised reliability. Choose genuine 60282026 and experience the difference of OEM quality.
