What is the FAW Front End Harness Straighten Out The Bracket Logic Module

  • FAW Front End Harness Straighten Out The Bracket Logic Module Overview
    This integrated module provides systematic organization and secure routing for FAW vehicle front-end wiring harnesses. Its “straighten out” logic ensures tangle-free cable paths, reduces vibration stress, and optimizes assembly efficiency through coordinated bracket placement and specialized fastening solutions.
  • Core Structural Brackets & Guides
  • Chassis Wire Harness Brackets (1, 2, 3, 4): Strategically positioned anchor points along the chassis frame for primary wire harness segments.
  • Wire Harness Guide Bracket Assembly: Directs and protects harnesses around obstacles and sharp edges, minimizing abrasion risk.
  • Hydraulic Tilting Switch Wire Harness Bracket: Dedicated mount for switch-related cabling within hydraulic systems.
  • Headlamp Temperature Sensor Bracket Assembly: Secures sensor wiring with precision near thermal zones.
  • Pipe Bundle Clip: Manages co-routing of wire harnesses alongside fluid or air lines.
  • Precision Fastening System
  • Hexagon Flange Bolt Thick Rod (Standard Type): Primary high-shear-strength fastener for critical bracket-to-chassis connections (used multiple positions).
  • Hexagon Flange Nut & SPL Small Hexagon Flange Lock Nut: Provide vibration-resistant locking with integrated load distribution.
  • Assembling Bolts: General-purpose fasteners for supplementary component attachment.
  • Hexagon Nut: Standard fastening solution for non-flanged applications.
  • Harness Management & Protection
  • Cable Ties: Enable customizable bundling and slack control throughout the routing path.
  • Pressure Plate – Electrical Wire: Applies controlled pressure to secure wires against brackets, preventing movement and chafing.
  • Integrated Module Logic
    The system employs a sequential “straighten out” philosophy: Guide Brackets establish optimal cable paths, Chassis Brackets provide rigid anchoring at calculated intervals, and Thick Rod Flange Bolts ensure vibration-proof mounting. Hydraulic Switch and Headlamp Sensor Brackets handle subsystem integration, while Cable Ties and Pressure Plates fine-tune harness positioning. The Pipe Bundle Clip facilitates clean co-routing, completing a fault-tolerant architecture that enhances electrical reliability and simplifies FAW front-end maintenance.

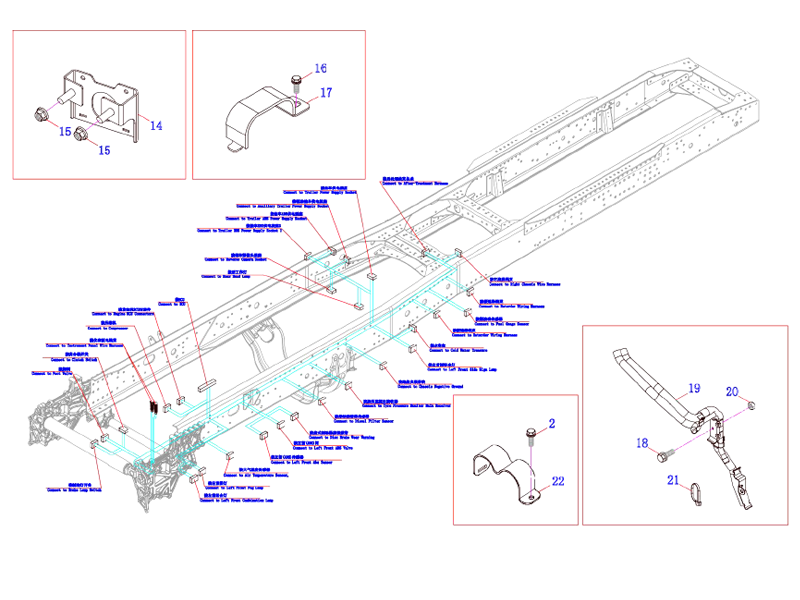

Product Parameters of FAW Front End Harness Straighten Out The Bracket Logic Module

Order Part NO. Part Name And Standards Oty
Front End Harness Straighten Out The Bracket Logic Module
1 3724046-1063 Chassis Wire  Harness Bracket 1
2 CQ1460625 Assembling Bolt 3
3 3724044-1063 Hydraulic Tilting Switch Wire Harness  Bracket 1
4 CQ34006 Hexagon Nut 2
5 Q1841670 Hexagon Flange Bolt Thick Rod (Standard  Type) 2
6 3724039-1063 Chassis Wire Harness Bracket 2 1
7 CQ39616 Hexagon Flange Nut 2
8 Q18416100T Hexagon Flange Bolt Thick Rod (Standard  Type) 1
9 3724042-1063 Chassis Wire Harness Bracket 4 1
10 T32616T SPL Small Hexagon Flange Lock  Nut 2
11 3602520-DY877 Headlamp  Temperature Sensor Bracket Assembly 1
12 Q1841680T Hexagon Flange Bolt Thick Rod (Standard  Type) 1
13 3724041-DY889 Chassis Wire Harness Bracket 3 1
14 3724335-DY806 Wire Harness Guide Bracket  Assembly 1
15 CQ39612 Hexagon Flange Nut 2
16 CQ1460825 Assembling Bolt 2
17 3506453-DY806 Pipe Bundle Clip 2
18 CQ1461025 Assembling Bolt 1
19 3724335-DY889 Wire Harness Guide Bracket  Assembly 1
20 CQ34010 Hexagon Nut 1
21 3723011-81W-C00 Cable Ties 21
22 3724332-91W Pressure  Plate -Electrical Wire 1
