What is the FAW Rear Balance Suspension Module

  • 1. FAW Rear Balance Suspension Module: Multi-Axle Load Mastery
    The FAW Rear Balance Suspension Module is the engineered core for optimal load distribution across tandem or tridem axles in heavy-duty FAW trucks. This sophisticated system equalizes weight transfer, enhances traction, reduces tire wear, and maintains stability under extreme payloads through its integrated linkage and spring architecture.
  • 2. Torque Rod System: Axle Control & Stress Management
  • Primary Linkages:
  • Front/Rear Lower Reacting Rod With Rubber Joint Assy manage fore-aft axle movement.
  • Front/After Reaction Bar With Rubber Joint Assembly control lateral forces.
  • Rubber Joints: Rubber Joint Assembly (Large/Small) within each rod absorb vibrations and allow articulation. Secured by Circlips (Large/Small) to retain joints under dynamic loads.
  • Fastening: Hexagon Head Bolts, SPL Small Hexagon Flange Lock Nuts, and Screw, Hex Flange Head Cap create vibration-resistant connections to chassis/axles.
  • 3. Balance Beam Assembly: The Load-Equalizing Pivot
  • Core Mechanism: The Suspension Balance Shaft And Balance Suspension Bracket Assembly (incorporating Balance Suspension Axis And Fixing Plate Assy) acts as the central pivoting beam.
  • Structural Mounting: Anchored via Bracket – Balance Suspension using high-shear Hexagon Flange Bolt Thick Rod (Standard Type) and Big Hexagon Head Bolts, locked with SPL Small Hexagon Flange Lock Nuts and Washers for permanent rigidity.
  • 4. Leaf Spring Integration: Weight Support & Articulation
  • Spring Seat Assembly:
  • Balnace Suspention Leaf Spring Seat Upper/Lower Cover enclose the Bushing -Balance Suspension Leaf Spring Seat.
  • Secured by Hexagon Flange Bolt Thick Rod (Standard Type).
  • Rear Leaf Spring Assy: A multi-layered system:
  • Rear Leaf Spring 1st-11th Piece form the progressive spring pack.
  • Middle Bolt-Rear Leaf Spring aligns leaves, fastened with Hexagon Nuts.
  • Rear Leaf Spring 9th Piece and Clamp Assembly prevents lateral spread.
  • Mounting Hardware: U-bolt-for Fastening Rear Leaf Spring + Nut-For Fastening U-bolt clamp springs to axles. Cover Plate-Rear Leaf Spring protects the stack.
  • 5. Axle Positioning & Limit Systems
  • Reaction Components: Front Leaf Spring Clamping Sleeve and Hexagon Thin Nut manage spring eye forces.
  • Lateral Stability: Limiting Bracket Assy-Side Of The Bridge On The Left(After The Bridge On The Right) prevents axle drift, using Hexagon Flange Bolt Thick Rod (Standard Type).
  • Cushioning: Rear Leaf Spring Cushion-After The Bridge On The Right absorbs end impacts. Connecting Plate reinforces bracket interfaces.

Product Parameters of FAW Rear Balance Suspension Module

Order Part NO. Part Name And Standards Oty
Rear Balance Suspension Module
1 2919010-DY011 Front Lower Reacting Rod With Rubber Joint  Assy 2
1.1 AD2919070-242（∮25） Rubber Joint Assembly 4
1.2 AD2919062-242 Circlip 4
2 2919020-DY011 Rear Lower Reacting Rod With Rubber  Joint Assy 2
2.1 AD2919070-242（∮25） Rubber Joint Assembly 4
2.2 AD2919062-242 Circlip 4
3 CQ1512495T Hexagon Head Bolt 8
4 T32720T SPL Small Hexagon Flange Lock  Nut 20
5 2919161A242 Bolt 4
6 2919005-242 Front Reaction Bar With Rubber Joint  Assembly 1
6.1 AD2919065-71B Rubber  Joint Assembly（Large） 1
6.2 AD2919070-260 Rubber  Joint Assembly（Small） 1
6.3 AD2919061-260 Circlip（Large） 2
6.4 AD2919062-260 Circlip（Large）（Small） 2
7 2919015-242 After The Reaction Bar With Rubber Joint Assembly 1
7.1 AD2919065-71B Rubber  Joint Assembly（Large） 1
7.2 AD2919070-260 Rubber  Joint Assembly（Small） 1
7.3 AD2919061-260 Circlip（Large） 2
7.4 AD2919062-260 Circlip（Large）（Small） 2
8 2919511-242 Screw, Hex Flange Head Cap 4
9 T32724T SPL Small Hexagon Flange Lock  Nut 12
10 Q1852060T Hexagon Flange Bolt 8
11 2918010A242 Suspension Balance Shaft And Balance Suspension Bracket Assembly 2
12 2918020-242 Balance Suspension Axis And Fixing Plate  Assy 2
13 CQ1512445T Hexagon Head Bolt 4
14 2918016A242 Bracket –  Balance Suspension 2
15 Q1851845T Hexagon Flange Bolt 4
16 Q18520170T Hexagon Flange Bolt   Thick Rod (Standard Type) 8
17 T1791845T Big Hexagon Head Bolt 8
18 Q1851865T Hexagon Flange Bolt Thick Rod (Standard  Type) 12
19 Q1851875T Hexagon Flange Bolt Thick Rod (Standard  Type) 8
20 T32718T SPL Small Hexagon Flange Lock  Nut 20
21 CQ1500812 Hexagon Head Bolt 6
22 2918017-242 Washer 2
23 CQ1512075T Hexagon Head Bolt 4
24 2918072-242 Cover-Balance  Suspension Leaf Spring Seat 2
25 2918042-242 Bushing -Balance Suspension Leaf Spring  Seat 2
26 2918041-242 Balnace Suspention Leaf Spring Seat  Upper Cover 2
27 2918046-242 Balnace Suspention Leaf Spring Seat  Lower Cover 2
28 Q1841235 Hexagon Flange Bolt Thick Rod (Standard  Type) 4
29 Q1841245 Hexagon Flange Bolt Thick Rod (Standard  Type) 8
30 CQ34012 Hexagon Nut 12
31 Q40312 Spring Washer 20
32 CQ1501230 Hexagon Head Bolt 8
33 2912434-242 Rear Leaf Spring Cushion-After The Bridge On The Right 4
34 2912435-448 Limiting Bracket Assy-Side Of The Bridge On  The Left(After The Bridge On The  Right) 4
35 2912411-242 U-bolt-for Fastening Rear  Leaf Spring
36 2912406X487 Cover  Plate-Rear Leaf Spring 4
37 2912413-5H Nut-For  Fastening U-bolt 2
38 Q18520120T Hexagon Flange Bolt Thick Rod (Standard  Type) 8
39 2919172-73B Connecting Plate 4

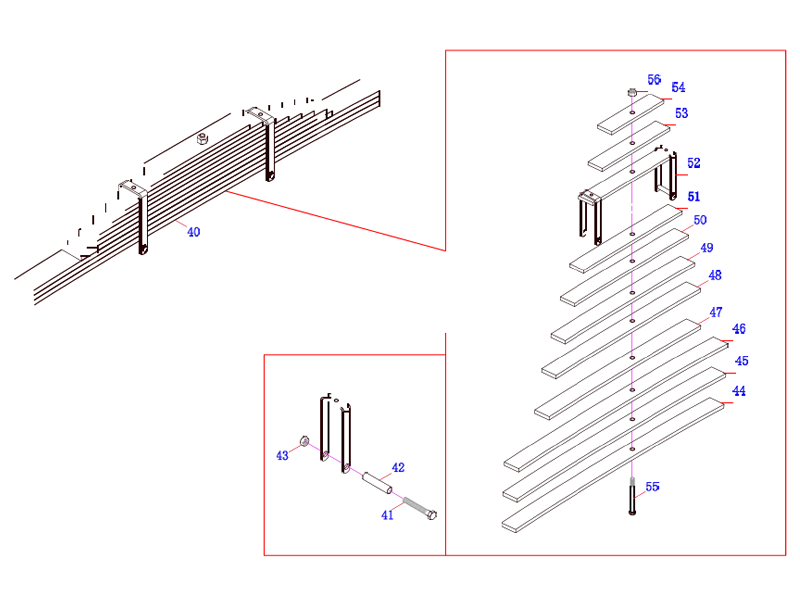

40 2912010-73B Rear Leaf Spring Assy 2
41 CQ15010115 Hexagon Head Bolt 2
42 2912171-03 Front Leaf Spring Clamping  Sleeve 4
43 CQ35010 Hexagon Thin Nut 4
44 2912201-73B Rear Leaf Spring 1st Piece 4
45 2912202-73B Rear Leaf Spring 2nd Piece 2
46 2912203-73B Rear Leaf Spring 3rd Piece 2
47 2912204-73B Rear Leaf Spring (4Th Leaf) 2
48 2912206-73B Rear Leaf Spring 5th Piece 2
49 2912207-73B Rear Leaf Spring (6Th Leaf) 2
50 2912208-73B Rear Leaf Spring 7Th Piece 2
51 2912209-73B Rear Leaf Spring 8Th Piece 2
52 2912135-73B Rear Leaf Spring 9th Piece and  Clamp Assembly 2
53 2912212-73B Rear Leaf Spring 10Th Piece 2
54 2912213-73B Rear Leaf Spring 11Th Piece 2
55 2912161-3N Middle Bolt-Rear Leaf Spring 2
56 CQ34116 Hexagon Nut 2
