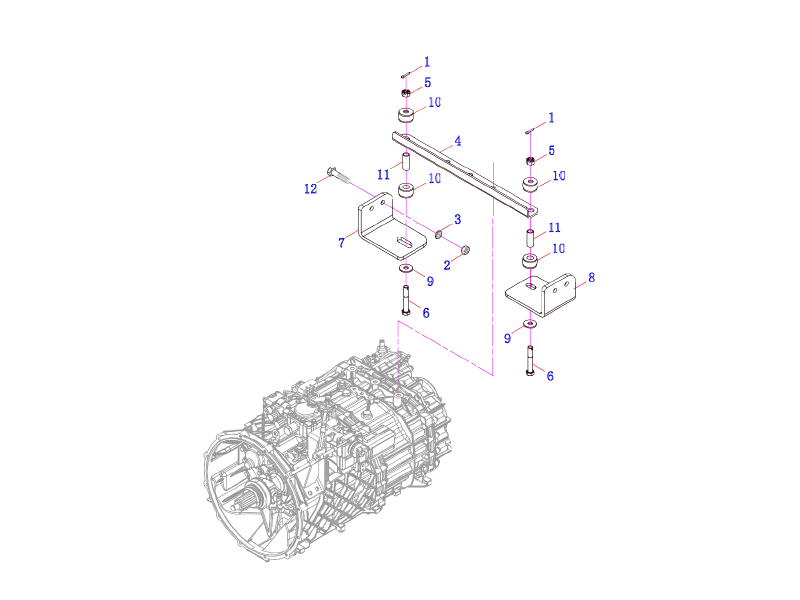

FAW Gearbox Auxiliary Strut Logic Assembly

Hexagon Bolt with Split Pin Hole on Shank: Provides the primary clamping force for critical joints. The dedicated hole allows for secure installation of the Split Pin, a vital safety component that mechanically locks the nut in place, preventing dangerous loosening due to vibration.

Hexagon Slotted Nut: Used in conjunction with the split pin for ultimate security in high-stress locations. The slots perfectly accommodate the split pin legs after tightening.

Hexagon Nut & Spring Washer: Standard fasteners used throughout the assembly. The Spring Washer acts as a locking element, maintaining tension and compensating for minor settling or thermal cycling to keep joints tight.

Cross Member-Gearbox Auxiliary Strut Cross Member: Forms the rigid backbone of the assembly. This strong, engineered beam spans the vehicle chassis, providing the foundational mounting points for the entire strut system and transmission.

Right Fixing Bracket-Gearbox Auxiliary Strut Cross Member & Left Fixing Bracket-Gearbox Auxiliary Strut Cross Member: These precisely manufactured brackets attach firmly to the Cross Member. They serve as the specific interface points where the auxiliary strut arms connect and adjust, enabling accurate transmission alignment.

Transmission Mounting Cushion: A key elastomeric component positioned between the transmission and the strut assembly. It effectively isolates vibrations, dampens shocks from road impacts, and allows for controlled minor movement, significantly reducing noise and stress on the transmission casing.

Support Sleeve Pipe: Often used within bolt holes or as spacers. It ensures precise alignment of components during assembly, prevents over-compression of bushings or cushions, and helps distribute clamping loads evenly.

Large Washer: Used under bolt heads or nuts to increase the bearing surface area. This prevents localized stress on softer materials, distributes clamping force more effectively, and helps protect component surfaces.

Hexagon Head Bolt: A versatile fastener used for assembling various components of the strut logic system and attaching it to the vehicle chassis. Provides strong, reliable clamping.
