FAW Gearbox Auxiliary Strut Logic Assembly
FAW Gearbox Auxiliary Strut Logic Assembly
2025-08-01
FAW Rear Axle Assembly-Axle Housing Assy
FAW Rear Axle Assembly-Axle Housing Assy
2025-08-01

FAW Drive Shaft Logic Assembly

FAW Drive Shaft Logic Assembly
FAW Drive Shaft Logic Assembly
FAW Drive Shaft Logic Assembly
FAW Drive Shaft Logic Assembly
FAW Drive Shaft Logic Assembly
FAW Drive Shaft Logic Assembly
Download Catalog
Get Quotation

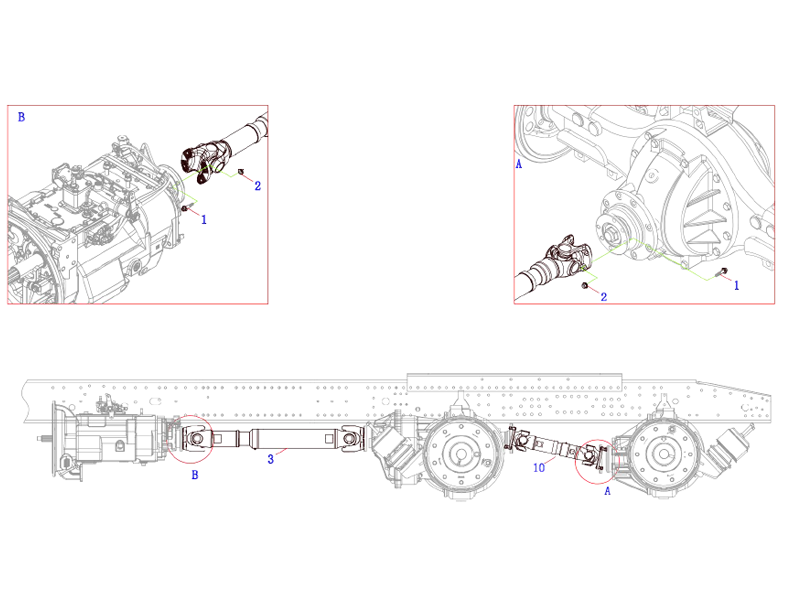

What is the FAW Drive Shaft Logic Assembly

  • The FAW Drive Shaft Logic Assembly is the engineered heart of torque transmission in FAW trucks and commercial vehicles. This sophisticated system reliably transfers engine power from the transmission to the driving axles, accommodating suspension movement and ensuring smooth, efficient propulsion under demanding conditions. Its robust design and precise component integration are critical for vehicle performance and durability.
  • Secure & Vibration-Resistant Fastening
  • Hexagon Flange Bolt Thick Rod (Standard Type): These heavy-duty flange bolts provide exceptional clamping force where the drive shaft connects to the transmission output flange and axle input flanges. The integral washer distributes load effectively.
  • Prevailing Torque Type Hexagon Nut (with Non-metallic Insert): Paired with the flange bolts, these nuts feature a locking nylon insert. This creates significant friction resistance to vibration, preventing critical fasteners from loosening during operation, a vital safety feature.
  • Core Torque Transmission Components

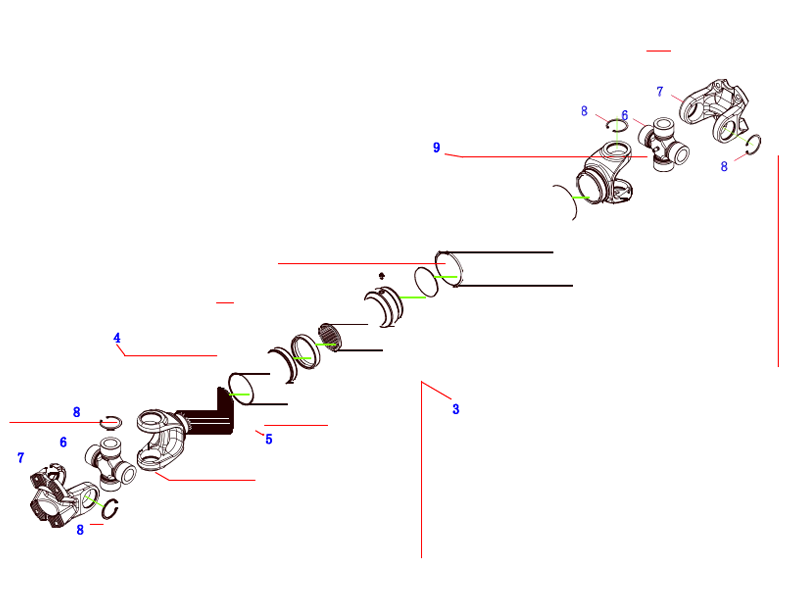

  • Intermediate Axle Drive Shaft And Universal Joint Assembly & Rear Axle Drive Shaft And Universal Joint Assembly: These are the primary rotating shafts connecting the transmission to the intermediate axle and the intermediate axle to the rear axle. Each incorporates Universal Joints to allow angular movement as the suspension articulates.
  • Spline Shaft Fork & Universal Joint Assembly & Spline Shaft Fork Assembly: These forged yokes feature internal splines that slide onto mating splines on the drive shafts or transmission/axle flanges. They provide the connection points for the Universal Joints, enabling torque transfer and angular flexibility.
  • Universal Joint & Bearing Mechanism
  • Cross Shaft And Needle Bearing Assembly: The core of each universal joint. The hardened Cross Shaft (or spider) provides the four journals. Needle Bearing Assemblies, packed with rollers and grease, fit onto these journals and into the bores of the Flange Fork or Spline Shaft Fork, allowing low-friction rotation in multiple planes.
  • Flange Fork: A yoke typically bolted directly to the transmission output or axle input flange. It houses the needle bearings and connects to one end of the Cross Shaft.
  • Circlip: Essential retaining rings that secure the Needle Bearing Assemblies within the bores of the Flange Forks and Spline Shaft Forks, preventing axial movement and bearing loss.
  • Optimized Power Flow
  • This meticulously designed FAW Drive Shaft Logic Assembly, from the Hexagon Flange Bolts securing the Flange Forks to the Circlips retaining the Cross Shaft And Needle Bearing Assemblies, ensures maximum power delivery with minimal loss or vibration. Its robust construction using specified components like the Spline Shaft Fork Assembly and Prevailing Torque Nuts guarantees reliable, long-lasting performance essential for heavy-duty FAW applications.

Product Parameters of FAW Drive Shaft Logic Assembly

Order Part NO. Part Name And Standards Oty
Drive Shaft Logic Assembly 1
1 Q1851455T Hexagon Flange Bolt Thick Rod (Standard  Type) 8
2 Q32914 Prevailing Torque Type Hexagon Nut(with Non-metallic Inse 8
3 2205010-D0097 Intermediate  Axle Drive Shaft And Universal  Joint Assembl 1
4 2205050B761 Spline Shaft Fork & Universal Joint  Assembly 1
5 2205020B761 Spline Shaft  Fork Assembly 1
6 2205030B761 Cross Shaft And Needle Bearing  Assembly 1
7 2205023B761 Flange Fork 1
8 2205048-A0M Circlip 56
9 2205060-D0097 Intermediate  Axle Drive Shaft And Universal  Joint Assembl 1
10 2201010-Q367 Rear Axle Drive Shaft And Universal Joint Assembly 1
11 26013314062 Flange Fork 2
12 26013314063 Circlip 5
13 26013314080 Cross Shaft 2
