FAW Drive Axle Pipeline Logic Assembly

FAW Drive Axle Pipeline Logic Assembly
FAW Drive Axle Pipeline Logic Assembly
Download Catalog
Get Quotation

What is the FAW Drive Axle Pipeline Logic Assembly

  • This meticulously routed system ensures reliable, responsive braking for FAW heavy-duty trucks and buses.
  • Drive Axle Pipeline Logic Assembly: The integrated system of rigid lines, flexible hoses, connectors, valves, and mounting hardware designed to deliver compressed air from the vehicle’s reservoirs to the brake chambers mounted on the FAW Rear Axle Assembly. It embodies the “logic” – the predetermined, optimized routing and control – for safe and efficient air brake operation at the drive axle.
  • Air Pipe Assembly: Refers to the sections of rigid metal tubing (often steel or corrosion-resistant alloy) that form the primary framework of the pipeline system. These pipes are precisely bent, flared, and routed along the axle housing or chassis frame, providing robust, leak-resistant conduits for high-pressure air between major valves and distribution points. They handle the main air flow paths.
  • Air Brake Nylon Pipe Assembly: Designates the sections utilizing flexible, durable nylon tubing. These assemblies connect the rigid Air Pipe Assembly sections to the moving components (like brake chambers or relay valves) mounted on the axle or suspension. Nylon’s flexibility accommodates suspension articulation and axle movement without kinking or fatigue failure, crucial for dynamic vehicle operation.
  • Plastic Tie Band Assembly: Engineered plastic straps or bands, often featuring integrated locking heads, specifically designed to securely bundle groups of air lines or electrical cables running alongside the pipelines. They maintain organized routing, prevent tangling, and reduce stress on individual lines within the Drive Axle Pipeline Logic Assembly.
  • Cable Ties (Tie Wraps): Standard nylon cable ties used extensively throughout the assembly for supplementary fastening. They secure individual air lines (Air Pipe Assembly or Air Brake Nylon Pipe Assembly) to mounting brackets, clips, or the main Plastic Tie Band Assembly bundles, ensuring lines are held firmly in place and protected from vibration, abrasion, or snagging.
  • The FAW Drive Axle Pipeline Logic Assembly – integrating the robust Air Pipe Assembly, flexible Air Brake Nylon Pipe Assembly, organized Plastic Tie Band Assembly, and securing Cable Ties – forms the dependable pneumatic nervous system for the axle brakes. This optimized system ensures rapid, controlled air delivery for safe braking, while its secure routing and mounting, facilitated by the bands and ties, guarantee long-term reliability and resistance to harsh environmental and operational stresses inherent in FAW’s demanding commercial vehicle applications.

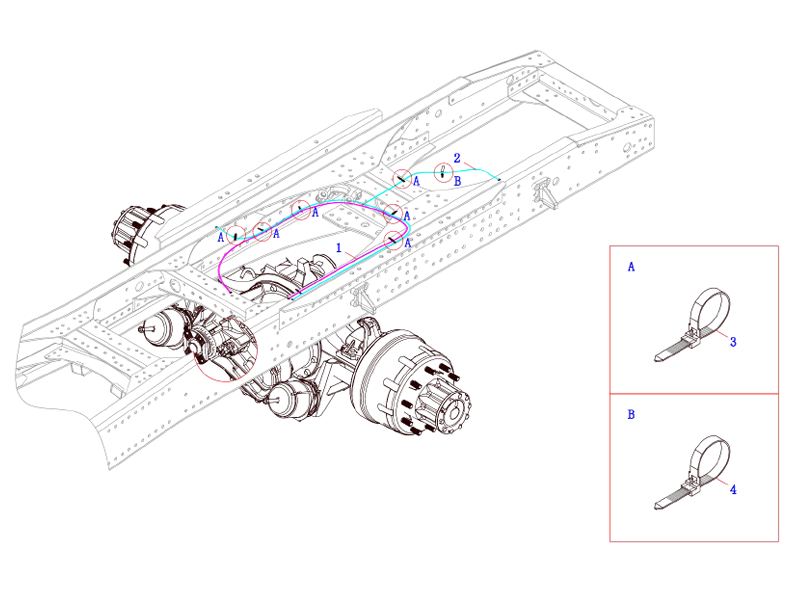

Product Parameters of FAW Drive Axle Pipeline Logic Assembly

Order Part NO. Part Name And Standards Oty
Drive Axle Pipeline Logic  Assembly
1 QF1A0502500B Air Brake Nylon Pipe Assembly 1
2 2408205-DY682 Air Pipe Assembly 1
3 3506111-DV111 Cable Ties
4 3506115-D481 Plastic Tie Band Assembly 1
