What is the FAW Cooling System Module Assembly

  • The FAW Cooling System Module Assembly represents a fully integrated and rigorously tested unit, designed for efficient heat dissipation and optimal engine operating temperatures. This pre-assembled module significantly streamlines vehicle production by combining critical cooling components into a single, ready-to-install package. Key elements include the Radiator Assembly and Intercooler Assembly, forming the core heat exchange centers for engine coolant and charged intake air, respectively.
  • Secure Mounting & Structural Integrity: Precise vehicle integration is ensured through a robust network of brackets and cushions. The Radiator Suspension Device, featuring dedicated Left Lower Tray and Right Lower Tray, along with the Radiator Suspension Bracket Assembly, provides the primary lower support. This structure utilizes Hexagon Flange Bolt Thick Rod (Standard Type) fasteners, Hexagon Flange Lock Nuts, Bolts, Hexagon Nuts, Washers, Bushes, and specific Assembling Bolts for secure attachment. Vibration damping is achieved via the Link Cushion Assembly, Upper Seat Pad-Radiator Suspension Device, and Lower Seat Pad-Radiator Suspension Device. Similarly, the intercooler is precisely located using the Intercooler Left Upper Bracket, Intercooler Left Lower Bracket, Intercooler Lower Bracket(Rh), and Right Upper Bracket Of Inter-Cooler, secured with specific Assembling Bolts and featuring Cushion Assembly-Intercooler elements for isolation.
  • Coolant Expansion & Management: The Expansion Tank Assy, vital for coolant volume fluctuation, is firmly positioned by the Expansion Tank Left Bracket Assembly and Expansion Tank Right Bracket Assembly, fastened with Hexagon Flange Nuts. Coolant circulation relies on durable rubber piping: the Backwater Pipe Assembly (supported by its Backwater Pipe Bracket), Radiator Water Outlet Rubber Pipe, Radiator Water Inlet Rubber Pipe, Engine Degassing Rubber Pipe, Radiator Air Outlet Rubber Pipe, Water Return Rubber Pipe-Expansion Tank, and Water Return Rubber Pipe-Radiator. The Degassing Rubber Pipe Bracket provides additional routing support. Leak-proof connections across all pipes are guaranteed by Worm Drive Type Hose Clamp Type B and standard Small Worm Drive Type Hose Clamps.
  • Optimized Airflow & Final Assembly: The Fan Wind Shield Assembly is integral for directing cooling air efficiently through the radiator core. Consistent high-strength fastening throughout the module is achieved using numerous Hexagon Flange Bolt Thick Rod (Standard Type) components and Hexagon Flange Nuts, alongside standard Assembling Bolts, Bolts, Hexagon Nuts, and Washers. The Draw Plate-Radiator ensures correct radiator positioning within its mounting system. Every connection point and sub-assembly utilizes the specified fasteners and clamps (Hose Clamp, Worm Drive Type Hose Clamp Type) to deliver a reliable, leak-free, and production-ready cooling solution for FAW engines.

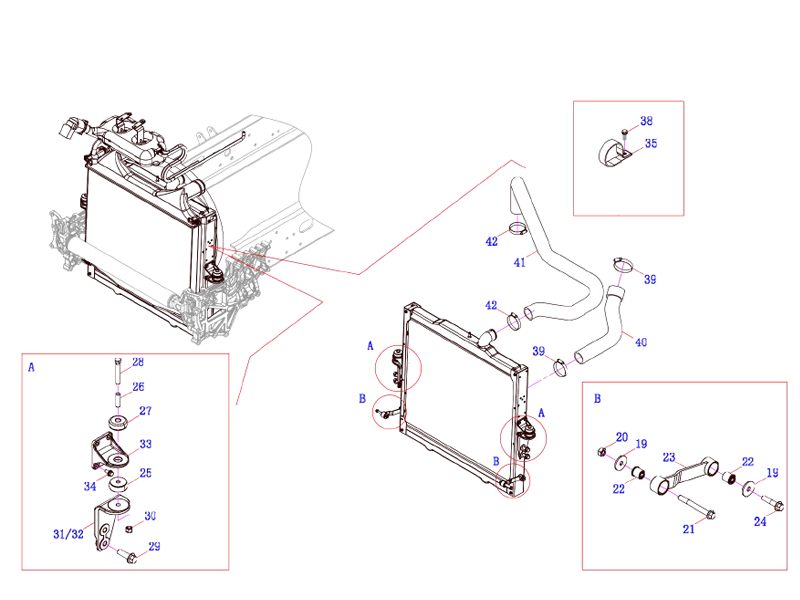

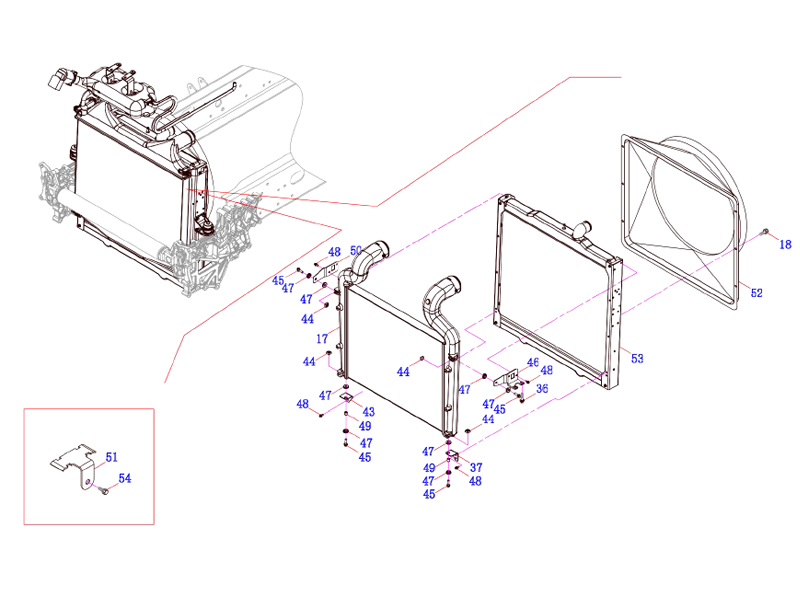

Product Parameters of FAW Cooling System Module Assembly

Order Part NO. Part Name And Standards Oty
Cooling System Module Assembly
1 Q1840820 Hexagon Flange Bolt Thick Rod (Standard  Type) 4
2 1304010-50A Pressure  Cover Assembly 1
3 CQ39608 Hexagon Flange Nut 8
4 1311010A1063 Expansion  Tank Assy 1
5 1311045-1063 Expansion  Tank Left Bracket Assembly 1
6 1311045A1063 Expansion  Tank Right Bracket Assembly 1
7 CQ1420816 Assembling Bolt 2
8 1311035-1062 Backwater  Pipe Assembly 1
9 1311034-1085 Backwater  Pipe Bracket 2
10 CQ67635B Worm Drive Type Hose Clamp Type  B 4
11 1311026-1511 Engine Degassing Rubber Pipe 1
12 1311021-1062 Radiator Air Outlet Rubber Pipe 1
13 1311033-1062 Water Return Rubber Pipe-Expansion  Tank 1
14 1311032-1063 Water Return  Rubber Pipe-Radiator 1
15 CQ67620 Small worm drive type hose clamp 4
16 CQ34008 Hexagon Nut 2
17 1119010-DY786 Intercooler Assembly 1
18 CQ1460816 Assembling Bolt 6
19 1302052-01 Washer 4
20 CQ34010 Hexagon Nut 3
21 Q1841090 Hexagon Flange Bolt Thick Rod (Standard  Type) 2
22 1302050-01 Link  Cushion Assembly 4
23 1302040-DY604 Draw Plate-Radiator 2
24 Q1841045 Hexagon Flange Bolt Thick Rod (Standard  Type) 2
25 1302127-1086 Lower  Seat Pad-Radiator Suspension Device 2
26 1302121-1901 Bush 2
27 1302128-1086 Upper  Seat Pad-Radiator Suspension Device 2
28 Q1841290 Hexagon Flange Bolt Thick Rod (Standard  Type) 2
29 1302066-2000 Bolt 4
30 CQ32612 Hexagon Flange Lock Nut 2
31 1302017-1086 Radiator Suspension Device Left Lower  Tray 1
32 1302018-1086 Radiator Suspension Device Right Lower  Tray 1
33 1302010-392 Radiator  Suspension Bracket Assembly 2
34 CQ1460820 Assembling Bolt 8
35 1303044-DY699 Hose Clamp 1
36 Q1841020 Hexagon Flange Bolt Thick Rod (Standard  Type) 2
37 1119093-1057 Intercooler Left Lower Bracket 1
38 CQ1461025 Assembling Bolt 1
39 CQ67990 Worm Drive Type Hose Clamp Type 2
40 1303021-1511 Radiator  Water Outlet Rubber Pipe 1
41 1303011-DY699 Radiator  Water Inlet Rubber Pipe 1
42 CQ67980 Worm Drive Type Hose Clamp Type 2
43 1119094-1057 Intercooler  Lower Bracket(Rh) 1
44 CQ31010 Nut 4
45 Q1841035 Hexagon Flange Bolt Thick Rod (Standard  Type) 2
46 1119091-DY786 Intercooler Left Upper Bracket 1
47 1119125-1063 Cushion  Assembly-Intercooler 4
48 Q1840816 Hexagon Flange Bolt Thick Rod (Standard  Type) 8
49 1119127-1063 Bush 2
50 1119092-DY786 Right Upper Bracket Of  Inter-Cooler 1
51 1311051-DY786 Degassing  Rubber Pipe Bracket 1
52 1309010-DY604 Fan Wind  Shield Assembly 1
53 1301010-1085 Radiator Assembly 1
54 CQ1461016 Assembling Bolt 1
