FAW Exhaust And Tail Gas Treatment System Module

FAW Exhaust And Tail Gas Treatment System Module
FAW Exhaust And Tail Gas Treatment System Module
FAW Exhaust And Tail Gas Treatment System Module
FAW Exhaust And Tail Gas Treatment System Module
Download Catalog
Get Quotation

What is the FAW Exhaust And Tail Gas Treatment System Module

  • FAW Exhaust and Tail Gas Treatment System Module
    This integrated module is engineered for optimal exhaust gas routing and advanced emission control in FAW heavy-duty vehicles. It ensures efficient aftertreatment processing, compliance with stringent environmental regulations (like Euro VI/China VI), and robust durability under demanding operating conditions.
  • Bracket Assembly-Rear Processor & Fixed Supports
    Precisely designed front and rear fixed supports, along with dedicated bracket assemblies, provide a vibration-resistant foundation for the rear processor (DPF/SCR unit). These critical mounting points ensure structural integrity and maintain precise component alignment throughout the vehicle’s service life.
  • Heat Insulation System (Rear Processor)
    Comprehensive thermal management is achieved through multiple heat insulation covers: upper, side, and dedicated rear processor covers. This system minimizes underhood temperatures, protects sensitive components from radiant heat, and enhances overall vehicle safety and efficiency.
  • Rear Processor Air Outlet Pipe
    This specifically designed pipe channels treated exhaust gases exiting the rear processor (after DPF/SCR treatment) towards the tailpipe. Its configuration is optimized for smooth flow and integration within the FAW vehicle architecture.
  • Band Assembly-Rear Processor & Exhaust Pipe Support
    Heavy-duty band assemblies securely clamp critical connections, particularly around the rear processor. Dedicated exhaust pipe supports strategically anchor the exhaust line, preventing excessive movement and stress on joints during operation.

Product Parameters of FAW Exhaust And Tail Gas Treatment System Module

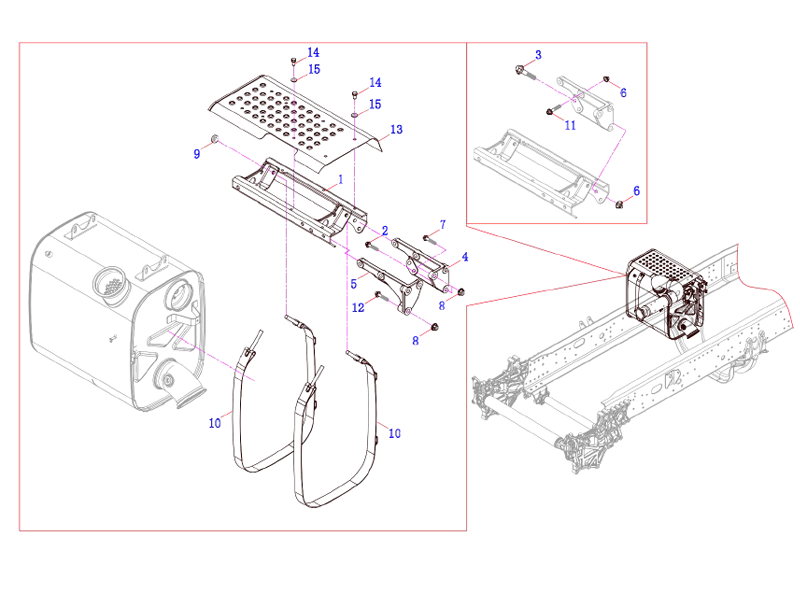

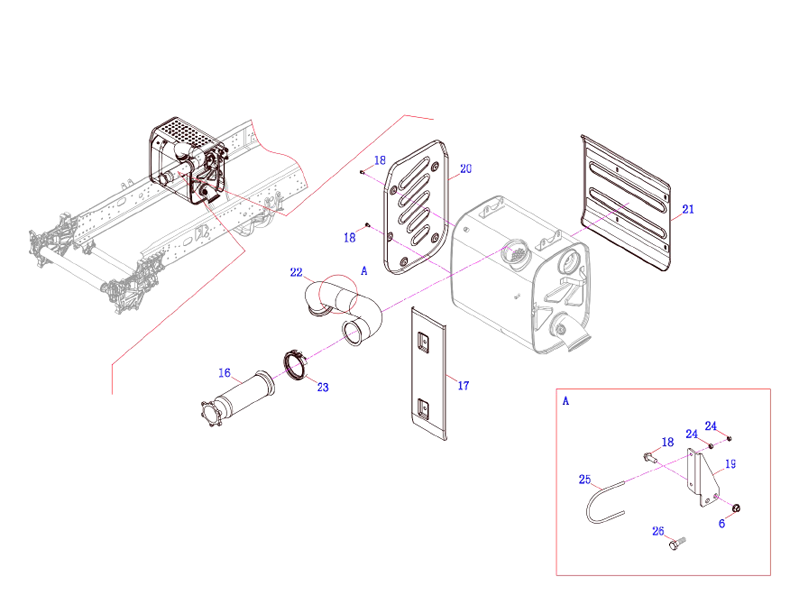

Order Part NO. Part Name And Standards Oty
Exhaust And Tail Gas Treatment System  Module
1 1203050-DS111 Bracket  Assembly-Rear Processer 1
2 Q1841450 Hexagon Flange Bolt Thick Rod (Standard  Type) 2
3 Q1841245 Hexagon Flange Bolt Thick Rod (Standard  Type) 4
4 1203052-DS111 Rear  Fixed Support-Rear Processer 1
5 1203051-DS111 Front  Fixed Support-Rear Processer 1
6 CQ39612 Hexagon Flange Nut 10
7 Q1841430 Hexagon  Flange Bolt 2
8 CQ39614 Hexagon Flange Nut 4
9 CQ34012 Hexagon Nut 16
10 1203090-DV151 Band  Assembly-Rear Processer 2
11 Q1841240 Hexagon Flange Bolt Thick Rod (Standard  Type) 4
12 Q1841465 Hexagon  Flange Bolt 1
13 1204038-DV100 Upper  Heat Insulation Cover-Rear Processer 1
14 CQ1460816 Assembling Bolt 15
15 Q40210 Large Washer 4
16 1203060-DY253 Metal  Hose Assembly 1
17 1204048-92W Side Heat Insulation Cover-Rear  Processer 1
18 Q1841230 Hexagon Flange Bolt Thick Rod (Standard  Type) 2
19 1203031A-DY699 Exhaust Pipe Support 1
20 1204028-DL001D Heat  Insulation Cover-Rear Processer 1
21 1204040-DV151 Heat  Insulation Cover (Rear) 1
22 1203015A-DY604 Rear Processer Air Outlet Pipe 1
23 1203075-50A Circlip Assembly 2
24 CQ34008 Hexagon Nut 8
25 1203072-Q101 U-Bolts 1
26 CQ1501250 Hexagon Head Bolt 4
