What is the FAW Cab Reversing Control Logic Assembly

  • This sophisticated Cab Reversing Control Logic Assembly is the central nervous system governing the safe and controlled tilting mechanism of FAW truck cabs. It integrates Hydraulic System Technical Parts with electrical control elements, managing the precise sequence and safety interlocks required for raising, holding, and lowering the cab during maintenance access. Its core function is to ensure operator safety, prevent accidental movement, and provide reliable hydraulic power management for smooth cab operation.
  • Hydraulic Power Generation & Control
  • Electric Hydraulic Pump Assy-Cargo Lifting: Generates primary hydraulic pressure for cab tilting via an electric motor-driven pump.
  • Electric Hydraulic Pump Relay Assy-Cargo Lifting: Controls high-current flow to the electric pump motor, activated by the control logic.
  • Electric Hydraulic Pump Motor Assy-Cargo Lifting: Provides the rotational force driving the primary hydraulic pump.
  • Manual Pump Assy-Cab Lifting: Offers backup or maintenance hydraulic pressure generation via hand operation if electrical power is unavailable.
  • Cab Flip Hydraulic Cylinder Assembly: The core actuator converting hydraulic pressure into linear force to physically lift and lower the cab.
  • Electric Pump Bracket & Manual Pump Bracket: Secure the electric and manual hydraulic pump assemblies firmly to the vehicle chassis.
  • Hydraulic Fluid Conduit System
  • Strong Pipe Assembly & Slim Pipe Assembly: High-pressure hydraulic lines designed for different flow requirements and routing constraints within the cab tilting system.
  • Oil Pipe Assembly-Hydraulic Cylinder Oil Inlet & Oil Outlet: Dedicated lines delivering pressurized fluid to extend the cylinder (inlet) and allowing return flow to retract it (outlet).
  • Oil Pipe Assembly-Hydraulic Lock to Tee Joint & Manual Pump to Tee Joint: Critical connections integrating key valves and the manual pump into the main hydraulic circuit via Adjustable T-Unions–Body.
  • Protective Ring-Oil Pipe: Shields hydraulic hose connections at ports from abrasion and over-stressing.
  • Pipeline Fixing Bracket Assembly & Single Pipe Clip: Secures hydraulic lines along the chassis, preventing vibration, chafing, and ensuring proper routing.
  • Control & Safety Components
  • Hydraulic Tipping Switch Bracket: Mounting platform for the control switch.
  • Hydraulic Tipping Switch Assembly: The operator interface (switch) that initiates and controls the cab tilting sequence based on logic inputs.
  • Structural Integration & Fastening
  • Hexagon Flange Bolt, Hexagon Flange Bolt Thick Rod (Standard Type), Assembling Bolt: High-strength fasteners used throughout the assembly for critical structural connections (brackets, cylinder mounts). The flange provides built-in load distribution.
  • Hexagon Flange Nut, Hexagon Flange Lock Nut, Hexagon Thin Nut: Secure bolts, with flange nuts aiding load distribution and lock/flange lock nuts providing essential vibration resistance. Thin nuts are used where space is constrained.
  • Large Washer: Distributes clamping load under bolt heads and nuts, protecting components.
  • Cable Ties: Used for supplementary securing of wiring harnesses associated with the electric pump and switch.
  • This integrated assembly ensures the FAW cab tilting system operates with precision, safety, and long-term reliability.

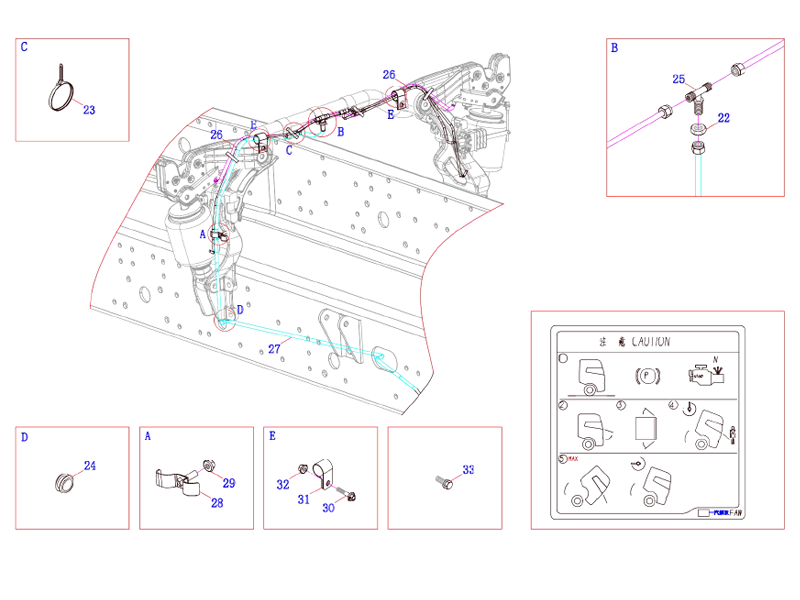

Product Parameters of FAW Cab Reversing Control Logic Assembly

Order Part NO. Part Name And Standards Oty
    Cab Reversing Control Logic  Assembly
1 5002901A1063 Hydraulic  System Technical Parts 1
2 5002075AA01-C00 Electric hydraulic Pump Assy-Cargo  Lifting 1
3 5002190AA01-C00 Electric hydraulic Pump Relay Assy-Cargo  Lifting 1
4 5002180AA01-C00 Electric hydraulic Pump Motor Assy-Cargo  Lifting 1
5 5002070A1063-C00 Manual Pump Assy-Cab Lifting 1
6 5002020-1063-C00 Cab Flip Hydraulic Cylinder  Assembly 1
7 5002126A1063 Electric  Pump Bracket 1
8 Q1840820TF6S Hexagon  Flange Bolt 2
9 CQ1461025 Assembling Bolt 6
10 CQ34010 Hexagon Nut 4
11 CQ1461020F6 Assembling Bolt 2
12 CQ1461030 Assembling Bolt 2
13 5002123A1063 hydraulic Tipping Switch  Bracket 1
14 3735080-54W-C00 hydraulic Tipping Switch  Assembly 1
15 5002120-1063 Manual Pump Bracket 1
16 5002090A1063-C00 Strong Pipe Assembly 1
17 5002095A1063-C00 Slim Pipe Assembly 1
18 5002080-1063-C00 Oil Pipe  Assembly-Hydraulic Cylinder Oil Inlet 1
19 5002100-1063-C00 Oil Pipe  Assembly-Hydraulic Cylinder Oil Outlet 1
20 Q40208 Large Washer 1
22 CQ35112 Hexagon Thin Nut 1
23 3506111-DV111 Cable Ties 6
24 1104261-392 Protective  Ring-Oil Pipe 1
25 5001167-Q824A Adjustable T-Unions–Body 1
26 5004125-DY604 Oil Pipe Assembly-Hydraulic Lock to Tee  Joint 2
27 5002085-DY604 Oil Pipe Assembly-Manual Pump to Tee  Joint 1
28 5002180-DY604 Pipeline  Fixing Bracket Assembly 1
29 CQ39606 Hexagon Flange Nut 1
30 Q1840820 Hexagon Flange Bolt Thick Rod (Standard  Type) 2
31 Q68830 Single Pipe Clip 2
32 CQ32608 Hexagon Flange Lock Nut 2
33 CQ1460616F6 Assembling Bolt 1
