Sitrak Truck Wheel Side Reducer Housing Assembly

Sitrak Truck Wheel Side Reducer Housing Assembly
Sitrak Truck Wheel Side Reducer Housing Assembly
Download Catalog
Get Quotation

What is the Sitrak Truck Wheel Side Reducer Housing Assembly

  • Sitrak Truck Wheel Side Reducer Housing Assembly

  • These steel balls play a vital role in the smooth operation of the assembly. With a specific diameter of 8.0000 and conforming to the G200 b – GB308 standard, they are used in the ball – bearing mechanisms within the reducer. Their high – precision manufacturing ensures minimal friction, allowing for efficient power transfer and reducing wear and tear on the moving parts.
  • Garden Stud Pins
  • Garden stud pins are used to precisely position and secure different sub – components within the wheel side reducer housing. They provide a stable connection, ensuring that the various parts work in harmony and maintain their correct alignment during the truck’s operation.
  • Hexagon Head Bolts

  • Sitrak Truck Wheel Side Reducer Housing Assembly

  • Hexagon head bolts are the primary fasteners in the assembly. They are used to hold together the different sections of the housing, the planetary carrier assembly, and other critical components. These bolts are made from high – strength materials to withstand the substantial forces and vibrations experienced during the truck’s movement.
  • Planetary Wheel (Z = 16)
  • The planetary wheel with a tooth count of Z = 16 is a key element in the planetary gear system of the reducer. It meshes with other gears to achieve the desired gear ratio, enabling the truck to adapt to different driving conditions, such as climbing slopes or cruising on flat roads. The design and manufacturing quality of the planetary wheel directly affect the efficiency and durability of the reducer.
  • Needle Roller Bearing Supply and Credit Diagram

  • Sitrak Truck Wheel Side Reducer Housing Assembly

  • The needle roller bearing supply and credit diagram is an important visual reference for understanding the flow and distribution of needle roller bearings within the assembly. It helps technicians and engineers in the maintenance, repair, and assembly processes, ensuring that the needle roller bearings are correctly installed and supplied to the appropriate locations.
  • Planetary Wheel Shaft
  • The planetary wheel shaft provides support and rotation for the planetary wheels. It is designed to withstand high – torque loads and transmit power efficiently. The material and heat – treatment process of the planetary wheel shaft are carefully selected to ensure its strength and durability.
  • Planetary Wheel Spacer

  • Sitrak Truck Wheel Side Reducer Housing Assembly

  • The planetary wheel spacer is used to maintain the correct spacing between the planetary wheels. This ensures proper gear meshing and reduces the risk of interference between the wheels, which could lead to gear damage and reduced performance.
  • Washers
  • Washers are used in combination with bolts and other fasteners. They distribute the load evenly, prevent damage to the mating surfaces, and help to prevent the fasteners from loosening due to vibrations.
  • Planetary Carrier Assembly
  • The planetary carrier assembly is a complex sub – unit that holds the planetary wheels and shafts. It plays a central role in the power – splitting and torque – multiplication functions of the reducer. The design and construction of the planetary carrier assembly are optimized for maximum strength and efficiency.

  • Sitrak Truck Wheel Side Reducer Housing Assembly

  • Planetary Carrier Oil Pan
  • The planetary carrier oil pan is responsible for collecting and storing the lubricating oil for the planetary carrier assembly. It ensures that the gears and bearings within the assembly are properly lubricated, reducing friction and wear and extending the service life of the components.
  • In conclusion, the Sitrak Truck Wheel Side Reducer Housing Assembly, with its diverse range of components including steel balls, garden stud pins, hexagon head bolts, and others, is a sophisticated and essential part of the Sitrak truck. It is designed to provide reliable power transmission, enhance performance, and ensure the long – term durability of the vehicle.

Product Parameters of Sitrak Truck Wheel Side Reducer Housing Assembly

AZ7121345129  Wheel Side Reducer Housing Assembly
No. Part Number Part Name English  Quantity
1 190003330148 Steel balls–8.0000 G200 b-GB308 5
2 190003901704 Garden Stud Pins 5
3 Q151C1295TF2 Hexagon head bolts 5
4 WG9012340122 Planetary wheel (Z=16) 5
5 WG99-934-013 Needle roller bearing supply and credit diagram 10
6 WG9012340004 Planetary wheel shaft 5
7 WG9012340075 Planetary wheel spacer 10
8 WG9012340077 Washers 5
9 AZ7121345029 Planetary carrier assembly 1
10 WG880420027 Planetary Carrier Oil Pan 1

Related Sitrak Spare Parts

Didn'T Find Your Truck Model?

If you have any problems or questions, please get in touch with us, we will
provide you with the best service.

Contact Us
]]> https://deruna.com/sitrak-truck-wheel-side-reducer-housing-assembly.html/feed 0 Sitrak Spacer Assembly (Abs) https://deruna.com/sitrak-spacer-assembly.html https://deruna.com/sitrak-spacer-assembly.html#respond Mon, 31 Mar 2025 05:15:47 +0000 https://deruna.com/?p=61366

Sitrak Spacer Assembly (Abs)

Sitrak Spacer Assembly (Abs)
Sitrak Spacer Assembly (Abs)
Download Catalog
Get Quotation

What is the Sitrak Spacer Assembly (Abs)

  • The Sitrak Spacer Assembly (ABS) is a critical and innovative component within the vehicle’s anti – lock braking system (ABS), engineered to enhance safety and performance in Sitrak vehicles. This assembly is a carefully crafted unit that integrates several key elements to ensure seamless operation.
  • The Sensor bracket is an essential part of the Sitrak Spacer Assembly (ABS). It serves as a stable mounting platform for the ABS sensor. The sensor bracket is precisely designed to position the sensor accurately in relation to the rotating components of the wheel. This accurate positioning is crucial because the ABS sensor needs to precisely detect the wheel’s rotational speed. Any misalignment could lead to inaccurate speed readings, which may compromise the effectiveness of the ABS system. The bracket is made from high – quality materials that can withstand the vibrations and mechanical stresses encountered during normal vehicle operation.
  • Hexagon socket cheese head screws play a vital role in securing the various parts of the Sitrak Spacer Assembly (ABS). These screws are designed with a hexagon socket in the head, which allows for easy and secure tightening using an appropriate hex key. The cheese head design provides a low – profile and smooth surface, reducing the risk of interference with other components. They are made from strong and corrosion – resistant materials, ensuring a long – lasting and reliable connection between the different parts of the assembly.
  • Spring washers are used in conjunction with the hexagon socket cheese head screws. These washers are designed to provide a spring force that helps to prevent the screws from loosening due to vibrations. When the screw is tightened, the spring washer is compressed, creating a constant pressure that keeps the screw firmly in place. This is especially important in a vehicle environment where vibrations are common, as loose screws can lead to component failure and potential safety issues.
  • In summary, the Sitrak Spacer Assembly (ABS), with its sensor bracket, hexagon socket cheese head screws, and spring washers, is a well – engineered solution that contributes significantly to the proper functioning of the ABS system in Sitrak vehicles. It combines precision design, high – quality materials, and reliable fastening methods to ensure the safety and performance of the vehicle.

Product Parameters of Sitrak Spacer Assembly (Abs)

AZ7121345618  Spacer Assembly (Abs)
No. Part Number Part Name English  Quantity
3 WG9970340094 Sensor bracket 1
4 Q218B0625 Hexagon socket cheese head screws 2
5 Q40306 Spring washers 2
WG9970340094 Sensor bracket
No. Part Number Part Name English  Quantity
0 WG9970340094/1 1


Related Sitrak Spare Parts

Didn'T Find Your Truck Model?

If you have any problems or questions, please get in touch with us, we will
provide you with the best service.

Contact Us
]]> https://deruna.com/sitrak-spacer-assembly.html/feed 0 Sitrak Truck Rear Hub Assembly https://deruna.com/sitrak-truck-rear-hub-assembly.html https://deruna.com/sitrak-truck-rear-hub-assembly.html#respond Mon, 31 Mar 2025 05:11:50 +0000 https://deruna.com/?p=61360

Sitrak Truck Rear Hub Assembly

Sitrak Truck Rear Hub Assembly
Sitrak Truck Rear Hub Assembly
Download Catalog
Get Quotation

What is the Sitrak Truck Rear Hub Assembly

  • The Sitrak Truck Rear Hub Assembly is an indispensable and meticulously engineered component that is vital for the seamless operation of Sitrak trucks. This assembly is a key part of the truck’s rear axle system, designed to handle heavy – duty loads and provide reliable performance in various driving conditions.
  • The Rear Hub is the central element of this assembly. It serves as a crucial mounting point for the wheel and other associated parts. Constructed from high – strength materials, the rear hub is built to withstand the substantial forces and stresses generated during the truck’s movement. Its design ensures proper alignment and support for the wheel, which is essential for maintaining the stability and safety of the vehicle.
  • Wheel bolts play a critical role in securing the wheel to the rear hub. These bolts are precisely engineered to provide a strong and secure connection. They are made from durable materials that can resist corrosion and wear, ensuring a long – lasting and reliable fastening. The correct torque application of the wheel bolts is crucial to prevent wheel loosening, which could lead to serious safety hazards.
  • Oil shields are another important feature of the Sitrak Truck Rear Hub Assembly. These shields are designed to protect the internal components of the rear hub from contaminants such as dirt, dust, and water. By keeping the lubricating oil clean and preventing the entry of foreign particles, the oil shields help to extend the lifespan of the bearings and other moving parts within the hub. This not only reduces maintenance costs but also enhances the overall reliability of the assembly.
  • The Seal (232×249×10) is a specialized component that further contributes to the integrity of the rear hub assembly. This seal is carefully designed to fit precisely within the hub, creating a tight barrier against the leakage of lubricating oil and the ingress of external contaminants. The specific dimensions (232×249×10) ensure a proper and secure fit, which is essential for maintaining the optimal performance of the rear hub. A well – functioning seal helps to preserve the lubrication of the bearings, reducing friction and wear, and ultimately improving the efficiency and longevity of the Sitrak Truck Rear Hub Assembly.
  • In conclusion, the Sitrak Truck Rear Hub Assembly, with its rear hub, wheel bolts, oil shields, and the Seal (232×249×10), represents a high – quality and reliable solution for Sitrak trucks. It combines advanced engineering and durable components to ensure the safety, performance, and longevity of the vehicle.

Product Parameters of Sitrak Truck Rear Hub Assembly

AZ7121345010  Truck Rear Hub Assembly
No. Part Number Part Name English  Quantity
1 WG7121345009 Rear Hub 1
2 WG7121340130 Wheel bolts 10
3 712W35730-0033 Oil shields 1
4 WG7121345015 Seal(232×249×10) 1

Related Sitrak Spare Parts

Didn'T Find Your Truck Model?

If you have any problems or questions, please get in touch with us, we will
provide you with the best service.

Contact Us
]]> https://deruna.com/sitrak-truck-rear-hub-assembly.html/feed 0 Sitrak Rear Hub Assembly (Abs) https://deruna.com/sitrak-rear-hub-assembly-abs.html https://deruna.com/sitrak-rear-hub-assembly-abs.html#respond Mon, 31 Mar 2025 05:08:34 +0000 https://deruna.com/?p=61354

Sitrak Rear Hub Assembly (Abs)

Sitrak Rear Hub Assembly (Abs)
Sitrak Rear Hub Assembly (Abs)
Download Catalog
Get Quotation

What is the Sitrak Rear Hub Assembly (Abs)

  • The Sitrak Rear Hub Assembly (ABS) stands as a remarkable piece of engineering, specifically designed to elevate the performance and safety of Sitrak vehicles. This assembly is a crucial component in the overall structure of the vehicle’s rear axle system, playing a vital role in ensuring smooth and reliable operation.
  • The Rear Hub Assembly itself is a well – crafted unit that integrates multiple functions. It provides a stable mounting point for various parts within the rear axle area. It is built to withstand the significant stresses and loads that come with the operation of heavy – duty vehicles. The design of the rear hub assembly is optimized for durability, with high – quality materials used in its construction to resist wear and tear over an extended period.
  • One of the most distinctive features of the Sitrak Rear Hub Assembly (ABS) is the inclusion of the ABS Gear Ring. The ABS Gear Ring is an essential part of the Anti – Lock Braking System (ABS). It works in tandem with the ABS sensor to precisely monitor the rotational speed of the wheel. This real – time speed data is then transmitted to the vehicle’s ABS control unit. When the system detects a potential wheel lock – up during braking, it can quickly adjust the braking force applied to each wheel, preventing skidding and maintaining vehicle stability.
  • The combination of the Rear Hub Assembly and the ABS Gear Ring ensures that Sitrak vehicles can offer enhanced braking performance, especially in challenging driving conditions. Whether it’s on wet, slippery roads or during sudden braking maneuvers, the ABS system enabled by the ABS Gear Ring in the rear hub assembly can significantly reduce the risk of accidents.
  • In addition to its safety benefits, the ABS Gear Ring in the Sitrak Rear Hub Assembly also contributes to the overall efficiency of the vehicle. By preventing wheel lock – up, it helps to maintain better traction, which in turn reduces tire wear and improves fuel economy.
  • Overall, the Sitrak Rear Hub Assembly (ABS) with its ABS Gear Ring is a testament to the advanced technology and high – quality manufacturing standards of Sitrak. It not only enhances the safety and performance of the vehicles but also provides long – term reliability and value for customers.

Product Parameters of Sitrak Rear Hub Assembly (Abs)

AZ7121345011  Rear Hub Assembly (Abs)
No. Part Number Part Name English  Quantity
1 AZ7121345010 Rear Hub Assembly 1
2 WG9231340908 ABS Gear Ring 1


Related Sitrak Spare Parts

Didn'T Find Your Truck Model?

If you have any problems or questions, please get in touch with us, we will
provide you with the best service.

Contact Us
]]> https://deruna.com/sitrak-rear-hub-assembly-abs.html/feed 0 Sitrak MAT16ZG Rear Axle Hub And Brake(Wheelbase 1850,Abs,Wear Alarm) https://deruna.com/sitrak-mat16zg-rear-axle-hub-and-brake-2.html https://deruna.com/sitrak-mat16zg-rear-axle-hub-and-brake-2.html#respond Mon, 31 Mar 2025 05:04:36 +0000 https://deruna.com/?p=61348

Sitrak MAT16ZG Rear Axle Hub And Brake(Wheelbase 1850,Abs,Wear Alarm)

Sitrak MAT16ZG Rear Axle Hub And Brake(Wheelbase 1850,Abs,Wear Alarm)
Sitrak MAT16ZG Rear Axle Hub And Brake(Wheelbase 1850,Abs,Wear Alarm)
Download Catalog
Get Quotation

What is the Sitrak MAT16ZG Rear Axle Hub And Brake(Wheelbase 1850,Abs,Wear Alarm)

  • The Sitrak MAT16ZG Rear Axle Hub And Brake system with a wheelbase of 1850, equipped with ABS and wear alarm, is a state – of – the – art component designed for high – performance and reliability in heavy – duty vehicles. This assembly is a complex combination of numerous parts, each playing a crucial role in ensuring the efficient operation of the rear axle.
  • The Rear Hub Assembly (ABS) is at the core of this system. It integrates advanced ABS technology to enhance braking safety. The Seal Ring is used to prevent the leakage of lubricants and contaminants, maintaining the integrity of the hub assembly. The Spacer assembly (ABS) precisely positions components within the hub, ensuring proper alignment for the ABS system to function optimally.
  • The Axle Seal and Oil Retaining Disk work together to keep the axle lubricated and free from debris. Tapered roller bearings 30222 and 32222 provide smooth rotation and support the weight of the vehicle. These bearings are designed to handle high radial and axial loads, ensuring long – term durability.
  • Fastening components are equally important. Hexagon socket cone screw plug DIN906 – M24X1.5 – st and Magnetic hexagon socket cone screw plug assembly M24x1.5 DIN158 are used to seal openings and prevent the ingress of dirt. The End cap assembly, along with the End cap top pin, protects the inner components of the hub. Hexagon head bolts M10 secure various parts together, providing a stable connection.
  • The Wheel side reducer housing assembly is a key part of the power – transmission system. Inner gear ring (Z = 57), Sun wheel (Z = 23), and related components like the Shaft retaining ring, Gear ring holder assembly, and Sun wheel washer work in harmony to reduce speed and increase torque.
  • On the braking side, the Rear brake drum is the main friction surface for braking. Brake dust covers (left and right) protect the braking components from dust and debris. Plug DM8mm, Hexagon head bolt M8, and Spring washers are used for securing the dust covers.
  • The Brake Base Plate provides a stable platform for the braking mechanism. The ABS sensor output protection sleeve safeguards the ABS sensor, while the Limit warning device alerts the driver when the brake pads are worn.
  • Brake shoe with lining assembly, Pivot pin, Flexible Cylindrical Pins, Roller, and Return springs are all part of the braking actuation system. Brake camshafts (left and right) are responsible for applying the braking force, and the Automatic brake clearance adjusting arms (left and right) ensure consistent braking performance.
  • Camshaft bracket assemblies (left and right) support the camshafts, and various pins, bushings, and retaining rings keep the components in place. Washers, Adjusting washers, and Spring retainer for shaft are used for fine – tuning the assembly.
  • Hexagon head bolts M161.535 are used for heavy – duty fastening, and Type 1 hexagonal nut M8 is used in conjunction with the M8 bolts. Grease nipple assembly (AM8*1 D71412) allows for easy lubrication.
  • Adjustment shims and gaskets of various thicknesses, such as Adjustment shim (Thickness 0.1), Adjustment shim (Thick 0.15), Adjustment shim (Thick 0.4), Adjustment gasket (Thick 1.0), are used to achieve the precise clearance and alignment required for optimal performance. Hexagon head bolts M14*1.5 are also employed in different parts of the assembly for secure fastening.
  • In conclusion, the Sitrak MAT16ZG Rear Axle Hub And Brake system with its wide range of components is a highly engineered solution that offers superior performance, safety, and durability for heavy – duty vehicles.

Product Parameters of Sitrak MAT16ZG Rear Axle Hub And Brake(Wheelbase 1850,Abs,Wear Alarm)

AC71313408065  MAT16ZG Rear Axle Hub And Brake(Wheelbase 1850,Abs,Wear Alarm)
No. Part Number Part Name English  Quantity
1 AZ7121345011 Rear Hub Assembly (ABS) 2
2 WG9012340029 Seal Ring 4
3 AZ7121345618 Spacer assembly (ABS) 2
4 WG9981340213 Axle Seal 2
5 WG9231340318 Oil Retaining Disk 2
6 WG9231030222 Tapered roller bearing 30222 2
7 WG9981032222 Tapered roller bearings 32222 2
8 WG9003960024 Hexagon socket cone screw plug DIN906-M24X1.5-st 2
9 WG9981330024 Magnetic hexagon socket cone screw plug assembly M24x1.5 DIN158 2
10 WG7121345001 End cap assembly 2
11 WG9012340011 End cap top pin 2
12 ZQ150B1014 Hexagon head bolts M10 20
13 AZ7121345129 Wheel side reducer housing assembly 2
14 Q2541025 Cross recessed countersunk head screws 4
15 Q2541020 Cross recessed pan head screws 4
16 WG9012340121 Inner gear ring (Z=57) 2
17 WG880420014 Shaft retaining ring 2
18 WG9112340021 Gear ring holder assembly 2
19 WG7121345116 Lock washers 2
20 WG9012340005 Sun wheel (Z=23) 2
21 WG9012340076 Sun wheel washer 2
22 WG9231340223 Half shaft (left) 1
23 WG9231340224 Half shaft (right) 1
24 WG880 410097 Washers 2
25 190003933351 Elastic retaining ring for shaft 2

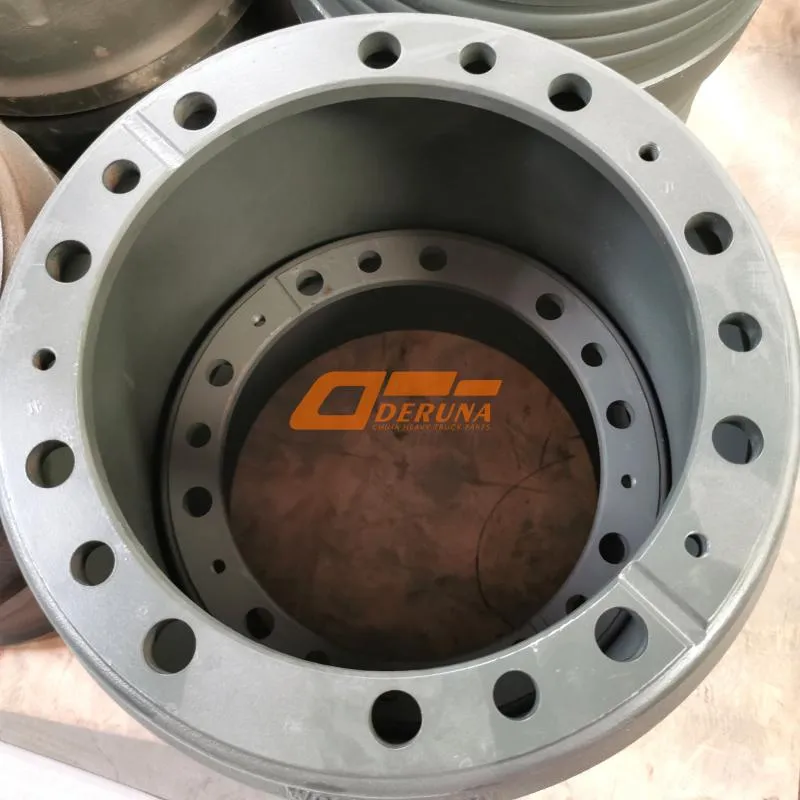

26 WG9112450001 Rear brake drum 2
27 WG7121345031 Brake dust cover (left) 2
28 WG7121345032 Brake dust cover (right) 2
29 710W96002-0230 Plug DM8mm 2
30 ZQ150B0816 Hexagon head bolt M8 12
31 Q40308 Spring washer 12
31 Q40308 Spring washer 2
32 710W96002-0267 Rubber plug 4
33 WG9231340562 Brake Base Plate 2
34 WG9112340010 ABS sensor output protection sleeve 2
35 WG9761450176 Limit warning device 2
36 AZ7121450185 Brake shoe with lining assembly 4
37 199000340064 Pivot pin 4
38 Q5280624 Flexible Cylindrical Pins 4
39 WG9000340027 Roller 4
40 WG9231452015 Return spring 2
41 WG9112340049 Return spring 4
42 WG9981340226 Brake camshaft (left) 1
43 WG9981340227 Brake camshaft (right) 1
44 WG880440010 Additional gasket 4
45 WG880340023 O-ring 2
46 WG7129450001 Automatic brake clearance adjusting arm (left) 1
47 WG7129450002 Automatic brake clearance adjusting arm (right) 1
48 WG7121345050 Camshaft bracket assembly (left) 1
49 WG7121345051 Camshaft bracket assembly (right) 1
50 WG7129340005 Pin 2
51 WG7121340007 Bushing 2
52 190003933300 Flexible retaining ring for shaft 2
53 WG880340022 Washers 2
54 WG80  320028 Adjusting washer 1
55 WG80  320029 Adjusting washers 1
56 WG80  320030 Adjusting washers 1
57 WG80  320046 Adjusting washers 1
58 190003933116 Spring retainer for shaft 2
59 ZQ151B1635TF2 Hexagon head bolts M16*1.5*35 20
60 ZQ340B08 Type 1 hexagonal nut M8 2
61 AZ9003963030 Grease nipple assembly (AM8*1 D71412) 2
62 WG880340031 Adjustment shim (Thickness 0.1) 1
63 WG880340032 Adjustment shim (Thick 0.15) 1
64 WG880340033 Adjustment shim (Thick 0.4) 1
65 WG880340034 Adjustment gasket (Thick 1.0) 1
66 WG3809470031 Adjustment gasket 1
67 WG3809470032 Adjustment Shims 1
68 WG3809470033 Adjustment shims 1
69 ZQ151B1490 Hexagon head bolts M14*1.5 2
70 ZQ151B1440 Hexagon head bolts M14*1.5 2

Related Sitrak Spare Parts

Didn'T Find Your Truck Model?

If you have any problems or questions, please get in touch with us, we will
provide you with the best service.

Contact Us
]]> https://deruna.com/sitrak-mat16zg-rear-axle-hub-and-brake-2.html/feed 0 Sitrak MAT16ZG Rear Axle Housing Assembly (Wheelbase 1850) https://deruna.com/sitrak-mat16zg-rear-axle-housing-assembly.html https://deruna.com/sitrak-mat16zg-rear-axle-housing-assembly.html#respond Mon, 31 Mar 2025 05:01:23 +0000 https://deruna.com/?p=61342

Sitrak MAT16ZG Rear Axle Housing Assembly (Wheelbase 1850)

Sitrak MAT16ZG Rear Axle Housing Assembly (Wheelbase 1850)
Sitrak MAT16ZG Rear Axle Housing Assembly (Wheelbase 1850)
Download Catalog
Get Quotation

What is the Sitrak MAT16ZG Rear Axle Housing Assembly (Wheelbase 1850)

  • The Sitrak MAT16ZG Rear Axle Housing Assembly with a wheelbase of 1850 is a vital part of the truck’s undercarriage system, engineered to ensure optimal performance and durability. This assembly is a marvel of modern automotive engineering, integrating multiple essential elements to meet the demanding requirements of heavy – duty transportation.
  • One of the notable components within this assembly is the U – frame. The U – frame plays a crucial role in providing structural support and stability to the rear axle housing. Its unique shape is designed to distribute the load evenly across the axle, reducing stress concentrations and enhancing the overall strength of the assembly. This helps in withstanding the significant forces generated during the truck’s operation, such as acceleration, braking, and cornering.
  • To securely fasten different parts of the assembly, hexagon head bolts M161.535 are used. These bolts are specifically selected for their high – strength properties and precise dimensions. The M161.535 specification ensures a proper fit and a reliable connection between various components of the rear axle housing assembly. The hexagon head design allows for easy installation and removal using standard tools, facilitating maintenance and repair work.
  • The Sitrak MAT16ZG Rear Axle Housing Assembly (Wheelbase 1850) is a carefully crafted combination of the U – frame and hexagon head bolts M161.535, along with other components not mentioned here. This synergy of parts results in a rear axle housing assembly that can handle the rigors of long – haul and heavy – load transportation, providing truck owners with a reliable and efficient solution for their business needs. Whether it’s on the highway or in challenging off – road conditions, this assembly is built to deliver consistent performance and ensure the safety and functionality of the vehicle.
  • If you’re in the market for a high – quality rear axle housing assembly for your Sitrak truck, the MAT16ZG with a 1850 wheelbase, featuring the U – frame and hexagon head bolts M161.535, is an excellent choice that won’t disappoint.

Product Parameters of Sitrak MAT16ZG Rear Axle Housing Assembly (Wheelbase 1850)

AZ7121336065  MAT16ZG Rear Axle Housing Assembly (Wheelbase 1850)
No. Part Number Part Name English  Quantity
5 WG9231330921 U-frame 2
6 ZQ151B1635TF2 Hexagon head bolts M16*1.5*35 4


Related Sitrak Spare Parts

Didn'T Find Your Truck Model?

If you have any problems or questions, please get in touch with us, we will
provide you with the best service.

Contact Us
]]> https://deruna.com/sitrak-mat16zg-rear-axle-housing-assembly.html/feed 0 Sitrak MAT16ZG Rear Axle Housing (Wheelbase 1850, Leaf Spring Seat Center Distance 1010) https://deruna.com/sitrak-mat16zg-rear-axle-housing.html https://deruna.com/sitrak-mat16zg-rear-axle-housing.html#respond Mon, 31 Mar 2025 04:56:58 +0000 https://deruna.com/?p=61336

Sitrak MAT16ZG Rear Axle Housing (Wheelbase 1850, Leaf Spring Seat Center Distance 1010)

Sitrak MAT16ZG Rear Axle Housing (Wheelbase 1850, Leaf Spring Seat Center Distance 1010)
Sitrak MAT16ZG Rear Axle Housing (Wheelbase 1850, Leaf Spring Seat Center Distance 1010)
Download Catalog
Get Quotation

What is the Sitrak MAT16ZG Rear Axle Housing (Wheelbase 1850, Leaf Spring Seat Center Distance 1010)

  • The Sitrak MAT16ZG Rear Axle Housing with a wheelbase of 1850 and a leaf spring seat center distance of 1010 is a critical component engineered for high – performance trucks. This rear axle housing is a complex assembly that integrates multiple essential parts to ensure smooth and reliable operation.
  • The MAT16ZG rear axle housing assembly (wheelbase 1850) forms the core of this setup. It is meticulously designed to provide a sturdy and stable structure that can withstand the heavy loads and dynamic forces experienced during truck operation.
  • The garden pin is an important element within the assembly. It serves to connect and secure different parts, ensuring proper alignment and functionality. The hexagon socket cone screw plug DIN906 – M24X1.5 – st and the magnetic hexagon socket taper screw plug assembly M24x1.5 DIN158 are used for sealing and preventing the leakage of lubricants. The magnetic property of the latter helps in attracting metal particles, thus protecting the internal components from damage.
  • The ventilation plug is crucial for maintaining the correct air pressure inside the rear axle housing, preventing over – pressurization and potential damage. The rubber hose is responsible for fluid transfer and connection, ensuring that all systems within the rear axle operate effectively.
  • Hexagonal flange face bolts M141.5 and hexagonal flange bolts M141.5 are used for securely fastening various components. The rear axle thrust rod seat provides support and stability to the thrust rods, which are essential for maintaining the proper position of the rear axle. Hexagon head bolts M201.545 are employed in key connections, ensuring a firm and reliable attachment.
  • The rear axle air chamber bracket is designed to hold the air chamber in place, which is a vital part of the braking system. Hexagonal flange face bolts with teeth M16*1.5 offer enhanced grip and prevent loosening due to vibrations.
  • Lock nuts, including the lock nut (right), lock nut (left), Lock Nut(Right), and lock nut(left), play a crucial role in preventing the bolts from loosening under the influence of vibrations and dynamic forces. The magnetic block is used to attract and collect metal debris, protecting the internal components from wear and tear.
  • The nameplate provides important information about the rear axle housing, such as specifications and part numbers. The rivet for nameplate – Rivet GB827 – 86 – 2.5*6 is used to securely attach the nameplate to the housing.
  • In summary, the Sitrak MAT16ZG Rear Axle Housing (Wheelbase 1850, Leaf Spring Seat Center Distance 1010) is a well – engineered and comprehensive assembly that combines various parts to deliver outstanding performance, durability, and safety for Sitrak trucks.

Product Parameters of Sitrak MAT16ZG Rear Axle Housing (Wheelbase 1850, Leaf Spring Seat Center Distance 1010)

AC71313305166  MAT16ZG Rear Axle Housing (Wheelbase 1850, Leaf Spring Seat Center Distance 1010)
No. Part Number Part Name English  Quantity
1 AZ7121336065 MAT16ZG rear axle housing assembly(wheelbase 1850) 1
2 Q5211016 Garden pin 1
3 WG9003960024 Hexagon socket cone screw plug DIN906-M24X1.5-st 1
4 WG9981330024 Magnetic hexagon socket taper screw plug assembly M24x1.5 DIN158 1
5 WG9231330105 Ventilation plug 1
6 WG9231330106 Rubber hose 1
7 ZQ1851435T32F2 Hexagonal flange face bolts M14*1.5 16
8 ZQ1851480T32F2 Hexagonal flange bolts M14*1.5 2
9 WG7129340743 Rear axle thrust rod seat 1
10 ZQ151B2045TF2 Hexagon head bolts M20*1.5*45 6
11 712W50710-0109 Rear axle air chamber bracket 1
12 ZQ1811640TF6 Hexagonal flange face bolts with teeth M16*1.5 4
13 WG9231340014 Lock nut (right) 1
14 WG9231340015 Lock nut (left) 1
15 WG9231340017 Lock Nut(Right) 1
16 WG9231340018 Lock nut(left) 1
17 WG2297K6771 Magnetic block 2
18 WG2297Y4835 Nameplate 1
19 190003904529 Rivet for nameplate–Rivet GB827-86-2.5*6 2

Related Sitrak Spare Parts

Didn'T Find Your Truck Model?

If you have any problems or questions, please get in touch with us, we will
provide you with the best service.

Contact Us
]]> https://deruna.com/sitrak-mat16zg-rear-axle-housing.html/feed 0 Sitrak Truck Differential Housing (Jinan Xiujian) https://deruna.com/sitrak-truck-differential-housing-jinan-xiujian.html https://deruna.com/sitrak-truck-differential-housing-jinan-xiujian.html#respond Mon, 31 Mar 2025 04:51:26 +0000 https://deruna.com/?p=61330

Sitrak Truck Differential Housing (Jinan Xiujian)

Sitrak Truck Differential Housing (Jinan Xiujian)
Sitrak Truck Differential Housing (Jinan Xiujian)
Download Catalog
Get Quotation

What is the Sitrak Truck Differential Housing (Jinan Xiujian)

  • The Sitrak Truck Differential Housing from Jinan Xiujian stands as a testament to precision engineering and high – end manufacturing. This crucial component is essential for the proper functioning of Sitrak trucks, ensuring smooth power transmission and excellent handling on various terrains.
  • The differential housing is divided into two key parts: the Differential housing (left) (Jinan Xiujian) and the Differential housing (right)(Jinan Xiujian). Each part is meticulously crafted to meet the exacting standards of Sitrak trucks, guaranteeing a perfect fit and seamless operation.
  • The Differential housing (left) (Jinan Xiujian) is designed with advanced technology and high – quality materials. It provides a secure and stable enclosure for the differential’s left – side components. Its robust construction can withstand the intense forces and vibrations generated during the truck’s operation, protecting the internal gears, bearings, and other parts from damage. This not only enhances the lifespan of the differential but also contributes to the overall reliability of the truck.
  • The Differential housing (right)(Jinan Xiujian) plays an equally important role. It is precisely engineered to complement the left – hand housing, working in tandem to create a unified and efficient differential system. The right – hand housing is also built to be highly durable, capable of withstanding the heavy loads and stress that Sitrak trucks often encounter.
  • Together, the Differential housing (left) (Jinan Xiujian) and the Differential housing (right)(Jinan Xiujian) ensure that the differential can distribute power evenly between the wheels. This is vital for maintaining traction, improving fuel efficiency, and providing a comfortable driving experience. Whether the truck is on a long – haul journey or engaged in heavy – duty work, the Sitrak Truck Differential Housing (Jinan Xiujian) offers the performance and reliability that truck owners demand.
  • In conclusion, Jinan Xiujian’s Sitrak Truck Differential Housing, with its outstanding Differential housing (left) and Differential housing (right), is an ideal choice for Sitrak truck users seeking top – quality components for their vehicles.

Product Parameters of Sitrak Truck Differential Housing (Jinan Xiujian)

WG7121325274/2  Truck Differential Housing (Jinan Xiujian)
No. Part Number Part Name English  Quantity
1 WG7121325168/2 Differential housing (left) (Jinan Xiujian) 1
2 WG9231320164/3 Differential housing (right)(Jinan Xiujian) 1
AZ7121320001 Adjustment shim set
No. Part Number Part Name English  Quantity
1 WG880  320002 Adjustment shims 1
2 WG880  320003 Adjustment shims 1
3 WG880  320004 Adjustment shims 1
4 WG880  320005 Adjustment Shims 1
5 WG880  320006 Adjustment Shims 1
6 WG880  320007 Adjusting Shims 1
7 WG880  320008 Adjusting Shims 1
8 WG880  320009 Adjusting Shims 1
9 WG880  320010 Adjusting Shims 1
10 WG880  320011 Adjusting Shims 1
11 WG880  320012 Adjusting Shims 1
12 WG880  320013 Adjusting Shims 1
13 WG880  320014 Adjusting Shims 1
14 WG880  320015 Adjustment Shims 1


Related Sitrak Spare Parts

Didn'T Find Your Truck Model?

If you have any problems or questions, please get in touch with us, we will
provide you with the best service.

Contact Us
]]> https://deruna.com/sitrak-truck-differential-housing-jinan-xiujian.html/feed 0 Sitrak Truck Differential Housing (Shandong Runtong) https://deruna.com/sitrak-truck-differential-housing-shandong-runtong.html https://deruna.com/sitrak-truck-differential-housing-shandong-runtong.html#respond Sun, 30 Mar 2025 04:53:15 +0000 https://deruna.com/?p=61278

Sitrak Truck Differential Housing (Shandong Runtong)

Sitrak Truck Differential Housing (Shandong Runtong)
Sitrak Truck Differential Housing (Shandong Runtong)
Download Catalog
Get Quotation

What is the Sitrak Truck Differential Housing (Shandong Runtong)

  • The Sitrak Truck Differential Housing provided by Shandong Runtong is a key component that plays a vital role in the smooth operation of Sitrak trucks. This differential housing is a product of advanced manufacturing techniques and high – quality materials, designed to meet the rigorous demands of heavy – duty truck applications.
  • The differential housing consists of two crucial parts: the Differential case (left)(Shandong Runtong) and the Differential case (right) (Shandong Runtong). These two cases are precisely engineered to fit together seamlessly, creating a robust and reliable enclosure for the differential components.
  • The Differential case (left)(Shandong Runtong) is crafted with meticulous attention to detail. Its design is optimized to provide maximum support and protection to the internal gears and bearings on the left side of the differential. The high – strength material used in its construction ensures that it can withstand the high – torque forces generated during the truck’s operation, preventing premature wear and damage.
  • Similarly, the Differential case (right) (Shandong Runtong) is equally important. It complements the left – hand case, working in harmony to house and safeguard the differential’s right – hand components. The right – hand case is also built to exacting standards, with features that enhance its durability and performance.
  • Together, the Differential case (left)(Shandong Runtong) and the Differential case (right) (Shandong Runtong) form a unified structure that allows the differential to distribute power evenly between the wheels. This is essential for ensuring stable handling, efficient traction, and smooth cornering of the Sitrak truck. Whether the truck is carrying a heavy load on a straight highway or navigating through challenging terrain, the Sitrak Truck Differential Housing (Shandong Runtong) provides the reliability and performance needed for a safe and comfortable journey.
  • In summary, Shandong Runtong’s Sitrak Truck Differential Housing, with its well – designed Differential case (left) and Differential case (right), is a top – notch solution for Sitrak truck owners who value quality, durability, and optimal differential performance.

Product Parameters of Sitrak Truck Differential Housing (Shandong Runtong)

WG7121325274/1  Differential Housing (Shandong Runtong)
No. Part Number Part Name English  Quantity
1 WG7121325168/1 Differential case (left)(Shandong Runtong) 1
2 WG9231320164/5 Differential case (right) (Shandong Runtong) 1

Related Sitrak Spare Parts

Didn'T Find Your Truck Model?

If you have any problems or questions, please get in touch with us, we will
provide you with the best service.

Contact Us
]]> https://deruna.com/sitrak-truck-differential-housing-shandong-runtong.html/feed 0 Sitrak Truck Main Reducer Housing Assembly (Rear Axle) (Wuqiao Lean) https://deruna.com/truck-main-reducer-housing-assembly.html https://deruna.com/truck-main-reducer-housing-assembly.html#respond Sun, 30 Mar 2025 04:48:53 +0000 https://deruna.com/?p=61272

Sitrak Truck Main Reducer Housing Assembly (Rear Axle) (Wuqiao Lean)

Sitrak Truck Main Reducer Housing Assembly (Rear Axle) (Wuqiao Lean)
Sitrak Truck Main Reducer Housing Assembly (Rear Axle) (Wuqiao Lean)
Download Catalog
Get Quotation

What is the Sitrak Truck Main Reducer Housing Assembly (Rear Axle) (Wuqiao Lean)

  • The Sitrak Truck Main Reducer Housing Assembly (Rear Axle) from Wuqiao Lean is an indispensable part engineered to elevate the operational efficiency and reliability of Sitrak trucks. This assembly is a masterpiece of precision engineering, integrating several essential components that work in unison to deliver exceptional performance.
  • At the heart of this assembly lies the Main Reducer Housing (Rear Axle) (Wuqiao Lean). Crafted with meticulous attention to detail, it serves as the protective enclosure for the intricate internal mechanisms. Its high – strength construction is designed to endure the harsh stresses and heavy loads that trucks face on the road, safeguarding the internal parts from potential damage and environmental factors.
  • The Differential bearing cover is a critical element of this assembly. It provides a protective shield for the differential bearings, keeping out dirt, dust, and moisture. By maintaining a clean and lubricated environment, it allows the bearings to rotate freely, reducing friction and minimizing wear and tear. This significantly extends the lifespan of the differential system and ensures smooth power transmission.
  • Cylindrical pins are used to achieve accurate alignment of different components within the assembly. These pins play a pivotal role in maintaining the precise positioning of parts, which is crucial for the proper functioning of the main reducer housing. They contribute to the overall stability and performance of the assembly, ensuring that all parts work together seamlessly.
  • Double studs are employed to securely fasten various components. Their robust design provides a strong and reliable connection, capable of withstanding the intense vibrations and forces generated during truck operation. This ensures that the parts remain firmly in place, enhancing the structural integrity of the assembly.
  • Lastly, the Self – locking nut is a safety – conscious addition. It prevents the loosening of the fasteners over time, even under the most demanding conditions. This extra layer of security reduces the risk of component failure and enhances the overall reliability of the Sitrak Truck Main Reducer Housing Assembly (Rear Axle) (Wuqiao Lean).
  • In conclusion, the Sitrak Truck Main Reducer Housing Assembly (Rear Axle) (Wuqiao Lean), with its Main Reducer Housing, Differential bearing cover, Cylindrical pins, Double studs, and Self – locking nut, offers a comprehensive solution for optimal truck performance, durability, and safety.

Product Parameters of Sitrak Truck Main Reducer Housing Assembly (Rear Axle) (Wuqiao Lean)

WG7121325098/2  Main Reducer Housing Assembly (Rear Axle) (Wuqiao Lean)
No. Part Number Part Name English  Quantity
1 WG7121325097/2 Main Reducer Housing (Rear Axle) (Wuqiao Lean) 1
2 WG9012320002 Differential bearing cover 2
3 Q5210820 Cylindrical pin 4
4 Q12316120 Double studs 4
5 190003888459 Self-locking nut 4
WG7121325274 differential case
No. Part Number Part Name English  Quantity
1 WG7121325274/1 Differential Housing(Shandong Runtong) 1
2 WG7121325274/2 Differential case (Jinan Xiujian) 1


Related Sitrak Spare Parts

Didn'T Find Your Truck Model?

If you have any problems or questions, please get in touch with us, we will
provide you with the best service.

Contact Us
]]> https://deruna.com/truck-main-reducer-housing-assembly.html/feed 0
