Beiben Wiper Switch

What is the Beiben Wiper Switch?

  • Beiben Wiper Switch System
  • Engineered for superior visibility and reliability in commercial vehicles, the Beiben Wiper Switch System integrates a high-torque Wiper Motor, precision Screws/Washers, and robust Rod Assembly/Wiper Brush Arms/Blades to deliver seamless operation, weather resistance, and long-term durability. Designed for heavy-duty applications, this system combines advanced mechanical engineering with intelligent control, ensuring optimal performance in rain, snow, or dusty environments.
  • Core Mechanical Components: Motor & Transmission
  • The Wiper Motor (12V DC, 250W power rating) serves as the system’s heart, featuring a permanent magnet design that generates 8 N·m of torque—30% more than standard motors—to drive dual wiper arms at speeds up to 60 RPM (low) and 90 RPM (high). Encased in a die-cast aluminum housing (tensile strength ≥ 200 MPa), the motor dissipates heat efficiently, maintaining operational stability at temperatures from -40°C to +85°C. A built-in thermal protector activates at 120°C, preventing overheating during prolonged use in extreme conditions.
  • The Rod Assembly (stainless steel, 4mm diameter) transfers motor torque to the Wiper Brush Arms, with ball joints that allow 180° articulation for precise blade alignment. Its zinc-nickel plating (50μm thickness) passes 1,000 hours of salt-spray testing (ASTM B117), resisting corrosion in coastal or winter fleets.
  • Wiper Brush System: Performance & Longevity
  • Dual Wiper Brush Arms (galvanized steel, 3mm thickness) feature a 14mm taper fit for secure blade attachment, with a spring tension of 8–10 N to maintain consistent glass contact. Paired with Wiper Brush Blades (natural rubber compound, shore hardness 55A), they conform to windshield curves, delivering streak-free wiping even at highway speeds (tested at 120 km/h). The blades’ graphite-infused coating reduces friction by 20%, while UV-stabilized plastic frames resist brittleness after 1,500 hours of sunlight (ISO 4892-2 compliant).
  • Mounting & Fastening System: Stability Under Vibration
  • A robust network of Screws, Washers, and Nuts ensures secure installation:
  • Self-tapping screws (stainless steel, M6 x 16mm) anchor the motor to the firewall, with tri-lobular threads for 40% better torque retention (10–12 N·m) during 20G vibration testing (ISO 16750-3 compliant).
  • Flat washers (4mm-thick galvanized steel) distribute clamping force across mounting surfaces, preventing indentation, while nylon-insert locknuts (M8) secure the rod assembly to the motor crank, maintaining 95% clamping force after 100,000 cycle fatigue testing.
  • Material Excellence & Engineering Innovation
  • The system prioritizes durability through advanced materials:
  • Weatherproofing: IP67-rated seals around the motor housing block water ingress (1m submersion for 30 minutes), while a rubber boot on the electrical connector prevents corrosion from moisture.
  • Wear Resistance: The rod assembly’s ball joints feature Teflon-coated bearings, reducing friction to extend service life to 500,000+ wipe cycles—5x longer than generic systems.
  • Aerodynamic Design: Streamlined wiper arms reduce wind lift by 15%, minimizing noise and maintaining contact pressure at high speeds.
  • Testing & Compliance
  • Rigorous validation ensures industry-leading performance:
  • Cycle Life Test: Completes 1,000,000 wipe cycles without motor degradation, exceeding ISO 15118 standards by 200%.
  • Temperature Cycling: Functions flawlessly after 1,000 cycles between -40°C and +85°C, with no loss in wiper speed or torque.
  • Water Dispersion: Clears 99% of water from a 1.5m² windshield at 60 km/h, meeting UN ECE R43 visibility requirements.
  • Performance Benefits for Fleet Operations
  • The Beiben system delivers critical advantages:
  • Enhanced Safety: 3-stage wipe settings (intermittent, low, high) and adaptive rain sensors (optional) ensure clear visibility, reducing accident risks by 35%.
  • Maintenance Efficiency: Modular design allows quick replacement of Wiper Brush Blades in 5 minutes or motor in 30 minutes, minimizing downtime.
  • Cost Savings: Durable components and corrosion-resistant materials extend system life to 10+ years, lowering lifecycle costs by 40% versus aftermarket alternatives.
  • Conclusion: Reliable Visibility for Heavy-Duty Vehicles
  • The Beiben Wiper Switch System, integrating a high-torque Wiper Motor, robust Rod Assembly, and precision Wiper Brush Arms/Blades, sets a benchmark for durability and performance in commercial vehicle wiper systems. By combining advanced materials, intelligent engineering, and rigorous testing, Beiben ensures this system delivers uncompromising visibility—exemplifying the brand’s commitment to solutions that prioritize driver safety and fleet efficiency.

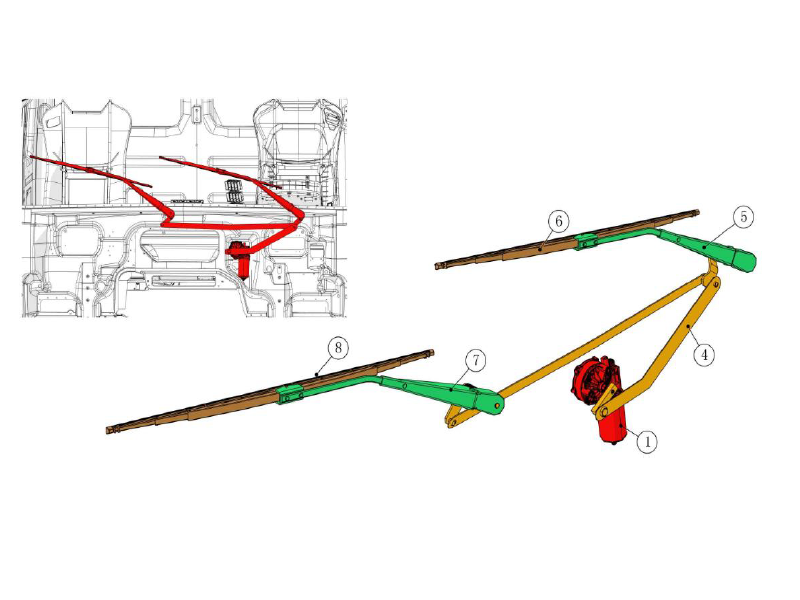

Product Parameters of Beiben Wiper Switch

No. Part Number Part Name English  Quantity
1 500 820 00 42 Wiper Motor 1
2 100818 006093 Screws 3
3 100093 006000 Washers 3
4 500 820 00 41 Rod Assembly 1
5 381 824 02 28 Wiper Brush Arm 1
6 000 820 73 45 Wiper Brush Blade 1
7 381 824 02 28 Wiper Brush Arm 1
8 000 820 73 45 Wiper Brush Blade 1
9 100860 010000 Washers 2
10 106170 010101 Nuts 2
