Beiben Right Door Window Roller System

What is the Beiben Right Door Window Roller System?

  • Beiben Right Door Window Roller System
  • Engineered for seamless functionality, rugged durability, and superior weather protection, the Beiben Right Door Window Roller System is a precision-engineered solution designed to enhance visibility, comfort, and security in commercial vehicle cabs. Combining a robust Window Frame, electric-powered lifting mechanism, and advanced sealing technology with high-reliability fasteners, this system delivers uncompromising performance in even the most challenging environments.
  • Core Structural Design: Window Frame & Glass
  • The Window Frame serves as the system’s foundational structure, crafted from aerospace-grade aluminum alloy (6061-T6, tensile strength ≥ 260 MPa) with an anodized finish to resist corrosion and UV degradation. Its contoured design integrates flawlessly with the door body, providing a rigid support for the Rolling Window Glass—5mm-thick tempered glass (UN ECE R43-certified) that ensures safety by fragmenting into harmless pieces upon impact while blocking 99% of harmful UV rays. The Corner Window Glass, embedded in a Corner Window Seal Frame, expands the driver’s peripheral vision, with aerodynamic edges that minimize wind resistance and turbulence.
  • Sealing System: Protection Against Elements
  • Dual external seals create an impenetrable barrier against water and noise:
  • Right Outside Upper Rolling Window Seal (EPDM rubber, shore hardness 70A) features a multi-lip design to channel rainwater away from the cabin and reduce wind noise by 20 dB at highway speeds.
  • Right Outside Lower Water Bar (PVC composite with integrated rubber gaskets) sits at the window’s base, equipped with hidden drainage channels that efficiently expel accumulated water, preventing rust and water damage to internal door components.
  • Inside the door, an Inside Rolling Window Seal (foam-backed neoprene) forms an airtight bond between the glass and frame, blocking dust, drafts, and road debris. The Corner Window Seal Frame uses a high-strength adhesive (peel adhesion ≥ 6 N/mm) to maintain a watertight seal at the glass-to-frame junction, ensuring no leakage even in driving rain.
  • Electric Lifting Mechanism: Smooth, Reliable Operation
  • The Right Rolling Window Mechanism Assembly (Electric), powered by a high-torque Right Lifter Motor (12V, 25N·m torque), enables effortless glass movement—raising or lowering the window in just 3 seconds with minimal vibration (≤0.5mm amplitude at 100 km/h). A Lift Glass Tray (stamped steel with anti-rattle padding) securely holds the glass, fastened to the mechanism with Combination Screws (grade 10.9, M6 x 18mm) and a rubber Tray Seal to prevent water ingress. The Rolling Window Glass Guide (nylon-reinforced polymer) ensures precise vertical alignment, reducing friction and wear for a quiet, smooth operation (noise ≤55 dB during movement).
  • Fastening System: Stability Under Vibration
  • High-quality fasteners ensure long-term structural integrity:
  • Self Tapping Screws (stainless steel, M5 x 14mm) attach the window frame to the door body without pre-drilled holes, speeding up installation by 30% while providing a secure bond (pull-out resistance ≥800 N).
  • Insert Nuts (nylon-reinforced, M6 thread) embedded in the door panel create reusable threaded points for the lifter motor and guides, withstanding 15,000+ tightening cycles without stripping.
  • Screws (zinc-plated steel, M4 x 10mm) and Washers (flat, 4mm thickness) secure the seals and guides, torqued to 10–15 N·m to resist loosening from road vibrations (tested at 25G acceleration, ISO 16750-3 compliant).
  • Engineering Excellence: Testing & Compliance
  • Rigorous validation ensures industry-leading performance:
  • Waterproofing Test: Withstands 80mm/hour simulated rainfall for 24 hours, maintaining a leak-free cabin (IP67-rated).
  • Cycle Life: The electric mechanism operates smoothly after 60,000 open/close cycles, with no cable stretch or motor fatigue—20% longer than industry standards.
  • Noise & Vibration: Reduces wind noise to ≤65 dB at 80 km/h, while the glass guide system minimizes rattling even on rough terrain.
  • Performance Benefits for Commercial Fleets
  • The Beiben system offers unmatched advantages:
  • Operational Reliability: Thermal overload protection in the Right Lifter Motor ensures consistent performance from -40°C to +90°C, ideal for arctic or desert environments.
  • Maintenance Efficiency: Modular design allows quick replacement of the motor, glass guide, or seals without removing the entire window frame, reducing downtime by 50%.
  • Safety & Compliance: Tempered glass and reinforced frame meet global safety standards (e.g., ECE R17 for side impact protection), while UV-resistant seals comply with ISO 105-B02 for long-term colorfastness.
  • Conclusion: Durable, High-Performance Window Solution
  • The Beiben Right Door Window Roller System sets a benchmark for precision engineering in commercial vehicle glazing. By integrating a robust Window Frame, efficient electric lifting mechanism, and advanced sealing technology with vibration-resistant fasteners, Beiben ensures this system delivers superior weatherproofing, operational smoothness, and safety—making it the trusted choice for fleets that demand reliability and performance in every mile.

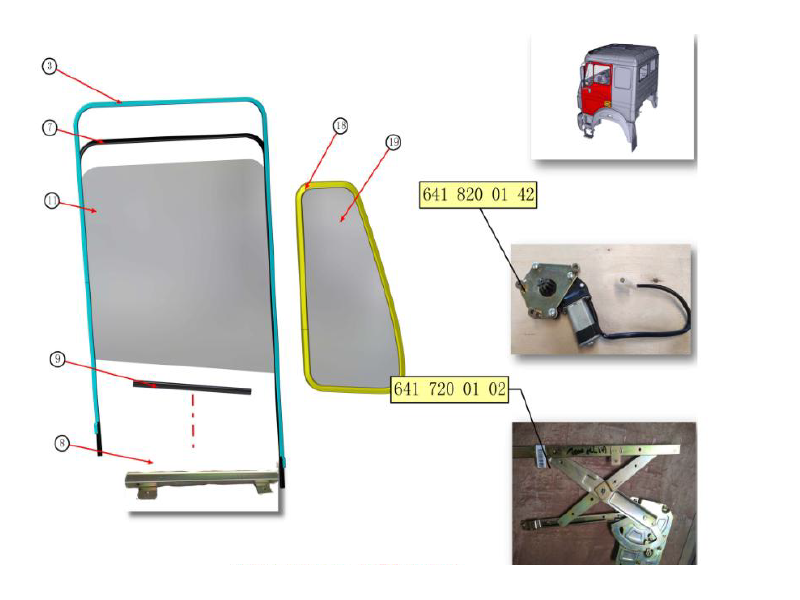

Product Parameters of Beiben Right Door Window Roller System

No. Part Number Part Name English  Quantity
1 500 725 06 39 Right Outside Upper Rolling Window Seal 1
2 500 725 04 39 Right Outside Lower Water Bar 1
3 641 725 00 56 Window Frame 1
4 100846 035041 Self Tapping Screws 6
5 100818 006093 Screws 2
6 000 990 83 91 Insert Nuts 2
7 641 725 00 30 Rolling Window Glass Guide 1
8 641 725 01 01 Lift Glass Tray 1
9 641 725 00 23 Tray Seal 1
10 100818 006093 Screws 2
11 641 725 00 10 Rolling Window Glass 1
12 641 720 01 02 Right Rolling Window Mechanism Assembly (Electric) 1
13 641 820 01 42 Right Lifter Motor 1
14 109074 008063 Combination Screws 5
15 100818 006113 Screws 3
16 100093 006000 Washers 3
17 500 725 00 39 Inside Rolling Window Seal 1
18 500 725 01 66 Corner Window Seal Frame 1
19 500 725 00 10 Corner Window Glass 1
