Beiben Cab Connection Module

Beiben Cab Connection Module
Beiben Cab Connection Module
Download Catalog
Get Quotation

What is the Beiben Cab Connection Module？

  • The Beiben Cab Connection Module is a sophisticated assembly engineered to integrate the cab of heavy-duty commercial vehicles with critical mechanical, hydraulic, and environmental control systems. Designed to withstand vibrations, temperature fluctuations, and harsh road conditions, this module combines precision-engineered Rubber gaskets, Formed hoses, and robust fastening components to ensure airtight seals, reliable fluid transfer, and structural integrity.​
  • Core Components and Sealing Design​
  • Central to the module’s reliability are Rubber gaskets and Rubber washers, strategically placed at junction points between the cab and vehicle frame to eliminate water, dust, and noise ingress. These gaskets—crafted from ethylene-propylene-diene monomer (EPDM) or neoprene—offer exceptional resistance to ozone, UV radiation, and temperature extremes (-40°C to +120°C), maintaining elasticity and sealing performance over extended use. Gaskets also line interfaces between metal components, such as compensating steel tubes and formed hoses, preventing leaks in high-pressure hydraulic or coolant circuits.​
  • Fluid Transfer and Structural Support​
  • The module features Formed hoses and Compensating steel tubes designed to navigate the cab’s dynamic movement relative to the frame. Formed hoses, custom-molded from reinforced rubber with spiral wire braiding, transport cooling water, air, or hydraulic fluids, while Compensating steel tubes—stainless steel pipes with flexible joints—absorb mechanical stress from cab tilting or vibrations. These components are secured with Strong clamps and standard Clamps, providing adjustable clamping force (15–30 N·m) to maintain leak-free connections even under high-vibration conditions.​
  • Fastening System and Protection​
  • A robust fastening system, including Bolts, Screws, Washers, and Nuts, ensures the cab remains rigidly attached to the frame. High-tensile Bolts (grade 10.9) anchor major structural points, with Washers distributing load to prevent surface damage, while Screws secure smaller components like Edge guards. These guards, made from impact-resistant PVC, shield Formed hoses and Ventilation steel pipes from sharp edges in the cab framework, reducing abrasion and extending component life.​
  • Ventilation and Cooling Integration​
  • Ventilation steel pipes, coated with anti-corrosive zinc, establish a reliable airflow pathway for cab climate control, connected to Formed hoses that route air to HVAC systems. Meanwhile, Cooling water hoses—reinforced with aramid fibers—circulate coolant between the engine and cab-mounted heaters or air conditioners, secured with Clamps rated for high-pressure applications (up to 200 PSI). This integration ensures consistent cabin comfort while protecting vital systems from thermal stress.​
  • Engineering Excellence for Durability​
  • Every component undergoes rigorous testing: Rubber gaskets are evaluated for compression set after 1,000 hours at 150°C, Compensating steel tubes are pressure-tested to 500 PSI, and Strong clamps are cycled 50,000 times under vibration to simulate decade-long use. The modular design allows for easy replacement of individual hoses, gaskets, or guards, minimizing downtime during maintenance. Metal parts receive electrophoretic coatings to resist rust, while rubber components are formulated for low permeability and high tear strength.​
  • Performance and Operational Benefits​
  • The Beiben Cab Connection Module enhances driver safety and comfort by creating a sealed, quiet cabin environment while ensuring reliable fluid and air transfer for critical systems. The combination of Rubber gaskets, Compensating steel tubes, and Strong clamps reduces the risk of leaks, abrasions, or loose connections—common causes of downtime in heavy-duty fleets. The module’s vibration-dampening design also minimizes mechanical stress on cab mounts, extending the service life of both the cab and connected components.​
  • Conclusion: Reliable Cab Integration for Heavy-Duty Vehicles​
  • The Beiben Cab Connection Module sets a standard for durability, precision, and sealing performance in commercial vehicle cab systems. By integrating high-quality Rubber gaskets, flexible Formed hoses, and robust fastening technology, Beiben ensures this module delivers consistent performance, even in the most challenging environments. It exemplifies the brand’s commitment to engineering excellence, providing a trusted solution for fleets that demand reliable cab functionality and long-term operational efficiency.​

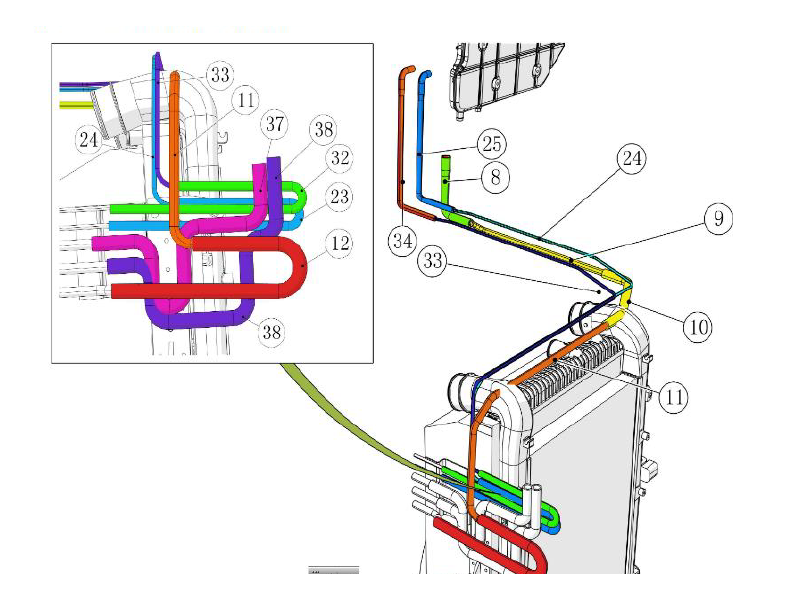

Product Parameters of Beiben Cab Connection Module

No. Part Number Part Name English  Quantity
1 520 504 00 13 Rubber gaskets 1
2 520 504 01 13 Rubber gaskets 2
3 520 504 02 13 Rubber gaskets 2
4 506 504 05 12 Rubber washers 5
5 100096 008000 Gaskets 5
6 105782 008103 Bolts 1
7 105783 008105 Bolts 4
8 520 506 08 35 Formed hoses 1
9 520 506 06 60 Compensating steel tubes 1
10 520 506 07 35 Formed hoses 1
11 520 506 02 60 Compensating steel tubes 1
12 520 506 13 35 Formed hoses 1
13 881 990 07 33 Clamps 5
14 506 990 00 01 Strong clamps 1
15 520 506 04 35 Formed hoses 1
16 881 990 07 33 Clamps 2
17 100818 005030 Screws 4
18 100097 006100 Washers 4
19 360 995 06 01 Clamps 4
20 106170 005003 Nuts 4
21 112 694 51 85 Edge guards 1
22 001 997 83 90 Clamps 2
23 520 505 08 35 Formed hoses 1
24 520 505 11 60 Ventilation steel pipes 1
25 520 505 03 35 Formed hoses 1
26 520 990 00 33 Clamps 2
27 520 990 00 33 Clamps 2
28 360 995 02 01 Clamps 4
29 100818 005030 Screws 4
30 100097 006100 Washers 4
31 106170 005003 Nuts 4
32 520 505 08 35 Formed hoses 1
33 520 505 10 60 Ventilation steel pipes 1
34 520 505 04 35 Formed hoses 1
35 520 990 00 33 Clamps 4
36 360 995 02 01 Clamps 4
37 257 506 00 35 Cooling water hoses 1
38 257 506 01 35 Cooling water hoses 1
39 881 990 07 33 Clamps 4
