XCMG Get-Off Hydraulic Pipeline Layout

What is the XCMG Get-Off Hydraulic Pipeline Layout

The XCMG Get-Off Hydraulic Pipeline Layout represents a meticulously engineered hydraulic circuit design that ensures efficient power transmission and reliable fluid management throughout the equipment’s hydraulic system. This comprehensive layout incorporates a sophisticated CENTRAL ROTARY CONNECTOR that enables seamless hydraulic transfer between rotating and stationary components, working in coordination with multiple CONNECTOR elements that create secure interface points throughout the circuit.
The structural integrity of the XCMG Get-Off Hydraulic Pipeline Layout is maintained through high-strength fasteners including BOLT M16×45 and BOLT M14×50 components, all utilizing THICKENED FLAT WASHER elements for optimal load distribution. The system features multiple FLANGE ASSEMBLY units and a specialized FLANGE PLATE that provide secure mounting surfaces, while several HOSE ASS’Y components deliver flexible connectivity where rigid piping is impractical.
Critical sealing within the XCMG Get-Off Hydraulic Pipeline Layout is achieved through precision ORING 37.69×3.53-S elements and additional O-RING components that prevent leakage at connection points. The circuit incorporates multiple STEEL PIPE ASSEMBLY sections that form the primary fluid conduits, securely positioned by several PIPE CLAMP ASSEMBLY units that prevent vibration-induced stress. The hydraulic flow is precisely directed to the WALKING MOTOR and WALKING REDUCER through strategically routed pipelines, ensuring optimal power delivery for propulsion functions. The comprehensive engineering behind the XCMG Get-Off Hydraulic Pipeline Layout guarantees minimal pressure loss, efficient fluid distribution, and reliable operation in the most demanding working conditions.

Parameters of XCMG Get-Off Hydraulic Pipeline Layout

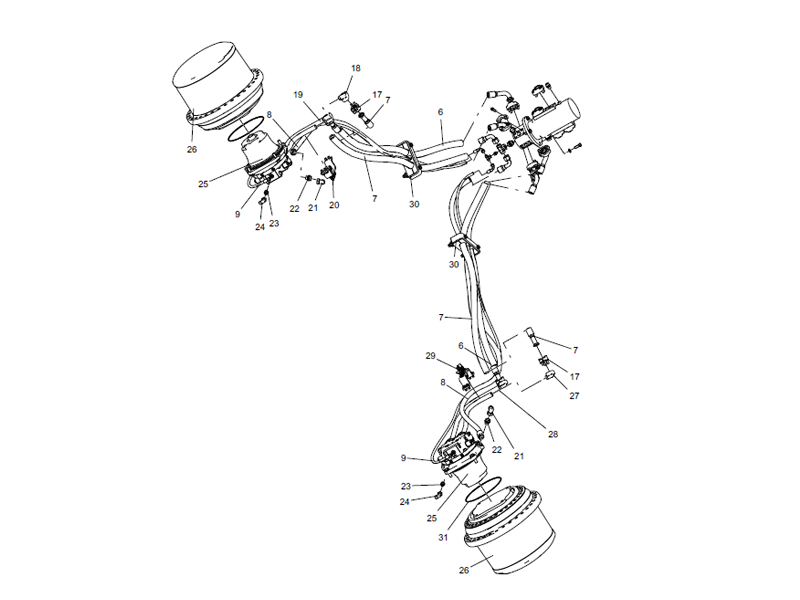

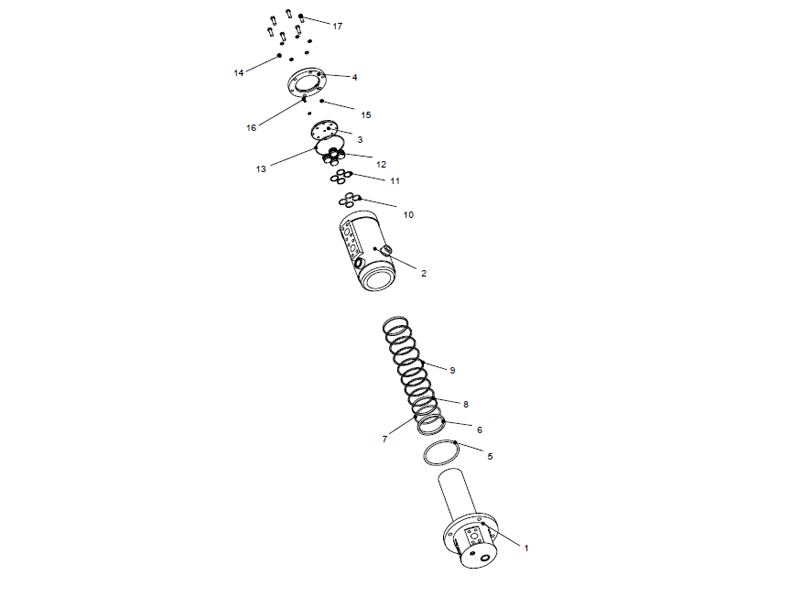

316100461 GET-OFF HYDRAULIC PIPELINE LAYOUT
316100001 HYDRAULIC EXCAVATOR
No.	PART NUMBER	NAME
1	803403639	CENTRAL ROTARY CONNECTOR
2	803109692	CONNECTOR
3	805006280	BOLT M16×45
4	329900304	THICKENED FLAT WASHER
5	803164323	FLANGE ASSEMBLY
6	803444160	HOSE ASS’Y
7	803444169	HOSE ASS’Y
8	803411393	HOSE ASS’Y
9	803444156	HOSE ASS’Y
10	805046568	BOLT M14×50
11	803112529	FLANGE PLATE
12	803111781	CONNECTOR
13	803100723	CONNECTOR
14	803303445	ORING 37.69×3.53-S
15	805046396	SCREW M14×50
16	803184017	CONNECTOR
17	803201542	FLANGE ASSEMBLY
18	316100384	STEEL PIPE ASSEMBLY
19	316100385	STEEL PIPE ASSEMBLY
20	316102000	PIPE CLAMP ASSEMBLY
21	803103798	CONNECTOR
22	803171997	CONNECTOR
23	803172163	CONNECTOR
24	803107607	CONNECTOR
25	804012270	WALKING MOTOR
26	800366159	WALKING REDUCER
27	316100386	STEEL PIPE ASSEMBLY
28	316100387	STEEL PIPE ASSEMBLY
29	316101983	PIPE CLAMP ASSEMBLY
30	316100991	PIPE CLAMP ASSEMBLY
31	803177338	O-RING

800160584 PRE-FUEL FILTER ELEMEMT
316101019 FUEL SYSTEM
No.	PART NUMBER	NAME
1	803445295	OIL-WATER SEPARATOR FILTER ELEMENT
