XCMG Fuel System

What is the XCMG Fuel System

The XCMG Fuel System represents an integrated fuel delivery and filtration network engineered for optimal diesel engine performance in demanding operating conditions. This sophisticated system incorporates multiple CONNECTOR BODY units and numerous CONNECTOR elements that create a secure network for fuel transfer throughout the equipment. The inclusion of a precision BRASS BALL VALVE ensures reliable flow control, while the dual filtration approach featuring both FUEL FILTER and PRE-FUEL FILTER ELEMEMT components provides comprehensive contaminant removal.
The structural framework of the XCMG Fuel System utilizes robust BRACKET elements secured with various fasteners including BOLT M10×25, BOLT M10×35, BOLT M8×16, BOLT M12×30, and BOLT M8×20, working in conjunction with THICKENED FLAT WASHER and THICKENED LARGE WASHER components to ensure vibration-resistant mounting. The fuel conveyance network employs multiple DIESEL PIPE sections connected through IMPREGNATED HOOP and standard HOOP fasteners that maintain leak-proof connections under pressure fluctuations.
The specialized BOLT3/8-16UNC-2A×3/4″ provides additional fastening capability where required, while the integrated DRAIN1 component facilitates system maintenance. The comprehensive design and precision manufacturing of the XCMG Fuel System ensure reliable fuel delivery, optimal filtration efficiency, and extended component life, contributing significantly to engine performance and operational reliability in the most challenging working environments.

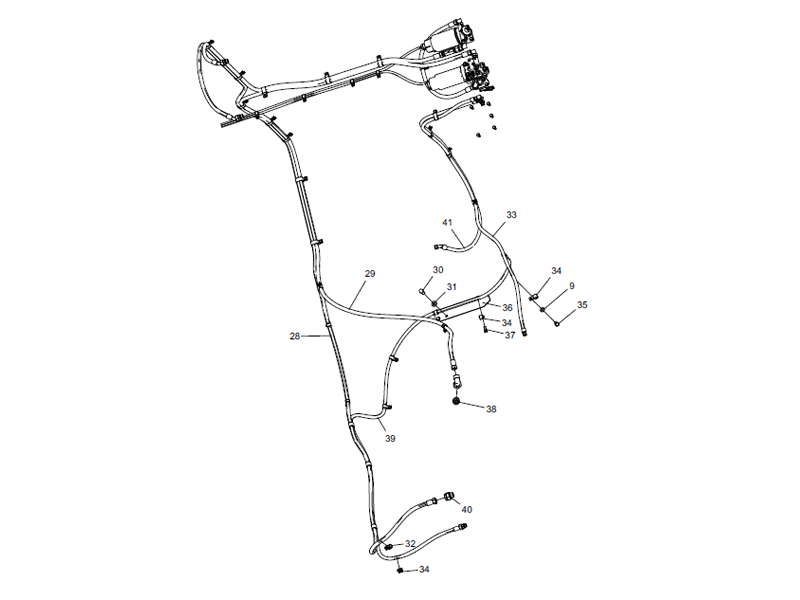

Parameters of XCMG Fuel System

316101019 FUEL SYSTEM
316101286 ENGINE SYSTEM
No.	PART NUMBER	NAME
1	803164743	CONNECTOR BODY
2	803104942	CONNECTOR BODY
3	803392276	CONNECTOR
4	803191588	CONNECTOR
5	800160592	BRASS BALL VALVE
6	803112167	CONNECTOR
7	803100741	CONNECTOR
8	805011330	BOLT M10×25
9	329900302	THICKENED FLAT WASHER
10	316100986	BRACKET
11	800160603	CONNECTOR
12	800160604	CONNECTOR
13	800160589	FUEL FILTER
14	800160596	PRE-FUEL FILTER ELEMEMT
15	803698606	IMPREGNATED HOOP
16	800162719	DIESEL PIPE
17	803698288	IMPREGNATED HOOP
18	800163896	HOOP
19	800160584	PRE-FUEL FILTER ELEMEMT
20	800163789	DIESEL PIPE
21	805046528	BOLT M10×35
22	329900297	THICKENED LARGE WASHER
23	803697897	IMPREGNATED HOOP
24	329900301	THICKENED FLAT WASHER
25	805046504	BOLT M8×16
26	803107270	CONNECTOR
27	800162678	DRAIN1
28	800162688	DIESEL PIPE
29	800163793	DIESEL PIPE
30	805006412	BOLT M12×30
31	329900303	THICKENED FLAT WASHER
32	803697889	IMPREGNATED HOOP
33	800163787	DIESEL PIPE
34	803697890	IMPREGNATED HOOP
35	800160641	BOLT3/8-16UNC-2A×3/4″
36	316100988	BRACKET
37	805046508	BOLT M8×20
38	803191401	CONNECTOR
39	316102262	DIESEL PIPE
40	803164747	CONNECTOR
41	800165660	DIESEL PIPE
