XCMG Boom Cylinder Pipeline Installation

What is the XCMG Boom Cylinder Pipeline Installation

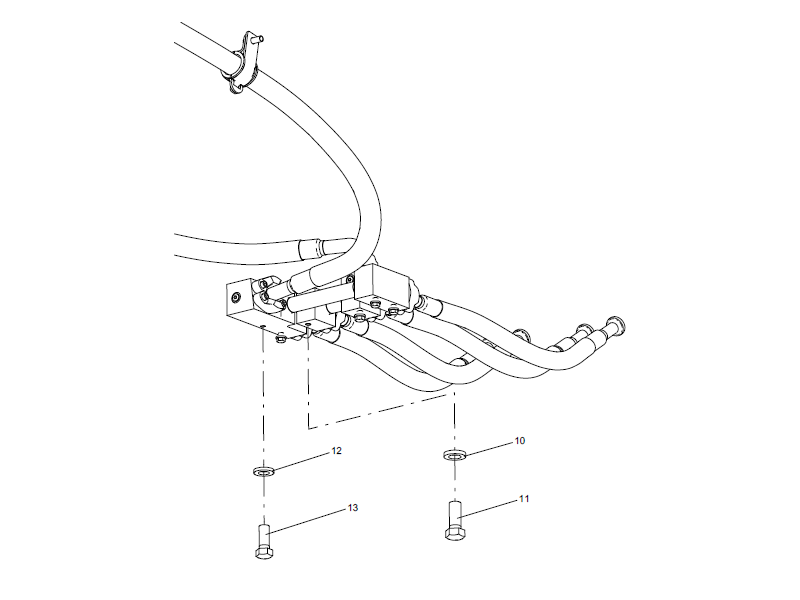

The XCMG Boom Cylinder Pipeline Installation forms a critical hydraulic network specifically engineered for reliable boom cylinder operation in heavy machinery. This comprehensive system incorporates multiple HOSE ASS’Y components that provide flexible connections between fixed piping and moving components, ensuring uninterrupted hydraulic flow during boom movements. The installation is strategically secured with PIPE CLAMP ASSEMBLY units that maintain proper routing and prevent abrasion.
Key transition points are established through the BOOM CYLINDER LARGE CAVITY TRANSITION BLOCK and BOOM CYLINDER SMALL CAVITY TRANSITION BLOCK, which efficiently direct hydraulic fluid to respective cylinder chambers. These blocks are connected via precision FLANGE ASSEMBLY components that ensure leak-proof connections under high pressure conditions. The system includes strategically placed PLUG elements for maintenance access and air bleeding.
Secure fastening is achieved through high-strength BOLT M16×40 and BOLT M14×35 components, complemented by multiple THICKENED FLAT WASHER elements that distribute clamping force evenly and prevent loosening under vibration. The careful integration of these components in the XCMG Boom Cylinder Pipeline Installation ensures optimal hydraulic performance, minimal pressure loss, and reliable boom operation in the most demanding working conditions. The robust design and precise engineering of the XCMG Boom Cylinder Pipeline Installation demonstrate XCMG’s commitment to safety and performance in heavy equipment hydraulic systems.

Parameters of XCMG Boom Cylinder Pipeline Installation

316102128 BOOM CYLINDER PIPELINE INSTALLATION
316102073 TURNTABLE PIPING
No.	PART NUMBER	NAME
1	803487439	HOSE ASS’Y
2	803444182	HOSE ASS’Y
3	316508412	PIPE CLAMP ASSEMBLY
4	813403681	HOSE ASS’Y
5	803164322	FLANGE ASSEMBLY
6	316102915	BOOM CYLINDER LARGE CAVITY TRANSITION BLOCK
7	316102041	BOOM CYLINDER SMALL CAVITY TRANSITION BLOCK
8	803450641	PLUG
9	803164323	FLANGE ASSEMBLY
10	329900304	THICKENED FLAT WASHER
11	805006332	BOLT M16×40
12	329900983	THICKENED FLAT WASHER
13	805006333	BOLT M14×35
