FAW Engine Aseembly-Turbocharger Oil Pipe Group

FAW Engine Aseembly-Turbocharger Oil Pipe Group
FAW Engine Aseembly-Turbocharger Oil Pipe Group
Download Catalog
Get Quotation

What is the FAW Engine Aseembly-Turbocharger Oil Pipe Group

  • 1. WP13.550E501 Engine Assembly: Critical Lubrication Delivery
    The FAW WP13.550E501 engine assembly relies on its meticulously engineered Turbocharger Oil Pipe Group for vital lubrication and cooling. This dedicated subsystem ensures a precise, high-integrity flow of oil to and from the turbocharger (Supercharger), safeguarding this high-speed component against wear and heat under demanding heavy-duty operation.
  • 2. Core Oil Flow Components
    At the heart of the group are the Supercharger Lube Pipe (high-pressure supply line) and the Supercharger return line assembly (low-pressure drain). These critical tubes transport oil efficiently between the engine block and the turbocharger bearings. Ensuring leak-free connections at these vital junctions is the essential Supercharger Oil Pipe Gasket.
  • 3. Precision Connection & Sealing Hardware
    Secure and sealed connections are achieved using specialized fittings. The Sleeve-type through joint body and Sleeve end through body provide robust connection points within the pipe assemblies. Complementing these are Sleeve components, acting as spacers or protective liners where necessary, ensuring proper alignment and preventing abrasion or vibration damage to the pipes.
  • 4. Secure Mounting & Fastening Systems
    The entire Turbocharger Oil Pipe Group is firmly anchored to the engine structure using diverse, purpose-selected fasteners. This includes high-tensile Bolts and specifically designed Hexagon headed bolts for general mounting. Critical high-stress or high-vibration points utilize Hexagon flange face bolts for enhanced load distribution and reliability. Nuts, including specialized types compatible with the joint bodies, ensure threaded connections remain secure. Clamp Assembly components provide additional support and routing stability for sections of the oil pipes.
  • 5. Integrated System for Peak Turbocharger Performance
    Every element – from the primary Supercharger Lube Pipe and Supercharger return line assembly, through the sealing Gasket, connection Sleeve-type through joint bodies and Sleeve end through bodies, supporting Sleeves, robust Bolts, Hexagon headed bolts, Hexagon flange face bolts, Nuts, and securing Clamp Assembly components – works cohesively. This integrated FAW Oil Pipe Group guarantees uninterrupted oil flow, maximizing turbocharger lifespan and ensuring consistent power delivery for the WP13.550E501 engine.

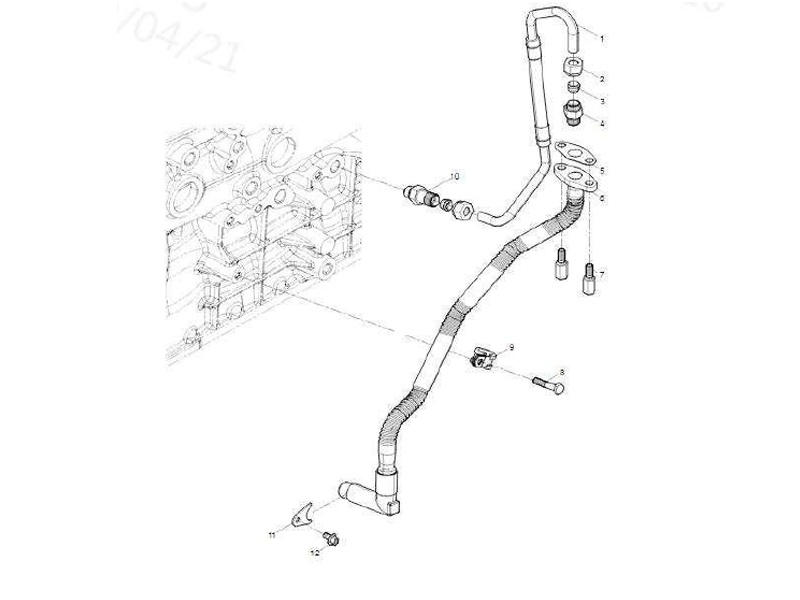

Product Parameters of FAW Engine Aseembly-Turbocharger Oil Pipe Group

Order Part NO. Part Name And Standards Oty
1000410A-DY889R WP13.550E501  Engine Aseembly 1
1 1000879928 Supercharger  Lube Pipe 1
2 612639000022 Nut 2
3 1000886100 Sleeve 2
4 1000879941S Sleeve-type through joint body 1
5 1000583278 Supercharger  Oil Pipe Gasket 1
6 1001826421 Supercharger  return line assembly 1
7 61460070014 Bolt 2
8 90003802419 Hexagon headed bolt 1
9 612600111639 Clamp Assembly 1
10 1000889730S Sleeve end through body 1
11 1000583648 Card 1
12 9000000203 Hexagon flange face bolt 1
