Sitrak Steering (C5h Double Front Axle/H153 Large Cornering/Front 965 Rear 850/Bending Area One Axle/300 Frame/Long Cab/Large Drop Rocker Arm)

Sitrak Steering (C5h Double Front Axle/H153 Large Cornering/Front 965 Rear 850/Bending Area One Axle/300 Frame/Long Cab/Large Drop Rocker Arm)
Sitrak Steering (C5h Double Front Axle/H153 Large Cornering/Front 965 Rear 850/Bending Area One Axle/300 Frame/Long Cab/Large Drop Rocker Arm)
Download Catalog
Get Quotation

What is the Sitrak Steering (C5h Double Front Axle/H153 Large Cornering/Front 965 Rear 850/Bending Area One Axle/300 Frame/Long Cab/Large Drop Rocker Arm)

  • The Sitrak Steering Tie Rod designed for the C5h Dual Front Axle configuration is a remarkable piece of engineering tailored to meet the specific demands of this advanced vehicle setup. With a large turning angle of 45°/35°, a wheelbase of 1800, and a transition swing arm of 881, it offers exceptional maneuverability, although it’s important to note that it’s not applicable for 12r20 tires.
  • Axle Straight Tie Rods are a fundamental part of this steering tie rod system. These straight tie rods are engineered to provide direct and precise steering control. They are crafted from high – strength materials to withstand the significant forces exerted during steering operations. By connecting the steering knuckles on the axles, the axle straight tie rods ensure that the wheels turn in unison, maintaining proper alignment and stability. This is crucial for safe and efficient driving, especially when navigating sharp turns or making quick directional changes.
  • The Transition tie rod assembly is another key component. It acts as a link between different parts of the steering mechanism, facilitating smooth transitions in steering movement. In the C5h Dual Front Axle setup, the transition tie rod assembly is specifically designed to handle the complex steering geometry. It helps to distribute the steering force evenly across the axles, enabling the vehicle to achieve its large turning angles. The precise design and construction of the transition tie rod assembly ensure that there is minimal play or slack in the steering system, resulting in responsive and accurate steering.
  • The Second axle steering tie rod assembly is vital for coordinating the steering of the second axle in the dual – front – axle arrangement. It works in tandem with the other tie rod components to ensure that both axles turn in harmony. This assembly is engineered to handle the unique stresses and requirements of the second axle. It helps to optimize the vehicle’s turning radius and overall steering performance, enhancing the driver’s ability to control the vehicle in various driving conditions.
  • In conclusion, the Sitrak Steering Tie Rod for the C5h Dual Front Axle, with its Axle Straight Tie Rods, Transition tie rod assembly, and Second axle steering tie rod assembly, is a comprehensive and well – designed system. It combines strength, precision, and functionality to provide superior steering performance, making it an essential component for the Sitrak vehicle with this specific configuration.

Product Parameters of Sitrak Steering (C5h Double Front Axle/H153 Large Cornering/Front 965 Rear 850/Bending Area One Axle/300 Frame/Long Cab/Large Drop Rocker Arm)

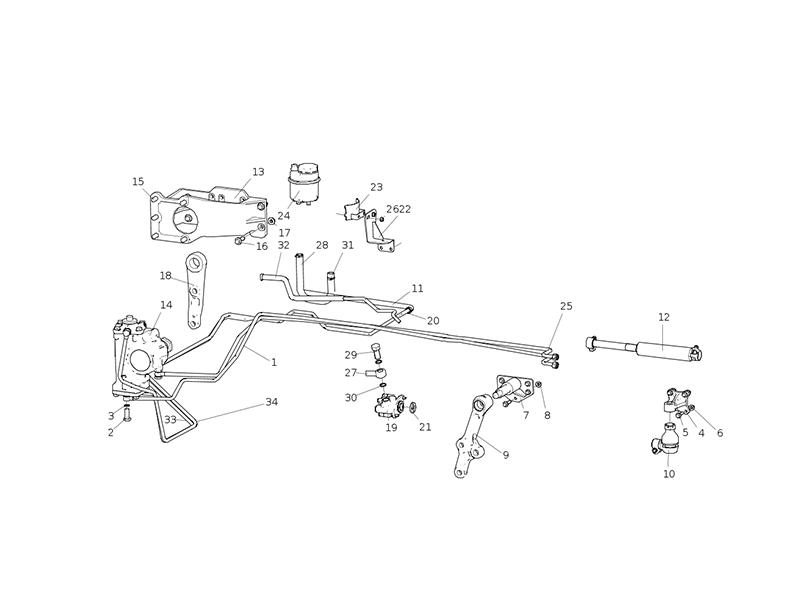

YC96314700022  Steering (C5h Double Front Axle/H153 Large Cornering/Front 965 Rear 850/Bending Area One Axle/300 Frame/Long Cab/Large Drop Rocker Arm)
No. Part Number Part Name English  Quantity
1 YG9625477003 Steering Cylinder Steel Tube Assembly II 1
2 WG9725470818 Ferrules type articulated hexagon bolts 1
2 WG9725470818 Ferrules type articulated hexagon bolts 2
2 WG9725470818 Ferrules type articulated hexagon bolts 1
3 T071800 Combination Seal 2
3 T071800 Combined sealing ring 2
3 T071800 Combined sealing ring 2
3 T071800 Combined sealing ring 2
3 T071800 Combined sealing ring 2
4 WG9131471044 Seat 1
5 ZQ1811245TF6 Hexagonal flange surface with teeth bolts M12*1.25 4
6 ZQ32512T13F6 Hexagonal flange nut with teeth M12*1.25 4
7 WG9131470090 Support plate assembly 1
8 ZQ32312T13F6 Hexagonal flange nut M12 5
9 WG9131472116 Transition arm 1
10 WG9131470075 Ball joint assembly 2
11 752W47313-0021 Oil return hose 1
12 WG9131470250 Booster Cylinder Assembly 1
13 WG9731470060 Steering Bracket 1
14 WG9725478198 Power steering gear 1
15 MQ6W02819-0023 Hexagonal safety bolts M20X1,5X 45 5
16 ZQ1811650TF6 Hexagonal flange face bolts with teeth M16*1.5 4
17 ZQ32516T13F6 Hexagonal flange nut with teeth M16*1.5 4
18 WG9131479030 Steering rocker arm 1
19 752W47101-0825 Steering vane pump (right hand rotation without PRV) 1
20 190003989336 Hose clamp 2
21 020V47104-0024 Synchronizer 1
22 WG9725472036 Steering Tank Bracket Assembly 1
23 WG9131470037 Mounting Plate 1
24 WG9725470133 Plastic Fuel Tank Assembly 1
25 YG9625477002 Steering Cylinder Pipe Assembly Ⅰ 1
26 ZQ32010 Hexagonal flange face nut M10 3
27 WG9100470076 Ring Fitting 1
28 752W47313-0019 Forming hose 1
29 190003962651 Hollow bolt 1
30 MQ6-56631-0112 Composite sealing washer BS-26,7 X34,9 -ST/FPM1-80 2
31 Q67632 Hose clamps 2
32 YG9625478004 High Pressure Hose Assemblies 1
33 752W47313-0145 Oil inlet hose assembly 1
34 752W47313-0146 Oil return pipe assembly 1
35 ZQ1841025TF6 Hexagonal flange bolts M10 2
36 WG9131470036 Fastening belt 1
37 ZQ1811225TF6 Hexagonal flange bolts with teeth M12*1.25 2
38 ZQ1841030 Hexagonal flange bolts M10 3
39 WG9725470084 Spring retaining ring 1
40 WG9718470070 Ferrules type articulated joint body 1
40 WG9718470070 Sleeve type articulated joint body 2
41 WG9725470816 Hollow Bolt 1
41 WG9725470816 Hollow Bolt 1
41 WG9725470816 Hollow Bolt 1
42 WG9000365403 Double clamp(φ15) 2
42 WG9000365403 Double pipe clamp(φ15) 4
42 WG9000365403 Double pipe clamp(φ15) 2
43 ZQ1840635TF6 Hexagonal flange bolts M6 2
43 ZQ1840635TF6 Hexagonal flange bolts M6 2
43 ZQ1840635TF6 Hexagonal flange bolts M6 2
44 Q33406 All-metal hexagonal lock nuts type 2 2
44 Q33406 All-metal hexagonal lock nuts type 2 1
44 Q33406 Type 2 all-metal hexagonal locknuts 2
44 Q33406 Type 2 all-metal hexagonal locknuts 2
44 Q33406 All-metal hexagonal locknut type 2 2
45 WG9000365401 Single pipe clamp(φ15) 1
46 ZQ1840640TF6 Hexagonal flange bolts M6 1
46 ZQ1840640TF6 Hexagonal flange bolts M6 2
47 712W47410-0054 Spring retainer 1
48 WG2032470140 High pressure hose 2
49 WG9725470804 Fitting body with ferrule end 1
50 MQ6-56631-0109 Composite sealing washer BS-18,7 X26,0 -ST/FPM1-80 10
51 WG9000362186 Angle bracket 2
52 WG9012360441 Angle bracket 2
53 ZQ1841040TF6 Hexagonal flange face bolts M10 2
54 ZQ32010T13F6 Hexagonal flange face nuts M10 2
55 ZQ1811240TF6 Hexagonal flange face bolts with teeth M12*1.25 5
56 WG9718470014 Bearing washers 2
57 WG9018470015 Washers 1
58 WG90  410228 Needle roller bearings 2
59 WG880340023 O-ring seals 2
60 190003872383 Hexagonal slotted flat nuts 1
61 Q5006350 Cotter pin 1
62 AZ9003963030 Grease nipple assembly (AM8*1 D71412) 1
63 AZ9725470125 Bracket 1
64 WG97 350169 Angle bracket 1
752W47101-0825 Steering vane pump (right-handed without PRV)
No. Part Number Part Name English  Quantity
1 752W47101-0825/1 Steering Vane Pump (Bosch Steering (Nanjing)) 1
752W47101-0825/1 Steering Vane Pump (Bosch Steering (Nanjing))
No. Part Number Part Name English  Quantity
1 712W47101-2016+001/1 O-ring 46×3 (ZF Nanjing) 1
WG9725470133 Plastic Oil Tank Assembly
No. Part Number Part Name English  Quantity
1 WG9725470133/1 Plastic Fuel Tank Assembly (ZF Rubber) 1
WG9725470133/1 Plastic Fuel Tank Assembly (ZF Rubber)
No. Part Number Part Name English  Quantity
1 WG9725470133+001/1 Filter Element Assembly (ZF Rubber) 1
AZ9003963030 Grease nipple assembly (AM8*1 D71412)
No. Part Number Part Name English  Quantity
1 190003963112 Metric tapered thread grease nipple 1
2 AZ9003963010 Grease Nipple Cap 1
