Sitrak Disconnect Balance Suspension (850, 5 X 37 Less Leaf Springs, Two Riding Bolts, Cast Crossmember, St13/St16 Axle, No Guide Plates)

Sitrak Disconnect Balance Suspension (850, 5 X 37 Less Leaf Springs, Two Riding Bolts, Cast Crossmember, St13/St16 Axle, No Guide Plates)
Sitrak Disconnect Balance Suspension (850, 5 X 37 Less Leaf Springs, Two Riding Bolts, Cast Crossmember, St13/St16 Axle, No Guide Plates)
Download Catalog
Get Quotation

What is the Sitrak Disconnect Balance Suspension (850, 5 X 37 Less Leaf Springs, Two Riding Bolts, Cast Crossmember, St13/St16 Axle, No Guide Plates)

  • The Sitrak Disconnect Balance Suspension (850, 5 X 37 Less Leaf Springs, Two Riding Bolts, Cast Crossmember, St13/St16 Axle, No Guide Plates) is a high – performance suspension system with a variety of essential components.
  • The balance shaft with housing assembly forms the core of the suspension, ensuring smooth operation and proper weight distribution. The cast thrust rod assembly provides strong support and stability, while the low leaf rear plate spring assemblies offer reliable shock absorption. The V – Thrust Rod Assembly helps in maintaining the correct alignment of the axles.
  • There are multiple types of fasteners and nuts used in this suspension. The Type 2 hexagonal nut M221.5, Type 2 all – metal hexagonal lock nuts, Type 2 hexagon nuts M201.5, Type 1 hexagonal nut M101.5, and Type 2 hexagonal nut M141.5 are all crucial for securely holding different parts together. Bolts such as hexagon head bolts M221.5, hexagon head bolts M201.5, hexagon head bolts M141.5, and hexagon head bolts M8 are used throughout the assembly. Hexagonal flange face bolts with teeth M161.5 and hexagonal flange bolts with teeth M8 provide enhanced grip and prevent loosening.
  • The clamp plate is used to hold components firmly in place. The rubber bearing assembly reduces vibration and noise. The thrust rod front left bracket is an important structural part for the thrust rod.
  • The limit bracket and limit block assembly are designed to prevent excessive movement and protect the suspension components. The plate spring pressure plate helps in compressing the leaf springs effectively. Rear spring jockey bolts are used to adjust and secure the rear springs.
  • Other components like flat washers, heavy – duty spring washers, sealing washers, sealing rings, positioning washers, and locating washers are used for proper alignment, sealing, and protection. The shell cover, bearing oil seal cover, and balance shaft housing enclose and protect internal components. Spacer bushings, bearing presses, and spherical bearings ensure smooth rotation and proper functioning of the balance shaft.
  • The V type thrust rod bolts, anti – loosening sleeve, hexagonal flange nuts M181.5, and double head studs are all integral parts of the suspension system. Additionally, hexagon socket plugs with tapered thread are used for sealing and protection, and the bracket provides support for various components. Cylindrical pins, such as Pin GB119 A2024, are used for precise positioning. Shaft seals prevent leakage of lubricants and keep the internal parts clean. All these components work together to make the Sitrak Disconnect Balance Suspension a reliable and efficient system.

Product Parameters of Sitrak Disconnect Balance Suspension (850, 5 X 37 Less Leaf Springs, Two Riding Bolts, Cast Crossmember, St13/St16 Axle, No Guide Plates)

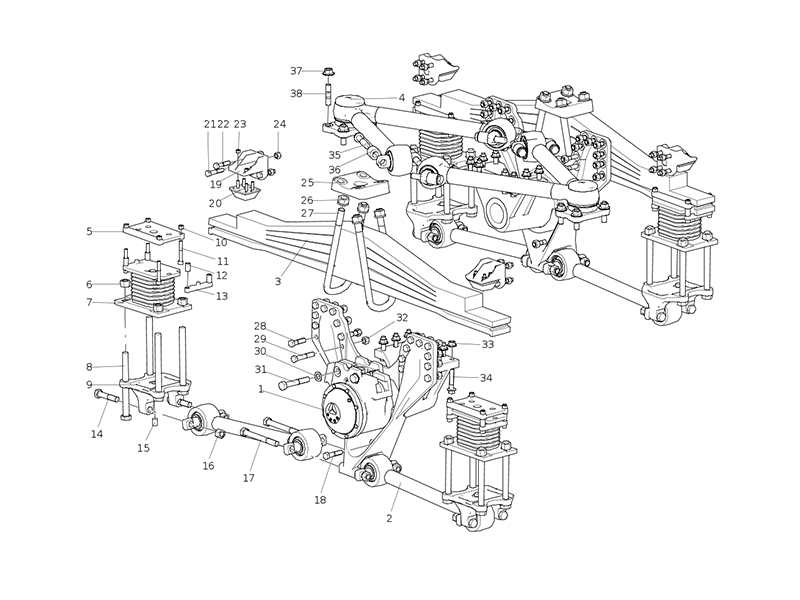

AC97255209925  Disconnect Balance Suspension (850, 5 X 37 Less Leaf Springs, Two Riding Bolts, Cast Crossmember, St13/St16 Axle, No Guide Plates)
No. Part Number Part Name English  Quantity
1 AZ9725520210 Balance shaft with housing assembly 2
2 AZ9631523175 Cast Thrust Rod Assembly 4
3 WG9725521282 Low Leaf Rear Plate Spring Assemblies 2
4 AZ9725529272 V-Thrust Rod Assembly 2
5 WG9725520266 Clamp plate 4
6 ZQ361B22T13F6 Type 2 hexagonal nut M22*1.5 16
7 AZ9725520273 Rubber Bearing Assembly 4
8 ZQ151B22250TF6 Hexagon head bolt M22*1.5 16
9 WG9725520590 Thrust rod front left bracket 4
10 Q33212 Type 2 all-metal hexagonal lock nuts 16
11 Q218B1285 Hexagon socket cheese head screws 16
12 WG9725520267 Casing 16
13 WG9725520265 Fixing strip 8
14 ZQ151B20100TF6 Hexagon head bolts M20*1.5 8
15 190003901905 Cylindrical pins–Pin GB119 A20*24 4
16 ZQ361B20T13F6 Type 2 hexagon nuts M20*1.5 12
17 ZQ151B20180TF6 Hexagon head bolts M20*1.5 4
18 ZQ1811670TF6 Hexagonal flange face bolts with teeth M16*1.5 2
19 WG9725520736 Limit bracket 4
20 WG9725520727 Limit block assembly 4
21 ZQ151B1470 Hexagon head bolts M14*1.5 12
22 ZQ151B1460 Hexagon head bolts M14*1.5 4
23 ZQ340B10 Type 1 hexagonal nut M10*1.5 16
24 ZQ361B14 Type 2 hexagonal nut M14*1.5 16
25 WG9725520256 Plate spring pressure plate 2
26 ZQ32724T13F3 Flange nuts M24*3 8
27 AZ9725521265 Rear spring jockey bolts 4
28 ZQ1811660TF6 Hexagonal flange bolts with teeth M16*1.5 28
29 ZQ1811690TF6 Hexagonal flange bolts with teeth M16*1.5 8
30 Q40120 Flat washers 4
31 ZQ151B20120 Hexagon head bolts M20*1.5 4
33 ZQ32516T13F6 Hexagonal flange nuts with teeth M16*1.5 38
33 ZQ32516T13F6 Hexagonal flange nuts with teeth M16*1.5 16
34 ZQ1811680TF6 Hexagonal flange face bolts with teeth M16*1.5 16
35 WG9725520114 V type thrust rod bolts 8
36 WG9725520367 Anti-loosening sleeve 8
37 ZQ32318T13F6 Hexagonal flange nuts M18*1.5 8
38 WG9725520231 Double head studs 8
AZ9725520210 Balance shaft with housing assembly
No. Part Number Part Name English  Quantity
1 190003962021 Hexagon socket plugs with tapered thread 1
2 AZ9725520233 Bracket 1
3 AZ9725520237 Balance shaft 1
4 ZQ1800820TF6 Hexagonal flange bolts with teeth M8 8
5 Q151B1655TF2 Hexagon head bolts(fine thread) 6
7 Q40516 Heavy duty spring washers 6
8 Q5211630 Cylindrical pins 1
9 Q72308T5F Sealing washers 1
10 WG614 130062 Sealing ring 1
11 WG9014520192 Positioning washers 1
12 WG9014520193 Locating Washers 1
13 WG9014520194 Locating washers 1
14 WG9014520303 Positioning washers 1
15 WG9014520306 Positioning washers 1
16 WG9014520311 Shell cover 1
17 WG9100520008 Locating washers 1
18 WG9114520042 Spherical bearings 2
19 WG9114520059 Locating washers 1
20 WG9114520223 Shaft seals 1
21 WG9725520136 Bearing oil seal cover 1
22 WG9725520235 Balance shaft housing 1
23 WG9725520238 Spacer Bushings 1
24 WG9725520239 Bearing presses 1
25 WG9925520223 Shaft seals 1
26 ZQ150B0812 Hexagon head bolts M8 1
