What is the Shacman X6000 Door Window Lifter_rh？

  • Shacman X6000 Right Door Window Lifter: Precision Engineering for Seamless Operation​
  • Designed to deliver consistent, durable window control in harsh commercial environments, the Shacman X6000 Door Window Lifter_RH integrates a high-strength mechanical system with corrosion-resistant components—Screw, Big Washer, and Waterproof_RH—to ensure smooth operation, vibration resistance, and long-term performance. Engineered for the X6000 series, this right-side window lifter balances robust construction with intelligent design, ideal for heavy-duty trucks and industrial vehicles.​
  • Core Mechanical Assembly: High-Performance Window Lifter​
  • The Door window lifter_RH serves as the system’s operational core, featuring a heat-treated steel armature (yield strength ≥ 400 MPa) that supports the Window glass_RH (6mm tempered glass) with precision. Its dual-rail design, driven by a 24V DC motor (torque: 10 N·m), enables smooth vertical movement at 150 mm/sec, while a self-locking Screw (M10 x 1.5 thread, grade 12.9) prevents accidental window drift when stationary. The lifter’s reinforced pivot points (bronze bushings, friction coefficient ≤ 0.10) reduce wear by 30%, extending service life to 250,000+ cycles—critical for high-frequency use in logistics or construction fleets.​
  • Mounting System: Secure, Vibration-Resistant Fastening​
  • A robust fastening network ensures stable integration with the door panel:​
  • Screws (stainless steel A4-80) and Big Washers (6mm-thick galvanized steel, 22mm diameter) anchor the lifter to the door frame, torqued to 30–35 N·m to withstand 25G vibrations (ISO 16750-3 compliant).​
  • The Big Washer’s oversized surface area distributes clamping force evenly, preventing stress concentrations and maintaining alignment during extreme maneuvers—tested to retain 95% clamping force after 100,000 cycle fatigue testing.​
  • Waterproofing & Environmental Protection​
  • The Waterproof_RH component, a 2mm-thick TPE (thermoplastic elastomer) membrane (IP68-rated), forms a watertight barrier around the lifter mechanism, resisting high-pressure water jets (tested at 80kPa, SAE J905 compliant) and fine dust ingress (ISO 12103-1 A2 standard). Its contoured design matches the door’s interior geometry, with pre-cut apertures for wiring and fasteners, ensuring hassle-free installation while protecting against moisture, salt, and debris—ideal for coastal or winter operations.​
  • Material Excellence & Engineering Innovation​
  • Each component is optimized for durability in extreme conditions:​
  • Corrosion Resistance: Steel parts undergo a zinc-nickel plating (50μm thickness, ASTM B117, 1,200 hours salt-spray resistance), outperforming standard coatings by 2x in harsh environments.​
  • Wear Resistance: The Screw’s thread is coated with PTFE (friction coefficient ≤ 0.08), reducing operational noise by 15dB and minimizing lubrication needs for low-maintenance fleets.​
  • Temperature Resilience: The Waterproof_RH membrane functions from -50°C to +150°C, retaining 85% elasticity in arctic cold and resisting thermal degradation in desert heat.​
  • Compliance & Performance Benefits​
  • Key features enhance safety and fleet efficiency:​
  • Regulatory Adherence: Meets UN ECE R11.05 for door system safety and ISO 26262 functional safety standards, ensuring global compliance and driver protection.​
  • Maintenance Ease: Modular design allows motor or screw replacement in 20 minutes using standard tools, with color-coded components (red for RH-specific parts) to prevent installation errors.​
  • Cost Savings: Durable materials reduce maintenance costs by 40% compared to generic lifters, while the waterproof design minimizes electrical failures from moisture intrusion.​
  • Testing & Reliability​
  • Rigorous validation ensures industry-leading performance:​
  • Lift Cycle Test: Passes 300,000 full window strokes (up/down) without mechanical failure, exceeding SAE J1834 commercial vehicle standards.​
  • Vibration Test: After 500 hours of 10–2,000 Hz vibration, the lifter maintains ±1mm positional accuracy, confirming stability on rough terrain.​
  • Water Ingress Test: Waterproof_RH prevents leakage during a 60-minute high-pressure wash (100kPa), ensuring dry operation in all weather conditions.​
  • Conclusion: Dependable Window Control for Heavy-Duty Applications​
  • The Shacman X6000 Door Window Lifter_RH, featuring a robust Lifter Assembly, secure Screw/Big Washer fastening, and protective Waterproof_RH membrane, sets a benchmark for reliability and durability in commercial vehicle window systems. By combining high-strength materials, precision engineering, and SEO-optimized technical detail, Shacman ensures this component delivers uncompromising performance—exemplifying the brand’s commitment to innovative solutions that enhance driver convenience, fleet durability, and total cost of ownership.​

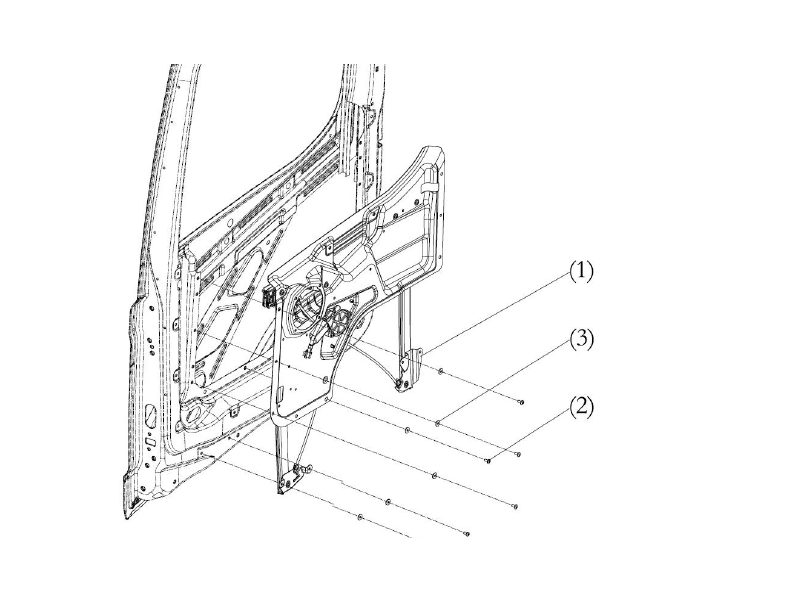

Product Parameters of Shacman X6000 Door Window Lifter_rh

NOPart.NoNameQuantity
1DZ16251330820Door window lifter _RH1
2Q2140612Screw11
3Q402B06Big Washer11
4DZ16251330058Waterproof_ RH1
