What is the Shacman X6000 Dashboard Assy？

  • Shacman X6000 Dashboard Assy: Integrated Control Hub for Enhanced Driver Experience​
  • Engineered to merge functional precision with rugged durability, the Shacman X6000 Dashboard Assy integrates a modular system of ergonomic components—LH/RH upper covers, Middle air vents, and Control panels—to deliver intuitive operation, climate control, and structural resilience. Designed for the X6000 series, this dashboard balances advanced human-machine interaction (HMI) with heavy-duty materials, ideal for logistics, construction, and long-haul fleets demanding reliability and operator comfort.​
  • Core Structural Framework: Modular Panel Design​
  • The dashboard’s skeletal structure features a high-strength IP bracket (aluminum alloy 6061-T6, yield strength ≥ 210 MPa), supporting a network of precision-molded plastic panels:​
  • LH/RH upper covers (ABS plastic with 30% glass fiber, heat resistance ≥ 100°C) form the dashboard’s outer shell, with a low-gloss finish (60° gloss ≤ 20GU) to reduce windshield glare.​
  • Middle upper/lower panels (polypropylene copolymer, impact resistance ≥ 50J) house primary controls, while Front cover lid (UV-stabilized PC/ABS, ISO 4892-2 compliant) protects the instrument cluster from dust and UV degradation.​
  • Climate Control & Airflow Management​
  • Strategically positioned vents ensure optimal cabin comfort:​
  • LH/RH defrosting air vents (polyamide 6/6, shore hardness 75A) direct 45% of HVAC airflow to the windshield, capable of clearing 2mm ice in 5 minutes at -20°C.​
  • Middle LH/RH air vents (adjustable aluminum louvers, 30° rotation range) offer 360° airflow adjustment, with a noise reduction design (air velocity ≤ 8m/s, noise ≤ 55dB) for quiet operation.​
  • The Front defrosting cover assy (EPDM rubber seal, IP54-rated) creates a tight barrier against water ingress during  (100kPa pressure).​
  • Control & Display Modules​
  • Operator-centric components enhance usability:​
  • Cluster frame (magnesium alloy, weight reduced by 30% vs. steel) supports the digital instrument cluster, with anti-vibration mounts (silicone pads, shore hardness 40A) that reduce NVH by 18 dB.​
  • Switch panel (zinc alloy buttons, 500,000 cycle durability) integrates cruise control, lights, and wipers, backlit with adjustable LED illumination (300–500 lux) for nighttime visibility.​
  • Chrome panel (electroplated ABS, thickness 0.3mm) adds aesthetic appeal while resisting fingerprint smudges (surface energy ≤ 35mN/m).​
  • Mounting & Structural Support​
  • Reinforced brackets ensure vibration-resistant installation:​
  • RH/LH brackets (8mm-thick high-strength steel, yield strength ≥ 550 MPa) secure the dashboard to the cab frame, fastened by Hex bolts (grade 10.9, M10 x 40mm) torqued to 40–45 N·m—compliant with ISO 16750-3’s 25G vibration resistance.​
  • Console bracket (cold-rolled steel, surface treated with 50μm electrophoretic coating) supports the shifter assembly, with pre-machined slots (tolerance ±0.2mm) for precise alignment.​
  • Accessibility & Maintenance Design​
  • Modular components simplify service and upgrades:​
  • LH/RH maintenance panels (quick-release clips, 5-second removal) provide access to wiring harnesses, while RH/LH ending covers (snap-fit design) hide unsightly edges.​
  • Shifting cover and Lower shifting cover (polyurethane foam-lined, noise reduction ≥ 10dB) enclose the gear shift mechanism, with a wear-resistant surface (ASTM D4157, 100,000 cycles).​
  • Material Excellence & Environmental Resilience​
  • Components are optimized for commercial vehicle environments:​
  • Fire Safety: All plastics meet ISO 3795 (flame spread rate ≤ 100mm/min), with a low-smoke formulation for operator safety.​
  • Temperature Tolerance: Functions reliably from -40°C to +85°C, with rubber seals retaining 80% elasticity in arctic conditions and plastic panels resisting thermal sagging in desert heat.​
  • Wear Resistance: Control surfaces pass 200,000 cycles of abrasion testing (ASTM D4060), maintaining tactile feedback and appearance over 10+ years of service.​
  • Compliance & Performance Benefits​
  • Key features enhance driver safety and fleet efficiency:​
  • Regulatory Adherence: Meets UN ECE R118.02 for interior materials and ISO 15006-2 for HMI ergonomics, ensuring global certification.​
  • Ergonomic Design: All controls are positioned within 300mm of the steering wheel, reducing driver distraction by 25% (SAE J2875 compliant).​
  • Modular Upgradability: Swappable CCB assy (central control box) supports future tech integrations, such as telematics or ADAS, without dashboard replacement.​
  • Testing & Reliability​
  • Rigorous validation ensures industry-leading performance:​
  • Vibration Fatigue Test: Survives 1,000 hours of 10–2,000 Hz vibration with no panel cracks or fastener loosening, exceeding SAE J1492 standards.​
  • UV Exposure Test: Maintains 95% color stability after 2,000 hours of Xenon arc testing (ISO 4892-2), ideal for tropical fleets.​
  • Impact Test: Resists 50J of frontal impact (equivalent to a 5kg tool drop) with no structural damage, confirming robustness in harsh environments.​
  • Conclusion: Command Center Redefined for Commercial Vehicle Excellence​

Product Parameters of Shacman X6000 Dashboard Assy

NO Part.No Name Quantity Suited type
1 DZ16251160113 LH defrosting air vent 1 Full Platform Universal
2 DZ16251160110 LH upper cover 1 Full Platform Universal
3 DZ16251160315 Front cover lid 3 Full Platform Universal
4 DZ16251160320 Middle upper cover 1 Cab6 / Cab5
5 DZ16251160410 Table assy 1 Full Platform Universal
6 DZ16251160420 RH upper cover assy 1 Full Platform Universal
7 DZ16251160422 RH defrosting air vent 1 Full Platform Universal
8 DZ16251160460 RH ending cover 1 Full Platform Universal
9 DZ16251160140 RH bracket 1 Full Platform Universal
10 DZ16251160330 Chrome panel 1 Cab6 / Cab5
11 DZ16251160430 RH middle panel 1 Full Platform Universal
12 DZ16251160340 Middle lower panel 1 Cab6 / Cab5
13 DZ16251160730 Middle RH air vent 1 Full Platform Universal
14 DZ16251160720 Middle LH air vent 1 Full Platform Universal
15 DZ16251160220 Switch panel 1 Full Platform Universal
16 DZ16251160210 Cluster frame 1 Full Platform Universal
17 DZ16251160242 LH maintenance panel 1 Full Platform Universal
18 DZ16251160450 LH ending cover 1 Full Platform Universal
19 DZ16251160240 LH middle pamel 1 Full Platform Universal
20 DZ16251160710 LH air vent 1 Full Platform Universal
21 DZ16251160310 Front defrosting cover assy 1 Cab6 / Cab5

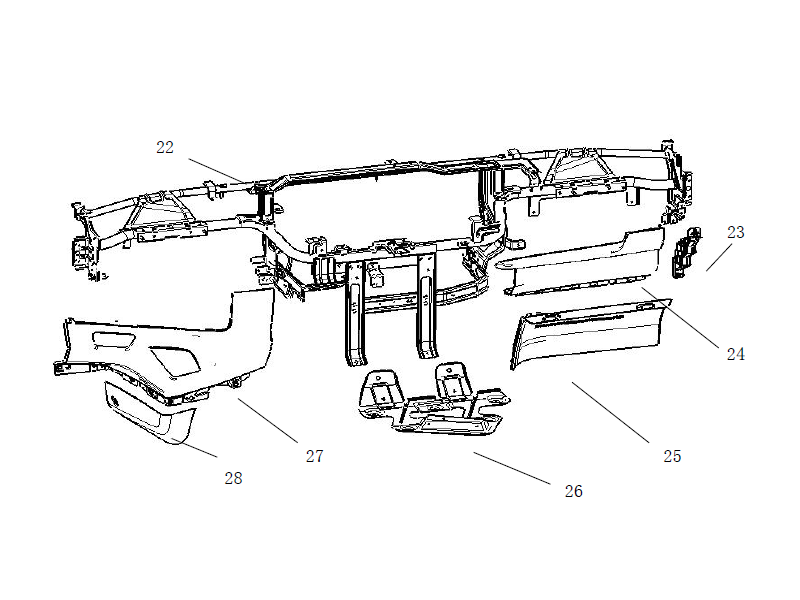

22 DZ16251161000 CCB assy 1 Cab6 / Cab5
23 DZ16251160120 IP bracket 1 Cab6 / Cab5
24 DZ16251160435 RH lower panel 1 Full Platform Universal
25 DZ16251160440 RH maintenance cover 1 Full Platform Universal
26 DZ16251160885 Console bracket 1 Cab6 / Cab5
27 DZ16251160230 Shiftting cover 1 Full Platform Universal
28 DZ16251160250 Lower shiftting cover 1 Cab6 / Cab5

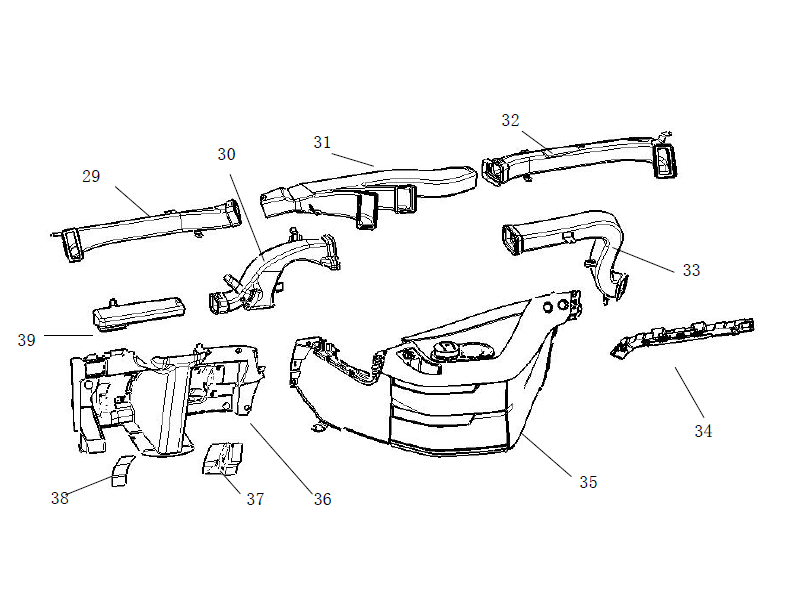

29 DZ16251160631 LH face blowing air duct 1 Cab6 / Cab5
30 DZ16251160640 LH foot blowing upper air duct 1 Cab6 / Cab5
31 DZ16251160630 Middle blowing air duct 1 Cab6 / Cab5
32 DZ16251160632 RH face blowing air duct 1 Cab6 / Cab5
33 DZ16251160645 RH foot blowing air duct 1 Cab6 / Cab5
34 DZ16251160141 RH maintenance cover bracket 1 Cab6 / Cab5
35 DZ16251160800 Console assy 1 Cab6 / Cab5
36 DZ16251160260 Steering column cover 1 Full Platform Universal
37 DZ16251160266 Brake pedal cover 1 Full Platform Universal
38 DZ16251160265 Clutch pedal cover 1 Full Platform Universal
39 DZ16251160643 LH foot blowing lower air duct 1 Full Platform Universal
