What is the SANY Relay Valve Pipe Connector Nstallation

  • The SANY Relay Valve Pipe Connector Nstallation is a precision-engineered assembly that ensures optimal performance of the pneumatic brake system by facilitating critical connections between components. This installation centers around the Relay Valve, which accelerates air delivery to the brake chambers for faster system response. The assembly incorporates precisely machined Connector Pipe sections that create secure pathways for air flow, while Fitting Elbow components enable directional changes in the air lines without pressure loss. A key element is the Fitting Adapter, which ensures compatibility between different thread types and port sizes throughout the system. The meticulous design of the SANY Relay Valve Pipe Connector Nstallation guarantees perfect alignment of all components, preventing air leaks and maintaining system integrity under demanding operating conditions. Proper implementation of the SANY Relay Valve Pipe Connector Nstallation is essential for maintaining the reliability and safety standards that define SANY’s braking systems, ensuring consistent performance in heavy-duty applications.

Parameters of SANY Relay Valve Pipe Connector Nstallation

No. Part No. Description Qty
1 60330808 Relay Valve 1
2 B210780000024 Fitting Elbow 2
3 B210780000746 Fitting Adapter 4
4 B210780000827 Connector Pipe 1

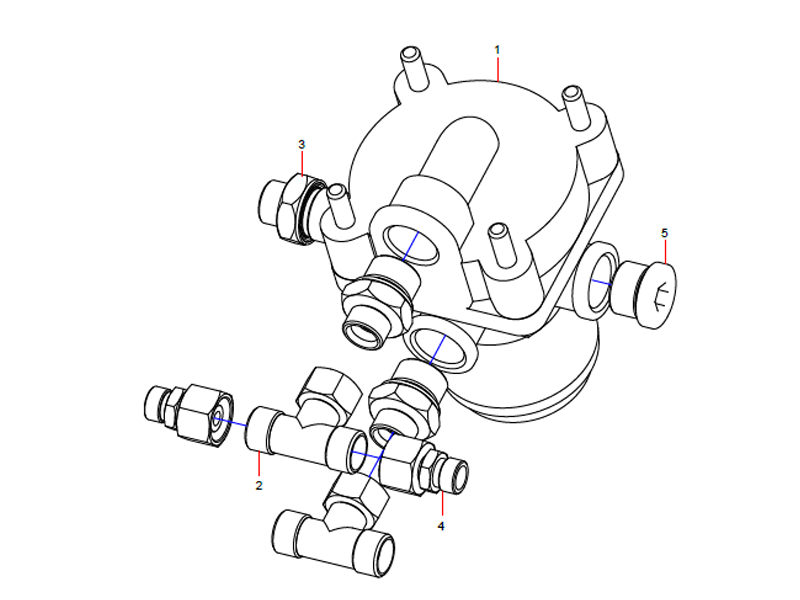

No. Part No. Description Qty
1 60330808 Relay Valve 1
2 B210780000019 Fitting, tee, L-shape 2
3 B210780000746 Fitting Adapter 3
4 B210780000827 Connector Pipe 2
5 B210780001395 Plug Screw 1

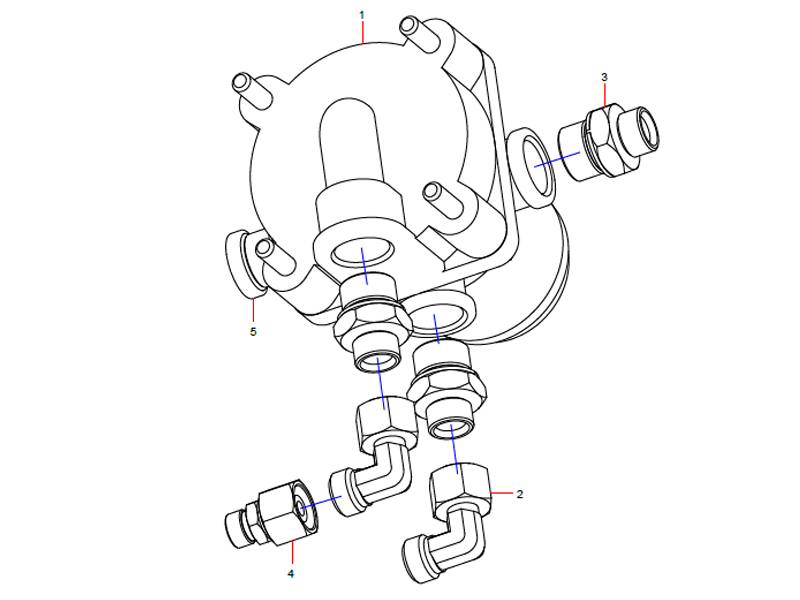

No. Part No. Description Qty
1 60330808 Relay Valve 1
2 B210780000024 Fitting Elbow 2
3 B210780000746 Fitting Adapter 3
4 B210780000827 Connector Pipe 1
5 B210780001395 Plug Screw 1
