SANY Radiatr And Pipe Installation

SANY Radiatr And Pipe Installation (1/4)
SANY Radiatr And Pipe Installation (1/4)
SANY Radiatr And Pipe Installation (3/4)
SANY Radiatr And Pipe Installation (3/4)
SANY Radiatr And Pipe Installation (2/4)
SANY Radiatr And Pipe Installation (2/4)
SANY Radiatr And Pipe Installation (4/4)
SANY Radiatr And Pipe Installation (4/4)

What is the SANY Radiatr And Pipe Installation

  • The SANY Radiatr And Pipe Installation for SANY dump trucks begins with thorough preparation and careful removal of old components. First, park the dump truck on flat, stable ground, engage the parking brake, and let the engine cool completely to avoid scalding from high-temperature coolant. Disconnect the battery (negative terminal first, then positive) to eliminate electrical risks. Gather necessary tools and parts: adjustable wrenches, pliers, a coolant drain pan, model-matching new radiator pipes/hoses, hose clamps, safety gloves, and goggles. Next, drain old coolant via the radiator’s drain plug into the pan (dispose per local rules), then loosen upper/lower hose clamps with pliers, remove hoses, and take off the cooling fan and shroud by unscrewing their bolts. This initial stage is critical for smooth SANY Radiatr And Pipe Installation.
  • The core part of SANY Radiatr And Pipe Installation involves installing the new radiator and connecting the pipes correctly. First, place the new radiator into the dump truck’s dedicated mounting brackets, align with the original position, then fasten firmly with bolts (torque per SANY’s specs to prevent looseness). For automatic transmission models, reconnect transmission cooler lines to the radiator’s ports, using sealing tapes if needed. Connect new radiator hoses to inlet/outlet ports: slide on hoses, position clamps 1-2 cm from ends, and tighten securely (not over-tightened). Check component fit repeatedly to meet SANY Radiatr And Pipe Installation requirements.
  • The final step of SANY Radiatr And Pipe Installation is system testing and debugging to confirm safety and functionality. First, reconnect the battery (positive terminal first, then negative) and pour recommended coolant into the radiator and expansion tank to the specified level (refer to the SANY dump truck’s manual for details). Start the engine, let it idle 5-10 minutes, and turn on the heater (if equipped) for full coolant circulation. Inspect all connections for leaks—if found, turn off the engine, fix or replace parts, then retest. Only when leak-free and coolant temperature normal is SANY Radiatr And Pipe Installation complete, ensuring stable engine operation under heavy loads.

Parameters of SANY Radiatr And Pipe Installation (1/4)

No. Part No. Description Qty
1 A210110000359 Bolt 4
2 14353390 Plate 2
3 131602000007A Damper 2
4 131699000003A Steel bushing 4
5 160801020047A Radiator 1
6 60000420 tubing-clamp 8
7 A210204000132 Screw 4
8 131602000008A Damper 2
9 A210307000017 Nut 13
10 A210307000001 Nut 13
11 A210111000101 Bolt 2
12 A210405000001 WASHER-HARD 8
13 14353646 BRACKET 2
14 A210110000013 Bolt 2
15 131602000009A Damper link 2

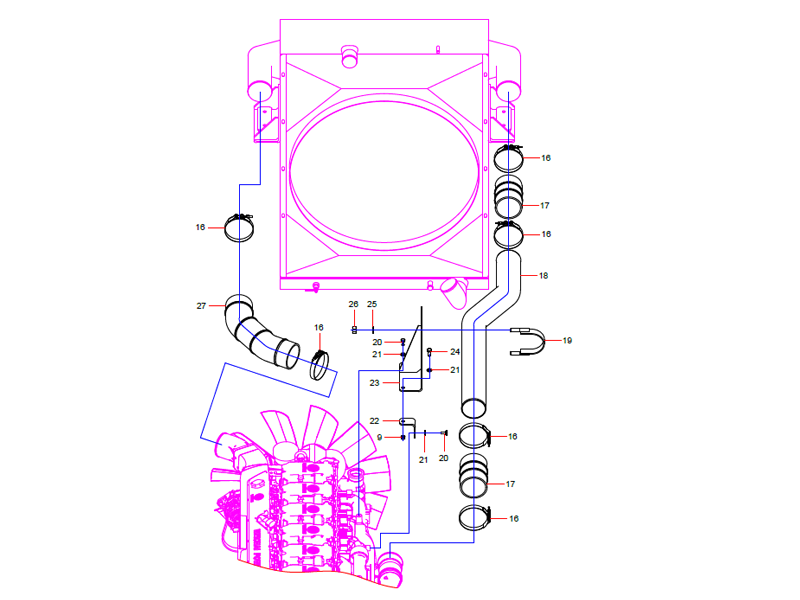

Parameters of SANY Radiatr And Pipe Installation (2/4)

No. Part No. Description Qty
9 A210307000017 Nut 13
16 60250992 T Model Anchor Ear 6
17 14353042 INTAKE PIPE 2
18 14355451 INTAKE PIPE 1
19 14353673 CLAMP 1
20 A210111000011 Bolt 2
21 A210405000011 WASHER-HARD 3
22 ODT004611557 Bracket 1
23 ODT004611584 Bracket 1
24 A210111000197 Bolt 2
25 A210405000003 Washer 2
26 A210307000040 Nut 2
27 14353267 INTAKE PIPE 1

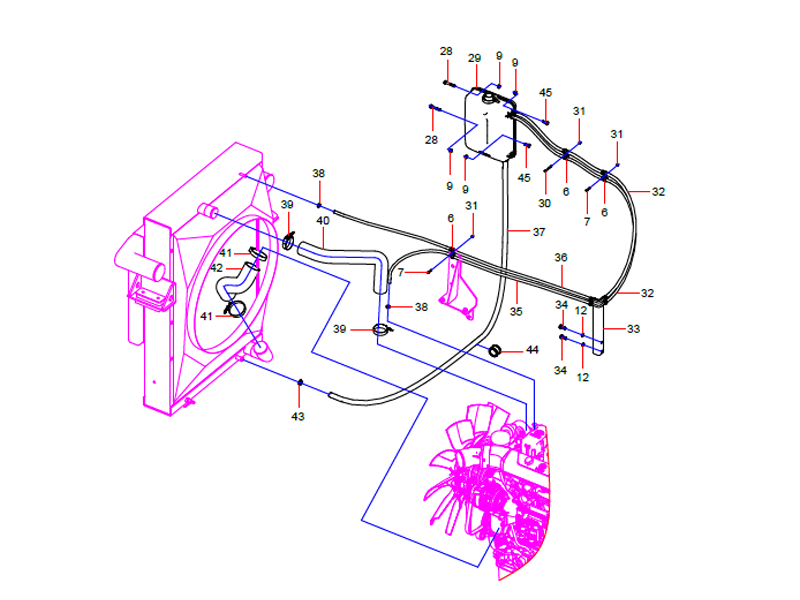

Parameters of SANY Radiatr And Pipe Installation (3/4)

No. Part No. Description Qty
6 60000420 tubing-clamp 8
7 A210204000132 Screw 4
9 A210307000017 Nut 13
10 A210307000001 Nut 13
12 A210405000001 WASHER-HARD 8
28 A210110000267 Bolt 2
29 160899000035A Expansion tank 1
30 A210204000138 Screw 1
31 A210307000016 Nut 3
32 14355730 PIPE 2
33 14353672 BRACKET 1
34 A210111000199 Bolt 2
35 14353393 PIPE 1
36 14353392 PIPE 1
37 14353391 PIPE 1
38 A210855000003 Clamp 8
39 60185863 T-type anchor ear 9
40 14353337 OUTLET PIPE 1
41 60250995 T-clamp spring 2
42 14353332 INTAKE PIPE 1
43 A210855000066 Throat collar 2
44 14429709 Sheath 1
45 A210111000018 Bolt 2

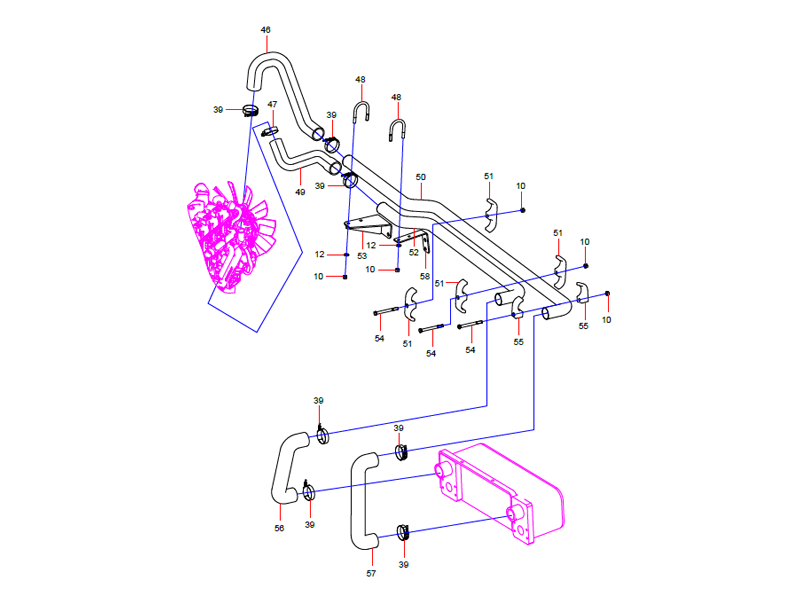

Parameters of SANY Radiatr And Pipe Installation (4/4)

No. Part No. Description Qty
10 A210307000001 Nut 13
12 A210405000001 WASHER-HARD 8
39 60185863 T-type anchor ear 9
46 14353621 RETURN PIPE 1
47 A229900002031 Clamp 1
48 21025050 U type bolt 2
49 14353622 INTAKE PIPE 1
50 ODT004700657 Return pipe 1
51 14509556 Clamp 4
52 ODT004700649 Intake pipe 1
53 14353641 BRACKET 1
54 A210110000005 Bolt 3
55 ODT004700673 Clamp 2
56 ODT004700660 pipe 1
57 ODT004700662 pipe 1
58 14345475 bracket 1
