What is the FAW Left Side Fire Wall Front Wall Wire Harness Straighten

  • The FAW Left Side Fire Wall Front Wall Wire Harness Straighten refers to the crucial process and assembly ensuring the precise positioning, routing, and protection of the wiring harness running along the driver’s side (left side) of the cab’s firewall and front wall in FAW commercial trucks. This specific task involves correctly aligning, securing, and straightening the harness bundle to prevent kinks, tension, or misalignment that could lead to wire fatigue, chafing against metal edges, or connection issues over time. Proper execution of the Left Side Fire Wall Front Wall Wire Harness Straighten is fundamental for long-term electrical reliability and safety in this high-vibration area.
  • Achieving and maintaining this optimal harness position relies on several dedicated mounting components:
  • Front Wall Wire Harness Left Bracket: A primary bracket specifically designed to anchor the harness securely to the cab’s front wall structure on the driver’s side.
  • Left Door Wire Harness Bracket: Positions and supports the harness section transitioning from the front wall towards the driver’s door.
  • Pipe Bundle Bracket Assembly: Provides robust support for sections where the harness might run alongside brake lines, fuel lines, or other piping (“pipe bundle”), keeping everything organized and separated.
  • The Left Front Wall Wire Harness Docking Box serves as a key connection hub in this area. It comprises:
  • Left Front Wall Wire Harness Docking Box Pedestal Assy: The structural base mounted to the cab, providing the foundation for the connectors.
  • Left Front Wall Wire Harness Docking Box Cover Assembly: A protective cover shielding the electrical connectors and terminals within the docking box from environmental hazards and accidental damage after the harness is straightened and connected.
  • Securing the straightened harness and all associated components demands robust hardware:
  • Hexagon Nut: Used in multiple critical locations (repeated as listed). Primarily, it secures the Front Wall Wire Harness Left Bracket, Left Door Wire Harness Bracket, Pipe Bundle Bracket Assembly, and Left Front Wall Wire Harness Docking Box Pedestal Assy firmly to the truck’s cab structure or frame studs. A second Hexagon Nut is typically used to fasten the Left Front Wall Wire Harness Docking Box Cover Assembly.
  • Pipe Bundle Clip: A specialized clip securing the wiring harness directly to the Pipe Bundle Bracket Assembly, ensuring it remains neatly bundled and routed alongside pipes without movement or abrasion.
  • Clamp: Used at strategic points along the harness run to provide additional grip and strain relief, preventing the straightened harness from sagging or vibrating excessively. Often used near the docking box or brackets.
  • Cable Ties: Essential for final bundling and securing of individual wire branches within the main harness bundle after straightening, ensuring a tidy, protected, and vibration-resistant installation along the left firewall and front wall.

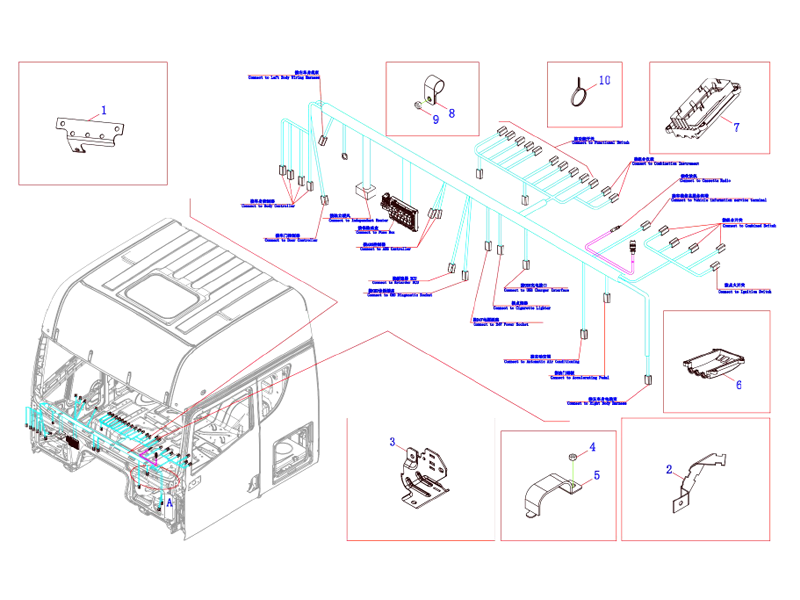

Product Parameters of FAW Left Side Fire Wall Front Wall Wire Harness Straighten

Order Part NO. Part Name And Standards Oty
Left Side Fire Wall Front Wall Wire Harness Straighten
1 3724603-DY806 Front Wall Wire Harness Left  Bracket 1
2 3724036-DY889 Left Door Wire Harness Bracket 1
3 3724610-Q4601 Pipe  Bundle Bracket Assembly 1
4 CQ34008 Hexagon Nut 1
5 3506453-DY806 Pipe Bundle Clip 1
6 3724965-2000 Left Front Wall Wire Harness Docking Box Cover Assembly 1
7 3724955-2000 Left Front Wall Wire Harness Docking Box Pedestal Assembl 1
8 Q68612 Clamp 1
9 CQ34106 Hexagon Nut 2
10 3723011-81W-C00 Cable Ties 6
