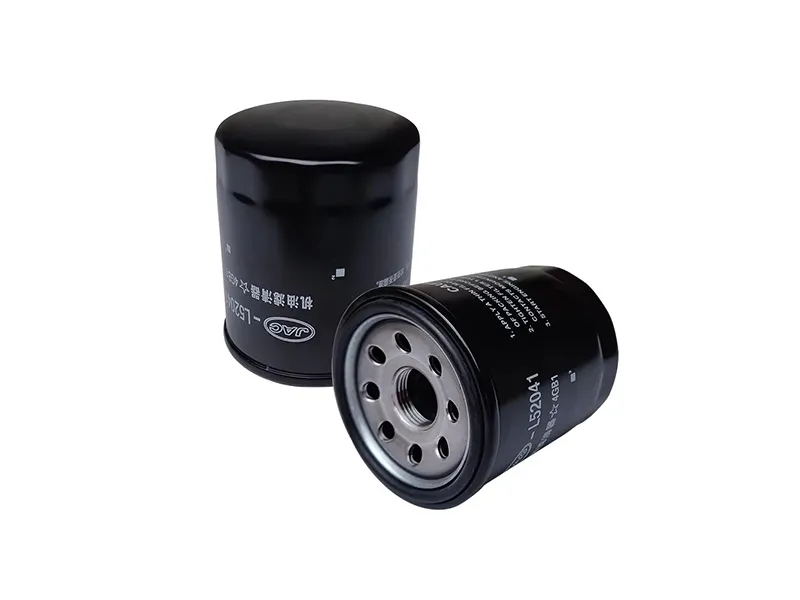

JAC Oil Filter

Discover premium JAC Spare Parts designed to transform your truck’s parts and performance. Our genuine components combine superior comfort, enhanced durability, and perfect fitment to elevate your driving experience.

JAC Oil Filter

Your JAC engine deserves nothing less than genuine jac oil filter technology. Our high‑performance oil filters trap microscopic contaminants, prevent premature wear, and extend oil change intervals. As a trusted supplier of JAC Parts, we offer a complete range of jac oil filter solutions for light trucks, medium trucks, and pickups. Discover how the right jac oil filter keeps your 4DA1, D25, or T6 engine running like new.

Get Expert Advice

Key Functions & Advantages of JAC Oil Filter

High‑Efficiency Media

Multi‑layer synthetic/cellulose blend captures particles down to 10‑15 μm, protecting bearings and turbochargers from abrasive dust and soot.

Extended Drain Intervals

Low flow resistance and high dirt‑holding capacity allow safe oil change intervals up to 10,000 km for light‑duty JAC engines.

Anti‑Drain Back Valve

Silicone anti‑drain back valve prevents dry starts by retaining oil in the filter after shutdown – critical for cold climates.

Genuine Fitment

Each jac oil filter matches OE sealing dimensions and thread pitch, eliminating leaks and warranty concerns.

Best‑Selling JAC Oil Filters – Direct OE Replacement

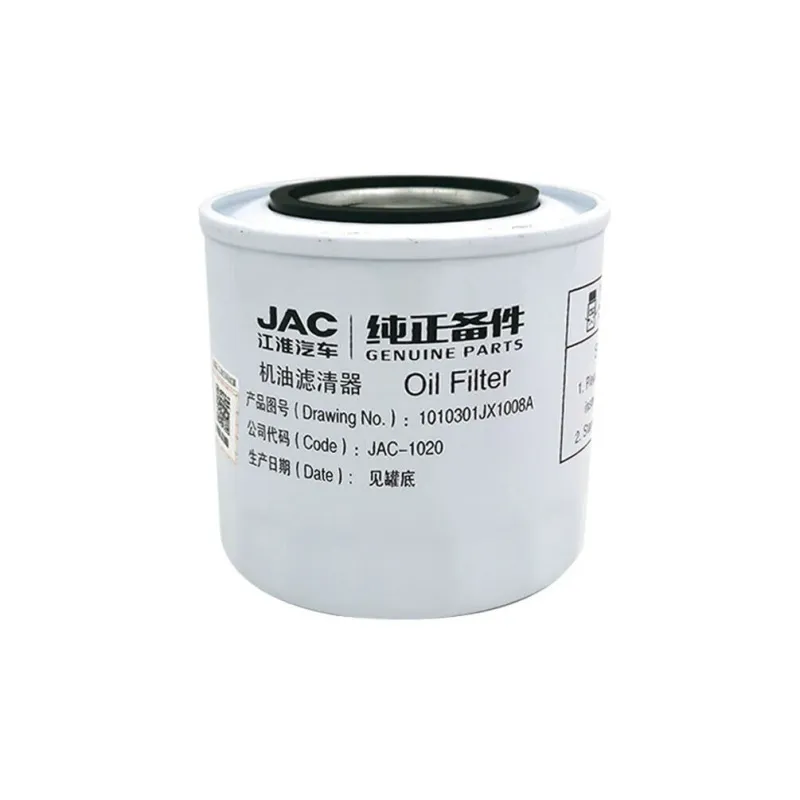

Light Truck Oil Filter

Light Truck Filter (JX1008A)

Part #1010301KX1008A – fits 4DA1 / 2.7L engines. 94×106mm, M20 thread.

Get Price
Medium/Heavy Truck Filter

Medium/Heavy Truck Filter (FD060)

Part #1010320FD060 – for D25/D30/Cummins 3.0. 108×130mm, M24 thread.

Get Price
Pickup Oil Filter

Pickup Filter (1010210GA)

Part #1010210GA – for T6/T8 2.0L/2.0T engines. 80×85mm, M18 thread.

Get Price

JAC Oil Filter – Detailed Specification Comparison

ParameterLight Truck (JX1008A)Medium/Heavy Truck (FD060)Pickup (1010210GA)
Part Number1010301KX1008A1010320FD0601010210GA
Fits Engine4DA1 / JAC 2.7LD25/D30 / Cummins 3.0T6/T8 2.0L / 2.0T
Outer Diameter × Height94 × 106 mm108 × 130 mm80 × 85 mm
Thread SpecificationM20 × 1.5M24 × 1.5M18 × 1.5
Filtration Micron10–20 μm10 μm (absolute)15–25 μm
Flow Capacity (L/min)25–3040–6520–25
Weight (kg)0.8–1.01.4–1.60.5–0.6

All jac oil filter units are pressure‑tested and meet OEM bypass valve specifications (1.5‑2.0 bar). Use only genuine JAC filters to maintain warranty compliance.

Compatible JAC Vehicle Models & Applications

JAC N120 / N200

4DA1 engine – uses JX1008A filter. Ideal for urban delivery.

JAC HFC1060 / HFC1080

D25 / D30 engines – uses FD060 heavy‑duty filter.

JAC T6 / T8 Pickup

2.0L / 2.0T engines – uses 1010210GA filter.

JAC Sunray / X200

Also compatible with JX1008A (light diesel variants).

Additional applications: JAC 1020/1040 pickup, JAC 3‑ton light trucks, and many more. Provide your VIN for exact filter cross‑reference.

Quality Assurance & Reliable Supply Chain

ISO 9001:2015 Certified

Every jac oil filter is manufactured under strict quality controls – 100% pressure tested.

Global Stock & Fast Delivery

Regional hubs in Asia, Europe, Americas ensure 2‑5 day express shipping.

Why Choose Us for Your JAC Oil Filter Needs

100% Genuine OE Specification

Exact match to original filter dimensions, threads, and bypass valve setting.

Bulk & Fleet Discounts

Special pricing for workshops and fleet operators – stock up at lower cost.

Free Technical Support

Installation guides, torque specifications, and filter cross‑reference service.

12‑Month Warranty

Free replacement for any manufacturing defect on all jac oil filter products.

Frequently Asked Questions – JAC Oil Filter

Q: How often should I replace my jac oil filter?
A: Every 8,000‑10,000 km for light trucks / pickups, or every oil change. For heavy‑duty use, replace at 12,000 km intervals.
Q: Can I use an aftermarket filter instead of genuine JAC?
A: While possible, we strongly recommend OE‑spec filters like our JX1008A/FD060 to avoid bypass valve mismatches and poor filtration.
Q: What is the bypass valve opening pressure?
A: 1.5 bar (21.7 psi) for light/medium filters; 2.0 bar for FD060 heavy‑duty version.
Q: Are these filters compatible with synthetic oil?
A: Yes, all our jac oil filter models are rated for full synthetic and semi‑synthetic oils.
Q: How do I dispose of a used oil filter?
A: Drain filter overnight, then recycle as per local regulations. We also offer recycling guidance.
Q: What is the difference between JX1008A and 1010210GA?
A> The JX1008A is larger (94mm OD) for 4DA1 engines; 1010210GA is compact for 2.0L pickups.

Common Engine Oil Issues & How the Right JAC Oil Filter Helps

Oil pressure warning light flickers
🔧 Clogged filter element – replace with genuine jac oil filter of correct micron rating (10‑20 μm).
Engine knocking or tappet noise
🔧 Dirty oil due to poor filtration – switch to high‑efficiency FD060 filter and use API CK‑4 oil.
Increased oil consumption
🔧 Worn piston rings often caused by abrasive particles – ensure filter media is intact and seal not bypassing.
Oil leak around filter housing
🔧 Wrong gasket size or over‑tightening. Use proper thread size (M20/M24/M18) and torque to 25‑30 Nm.

Customer Reviews – JAC Oil Filter

“I’ve been using the JX1008A oil filter on my JAC N120 for two years. Oil stays clean for the full 10,000 km interval. Highly recommended.” – Omar S., Fleet Operator, Kenya

“The FD060 filter for our D25‑engined JAC HFC1080 fits perfectly. Great build quality and fair price.” – Carlos R., Maintenance Manager, Chile

“Quick delivery of 1010210GA filters for our T6 fleet. Zero leaks and engine runs smoother.” – Li Wei, Workshop Owner, China

How to Correctly Install a JAC Oil Filter – Step‑by‑Step

1. Prepare – Warm up engine, drain old oil, remove old filter.
2. Lubricate gasket – Apply fresh engine oil to new filter’s rubber seal.
3. Hand‑tighten – Spin filter until gasket contacts, then 3/4 turn more. Never use a wrench to tighten.
4. Fill oil, start engine – Check for leaks, then verify oil pressure light goes off.

Following this procedure with a genuine jac oil filter ensures optimal engine protection and prevents dry starts. Always dispose of used filters responsibly.

Get Genuine JAC Oil Filter & Expert Technical Support

Keep your JAC engine running clean and efficient with high-quality jac oil filter solutions. Our team provides authentic oil filters for all JAC light trucks, medium trucks, and pickups, including models with 4DA1, D25, D30, and 2.0L T6/T8 engines.

Whether you need the JX1008A for N series, FD060 for heavy trucks, or 1010210GA for pickups, we are ready to assist you. Access our extensive catalog of jac oil filter products and keep your engine protected with minimal downtime.

Get Your JAC Oil Filter Quote Now

Get expert guidance on part numbers, cross‑references, preventive maintenance, and genuine JAC oil filter specifications for all light, medium, and heavy‑duty models.
