What is the FAW Wiper Assembly

  • The FAW Wiper Assembly is a critical safety and visibility system engineered for reliable performance in all weather conditions on FAW commercial vehicles. This integrated system ensures a clear windshield by effectively removing rain, snow, sleet, and debris. Designed for durability and consistent operation under demanding conditions, it combines robust mechanical components, a powerful motor, and optimized wiper blades to maintain driver visibility and safety.
  • FAW Transmission Mechanism Assy
    The core linkage translating motor rotation into wiper blade movement is the Transmission Mechanism Assy. This precision assembly, typically featuring durable rods, pivots, and crank arms, efficiently converts the rotational output of the Wiper Motor Assy into the precise back-and-forth arc motion required by the Wiper Blade Assy. Its robust construction minimizes flex and wear, ensuring synchronized and reliable wiper blade travel across the windshield for maximum coverage and cleaning efficiency.
  • FAW Wiper Motor Assy
    Providing the essential driving force is the Wiper Motor Assy. This powerful, sealed electric motor generates the torque needed to move the wiper arms and blades against wind resistance, heavy precipitation, and ice. Built for longevity, it incorporates thermal protection and reliable gearing to deliver consistent speed settings (intermittent, low, high) and withstand the electrical loads and environmental extremes encountered in truck operations.
  • FAW Wiper Blade Assy
    The direct contact point for windshield cleaning is the Wiper Blade Assy. Comprising a durable frame, tension springs, and a high-performance rubber squeegee element, this assembly is designed to maintain consistent pressure and conform to the windshield curvature. FAW utilizes blades optimized for effective wiping, resistance to streaking, and durability against UV degradation, temperature extremes, and abrasion from dirt, ensuring a clear sweep path.
  • FAW Wiper Sealing Sleeve
    Protecting the wiper system’s critical pivot points where the transmission arms pass through the vehicle’s cowl panel is the Wiper Sealing Sleeve. This flexible, waterproof boot forms a tight seal around the pivot shaft. It prevents water, dust, leaves, and road grime from entering the cabin and damaging the Transmission Mechanism Assy or wiper motor linkages, while allowing full, unrestricted wiper arm movement.
  • FAW Air Deflector Hinge Gasket
    Integrating aerodynamic and sealing functions is the Air Deflector Hinge Gasket. Mounted at the base of the wiper arm where it attaches to the pivot (often near the hinge point), this specialized gasket serves dual purposes:
  • Sealing: Prevents water ingress around the wiper arm mounting point.
  • Airflow Management: Helps streamline airflow over the wiper arm hinge area, reducing wind lift at high speeds to keep the wiper blades firmly planted on the windshield for optimal contact and cleaning performance.
  • Critical Fastening & Mounting Hardware
  • Hexagon Flange Bolt: Provides robust clamping force for securing major components like the Wiper Motor Assy or transmission brackets to the vehicle body. The integrated flange distributes load and enhances resistance to loosening under vibration.
  • Hexagon Flange Lock Nut: Used in conjunction with mounting bolts (like the Hexagon Flange Bolt). Its prevailing torque feature (nylon insert or deformed threads), combined with the load-distributing flange, ensures critical vibration-proof locking. This is essential for maintaining the precise alignment and secure mounting of the entire Wiper Assembly throughout its service life.
  • This comprehensive assembly guarantees FAW drivers maintain critical visibility, enhancing safety through reliable performance in all driving environments, secured by its robust components and vibration-resistant fasteners.

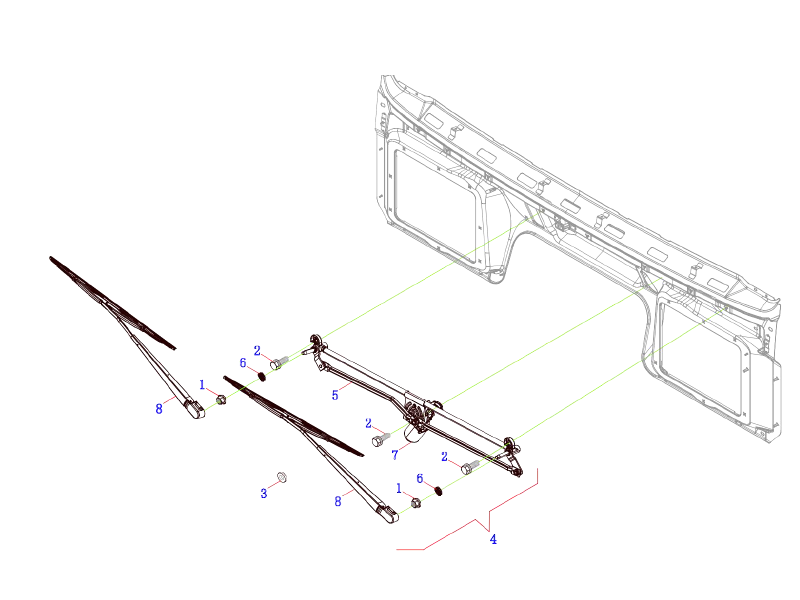

Product Parameters of FAW Wiper Assembly

Order Part NO. Part Name And Standards Oty
    Wiper Assembly 1
1 CQ32610 Hexagon Flange Lock Nut 2
2 Q1840835F6 Hexagon Flange Bolt 4
3 5704249-B45 Air Deflector  Hinge Gasket 6
4 5205010-B45-C00 Wiper Assembly 1
5 5205040-B45-C00 Transmission  Mechanism Assy 1
6 5205051-B45-C00 Wiper  Sealing Sleeve 2
7 5205020-B45-C00 Wiper Motor Assy 1
8 5205030-B45-C00 Wiper Blade Assy 1
